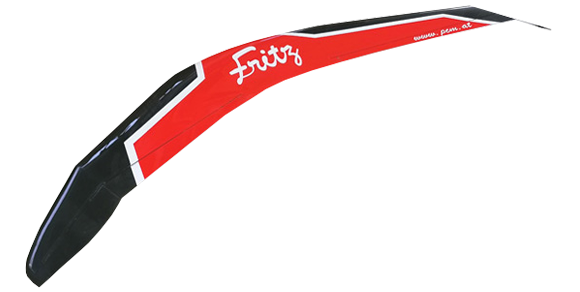

The first flying wing from PCM is born!
The new model is called FRITZ and has a wingspan of 1.5 meters. This extraordinary plane with the spectacular flight image takes your flying experience to a new level.
Construction
Wing
Shell made of airex und cascell as supporting material und 26g carbon non crimp fabric as outer skin
D-Box additionally reinforced with 39g carbon non crimp fabric
Leading edge additionally reinforced with glass fibre 2x 160g
Spar booms made of carbon / shear web made of balsa planked with glass / aileron-torsion webs made of carbon
Spars additionally reinforced in the area of the kink to the outer wings
Prefabrication
All rudders are cut and mountedwith kevlar
Openings for the servos are pre-fabricated, covers are enclosed
Most of the trim lead is already been glued in
Handle strips prepared for manual start
High start hook for bungee start is included
Rudder linkage over the kink is mostly pre-fabricated
Kitparts are included in kit
The building instruction will be available as a pdf-file for download
