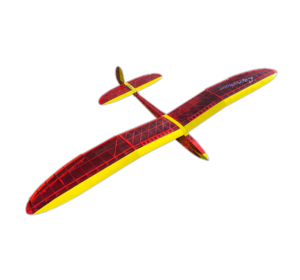

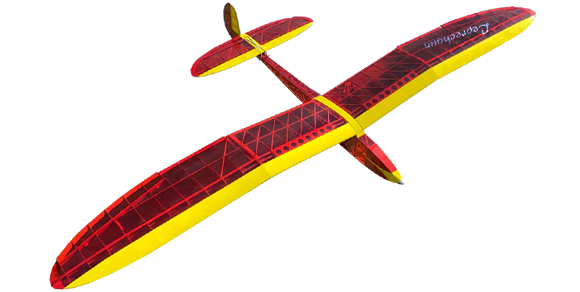

DANE RC Leprechaun XL

This building kit is redesigned with the greatest care by Dane-RC, to keep the elegant look and fell intended by the original creator; Dick Twomey. This model is a pleasure to both assemble and fly, due to the high precision parts that interlock perfectly. The kit includes all wooden parts needed for the assembly, motor and foil bought separately.

To coat the leprechaun XL  you will need about 12 mtr of foil in the base color and about 3 mtr in the contrast color, to make it as Dane RC version. The foil we have used on our Leprechaun is for base Oralight transparent red and for contrast Oralight camdium yellow

If you want to have it motorized, you have to buy the kit for motorset XL and the Hacker A30-18 M V2 with propeller 18×11″(4 lipocells)

The kit is designed for the following servos:

• Rudder: 1 pc. D-Power AS575BB MG – or DS-570BB MG placed i the front with wier to rudder, if you separate the fuselager you must use an D-Power AS- or DS-340BB MG  mounted in the tail
• Elevator: 1 pc. D-Power AS- or DS-840BB MG placed i the tail
• Ailerons: 2 pcs. D-Power AS- or DS-225BB MG
• Air brakes: 2 pcs. D-Power AS- or DS-225BB MG
