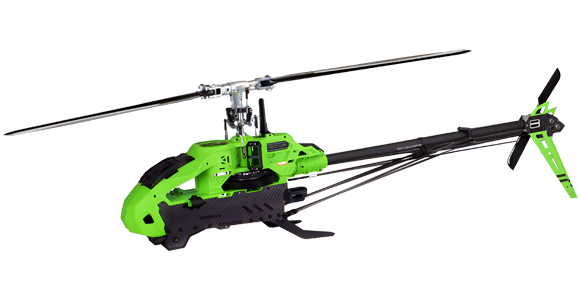

STEAM Miao 550 Pro

Radio-Controlled Helicopters for RC Pilots

Overview

Video

Images

Where to buy

No shop listed for this model yet.

🎛 Generate radio icon

Flight Skill

Intermediate

Build Skill

ARF/PNP

Specifications

Length: 1048 mm
Height : 325mm
Main Blade Length: 560mm
Main Rotor Diameter: 1260mm
Tail Rotor Diameter: 250mm
Motor Drive Gear: 15T
Main Drive Gear: 153T
Autorotation Tail Drive Gear: 42T
Tail Drive Gear: 9T
Drive Gear Ratio: 10.2:1:4.66
Weight(No power system):Approx.1600g
