TOMAHAWK AVIATION Levant F5J
Radio-Controlled Gliders for RC Pilots
Overview

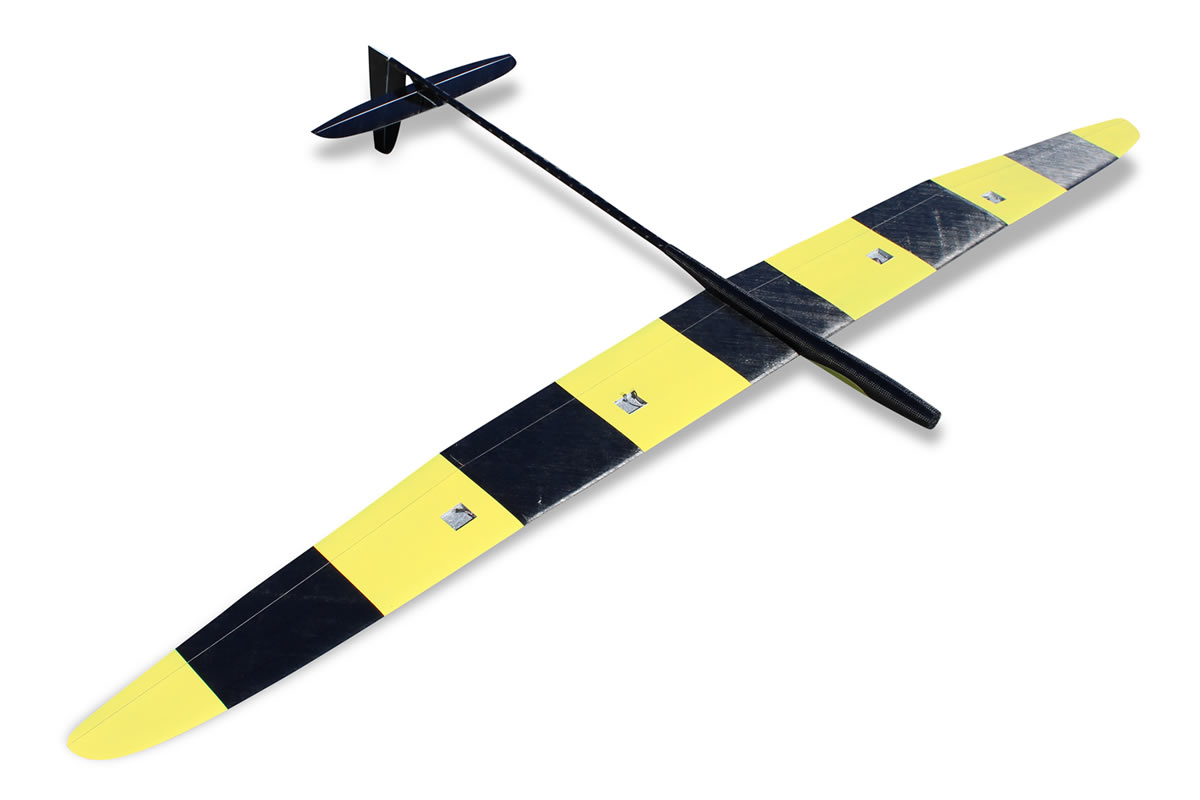

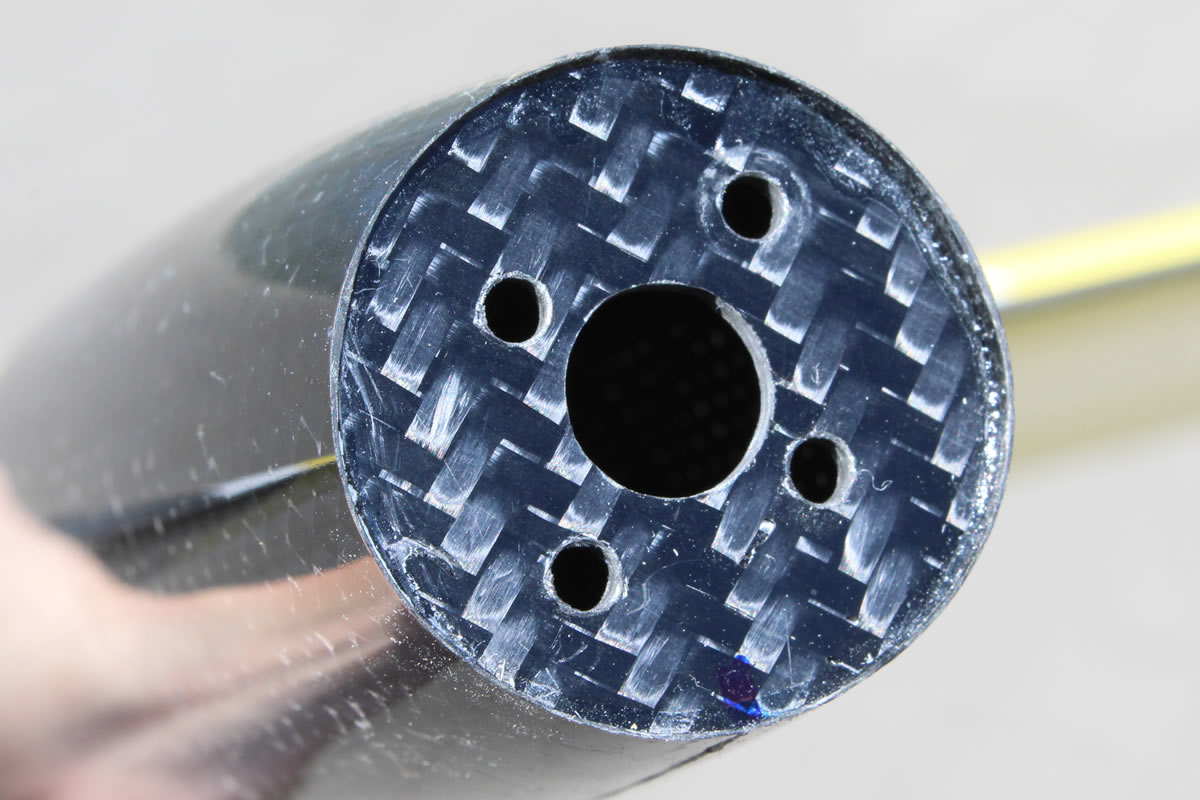

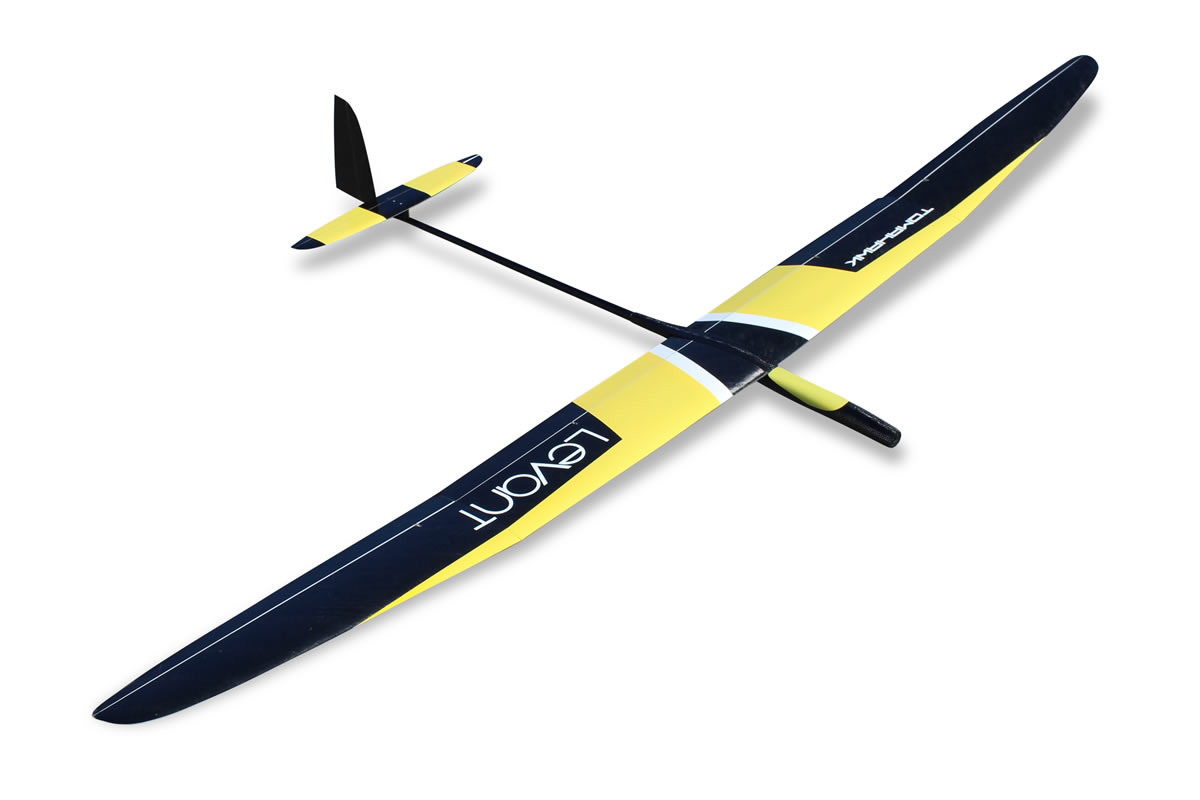

The Levant F5J ARF+ by Tomahawk Design is a purebred high-tech full-carbon model for the electric flight class F5J. It is extremely durable and light at the same time. This is mainly based on the elaborate carbon construction of selected materials. The fuselage is made in spread-tow carbon, which gives it tremendous rigidity at the lowest weight possible.

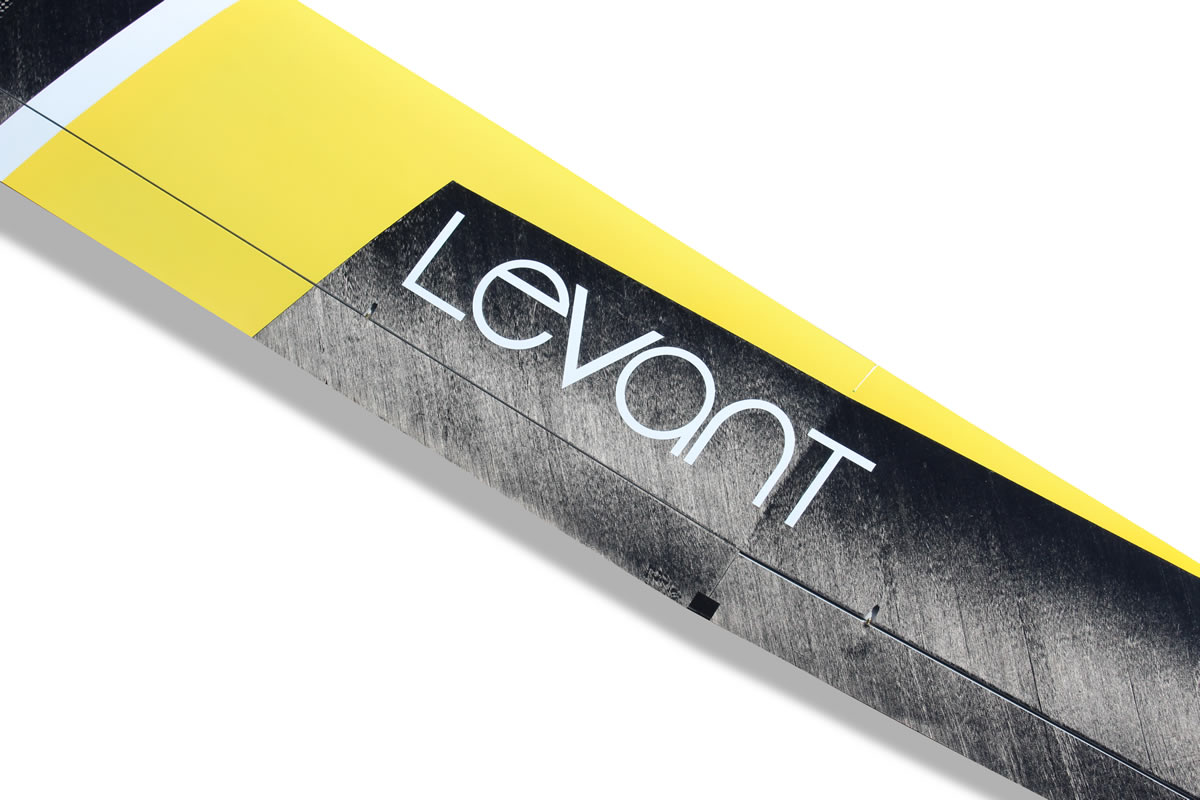

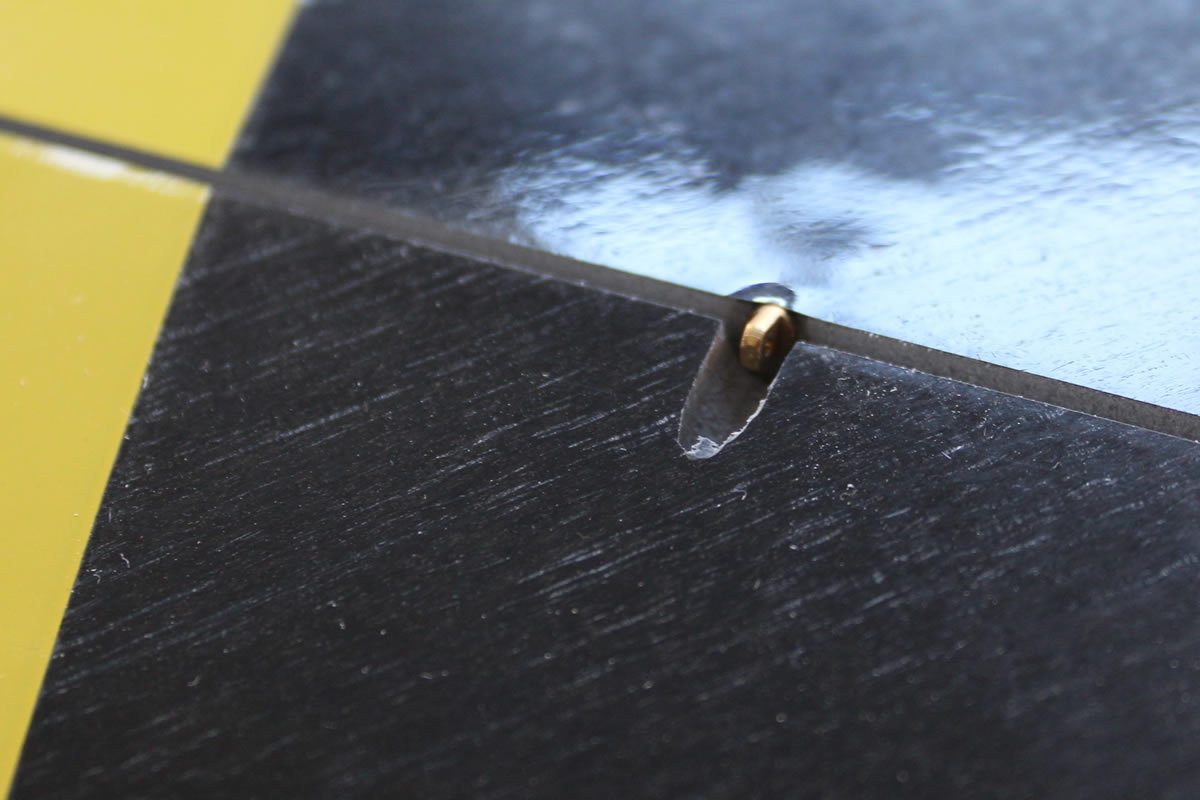

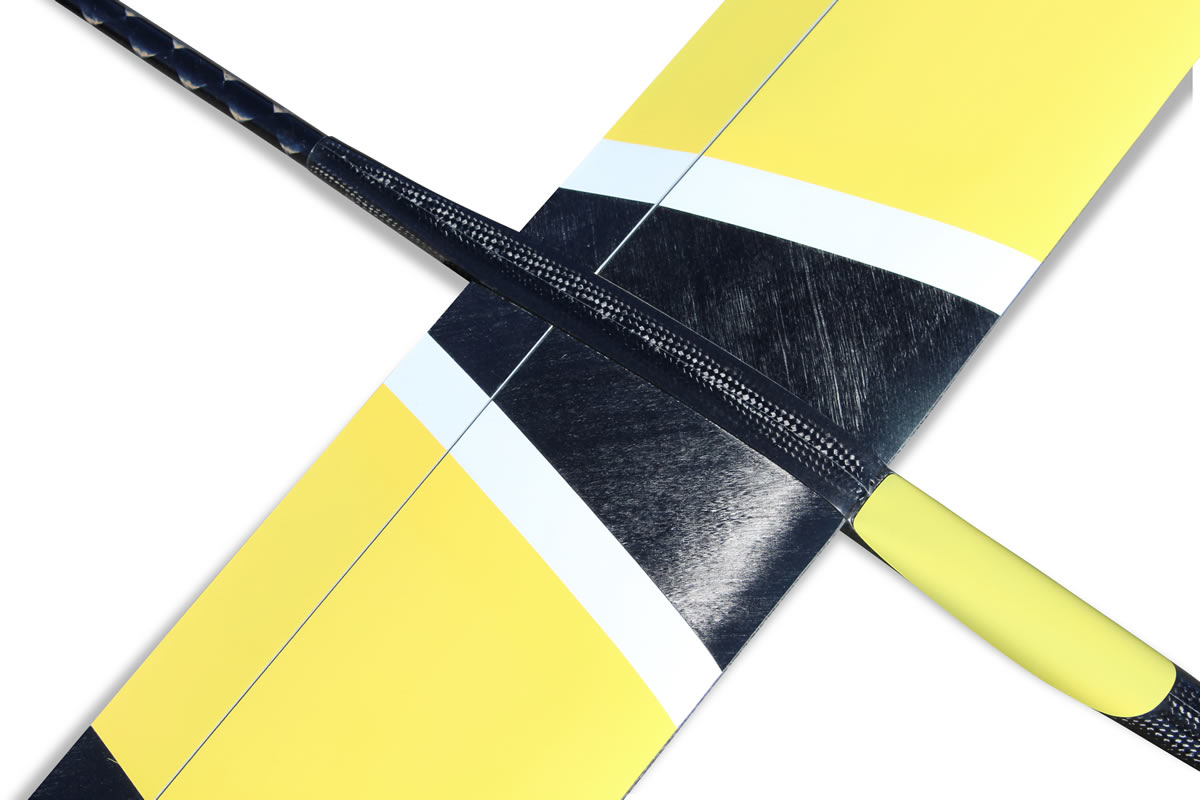

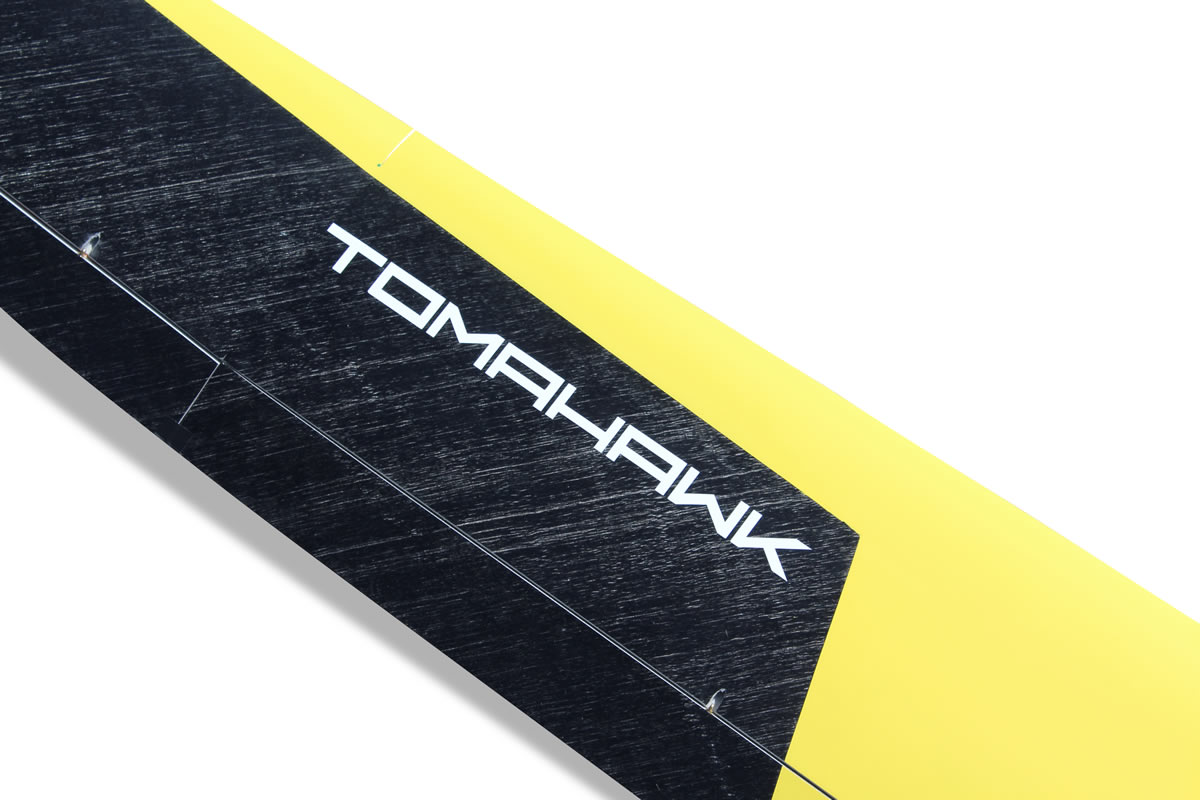

The two-piece carbon wing is made of biaxial carbon fabric on an Airex foam core and has an extremely high bending and torsional strength. The wing halves are connected to the fuselage and will be fixed with tape.The flaps articulation is classic cross. The empty weight is only about 450g, the flying weight about 700-780g.
The Levant F5J ARF+ has an exceptionally high degree of prefabrication for this class and comes with finished wiring and linkages, built in motormount, rudder-horns e.t.c.
As drive we use a brushless outrunner 2826-2200kv and a 30A regulator, which is designed for 3S 850mAh LiPo batteries. The entire drive has a great weight / power ratio and is thus tuned very efficiently.
Features:
• Full-carbon competition model of class F5J 400
• Model comes assembled ARF+ with wires and linkages mounted
• Fuselage in Spread-Tow Carbon
• Wing in biaxial carbon on Airex core
