F-86A Sabre from 3D LabPrint

Details

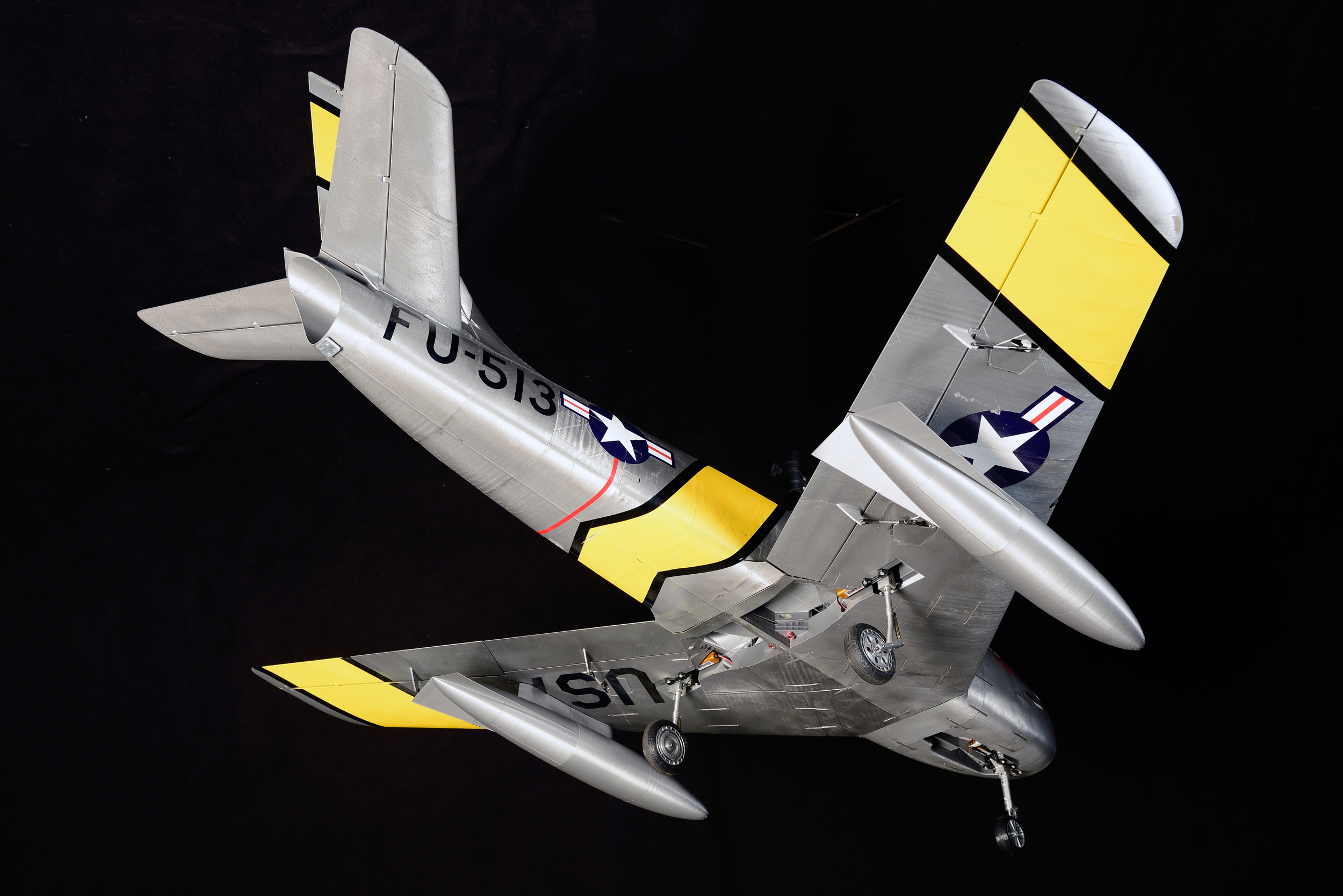

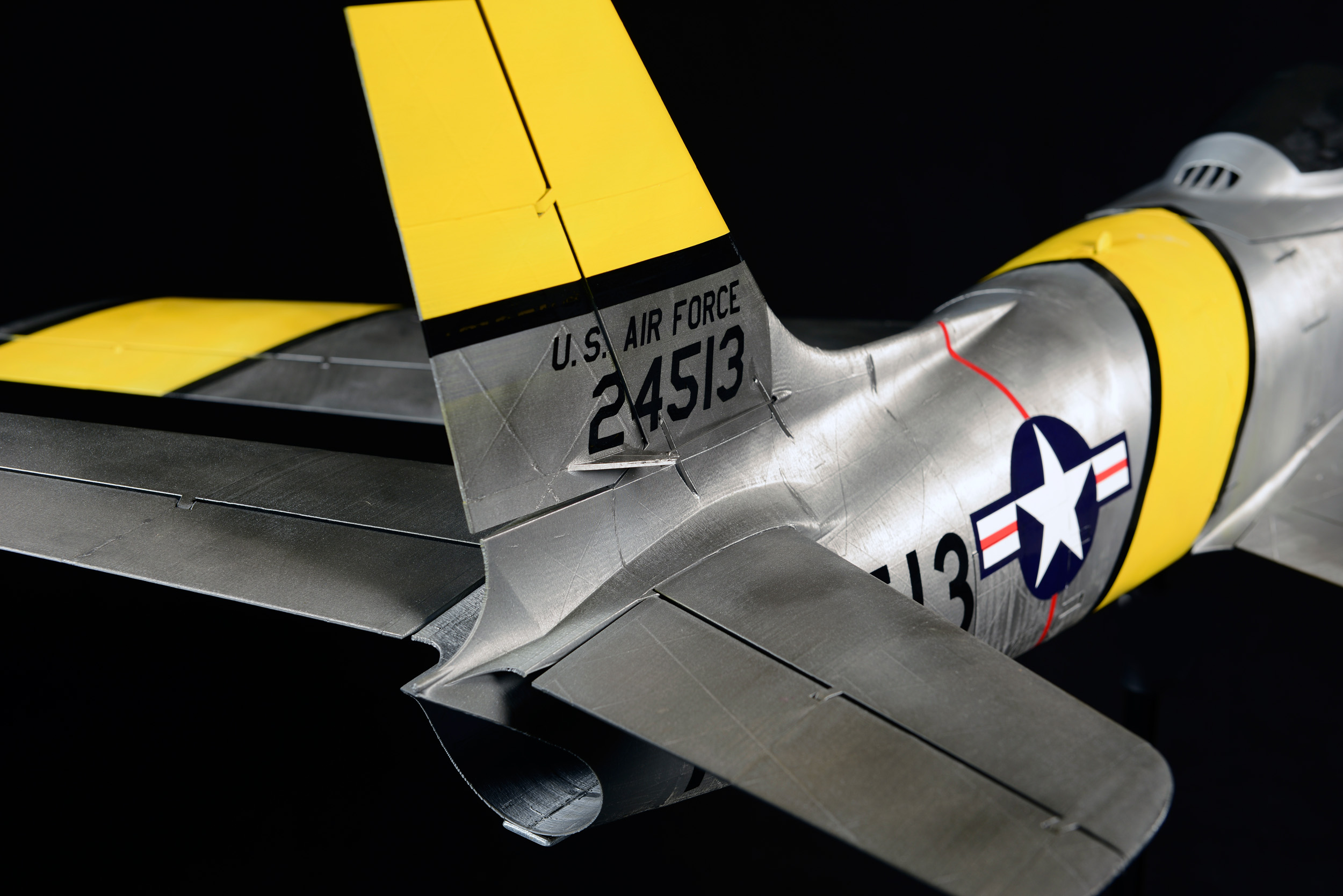

The F-86A Sabre has been probably the most demanded plane design ever. We’re listening to your wishes and introducing this same scale counterpart to our previously released MiG 15 BIS. Now you can compare these legends of the Korean air conflict on your own. Again this model is packed with many features, like working airbrakes, flaps, or retractable landing gear… Both planes are using the same 90 mm EDF unit, providing not only enough power, but also great sound on flybys.

The first fully printable airplane with suitable files prepared for your 3Dprinter. Flight characteristics are comparable or even better than classic build model airplanes.

Simply download and print it anytime you need only for $40 (filament cost). This is not a dream, now you can print this HI-TECH …. at home, print spare parts, and so on…

The wing and fuselage both feature extensive hitech 3d structural reinforcement, which makes the model very rigid while still maintaining lightweight airframe and exact airfoil, even when it is made only from plastic. This perfect and exact 3d structure is possible only due to additive 3dprinting technology.

Easy to assemble, you do not need any extra tool or hardware. You only need to glue printed parts together. The rest of the assembly is very easy. Simply add brushless motor, ESC, servos and radio system. Don´t worry, a detailed step by step PDF/VIDEO is included.





Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the F-86A Sabre in particular but at least we know they do distribute 3D LabPrint.

Wingspan: 1427mm (56.2 in)
Length: 1427mm (56.2 in)

Weight: 4760 g (10.5 lbs)
  • Length: 1427mm / 55.7 inch
  • Wingspan: 1427mm / 55.7 inch
  • Height: 560 mm / 21.8 inch
  • Wing area: 45,76 dm2 / 4.92 sq foot
  • Wing loading: 104 g/dm2 / 28 oz at sq foot
  • Center of gravity: 248mm (9.68 inch) from LE See CG tags on wings...
  • Airfoil: 3DLabPrint modified Print
  • Weight: 2485 g / 87.6 oz
  • Empty weight (w/o battery): 3900 g / 137.5 oz
  • Takeoff weight (2x 3s 3700 lipo): 4760 g / 167.9 oz
  • Max takeoff weight: 5500 g / 194.0 oz
  • Never exceed speed, VNE: 200 km/h / 125 mph
  • Design maneuvering speed, VA: 120 km/h / 75 mph
  • Stall speed: 50 km/h / 15 mph
