Messerschmitt BF 109T from 3D LabPrint

Details

Originaly the carrier version of Bf109 had the increased wingspan and ailerons. As opposed to H/F version it features different nose and wing shape. You can have the belly landing Messerschmitt or it can be equipped with fixed landing gear conversion and same as the H/F variant with bigger horizontal stabilizer for better handling.

The first fully printable airplane with suitable files prepared for your 3Dprinter. Flight characteristics are comparable or even better than classic build model airplanes.

Simply download and print it anytime you need only for $10 (filament cost). This is not a dream, now you can print this HI-TECH …. at home, print spare parts, and so on…

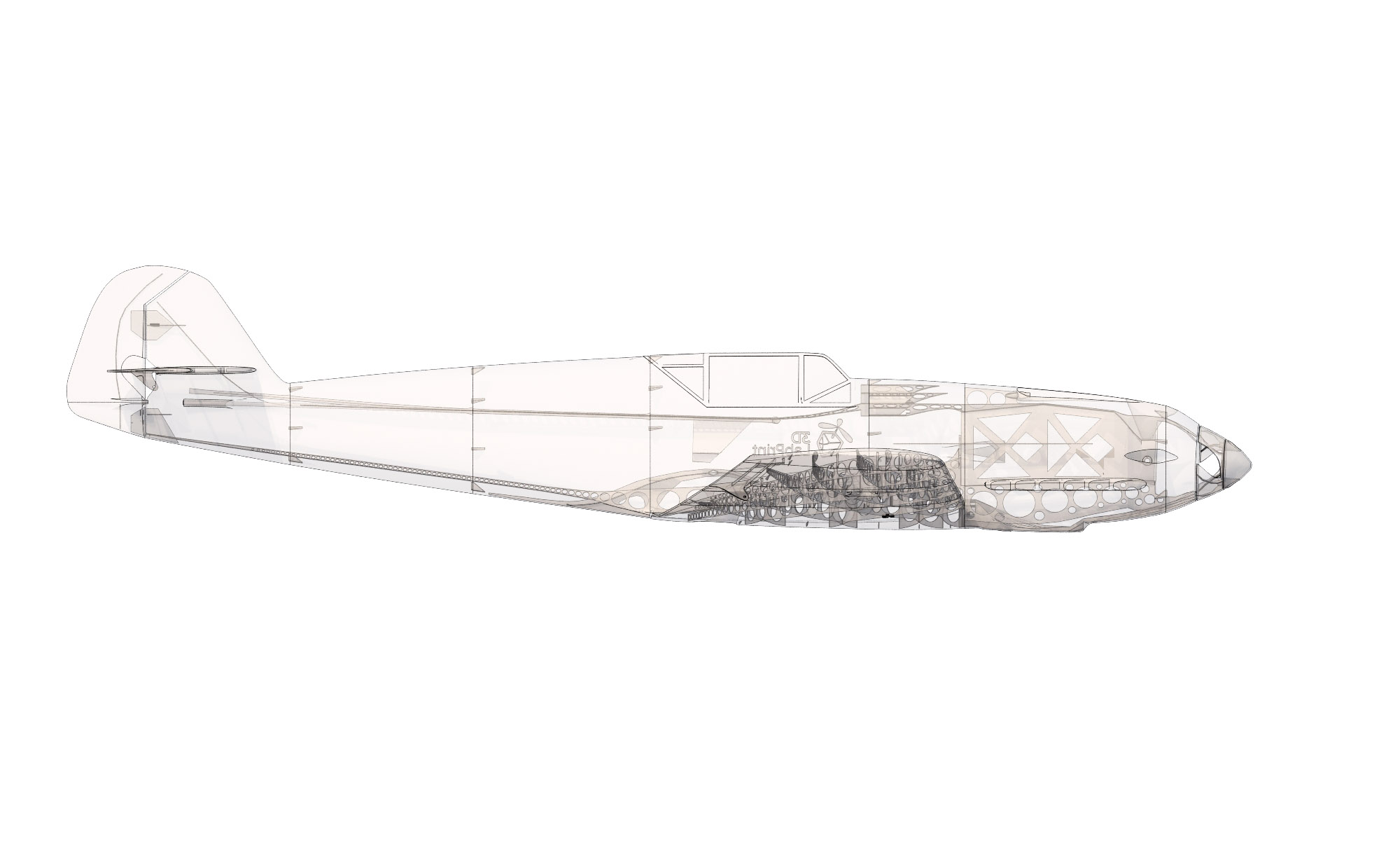

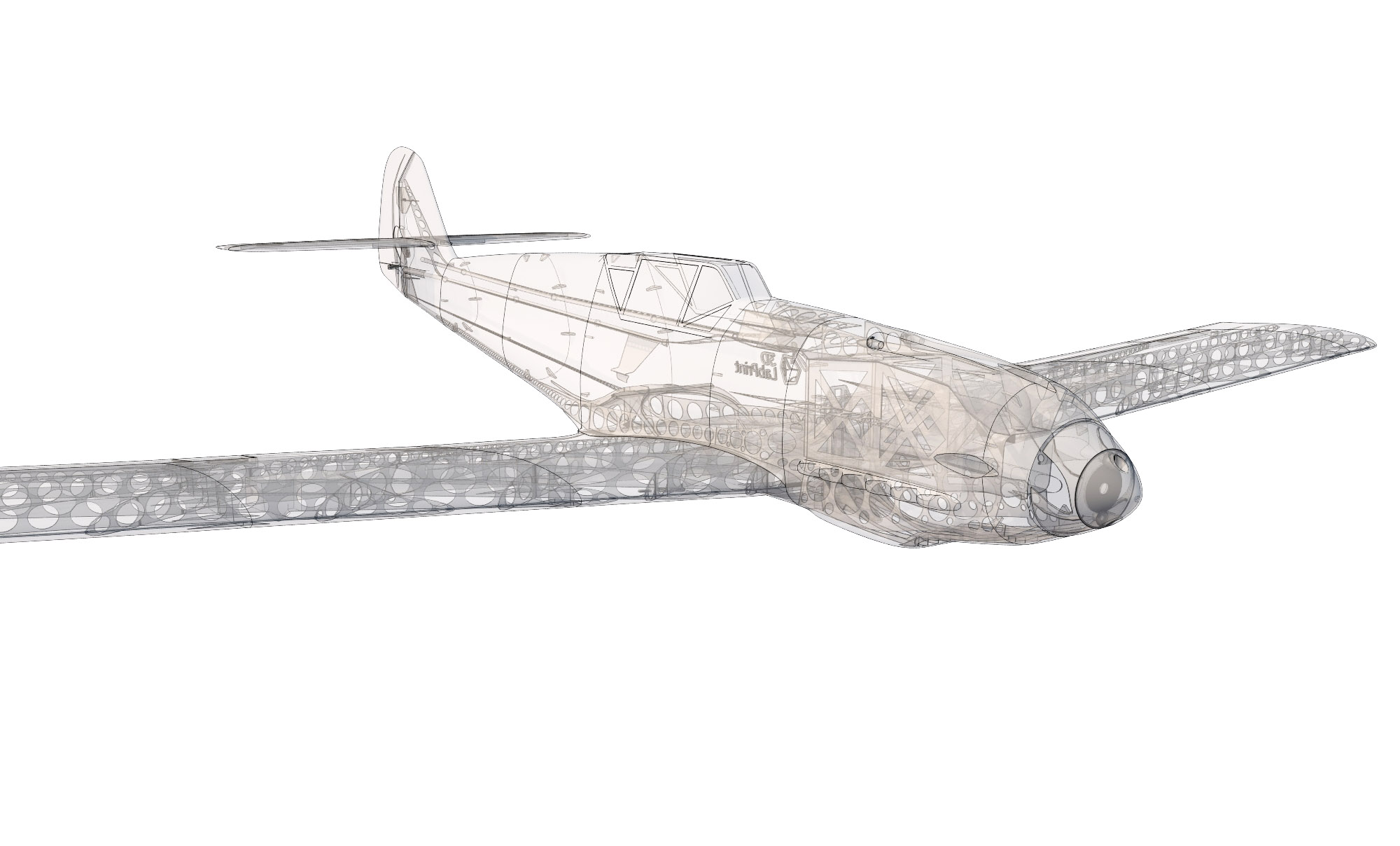

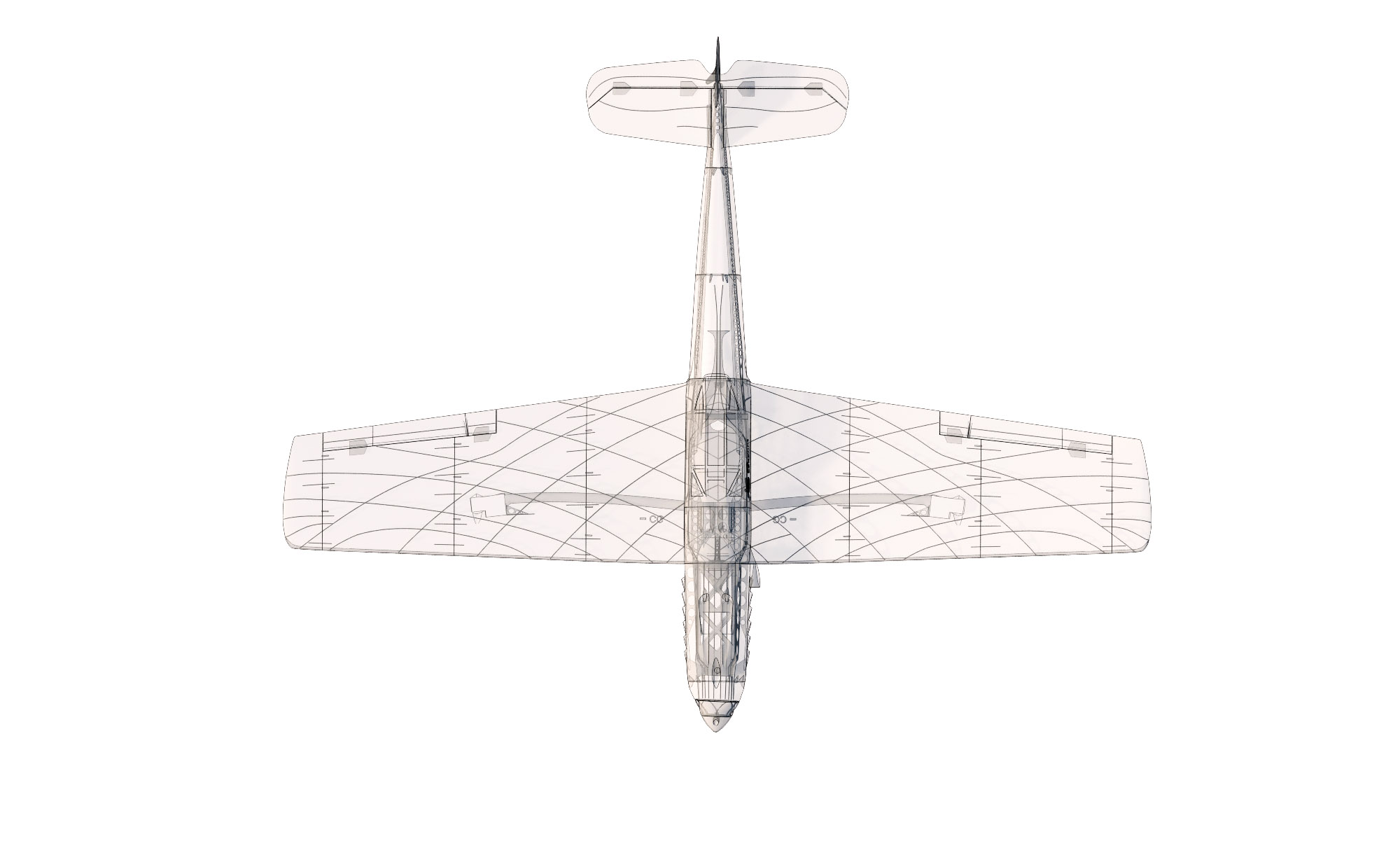

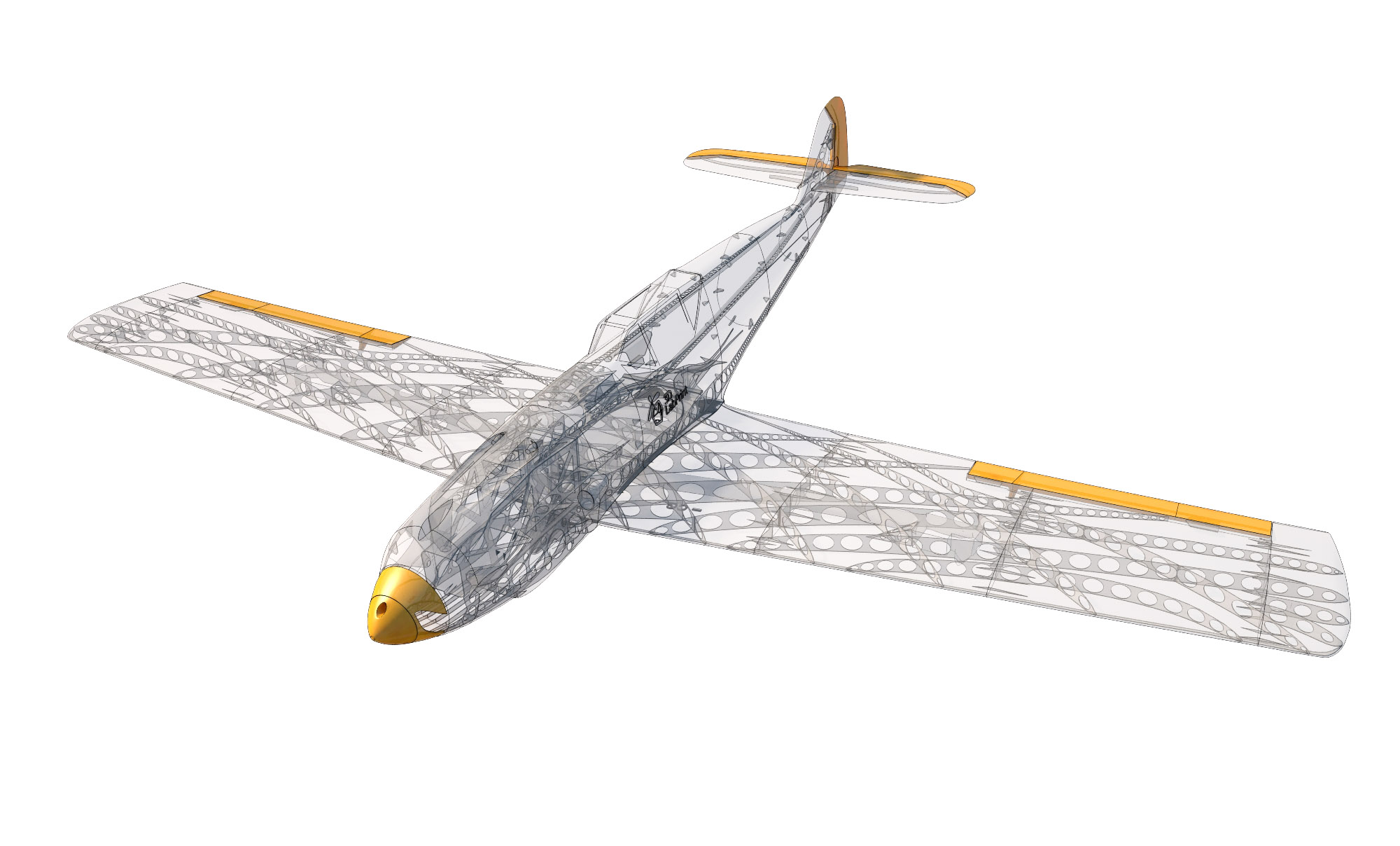

The wing and fuselage both feature extensive hitech 3d structural reinforcement, which makes the model very rigid while still maintaining lightweight airframe and exact airfoil, even when it is made only from plastic. This perfect and exact 3d structure is possible only due to additive 3dprinting technology.

Easy to assemble, you do not need any extra tool or hardware. You only need to glue printed parts together. The rest of the assembly is very easy. Simply add brushless motor, ESC, servos and radio system. Don´t worry, a detailed step by step PDF/VIDEO is included.

Pictures

Manual

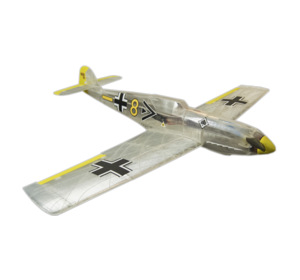

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Messerschmitt BF 109T in particular but at least we know they do distribute 3D LabPrint.

Wingspan: 978mm (38.5 in)
Length: 771mm (30.4 in)

Weight: 821 g (1.8 lbs)
  • Length: 771mm, 30.35in
  • Wingspan: 978mm, 38.5in
  • Height: 170mm, 6.7in
  • Wing area: 17.5 dm2
  • Wing loading: 51.0 g/dm2
  • Airfoil: aircombat modificated
  • Print weight: 410g(14.5oz)
  • Takeoff weight (6s 1300 lipo): 821g(28.9oz)
  • Max takeoff weight: 960g(33.8oz)
  • Never exceed speed, VNE: 205km/h
  • Design maneuvering speed, VA: 165km/h
  • Stall speed, VS: 33km/h

Recommended Equipment:

  • Propeller: aeronaut ELP 9/6 or APC 9/6 – 9/7.5
  • Motor: AX-4008Q/620KV, 22pole brushless HE electric motor
  • ESC: Castle Creations TALON 25
  • Battery: Turnigy nanotech 1300 mAh/6s/22.2V, 206g, 25C
