X-100 Infinity Wing from 3DAeroventures

Details

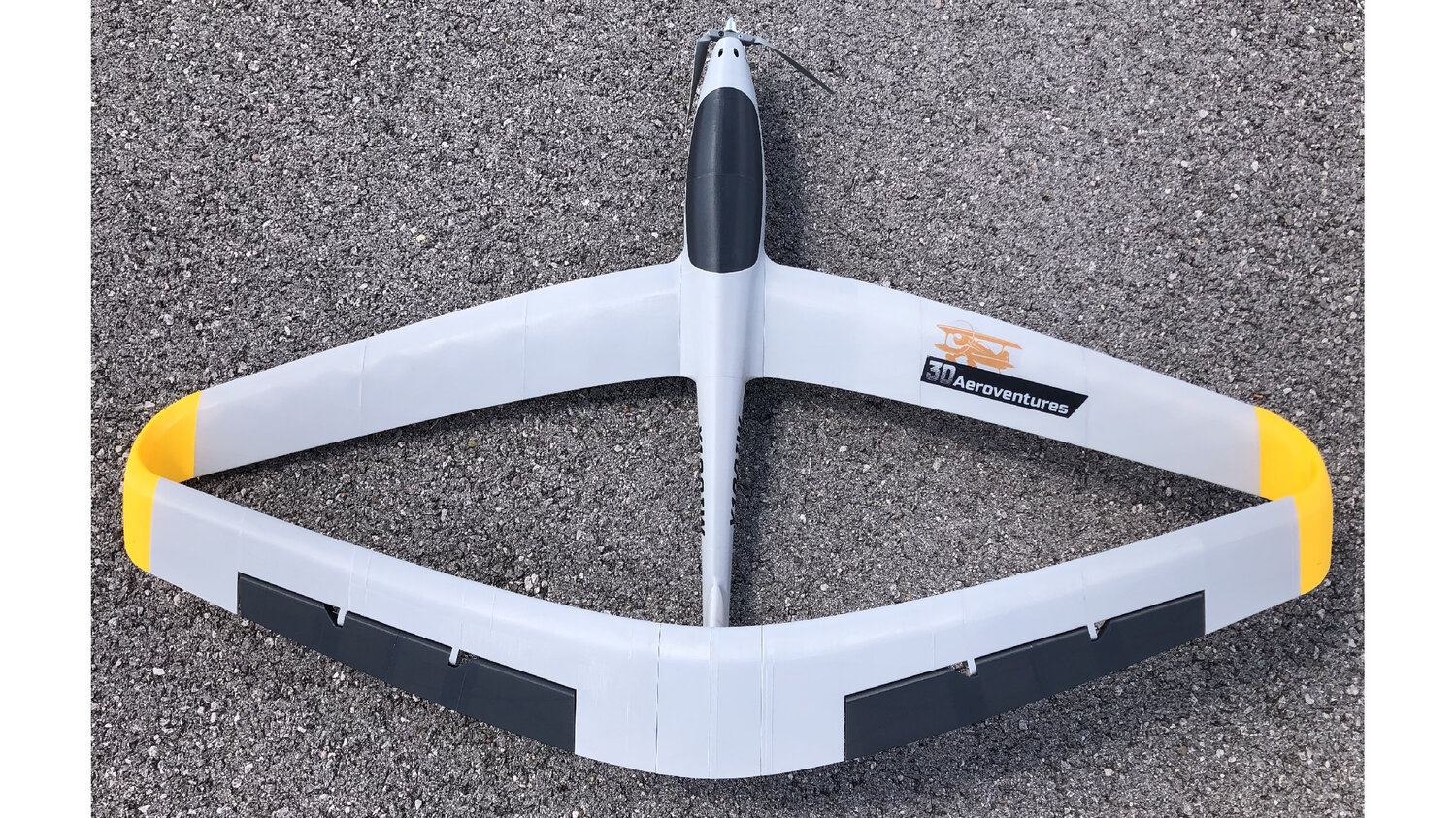

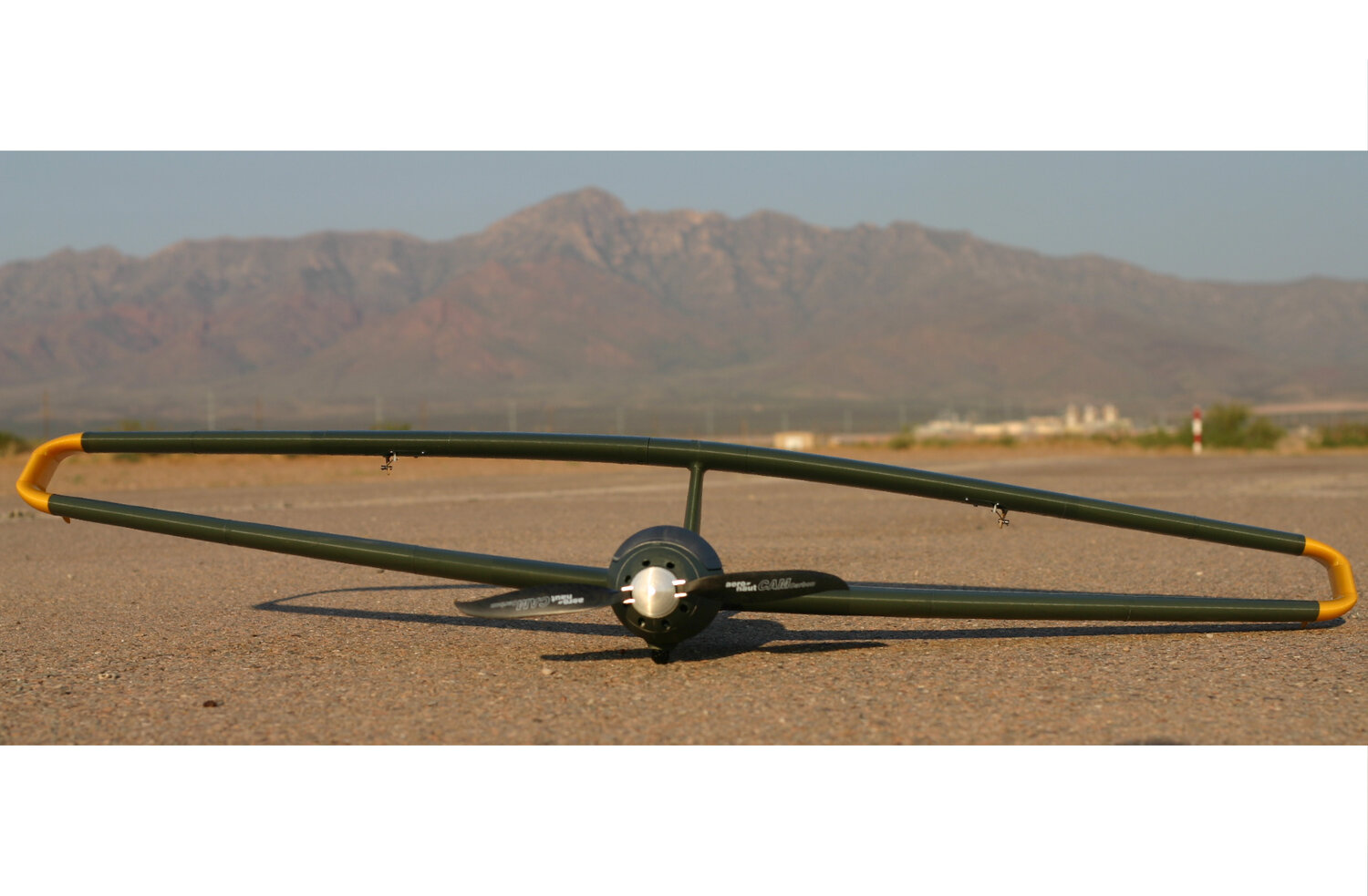

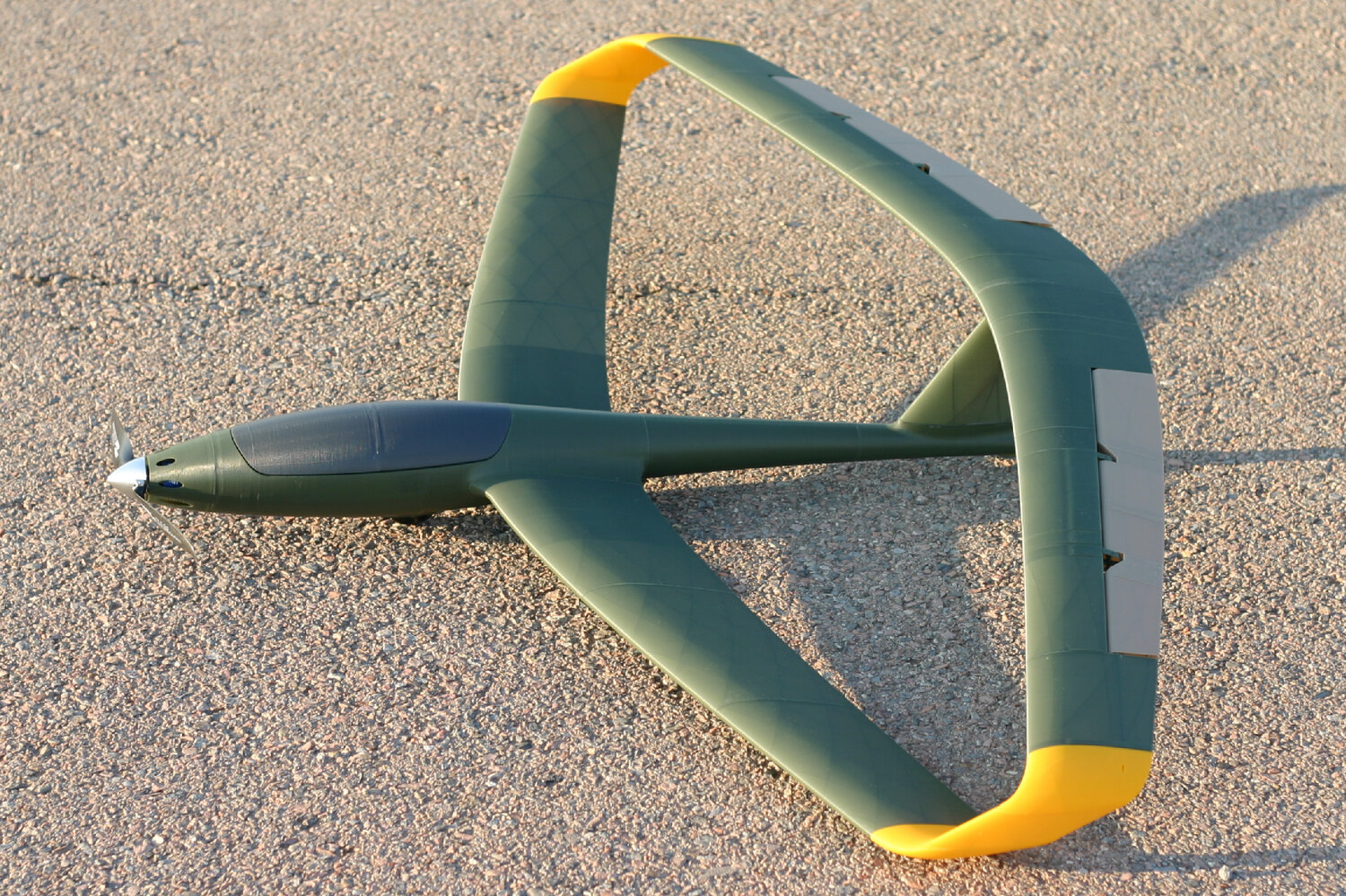

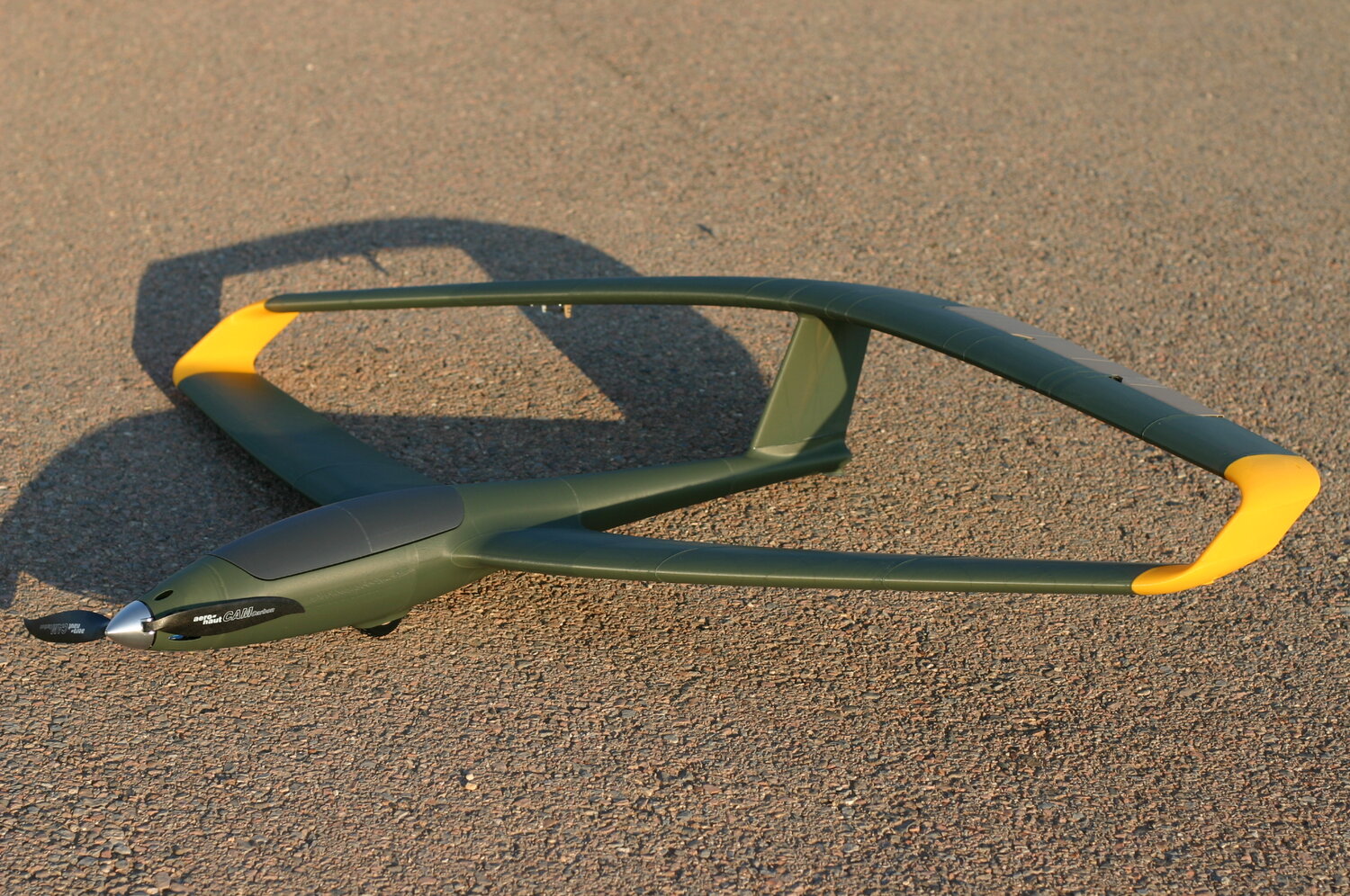

The X-100 Infinity Wing is a 3DAeroventures original design which features a very unique wing configuration that is rarely modeled and seldom seen in full-scale aircraft.  Sometimes called a closed wing, joined wing or box wing, this configuration’s unique wing tip design not only has structural benefits, but is expected to come with some aerodynamic advantages, namely the reduction of wingtip vortices.  Wingtip vortices form a major component of wake turbulence and are associated with induced drag, which is a significant contributor to total drag in most aircraft.

Features:

  • Simple, 3-Channel setup: Throttle, Aileron, and Elevator (Elevons) requires only 2 servos

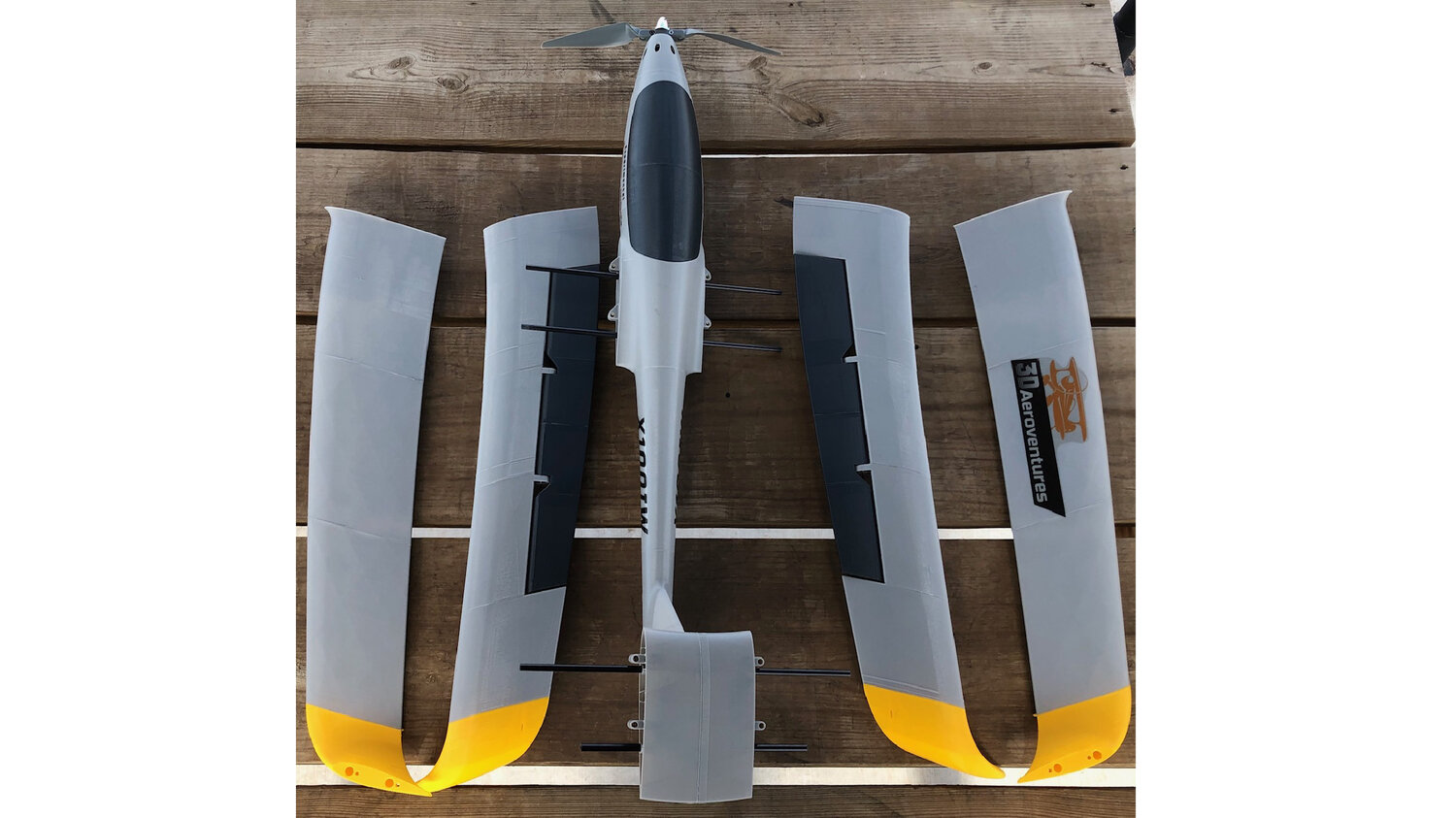

  • Removable wings for easy transportation
  • 3D printable TPE/TPU belly wheel for landing on grass or paved runways
  • Lightweight, strong design suitable for sport aerobatics
  • Recommendations for premium and budget electric motors

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the X-100 Infinity Wing in particular but at least we know they do distribute 3DAeroventures.

Where to buy


Wingspan: 1270mm (50 in)
Length: 879mm (34.6 in)

Weight: 1450 g (3.2 lbs)

Wingspan: 1270 mm (50")
Length: 879 mm (34.6")
Height: 242.5 mm (9.5")
Wing Area: 28.3 dm² (437.5 in²)
Wing loading: 50.23 g/dm² (16.46 oz/ft²)
CG: 20mm in front of the traling edge of the wing root

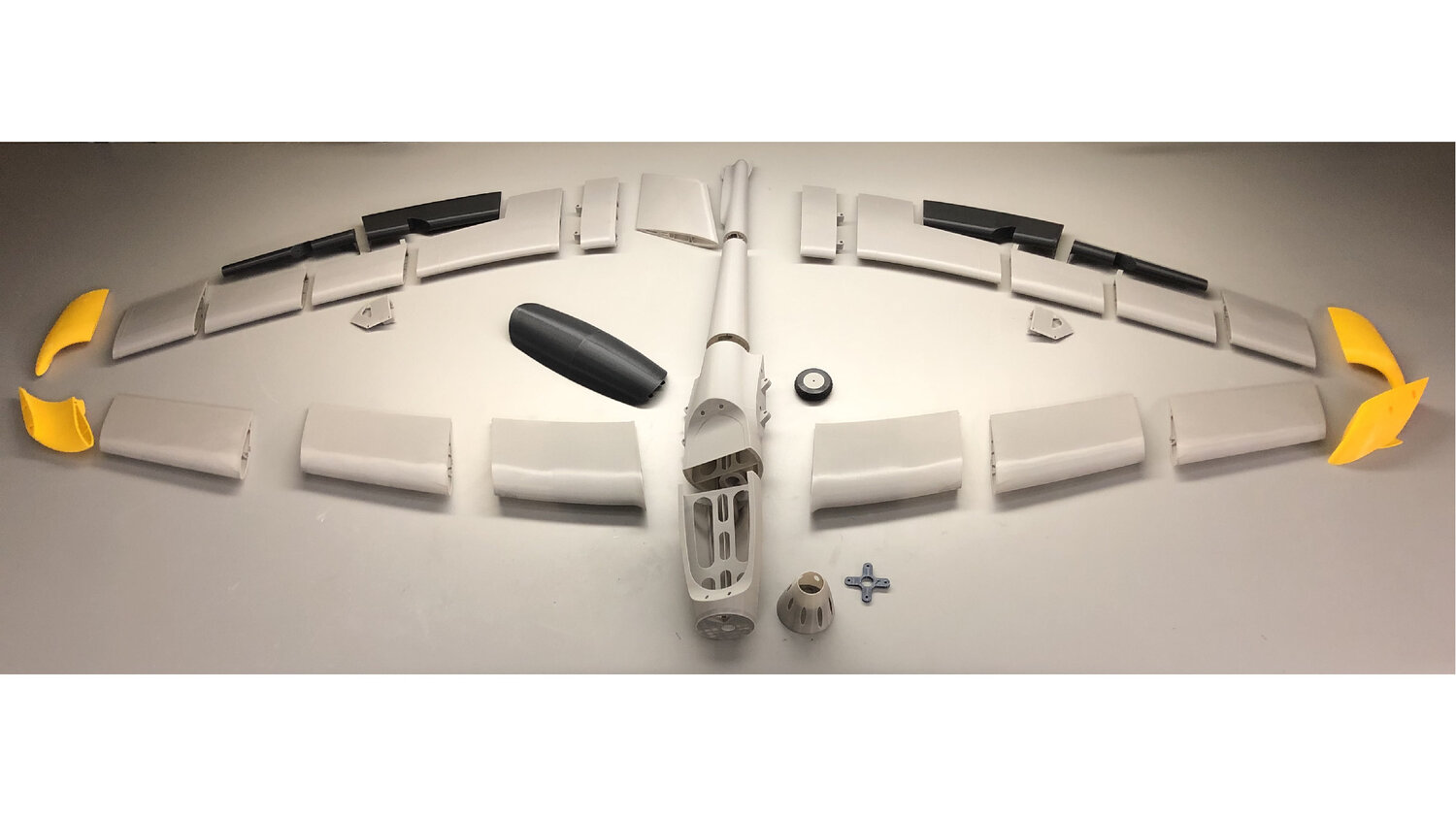

Weight of Printed parts: 933 to 963 g (32.9 to 34 oz)
Flying weight (3S 2200 mAh): 1390 to 1450 g (49 to 51.1 oz)
Recommended max flying weight; 1800 g (63.5 oz)
