Edge 540 58" V2 from 3d hobby shop

Details

This mid-sized Edge 540 joins the outstanding 57-59" 3DHS lineup with hardcore 3D performance and wicked good looks.  Employing the Scott Stoops aerodynamics pilots have been enjoying on the 41", 48" and 74" Edges, the 58" has the high pitch rate, super-stable harrier, super-slow knife edge, easy hover and everything you need to put on your best 3D exhibition.  The straight leading edge of the main wing gives excellent resistance to tip-stalling, so the 58" Edge is easy to harrier turn in an extremely tight radius and wont bite!

The 58" Edge includes a carbon wingtube, carbon one-piece landing gear, a carbon-reinforced landing-gear attachment system, genuine ultracote, complete hardware, canopy hatch latch, aluminum axles, hinges installed in control surfaces, and all of the 3DHS quality features pilots have come to expect.

The 58" Edge is extremely flexible on power system requirements, using 4S to 6S lipo. Use qty 4 Mid-size servos with metal gears such as Hitec HS-225MG and a transmitter with dual rates and exponential. With two super-high visibility color schemes to choose from, the 58" will get you noticed at any field and deliver exactly the performance you want.

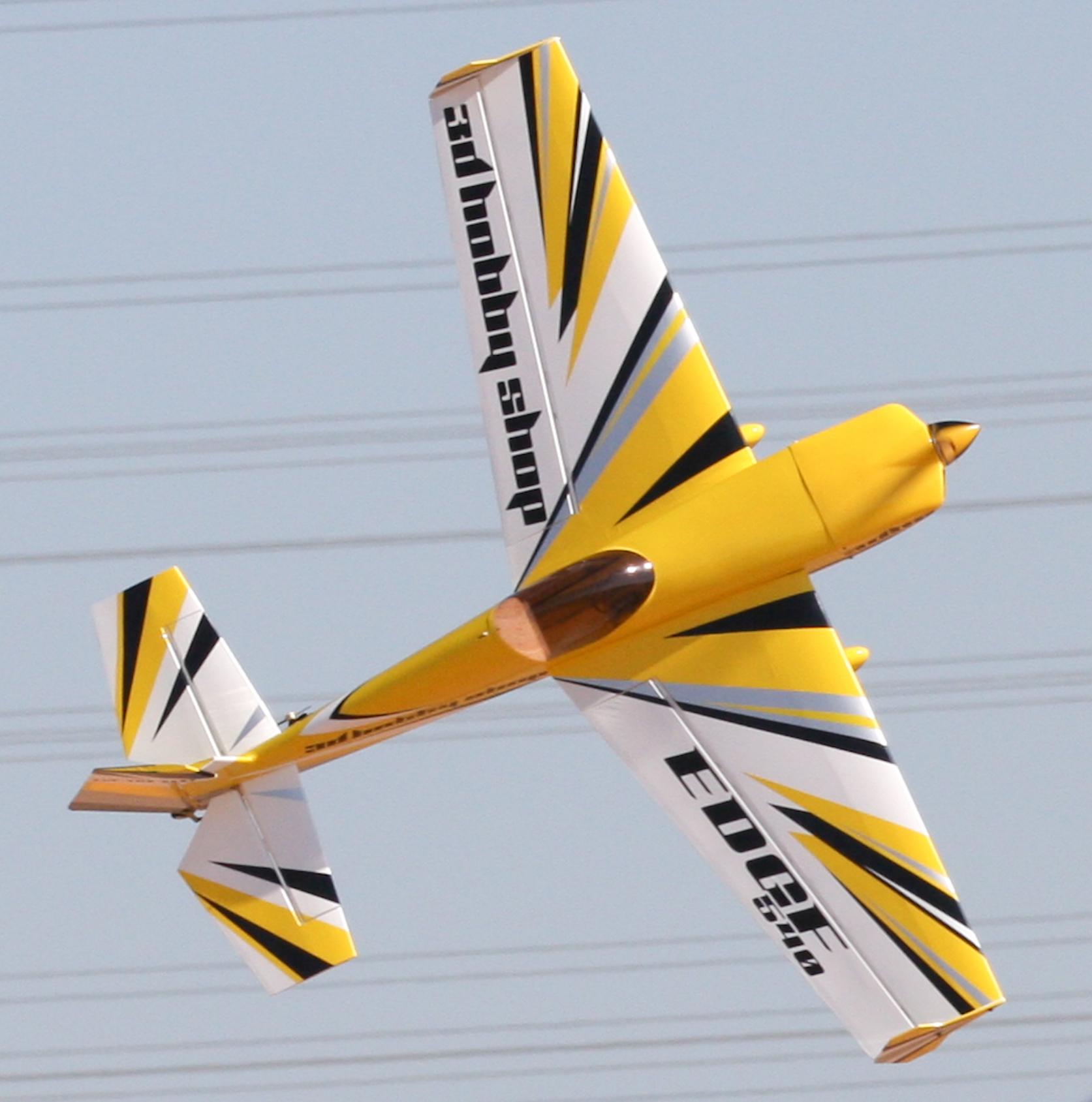

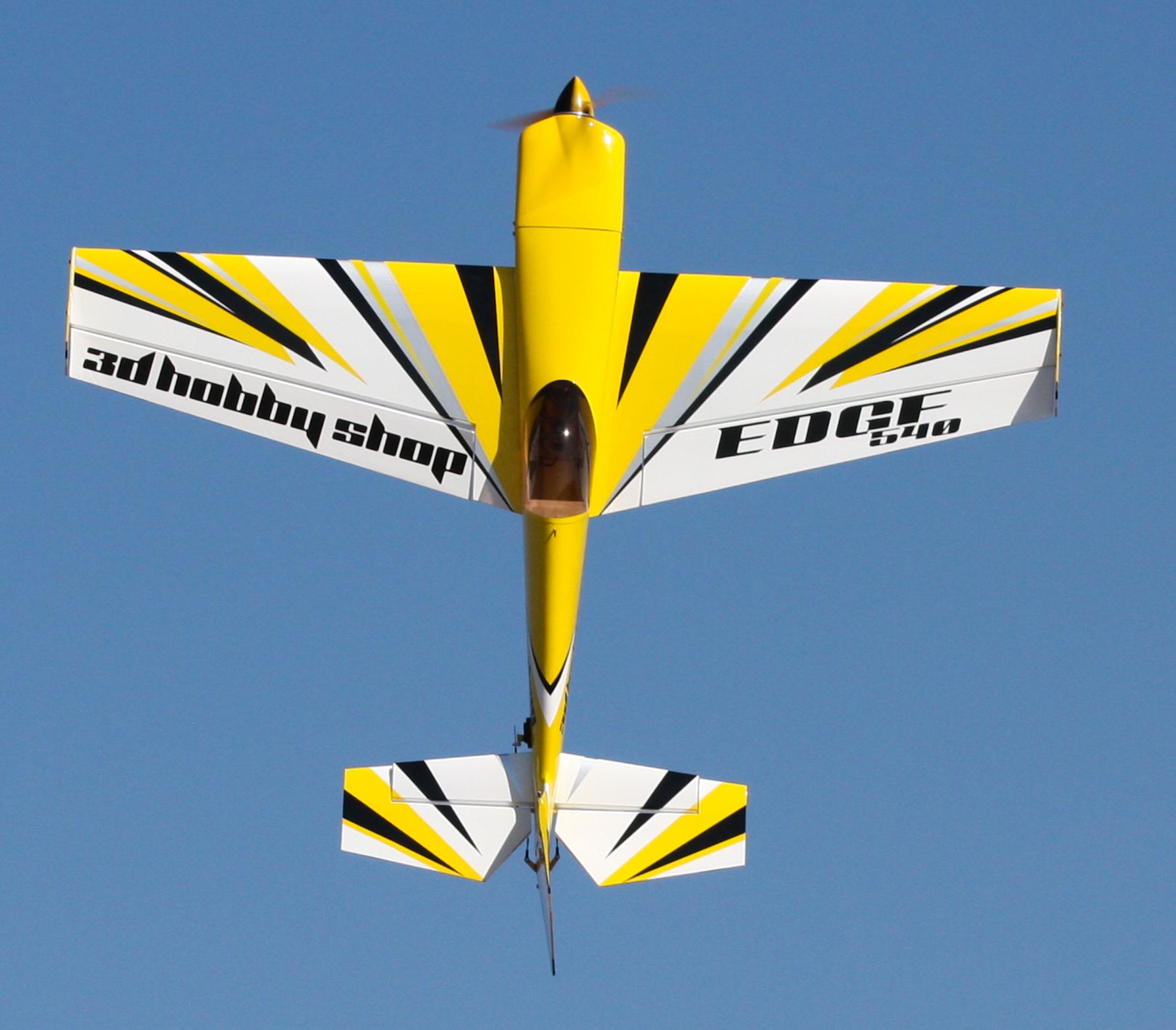

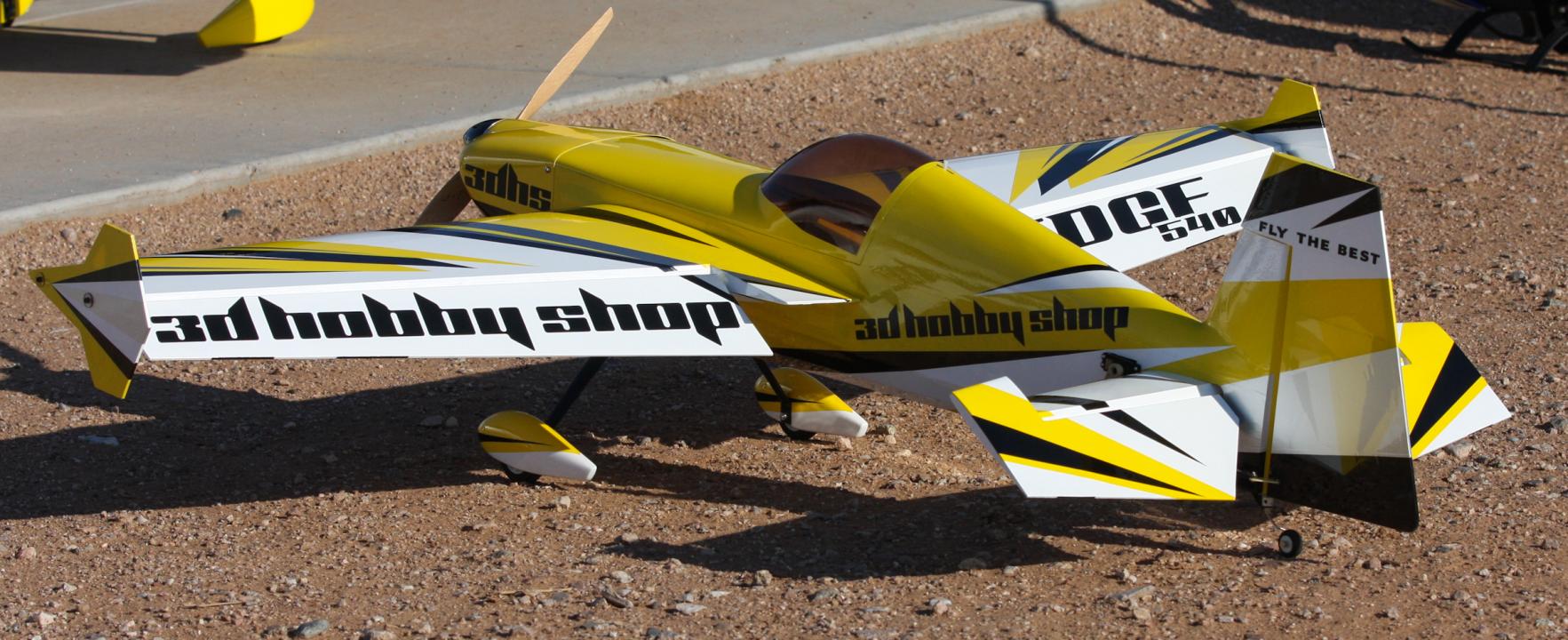

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Edge 540 58" V2 in particular but at least we know they do distribute 3d hobby shop.

Where to buy

France
interModel
check web site
Ship to: France
Belgium
Aerobertics
check web site
Ship to: Europe
Switzerland
ModellMarkt24
check web site
Ship to: Europe
Netherlands
RC webshop
check web site
Ship to: Europe

Wingspan: 1473mm (58 in)
Length: unknown

Weight: 2495 g (5.5 lbs)

Wingspan: 1473 mm (58")
Wing Area: 43.8 dm² (680 Sq. Inches)
Weight: 2040-2495  g (4.5-5.5 lbs)

Recommended equipments

  • Motor: Hacker A40-10S with 4S 3700-4400mah
  • ESC: Hacker X70 SBEC
  • Prop: 15x7 / 14x7
  • Spinner: 63mm (2.5 inches)
  • Servos:  4 x Hitec HS-225MG / 4 x Hitec HS-5245MG

Variants

EGD540-58V2
Edge 540 58" V2 (Yellow Black White)
