Alpenbrise 4.0 from Aeroic Composite

Details

The Alpenbrise was designed as a really good looking, compact all-round glider with a state-of-the-art design. The stiff, light construction gives the Alpenbrise all freedom and it will rise in the lightest thermals, while with ballast it has excellent energy storage and aerobatic properties.
With its very own cry on fast passes, as the eddies are thrown off at the wing tips, the alpine breeze has a real presence when flying. As part of the original designs, the Alpenbrise is also great for the Triangle GPS class.
The extremely solid construction prepares the alpine breeze for continuous use over decades!
With the recommended motorization, with a weight of less than 5 kg and a thrust of almost 8 kg, you can always easily go out of your hand or from the starter car. But she also cuts a fine figure while towing.
Even when flown extremely slowly, it is always easy to control (anti tip stall design)
Servos for the elevator and vertical stabilizer are located in the back of the fuselage. This ensures extremely short and play-free linkages.

Features:

  • Aerodynamically optimized for two end points: GPS sport and thermal flight (with 1mm on all flaps)
  • All-up weight under 5 kg (also electric version)
  • Full carbon wing (Sport) or double carbon (Super Sport)
  • Full carbon fuse. Fuselage nose GRP / aramid
  • Fully assembled (ARF) or ready to fly (RTF)
  • Finished wiring harness for fuselage and wings
  • Four-flap wing Ballast option in the wing and fuselage

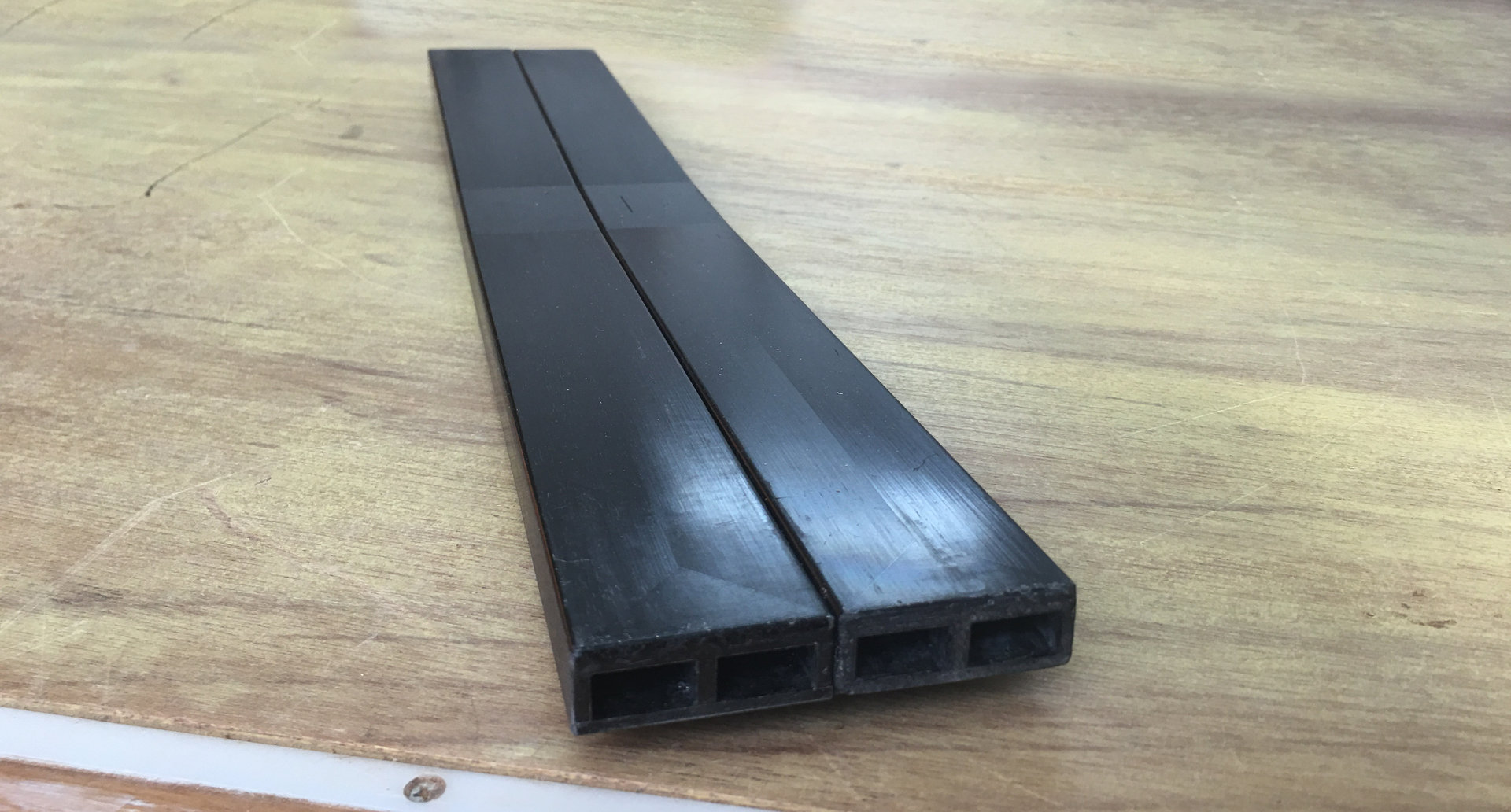

  • Sinusoidal carbone spar for maximum strength and rigidity
  • Control horns glued in place
  • Damped tailplane
  • Profile thickness 8% and 9%

Pictures and Description from Composite RC Gliders

Alpenbrise 2.mp4 from Iain Medley-Rose on Vimeo.

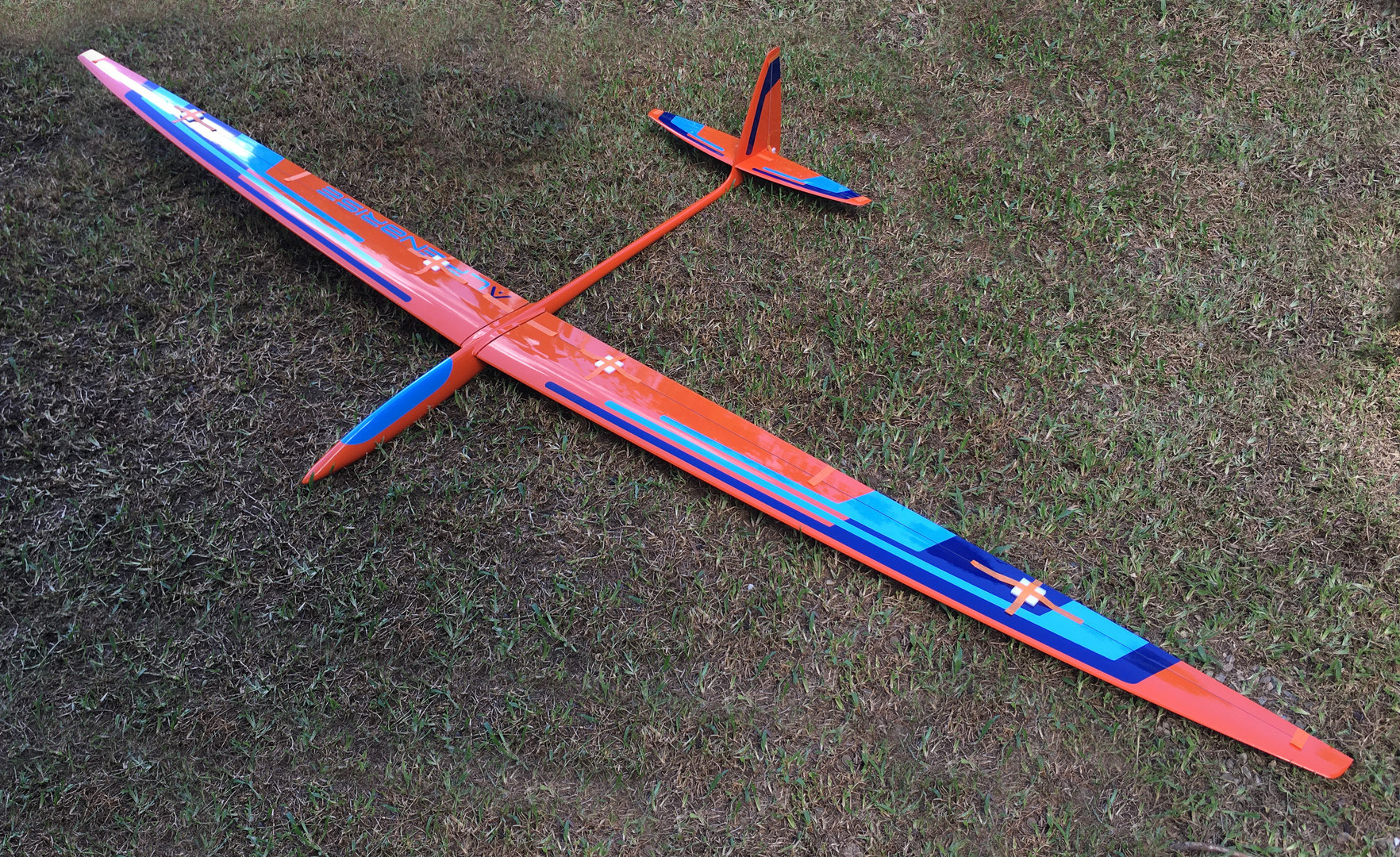

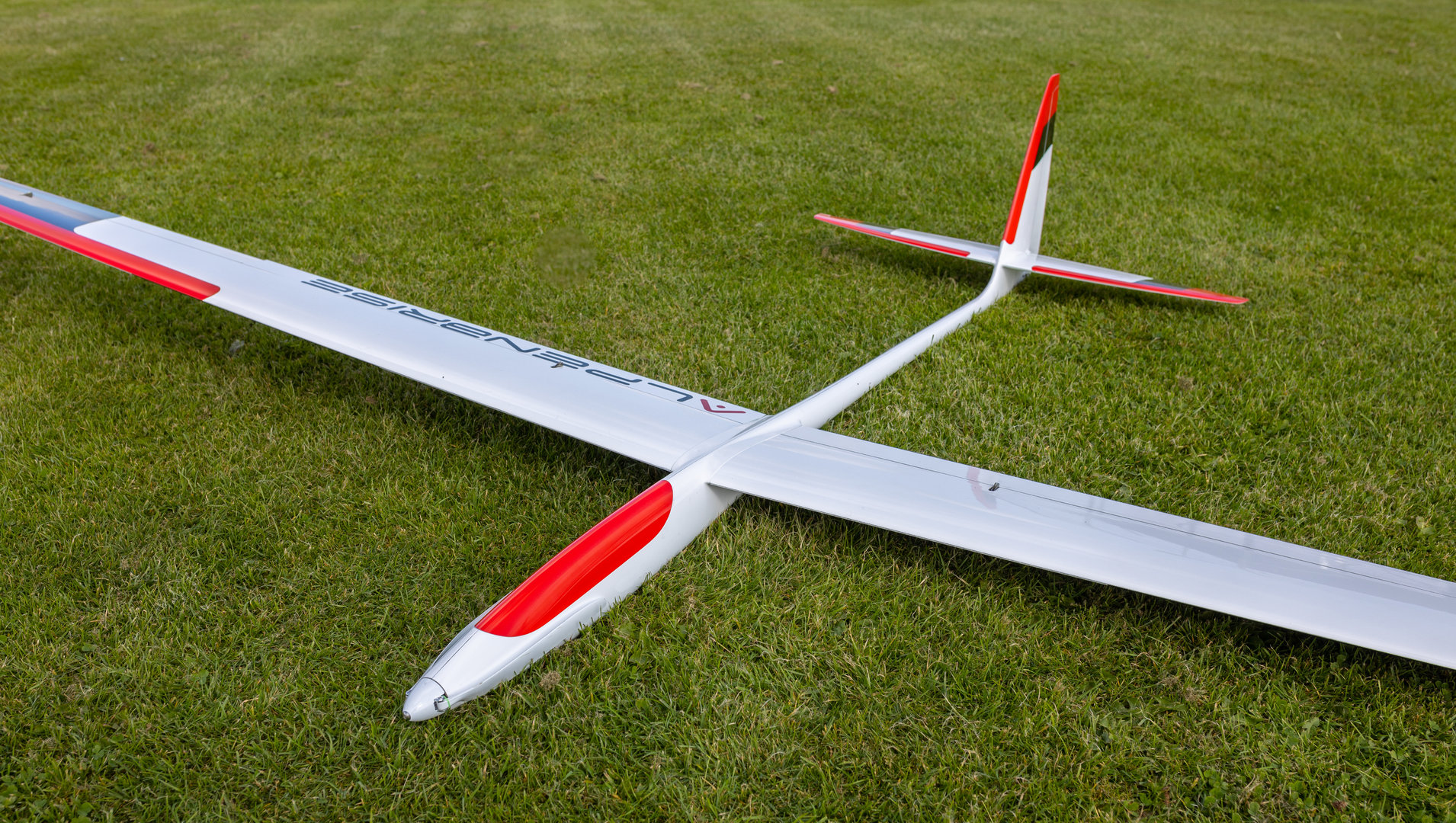

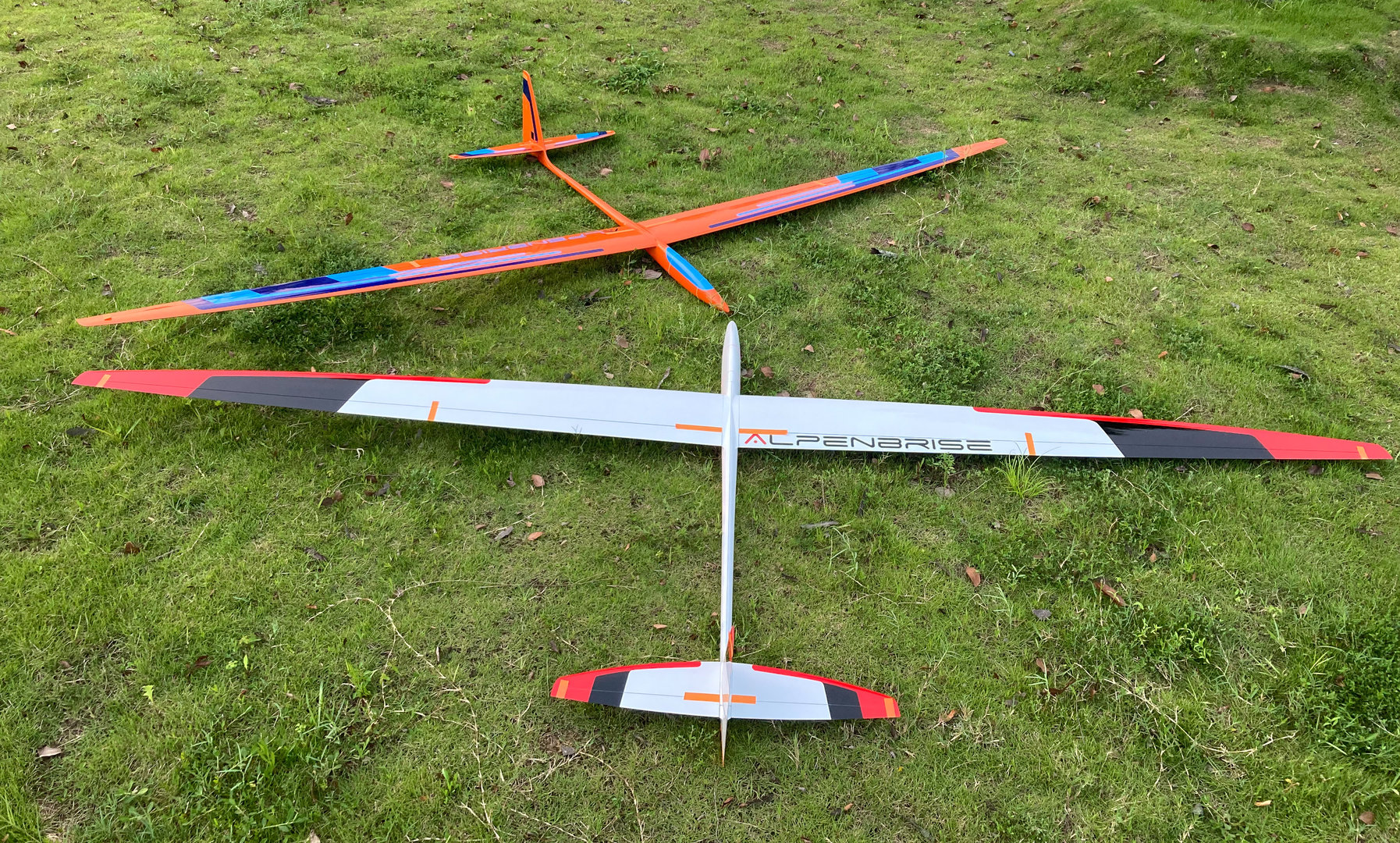

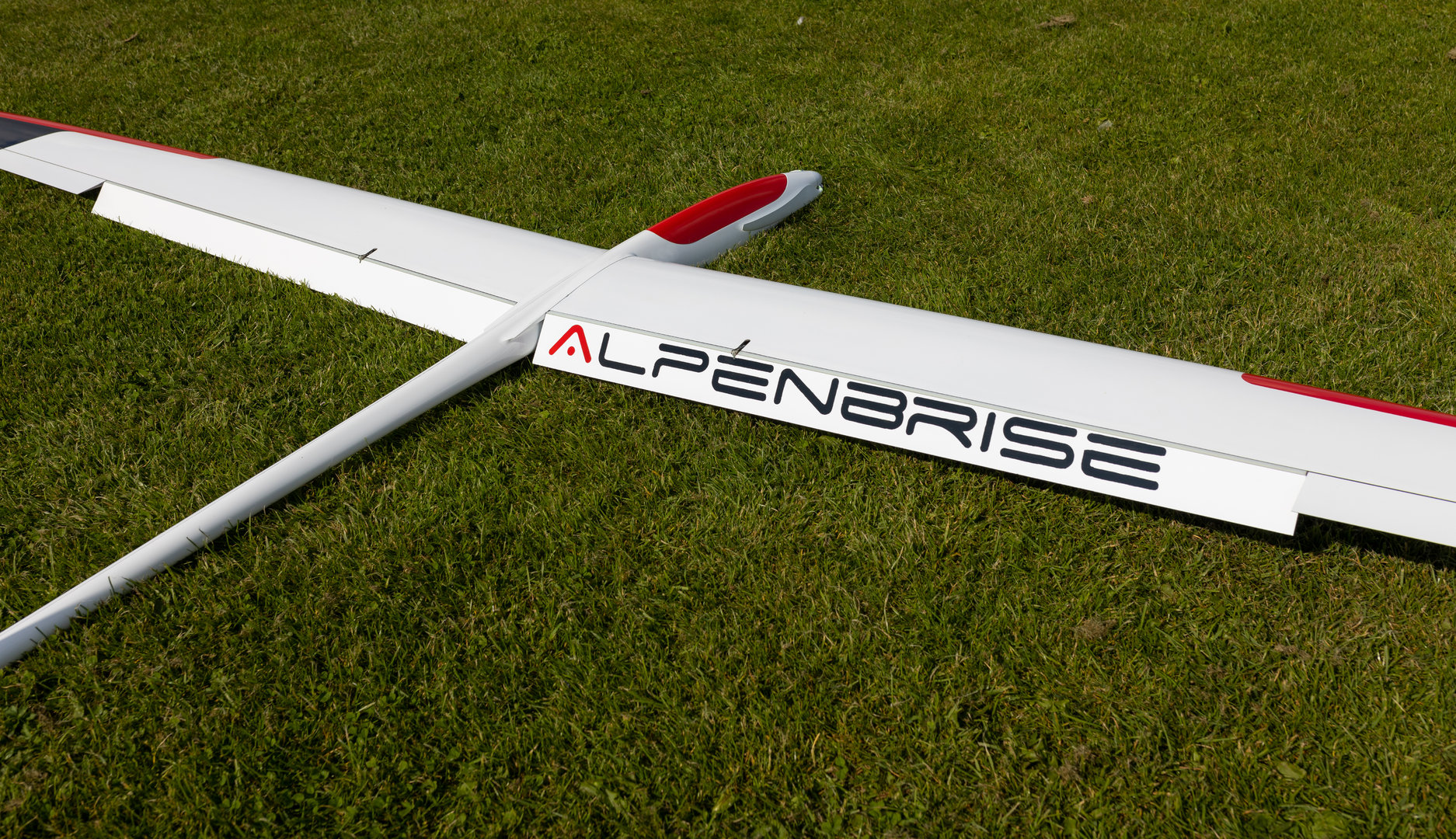

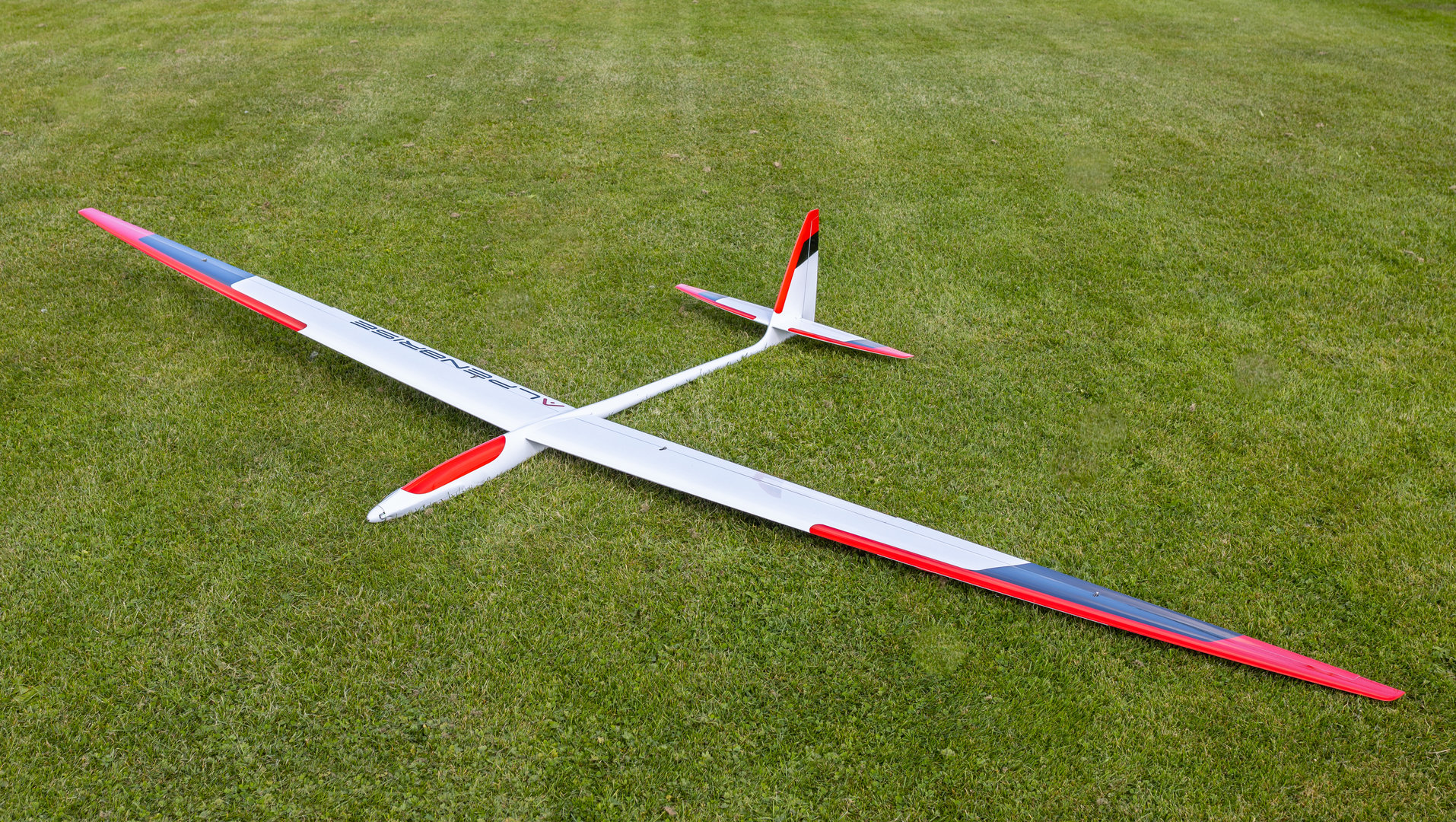

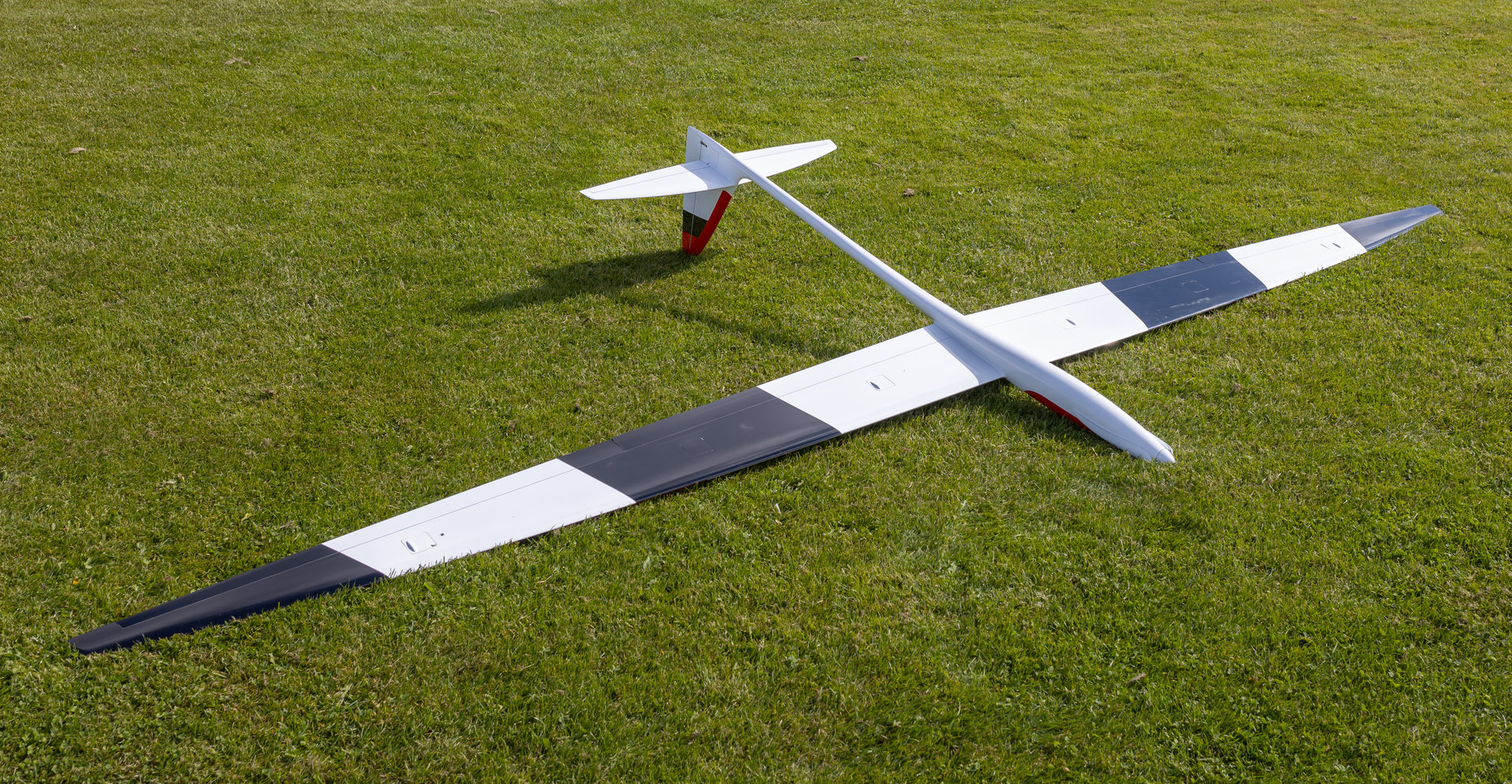

Pictures

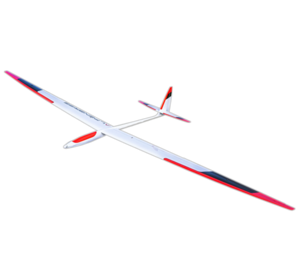

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 4000mm (157.5 in)
Length: 1710mm (67.3 in)

Weight: 4900 g (10.8 lbs)
  • Wingspan: 4,000 mm (157”)
  • Wing area: 76,3 dm² (1,182 Sq.”)
  • Length: 1,710 mm (67.3”)
  • Center of gravity: 104 mm
  • Flight weight: 4900 gr.
  • Airfoil: JH35-9 - JH35-8 (high response type)

Motorization recommandation:

  • Motor: Hacker A40-10S V2 8-Pole kv1600 + 6,7:1 PG
  • Controller: Hacker Speed Controller X-70-SB-Pro 2..6S
  • Battery: Hacker TopFuel LiPo 20C ECO-X 3000mAh 6S MTAG
  • Propeller: Scale Folding Propeller 22x14
  • Spinner: 38 mm Scale Spinner
