Diamond Stick from Airlife

Details

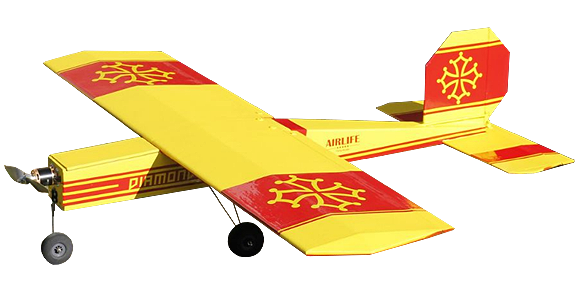

Diamond Stik is a very versatile model, ideal for training and perfecting your radio-controlled aircraft skills. Its rather small size with a wingspan of 1.345 m and its generous wing area of 39 dm2 allow it to be at ease in all phases of flight: very maneuverable for aerobatics, it lands at low speed because of its low wing loading, less than 50g/dm2 (depending on equipment and finish).

Diamond Stik is offered in a multi-material construction kit, combining tradition with a robust plywood structure (openwork for lightness) finely laser-cut, and modernity with its extruded polystyrene forms. The proposed covering is kraft paper (supplied) but you are free to choose your favorite finish - that's the point of building your own model :-)

The ease of assembly remains the key word in the design of Diamond Stik. All the accessories needed for the flight (except motor, battery, servos and radio) are included in the kit: electric motor attachment, landing gear, wheels, controls etc. The motorizations proposed correspond either to a training and improvement type of flight, or more powerful for those who have the skill, to "let off steam".

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Diamond Stick in particular but at least we know they do distribute Airlife.

Wingspan: 1345mm (53 in)
Length: 1120mm (44.1 in)

Weight: 1800 g (4 lbs)
  • Wingspan: 1345 mm
  • Wing area: 39 dm²
  • Wing profile: Symmetrical "Diamond" 14
  • Length: 1120 mm
  • Take off weight: about 1800 g depending on finish and equipment
  • Wing loading: about 46 g/dm²
  • Axes: 3
  • Suggested motorization: 500/600 W and KV 900/1000
  • Suggested battery: 3S, 3800 or 4200 mAh depending on the duration of the flight
