T-REX 150 DFC from Align

Details

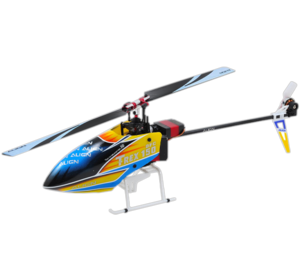

This is the Align T-Rex 150 DFC Combo Bind-To-Fly Helicopter. Align's smallest and most petite 3D helicopter T-REX 150 DFC, carries the same superior pedigree and design concept that originated from the successful T-REX line of helicopters. Feature strong power, superior flight control stability, and equipped with the high end components, far exceeding any other helicopters currently on the market.

Miniature size, control precision that resembles the larger helicopters, enables you to enjoy flying inside a confined space. Beginners can even enjoy this with ease by just turning down the speed dial. The innovative breakthrough T-REX 150 DFC will bring you a new dimension of flying enjoyment.

Features:

  • Fully assembled and configured; just add a Futaba S-FHSS transmitter or Spektrum DSM2/DSMX - JR DSM2/DSMJ/DMSS satellite receiver and transmitter, then you're ready to fly.
  • Integrated control system with specially optimized 3-axis gyro, receiver, electronic speed controller.
  • All metal DFC main rotor head assembly featuring high end aesthetic and superior flight performance.
  • Brushless motor used in main rotor; paired with 2S 7.4V 250mAh battery, the unimaginable power will surprise your senses.
  • 4g digital micro servos increase helicopter control speed and precision.
  • Tail brushless motor sustain optimal tail locking performance under high head speed and extreme flight conditions.
  • Two different skill level main blades included - Black/Advanced & Orange/Beginner
  • Compatible with Futaba S-FHSS 2.4GHz, Spektrum DSM2.DSMX & JR DSM2.DMSS

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 255mm (10 in)
Length: 255mm (10 in)

Weight: 80 g (2.8 oz)
  • Length: 255mm
  • Height: 80mm
  • Main Blade Length: 120mm
  • Main Rotor Diameter: 271mm
  • Tail Rotor Diameter: 41mm
  • Motor Pinion Gear: 10T
  • Main Drive Gear: 78T
  • Drive Gear Ratio: 1:7.8
  • Weight (w/o battery): 53g
