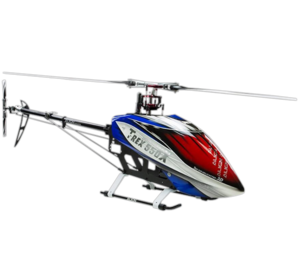

T-REX 550X Dominator from Align

Details

The NEW T-REX 550X is definitely a significant leap forward in performance, enhanced by increased power, the integration of numerous innovative design changes, and lightweight improvements. The T-REX 550X performance is outstanding!

The brand new FL Flybarless Rotor Head System utilizes an extremely low CG design, reducing resistance during 3D maneuvers while increasing flight responsiveness and precision. A progressive design adds a gloss silver and red anodizing appearance which continue our quality development based on our 700 class helicopter. The T-REX 550X main frame utilizes composite material integration technology on carbon side frame plates, including the addition of battery mounting side rails, and a top motor mount design. In addition, the T-REX 550X's lightweight design is 200~250g (Combo250g/Super Combo 200g) lighter than our pervious model, this effectively increase the power and improves flight time.

The T-REX 550X utilizes the powerful 730MX(960KV/4230) motor and our RCE-BL100A Brushless ESC which both are highly efficient providing superior power, improving the performance of the 6S power system. The NEW DS820M/DS825M high voltage brushless servos are extremely efficient and out perform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.

With improved performance and increased power, as well as included top of the line electronic equipment. The new T-REX 550 X will arouse your enthusiasm and devotion to the T-REX Family.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1248mm (49.1 in)
Length: 1163mm (45.8 in)

Weight: 2590 g (5.7 lbs)
  • Length: 1163mm
  • Height: 344mm
  • Width: 196mm
  • Main Rotor Diameter: 1248mm
  • Main Blade Length: 550mm
  • Tail Rotor Diameter: 254mm
  • Motor Drive Gear:1 6T
  • Main Drive Gear: 112T
  • Autorotation Tail Drive Gear: 131T
  • Tail Drive Gear: 34T
  • Drive Gear Ratio: 7:1:3.85
  • Weight(w/o power system): 2590g
  • With 600 Tail Boom
