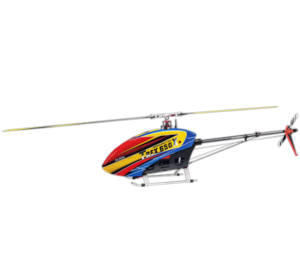

T-Rex 650X Dominator from Align

Details

“T-REX 650X Dominator Super Combo” is a special design for hobby use and 3D competition. T-REX 650X body size is between T-REX 600 and T-REX 700 class size helicopter. It adopts integrated composite material and technology that efficiently enhances structure intensity and repair convenience. The upper narrow main frame allows the strengthening of the structure but also prevents the body from deformation, vibration, and gear abrasion in extreme flights. The lower, wider main frame is designed with a quick-release latch for a battery that makes battery insertion and removal more convenient and safer. The flybarless rotor head is a low CG design that is better for 3D flight, reduces wind resistance, and improves superior flying feel and stability. The ALIGN T-REX 650X exhibits excellent performance in both 3D aggressive, slow 3D, and F3C flights!

T-REX 650X has an ALIGN 800MX motor with excellent torque and high efficiency. Besides, the reinforcement plate can not only strengthen machine structure but also can efficiently lower motor heat up to 20°C on every flight on average. The brushless RCE-BL130A ESC supports 12S 3000~6000mAh battery input. Pilots can choose main blades from 600~650mm based on their preference for outstanding flight performance.

“T-REX 650X Dominator Super Combo” is a helicopter for all pilots that has both superpower and excellent stable 3D flight like a 700 class size helicopter and elegant slow 3D dynamic flight performance like 600 class size helicopter.

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1455mm (57.3 in)
Length: 1220mm (48 in)

Weight: 3320 g (7.3 lbs)
  • Length: 1220mm - 48.03In
  • Height: 356mm - 14.02In
  • Width: 191mm - 7.52In
  • Main Blade Length: 650mm - 25.59In
  • Main Rotor Diameter: 1455mm - 57.28In
  • Tail Blade Length: 105mm - 4.13In
  • Tail Rotor Diameter: 280mm - 11.02In
  • Motor Pinion Gear: 16T
  • Main Drive Gear: 112T
  • Autorotation Tail Drive Gear: 131T
  • Tail Drive Gear 34T
  • Drive Gear Ratio: 7: 1 : 3.85
  • Max RPM (approx): 2400
  • Weight (w/o Battery): 3320g - 7.32Lbs
