e-Medina from ArmSoar

Details

A lot of us wants to fly high-performance e-RES/F5 gliders for competition or sport flying, but may not have the skills or time to spend two weeks’ worth of evenings putting together a balsa kit nowadays? We get it. That’s why we set out to do something about that!

The Medina comes fully pre-built and covered, so to complete the model you need to glue the carbon boom into the nose, glue the tail-mounting carbon pins into pre-drilled holes, mount the servos and run the pull-string wires. An electric power system and servos are not included in the kit, but are available from Performance Models.

The E-Medina has been designed by Performance Models and is based on the successful OZeRES 2 with the only change being the rounded wings and tail shapes. Like the OZeRES 2, the Medina has purpose-designed airfoils for modern F3/F5-RES competition flying. The wingtip airfoil is specifically optimized for great tip-stalling characteristics and can handle high variations in angle of attack. The result? A glider that turns tighter and more efficiently than similar designs, perfect for low-level thermal flying.

The properly-sized and removable V-tail is designed for control and great low speed handling, crucial during soft thermals and the landing phase. And of course, the V-tail not only looks good, but helps minimize the overall drag of the E-Medina for better L/D in all aspects of the flight envelope.

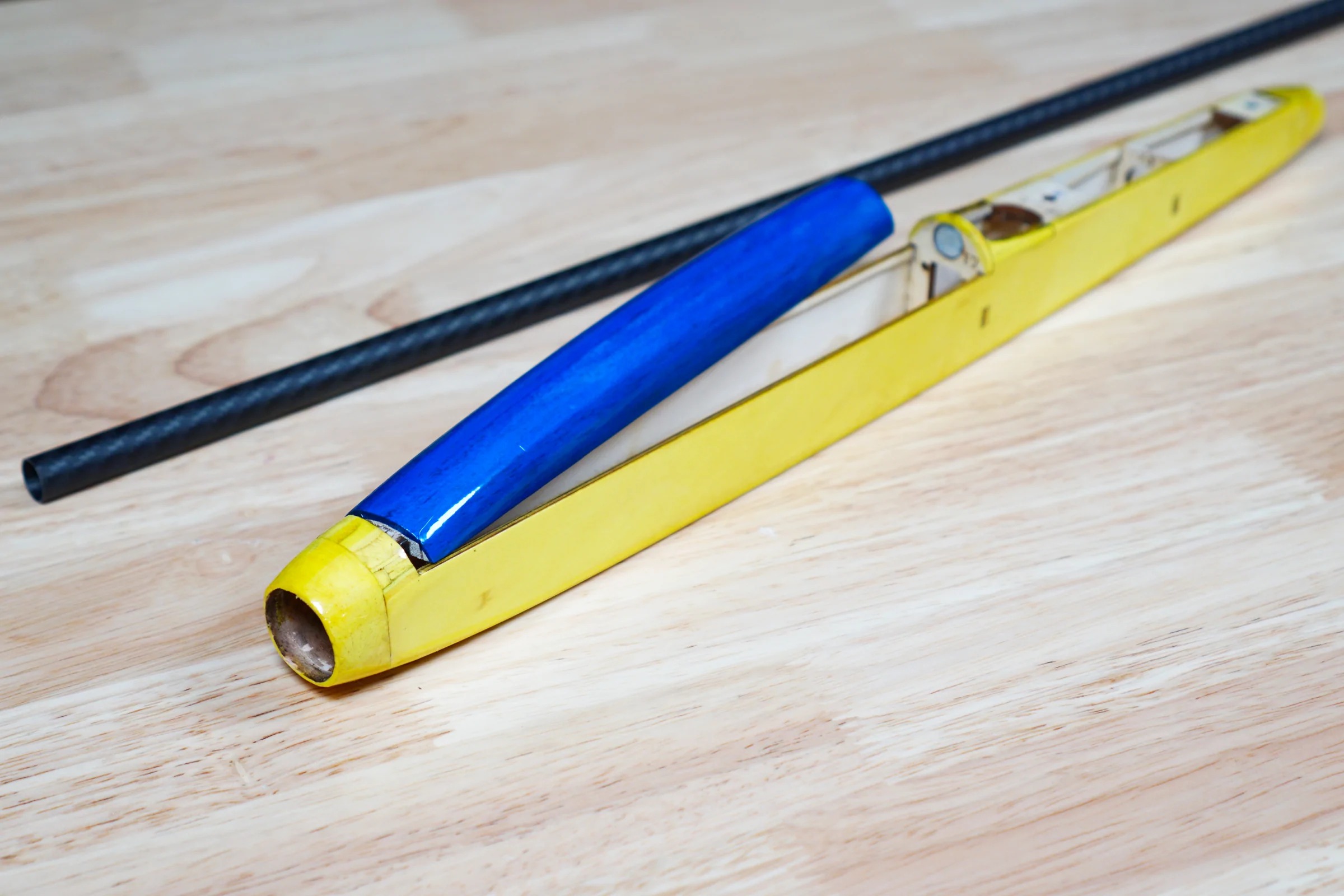

The fuselage is minimalistic but fits the ArmSoar 1806 powertrains perfectly, further minimizing overall drag by keeping the fuselage size to a minimum.



Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the e-Medina in particular but at least we know they do distribute ArmSoar.

Wingspan: 2000mm (78.7 in)
Length: unknown

Weight: 460 g (16.2 oz)
  • 4-channels: V-tails, Spoiler, Motor
  • Wing airfoils: MS41-43 series
  • Wing area: 36.2 dm²
  • Root chord: 200mm
  • Wingspan: 2000 mm
  • AUW: ~ 450-460 grams

Recommended Gear (not included in the kit):

  • Tail servos: 2* KST X06 v6
  • Spoiler servo: 1* KST X06H v6
  • Battery: 3S LiPo – A maximum cross section of 18mm x 14mm is required and we use the Tattu 450mAh or 550mAh 3s batteries.
  • Motor: ArmSoar 1806 Powertrain with speed controller
  • Spinner: CN 25/5/19
  • Prop: CN 6×4

What’s Included

  • Pre-built and covered removable wing panels (1* centre, 2* tips)
  • Pre-built and covered removable tail surfaces (1* left, 1* right)
  • Pre-built and covered nose and canopy
  • Pre-drilled carbon boom
  • Tail mounting pins
  • Joiners
  • Tail springs
  • Pull-string wire
