Avanti 50mm from Arrows RC

Details

The integration of Avanti's main wing and tail effectively improve the low-speed handling of the aircraft, significantly lowering the technical requirements. The small-scale size (airframe length 750mm, wingspan 640mm) reduces the site requirements, allowing pilots to take off and land at more sites away from crowds and buildings.
The Avanti, like other arrows hobby small-scale jets, comes without any landing gear to deal with, for higher speed and better vertical performance. Power is provided by a 50mm 11-blade fan unit, 2627-4500KV brushless motor and high-performance 30A ESC (with 3A BEC), compatible with the extremely common 3S batteries - delivering unmatched speed and sound.
This Avanti will help you to cross over to the land of RC jets.

Features:

  • Powerful 2627- 4500KV brushless motor;
  • Highly efficient 50mm 11 bladed EDF unit;
  • Reliable, high-performance 30A ESC with 3A BEC;
  • Easy to hand-launch and belly-land, without any landing gear to deal with;
  • Simple lightweight design for extended flight times;
  • Highly attractive trim scheme;
  • PNP with Vector system-allowing three flying modes;
  • Uncompromising performance despite its friendly price;
  • Licensed by Sebart, Italy.

Description and Pictures from HobbyZone

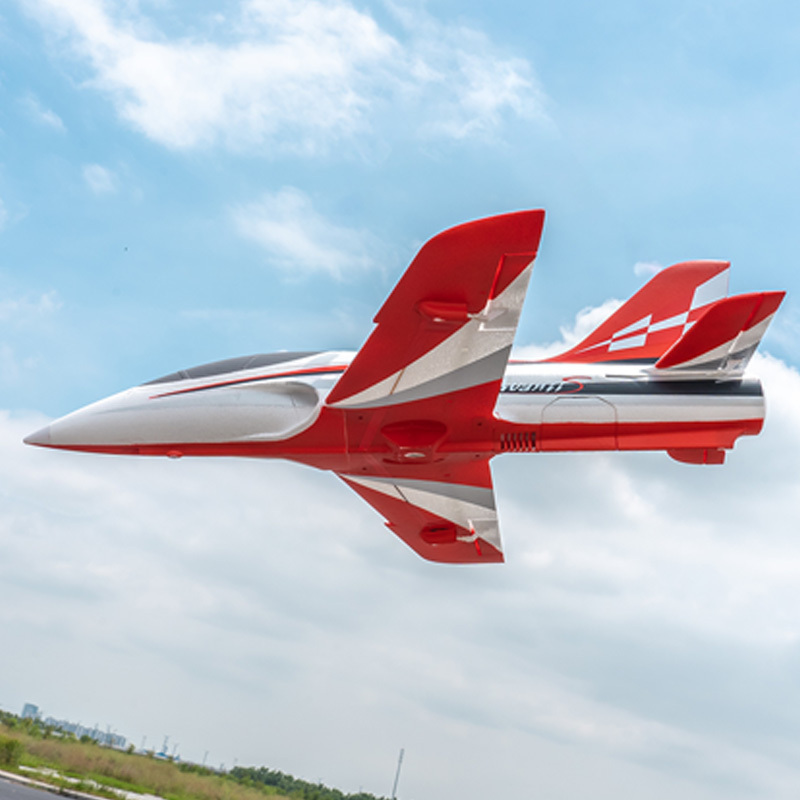

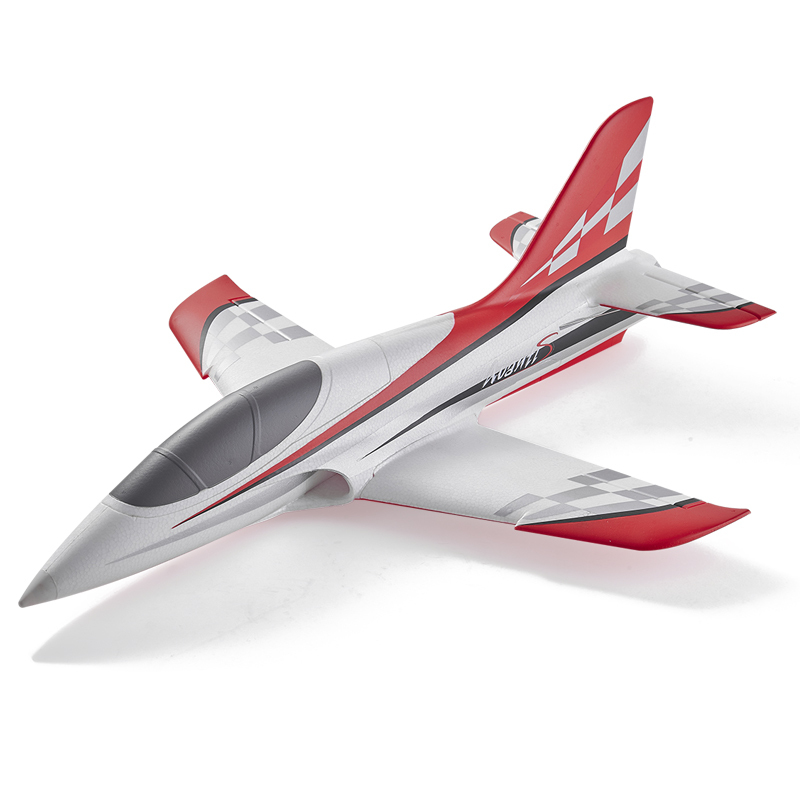

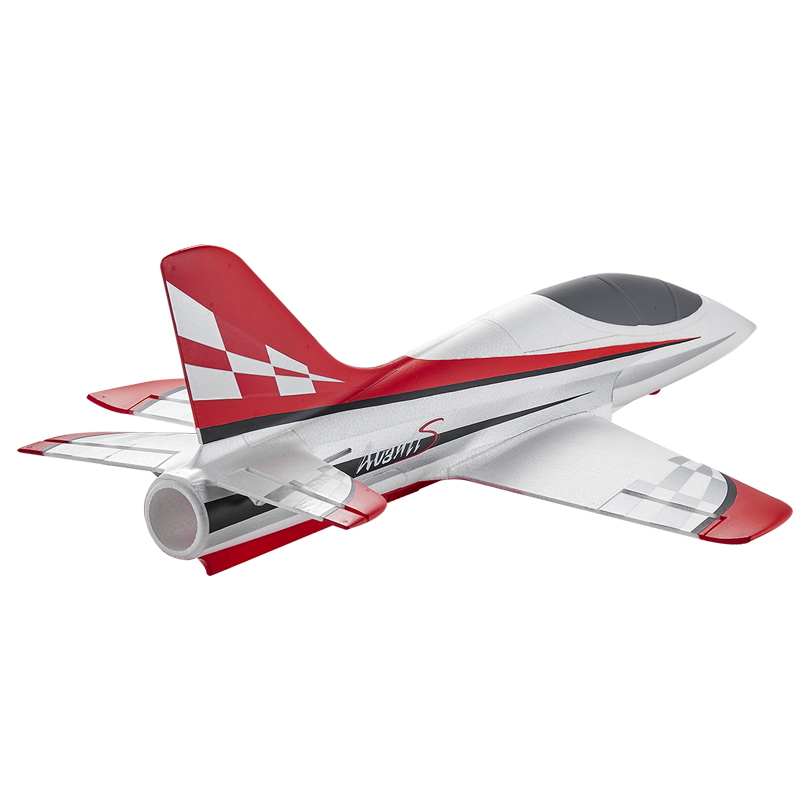

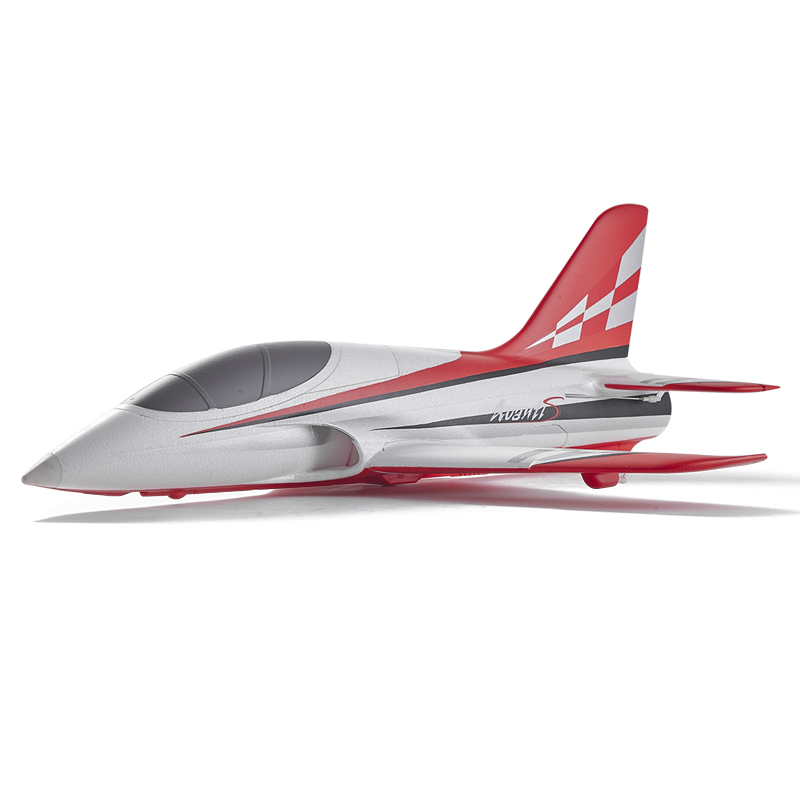

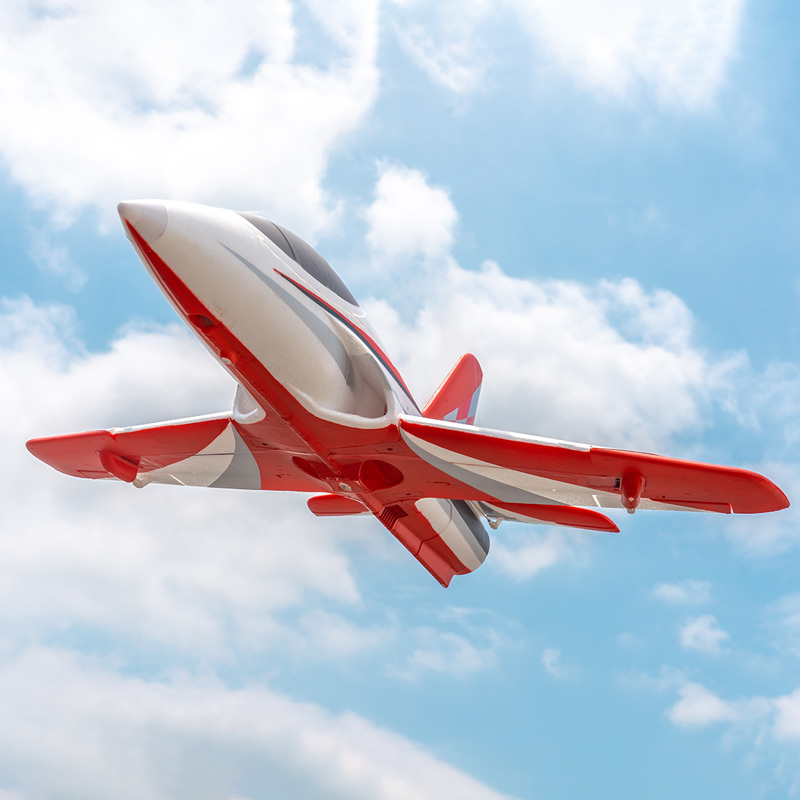

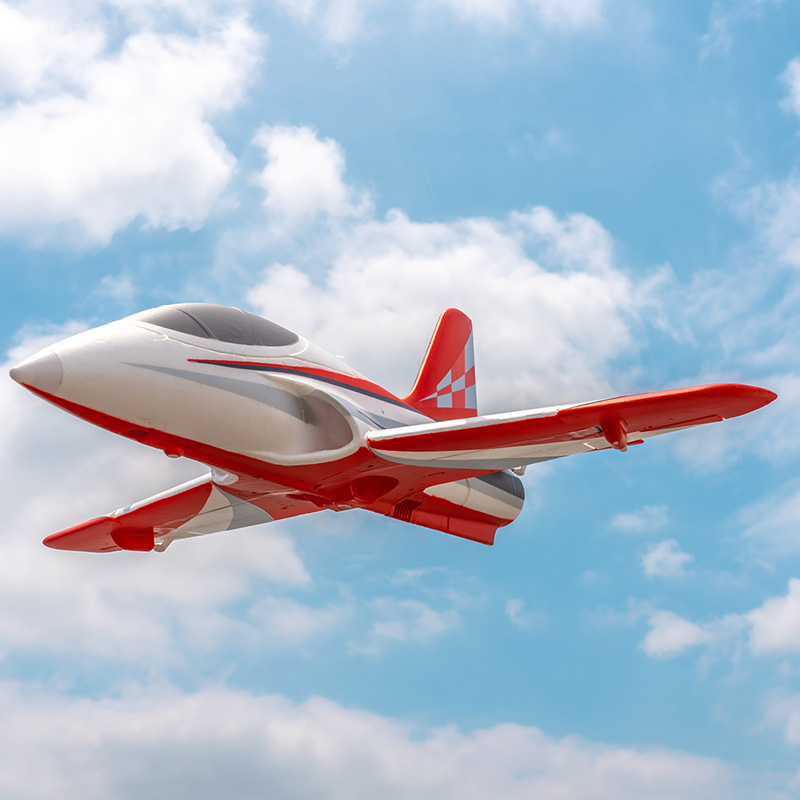

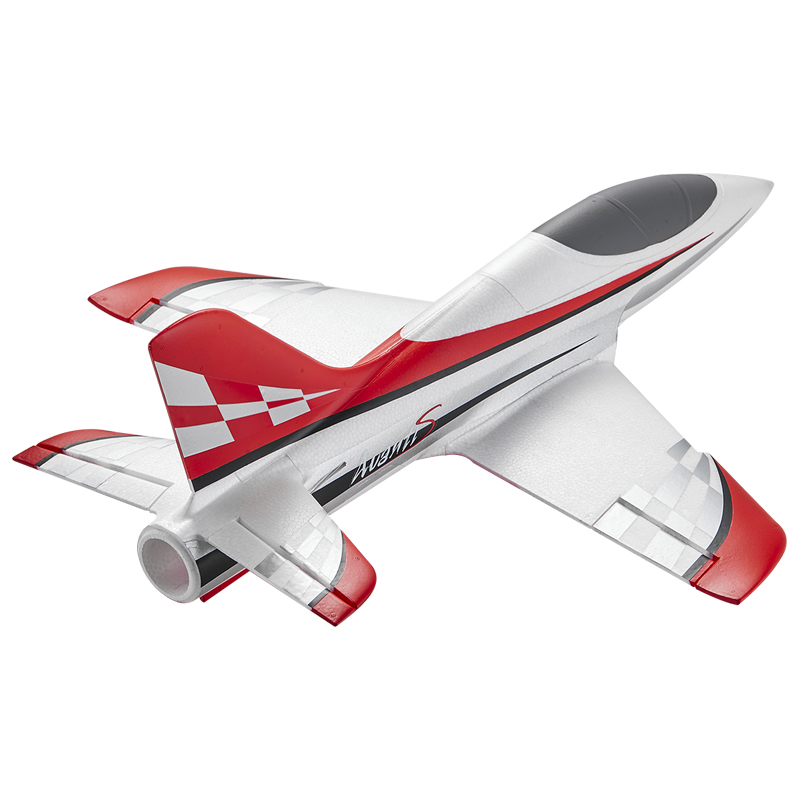

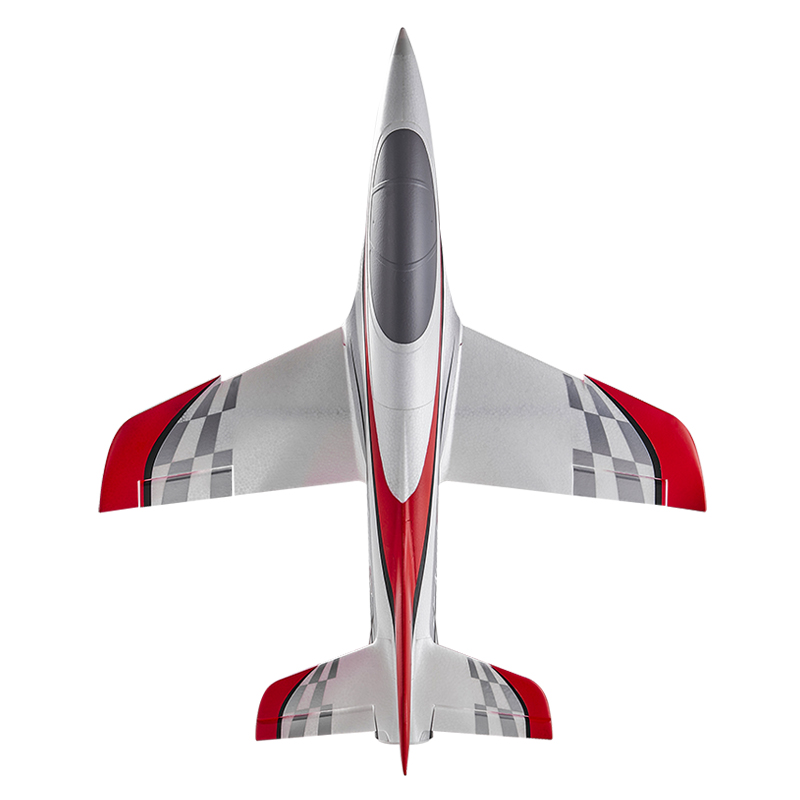

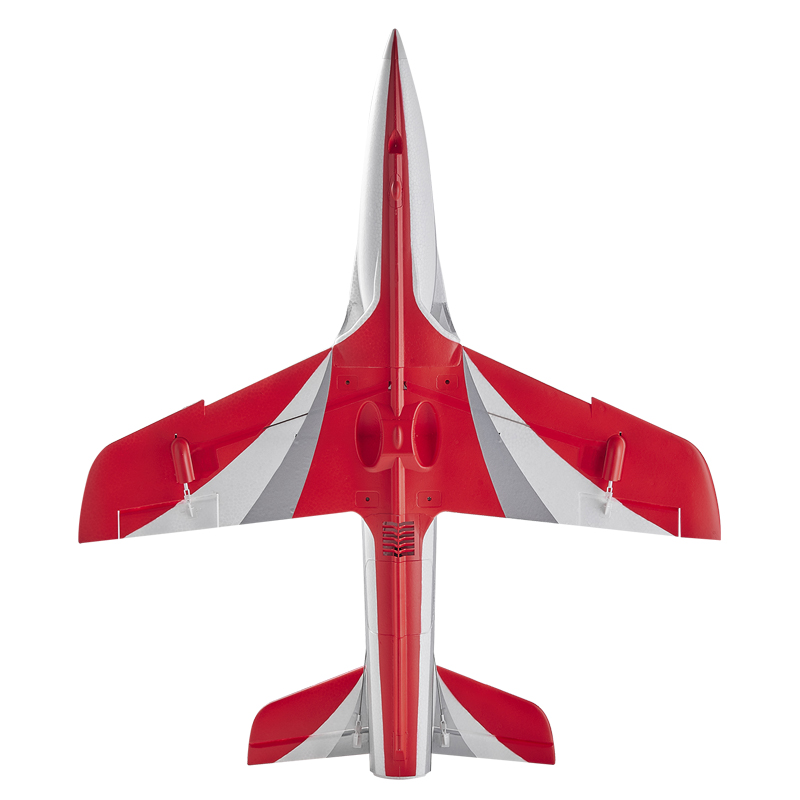

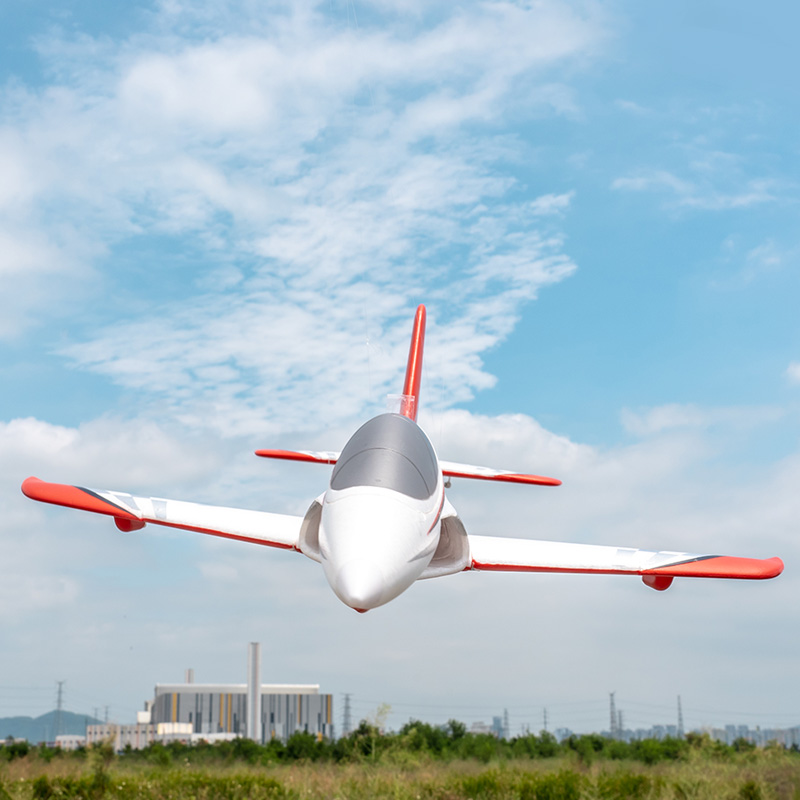

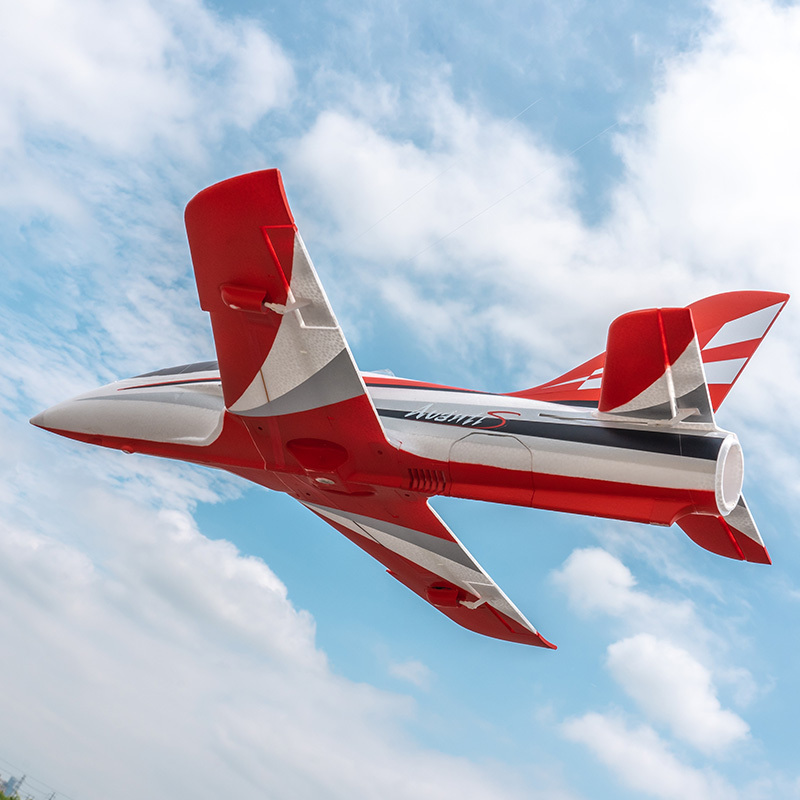

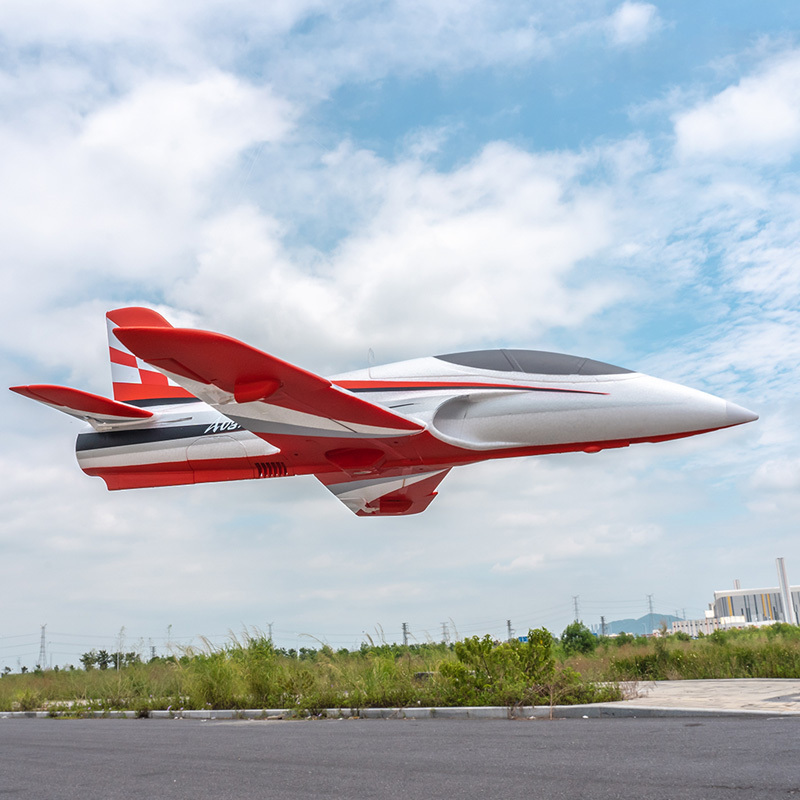

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 640mm (25.2 in)
Length: 750mm (29.5 in)

Weight: 460 g (16.2 oz)
Wingspan 640mm / 25.2in
Overall Length 750mm / 29.5in
Flying Weight Around 460g
Motor Size Brushless2627-KV4500
ESC 30A ESC
Servo 9g plastic servo x 3pcs
Radio 4 Channel
CG (center of gravity) 75-85mm (From Leading Edge)
Prop / EDF Size 50mm 11-blade
Recommended Battery 11.1V 1300MAH 30C
Wing Load 51.7g/d㎡
Wing Area 8.9d㎡
