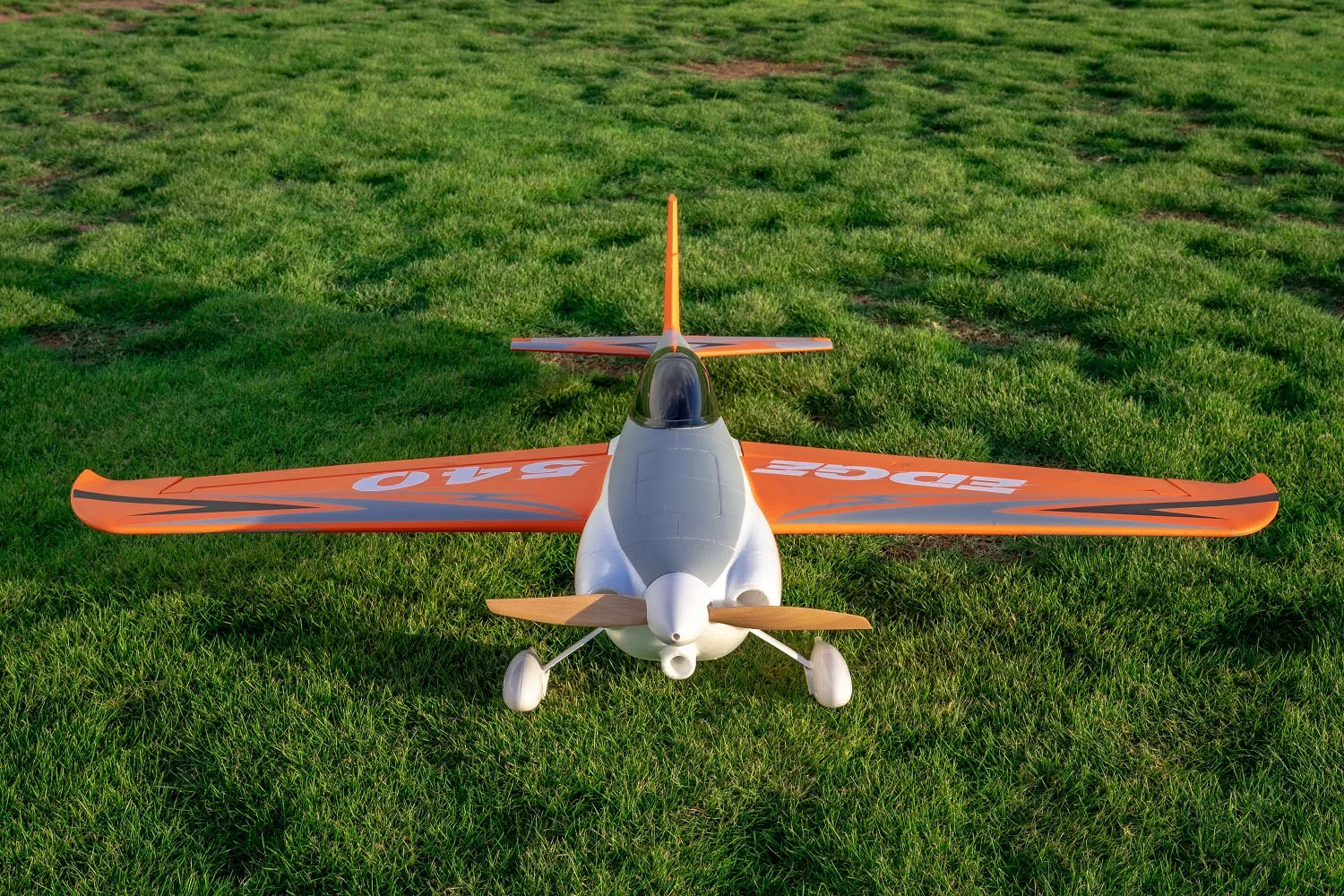

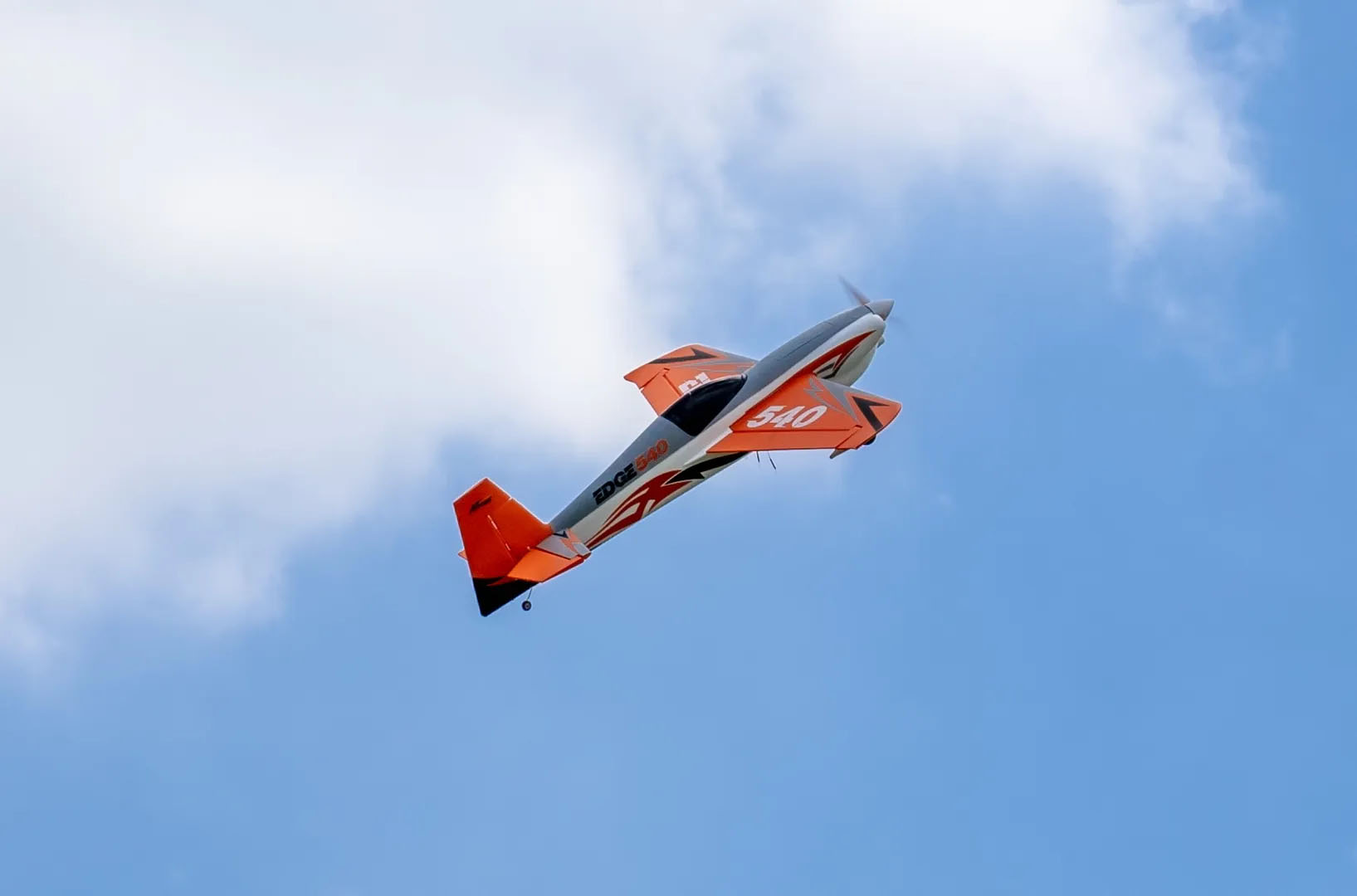

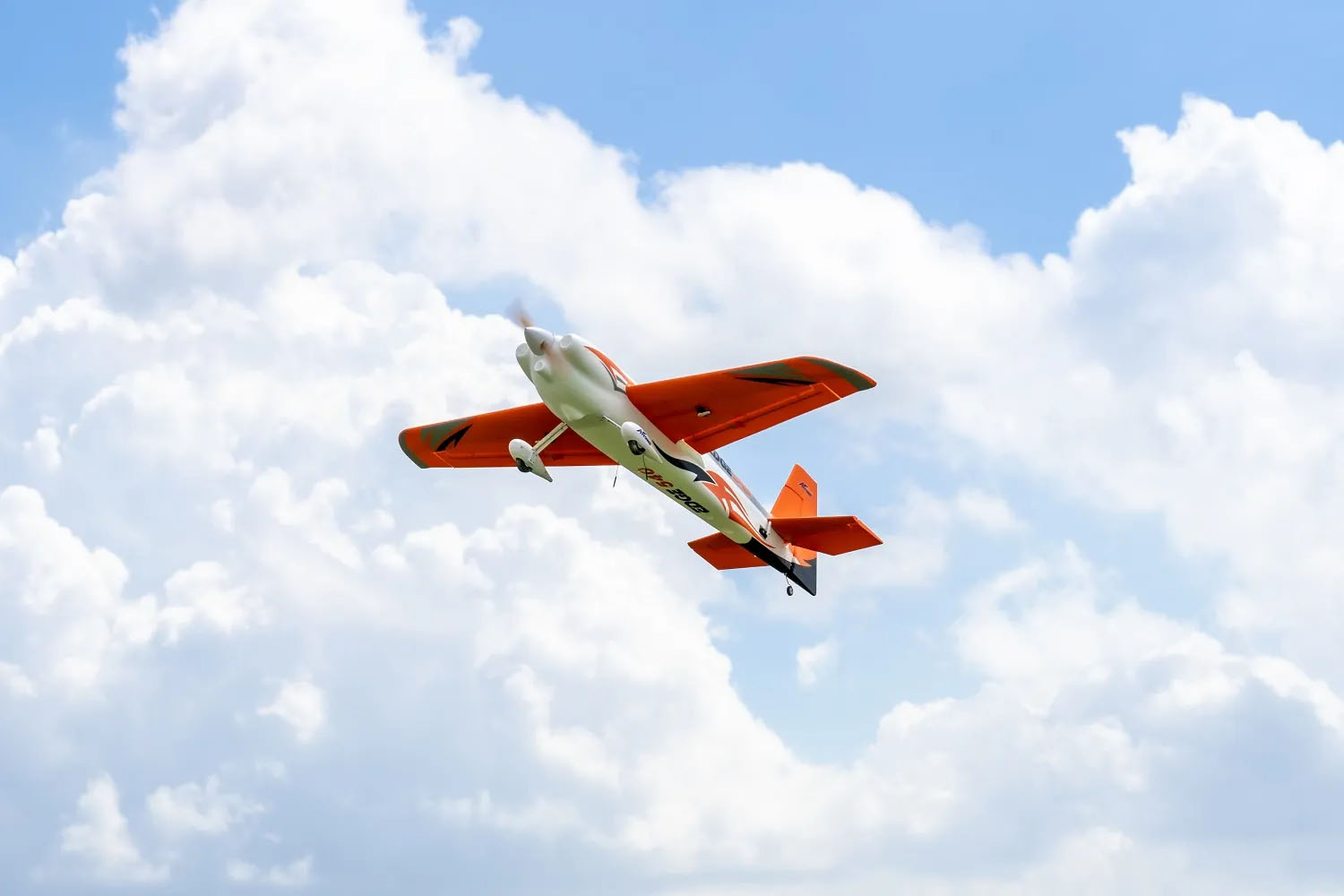

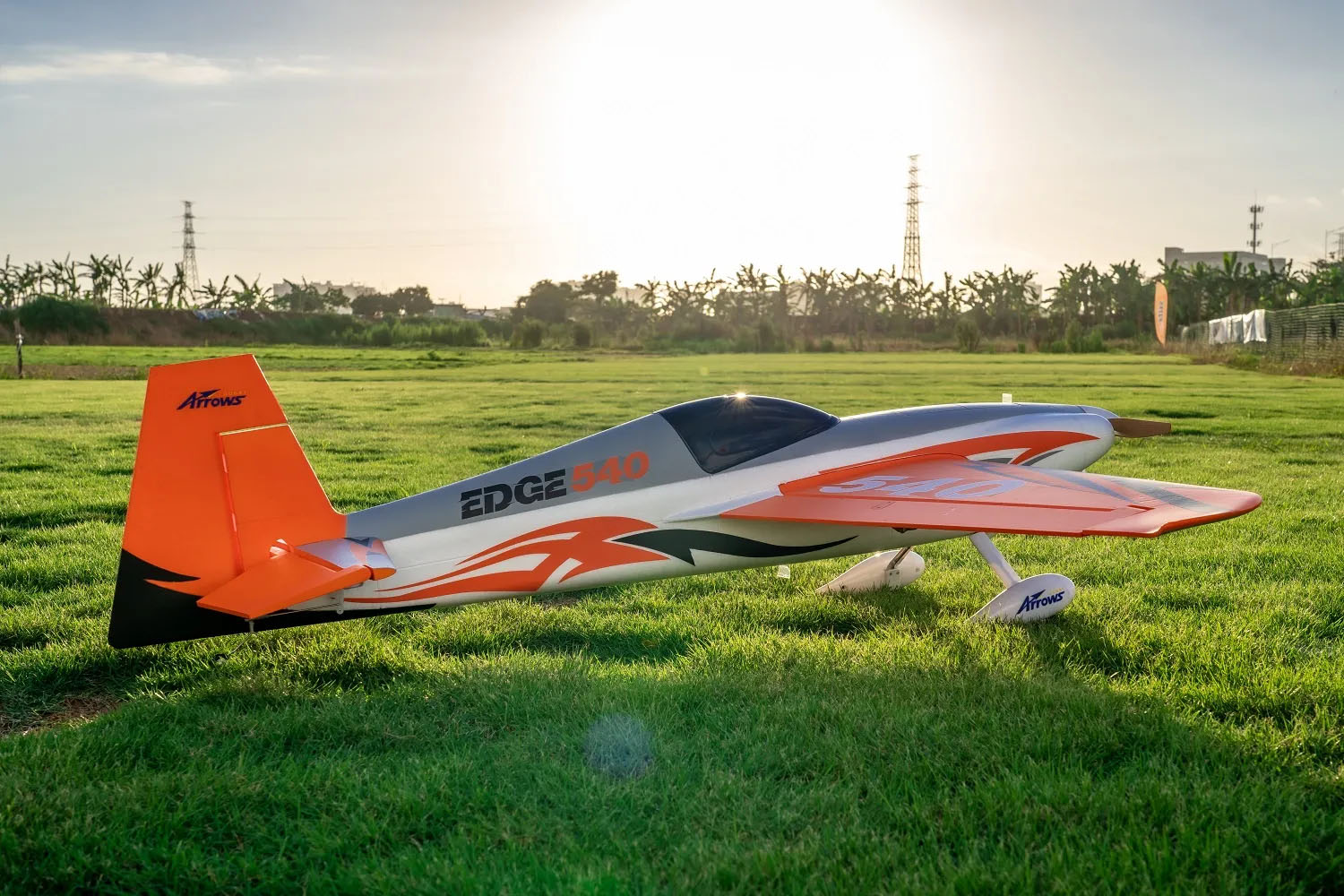

Edge 540 from Arrows RC

Details

The Zivko Edge 540 is a high-performance aerobatic aircraft popular in aerobatic competitions and airshows. Pilots have flown the Edge 540 to victory many times across the international aerobatic circuit.

Arrows Hobby wanted to build an aerobatic aircraft with a simple structure and excellent performance to meet the interests of enthusiasts seeking the excitement of 3D aerobatics. The Edge 540 has been the first choice of many aerobatic hobbyists, and it has always been popular among many of the pilots and engineers at Arrows at home and abroad too.

The superior performance of the 1300mm Edge 540 can easily complete high, medium and low altitude horizontal and vertical surface stunts. The striking orange paint scheme is highly visible to the benefit of novices and experts alike.

Features

  • High-quality and high-endurance 60A ESC, 4250-KV910 motor, and high-precision 23g metal gear servos
  • Ball-style linkage and embedded nylon hinge for precision control.
  • The symmetrical main wing installed with 0 incident angle and the super-sized control surfaces facilitate various aerobatics such as somersaults, rolls, hoists and inverted flying.
  • High-efficiency wooden propeller.

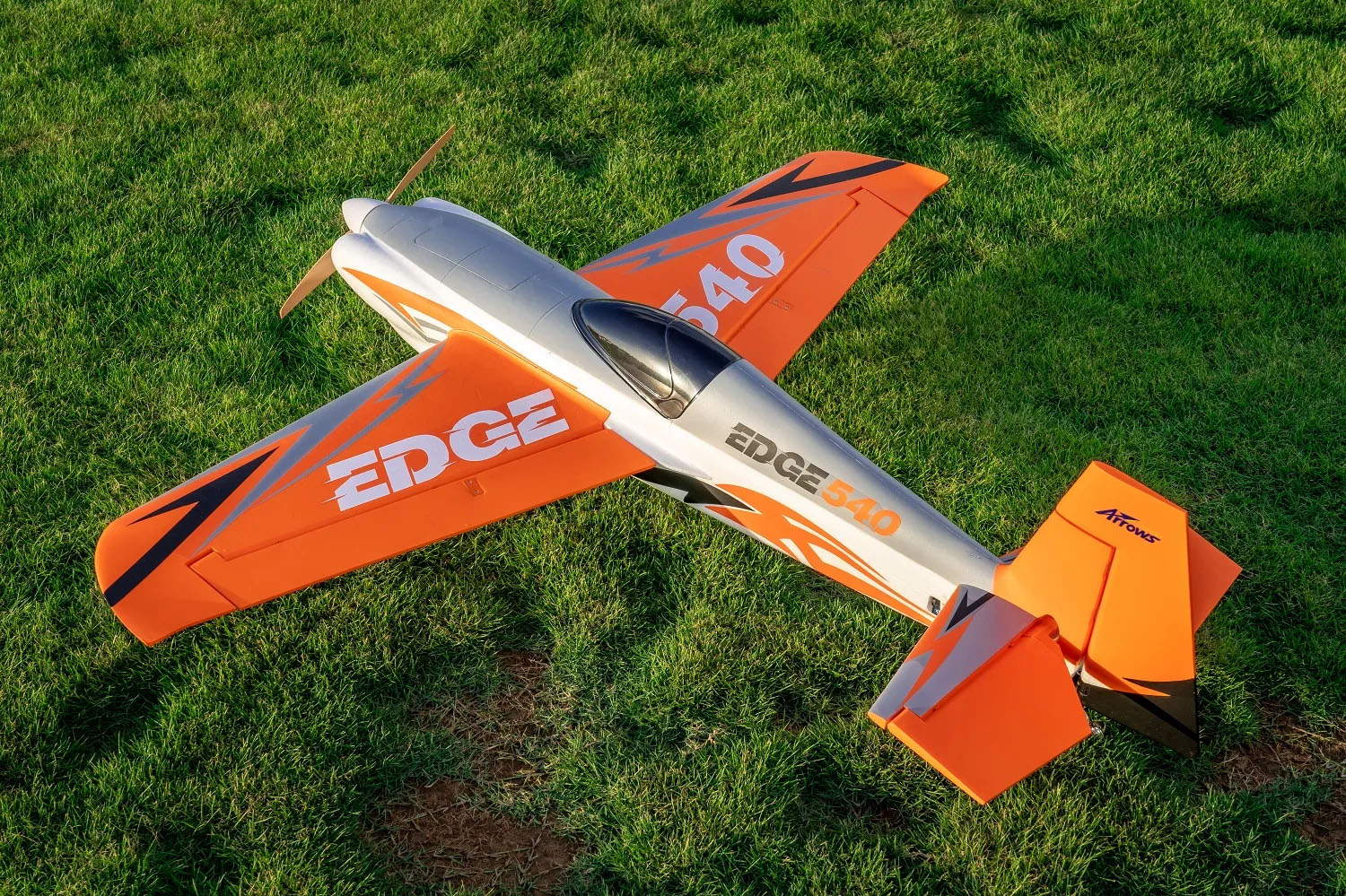

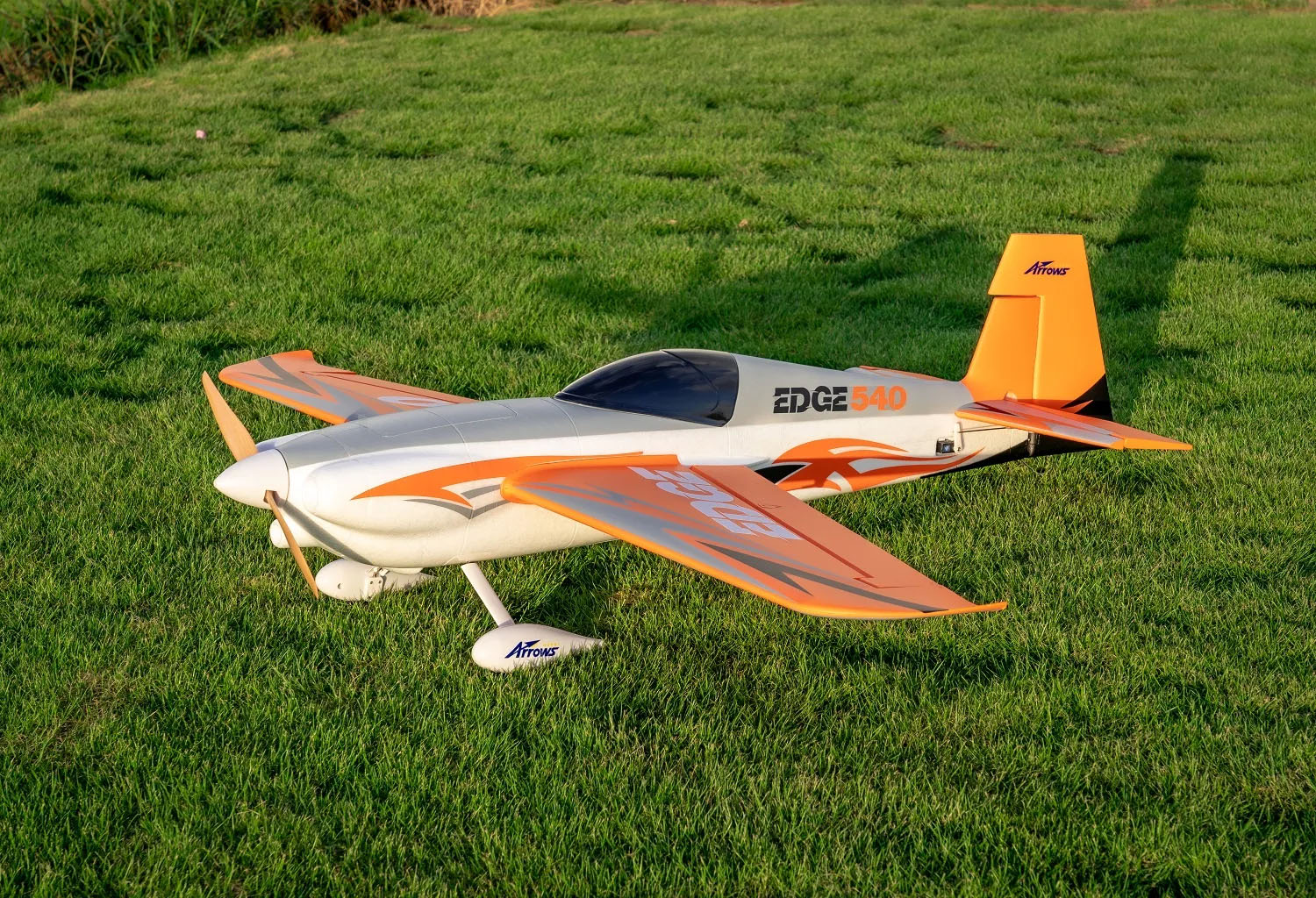

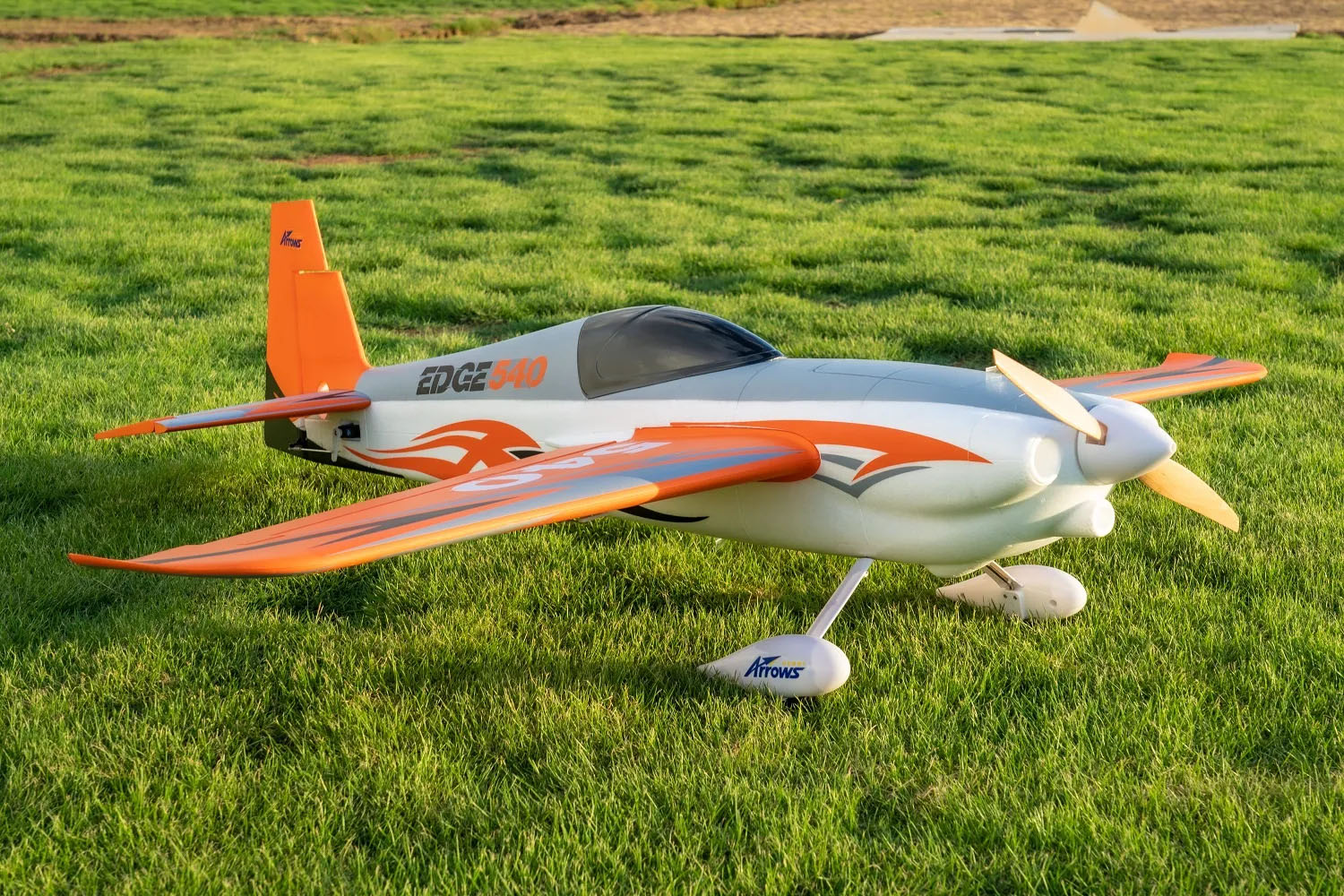

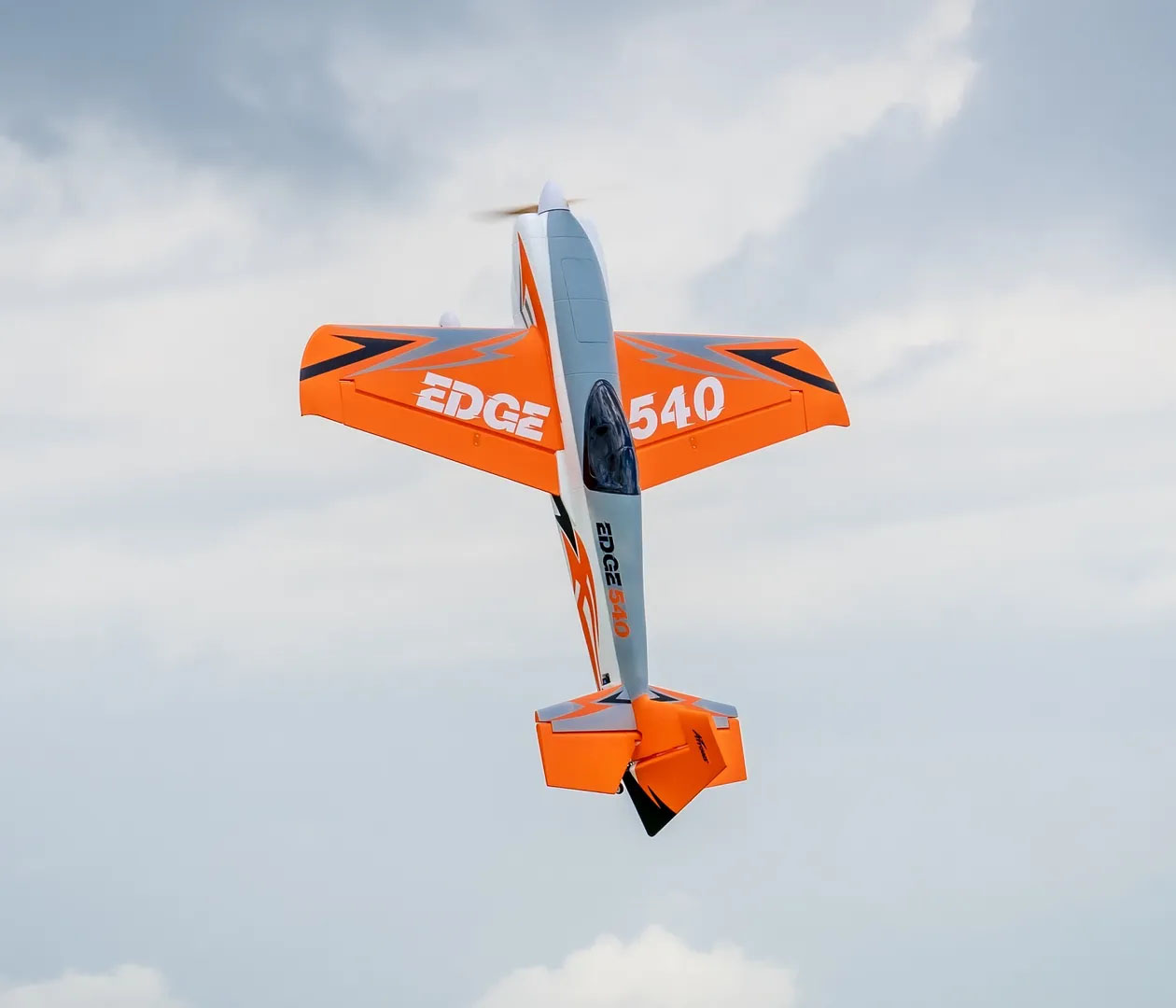

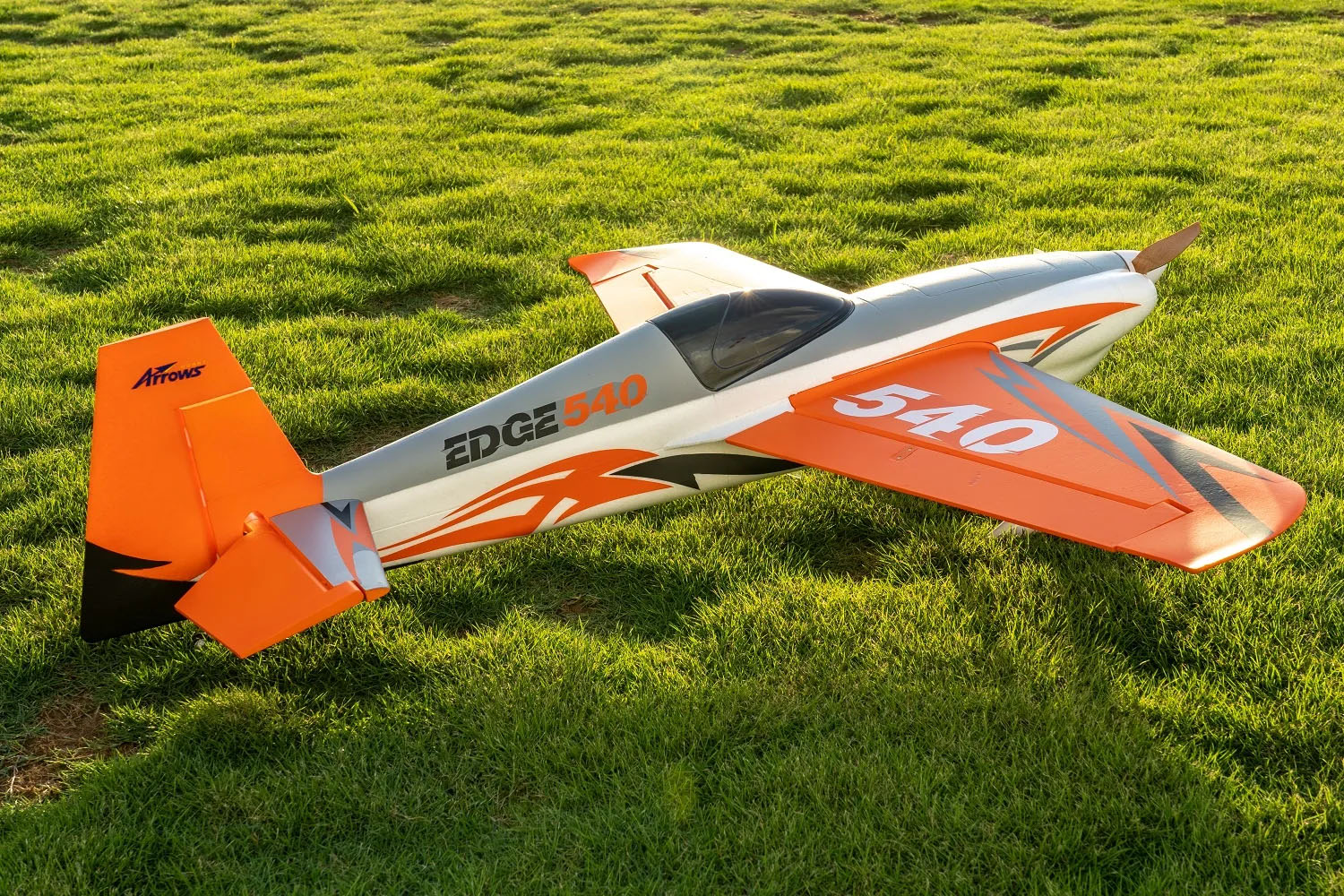

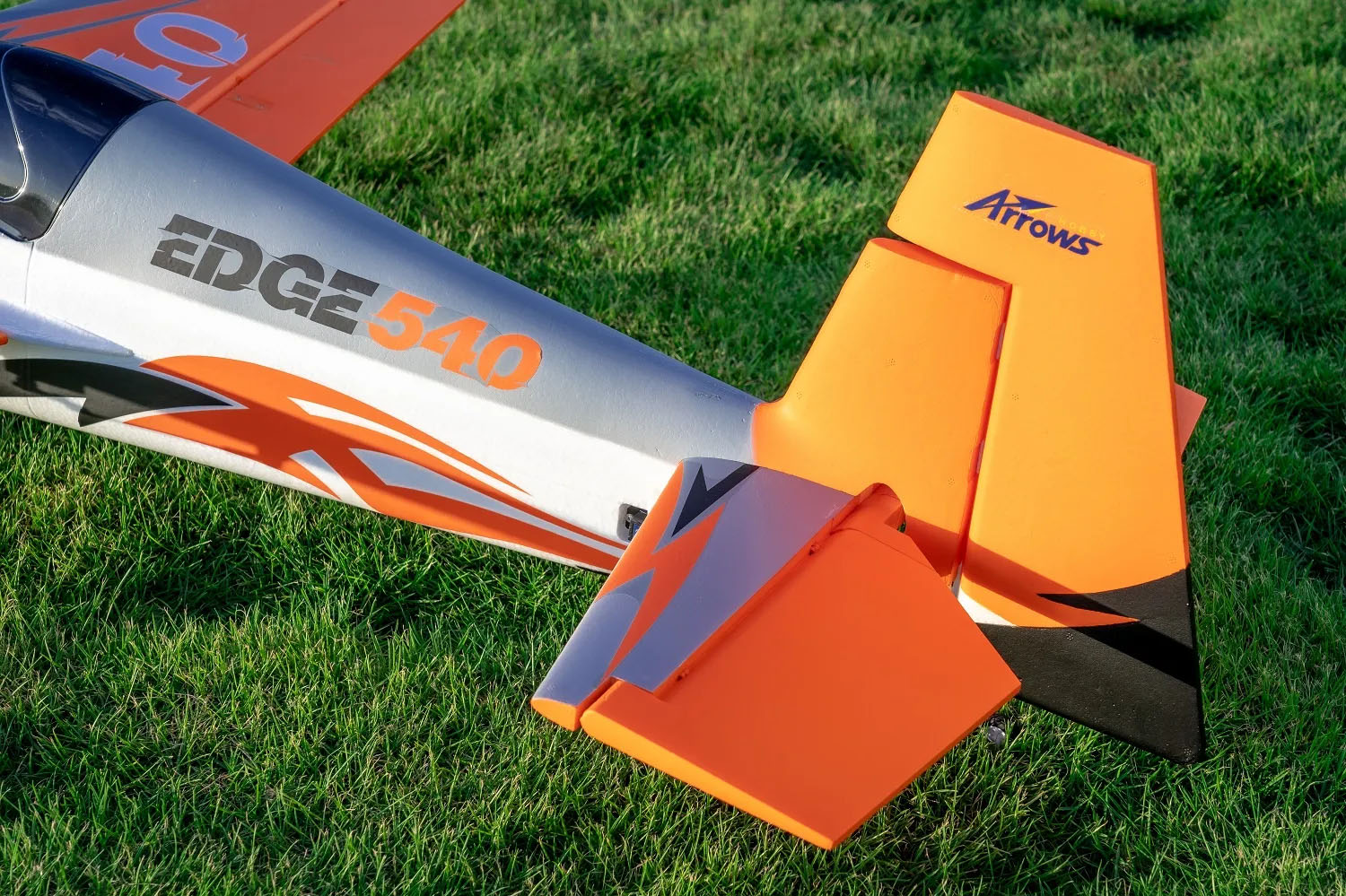

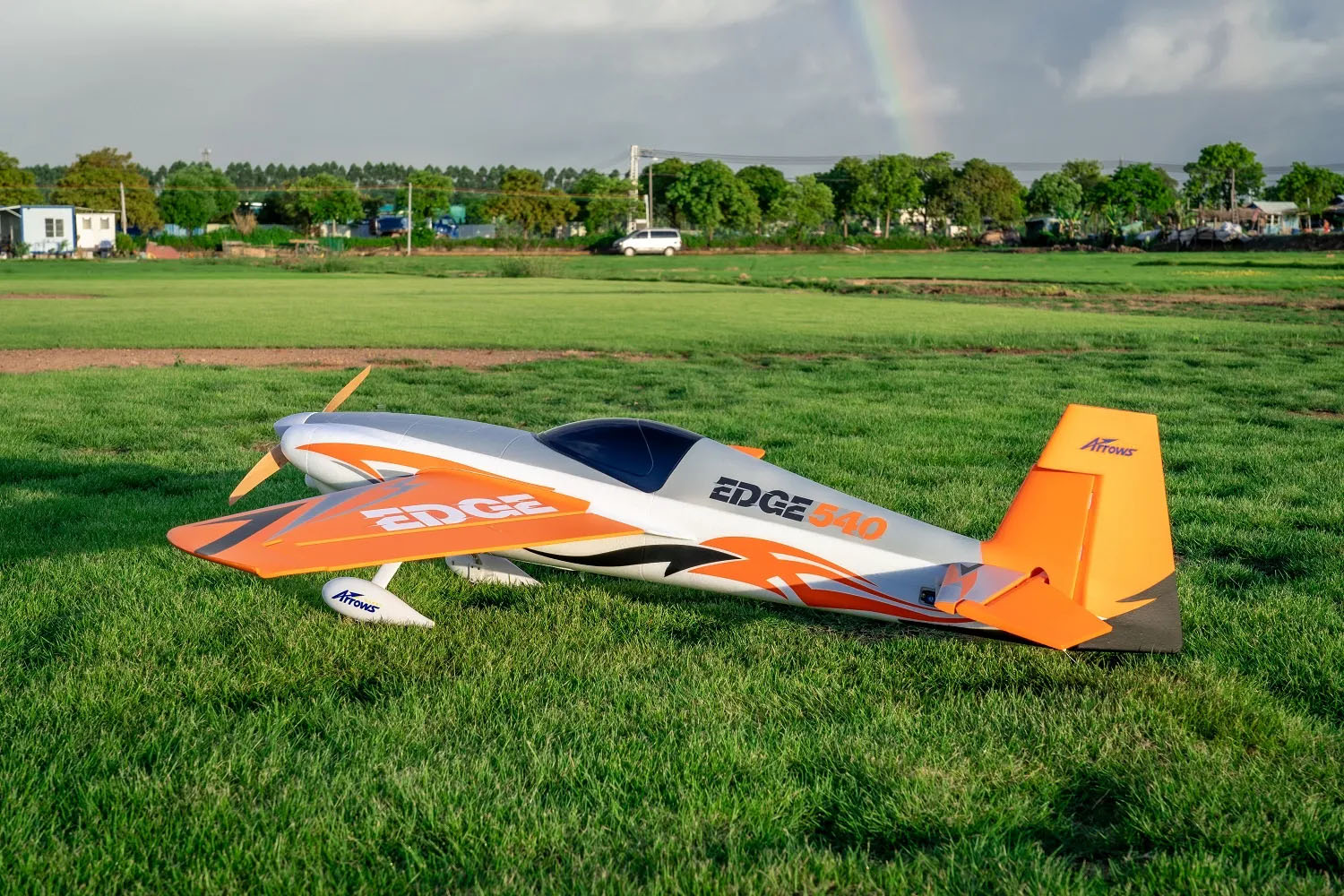

Pictures

Manual

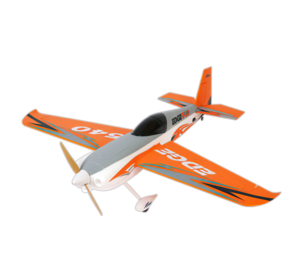

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1300mm (51.2 in)
Length: 1260mm (49.6 in)

Weight: 1900 g (4.2 lbs)
  • Wing Area: 32.5 dm² (503.4sq.in)
  • Wing Loading: 58.5g/dm² (0.117oz/in²)
  • Wingspan: 1300mm (51.2 in)
  • Weight: 1900 g
  • Length: 1260mm (50 in)
  • CG (Center of Gravity): 90-100mm from leading edge
  • Power System: 4250 KV910
  • Electronic Speed Control: 60A (XT60)
  • Propeller / EDF: Wood propeller 13 x 6
  • Servos: metal 23g x 4
  • Landing Gear: Fixed
  • Required Battery: 14.8V 2600mAh 30C
  • Gyro: Vector
