J3 Cub from Arrows RC

Details

A fabulous flight-ready version Piper's iconic two-seat light aircraft. Add Tx, Rx, flight battery and enjoy authentic stick and rudder flying.

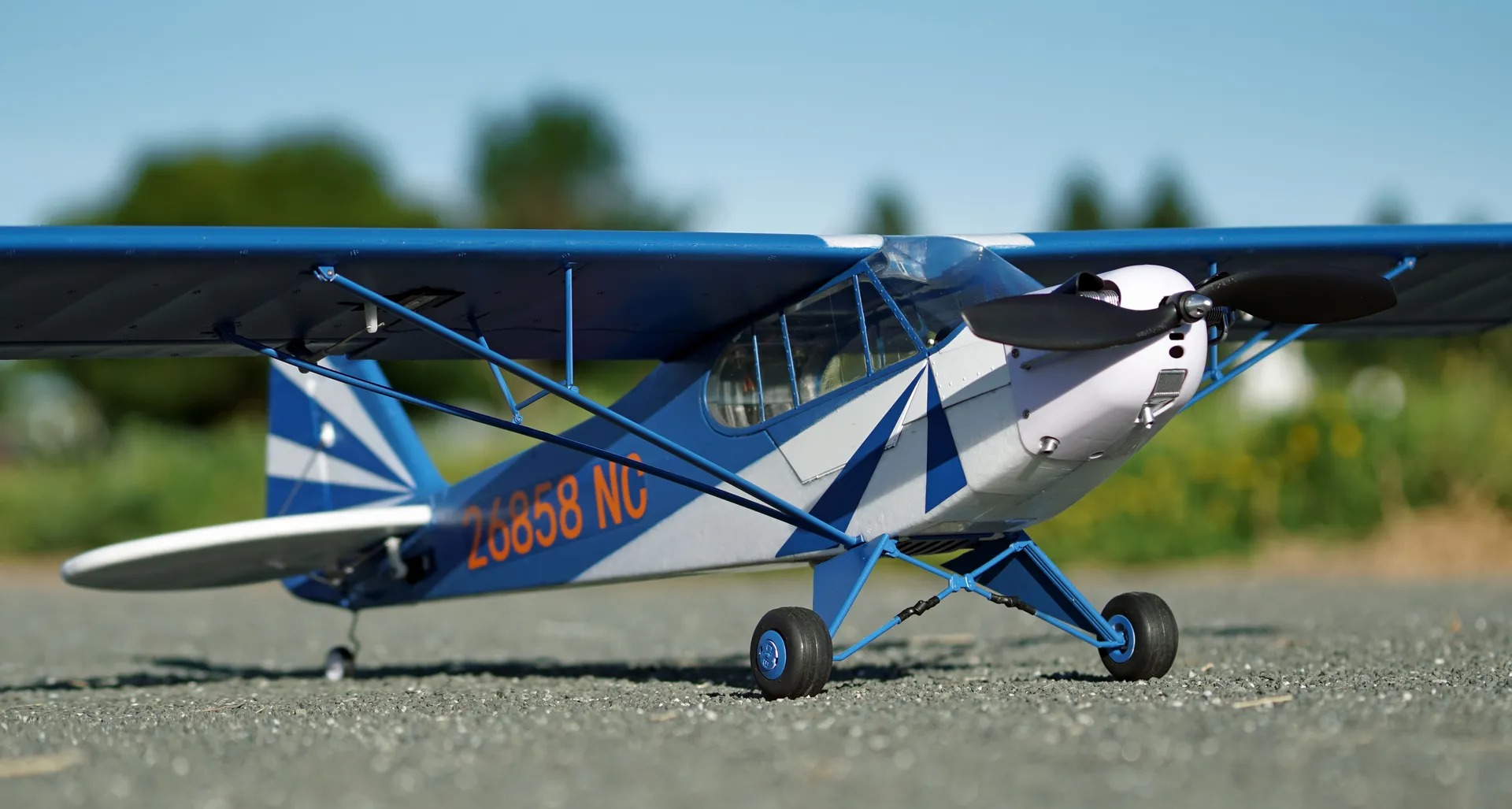

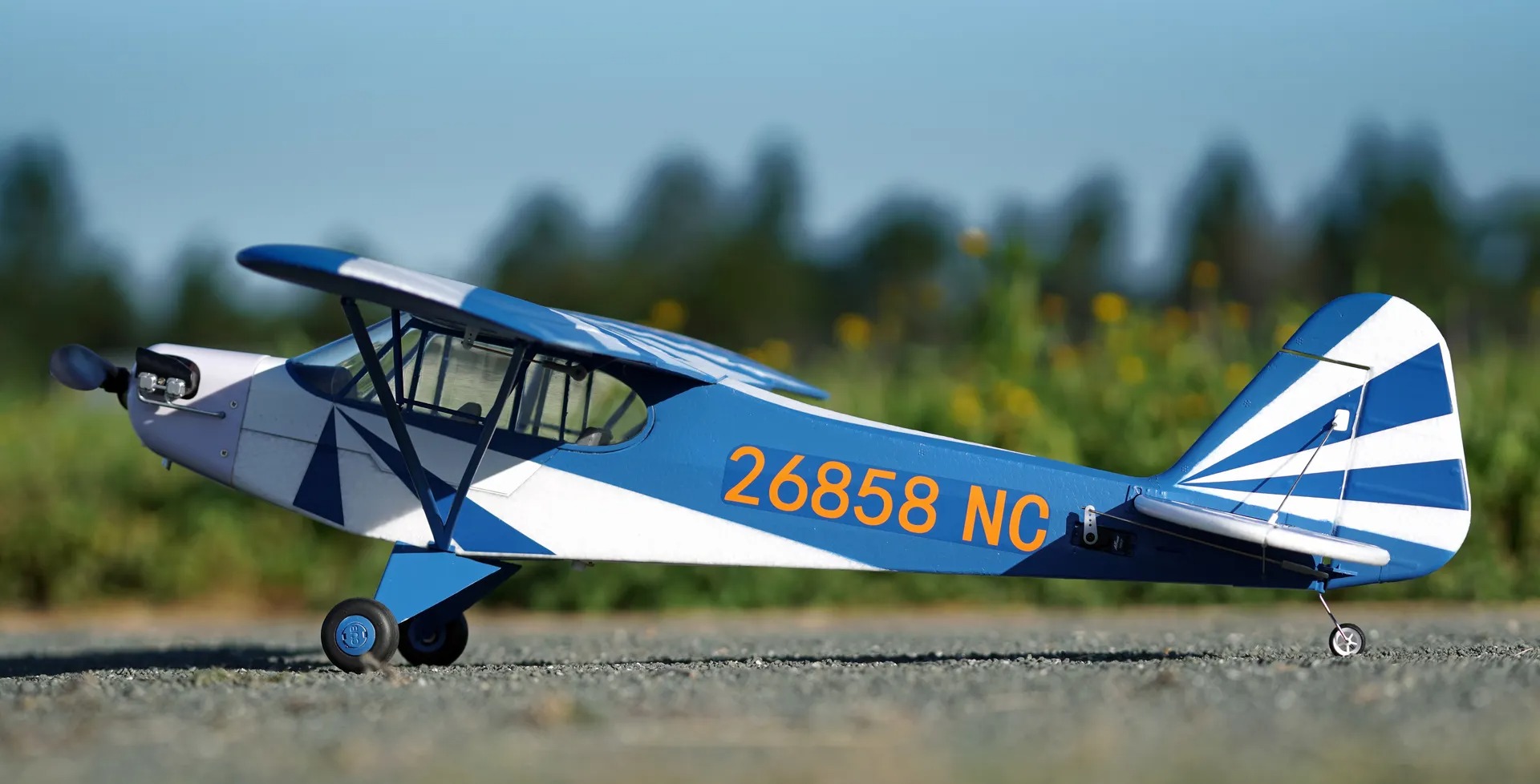

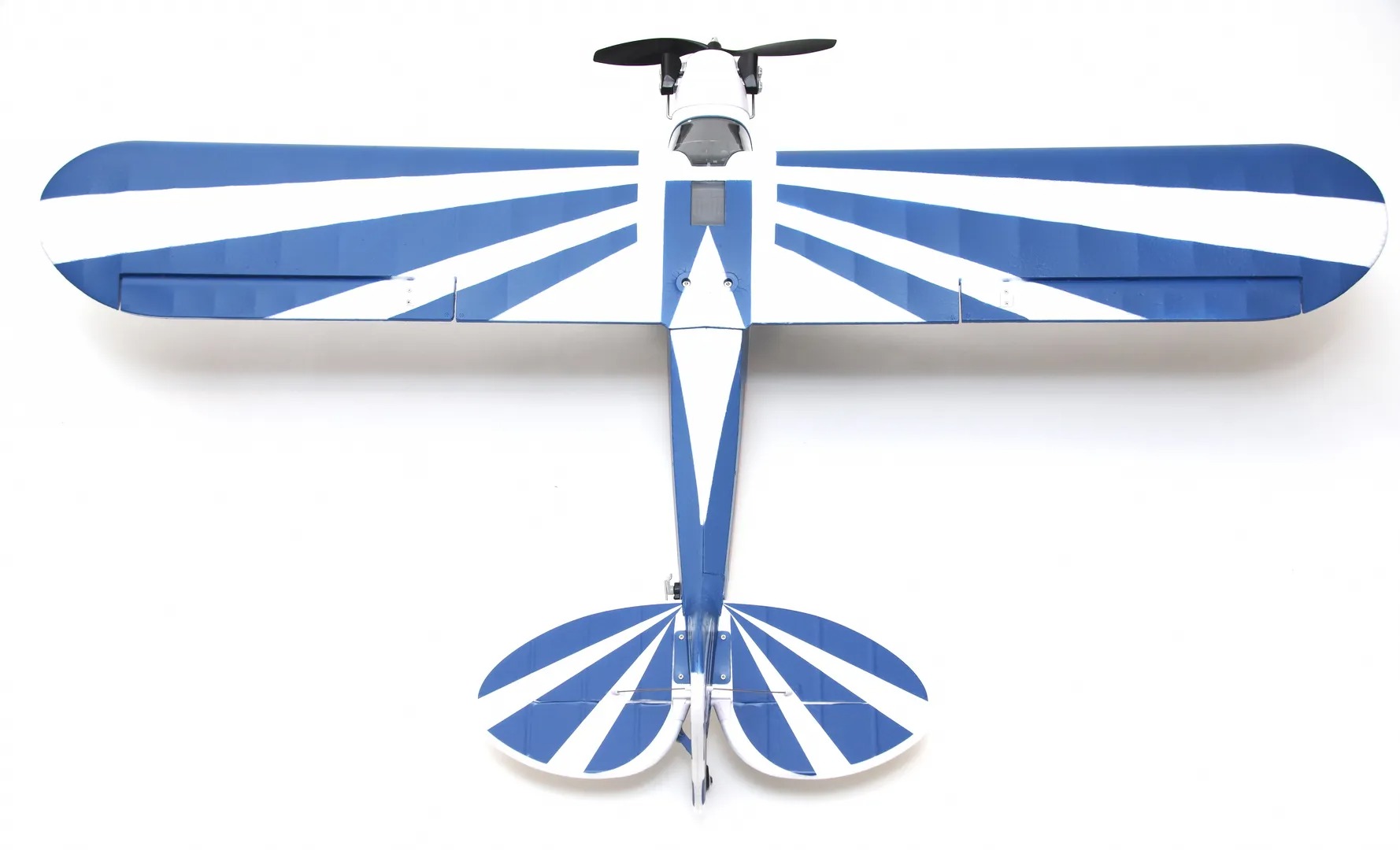

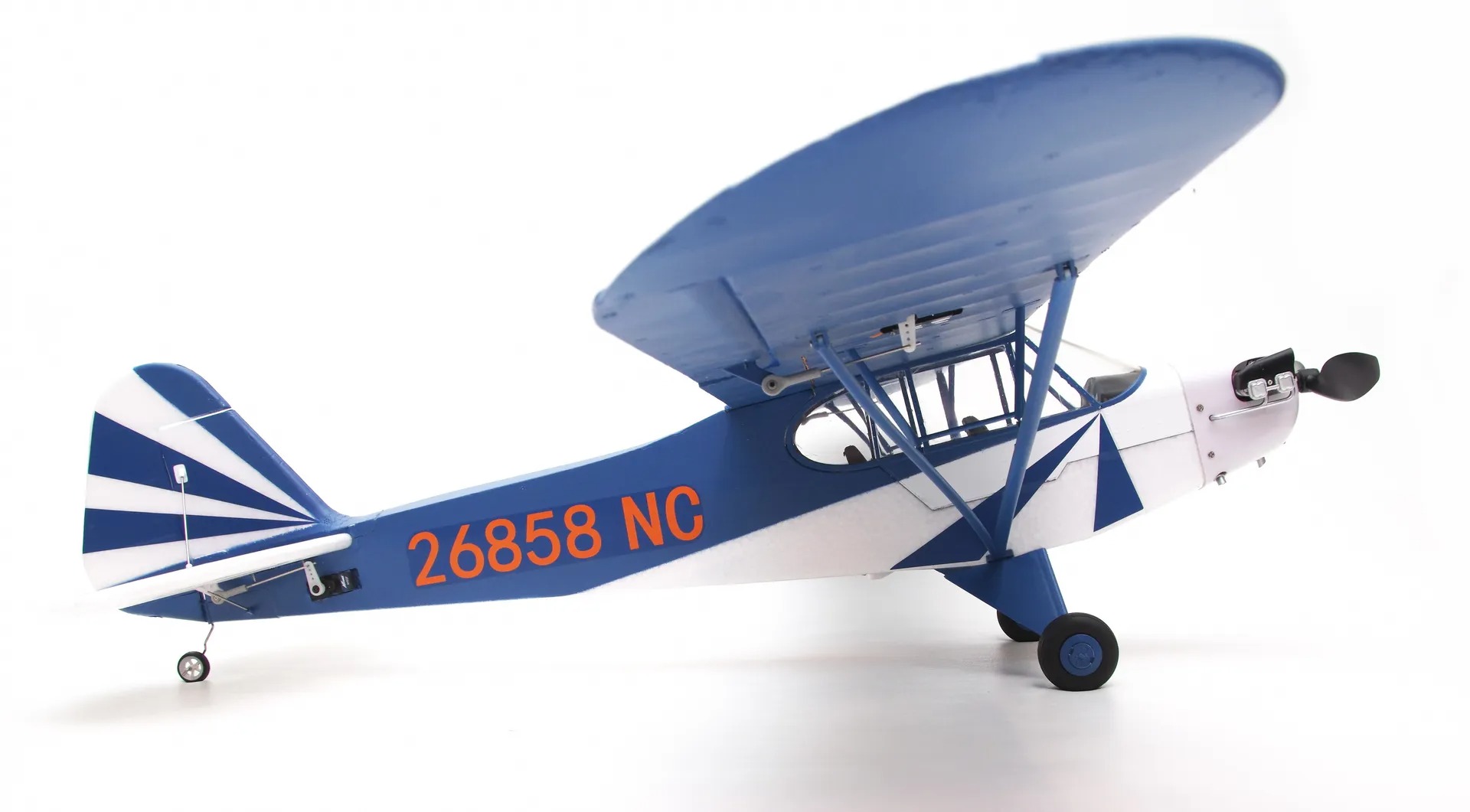

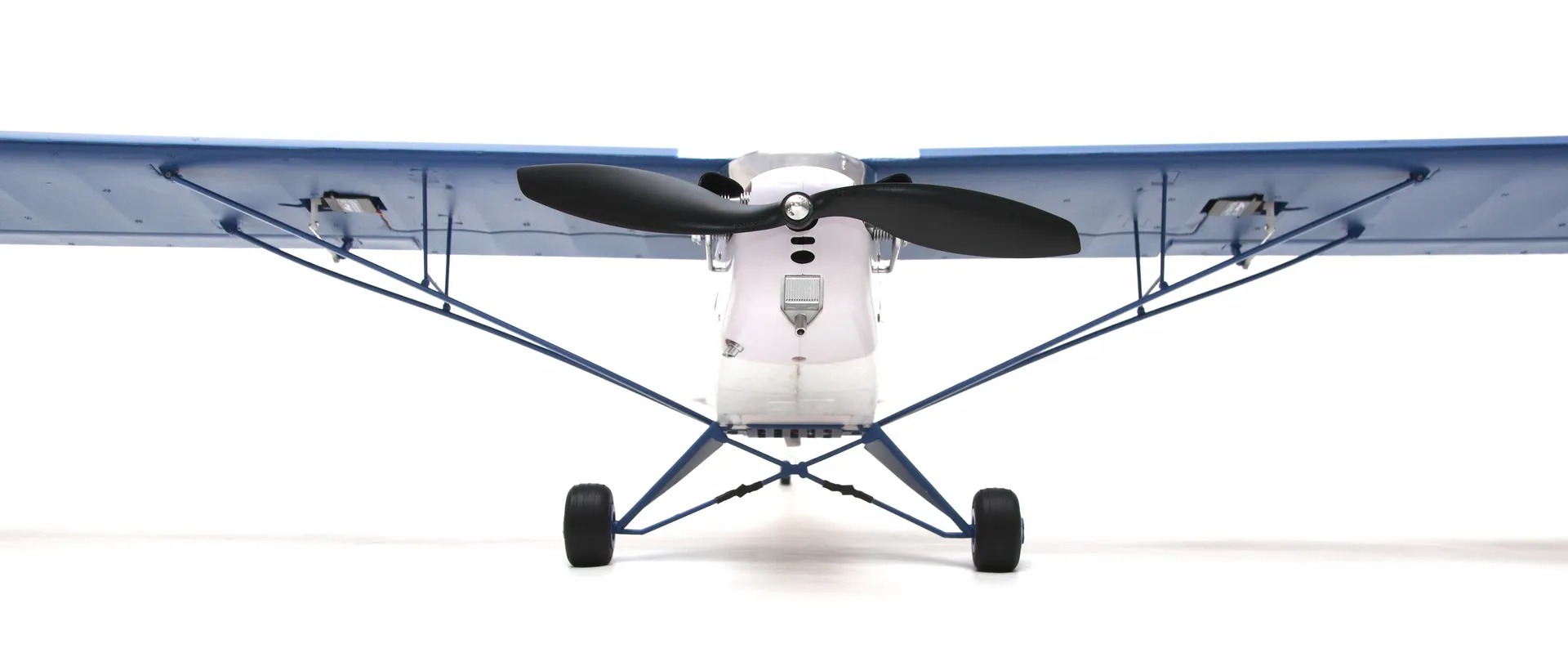

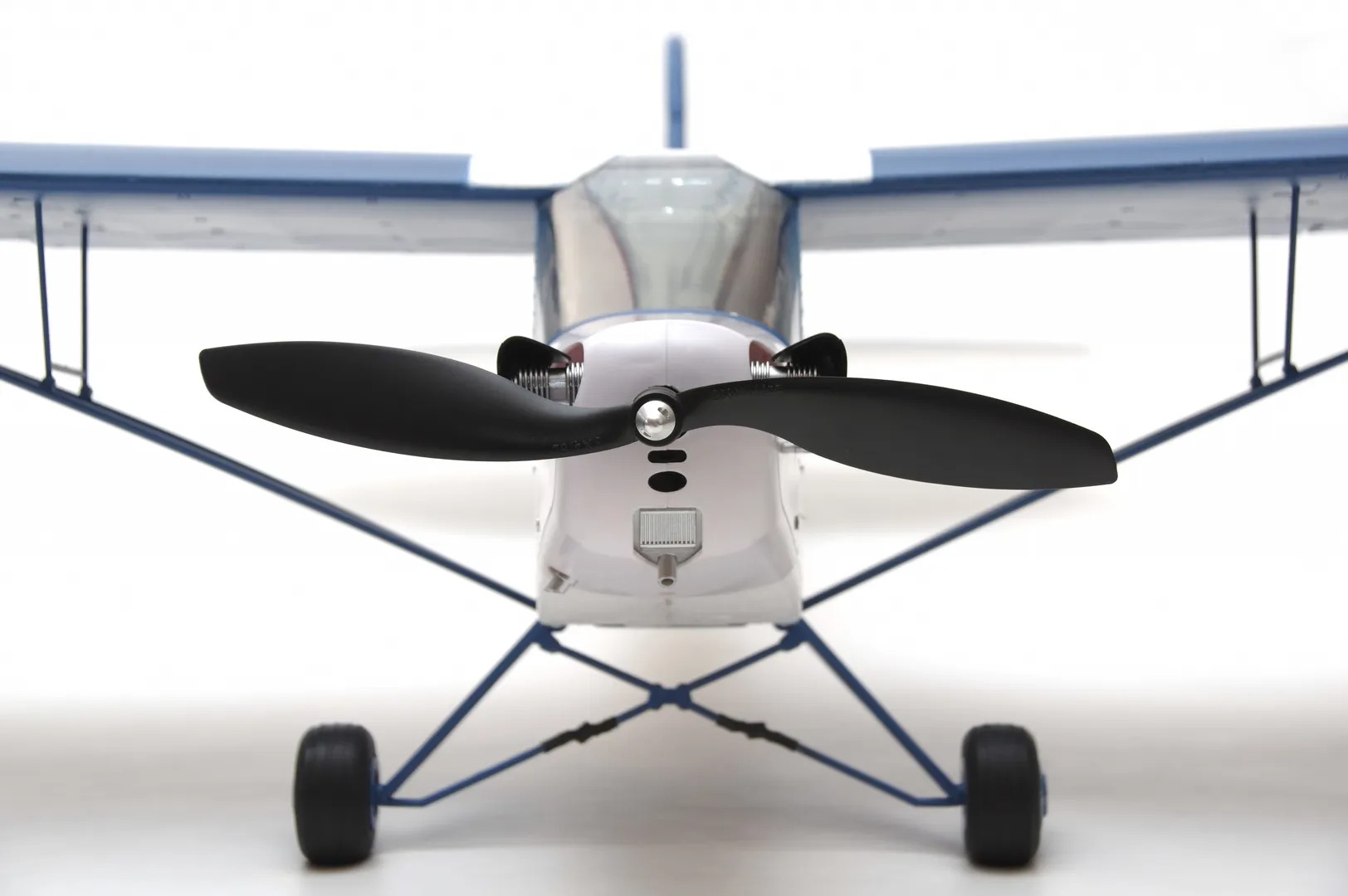

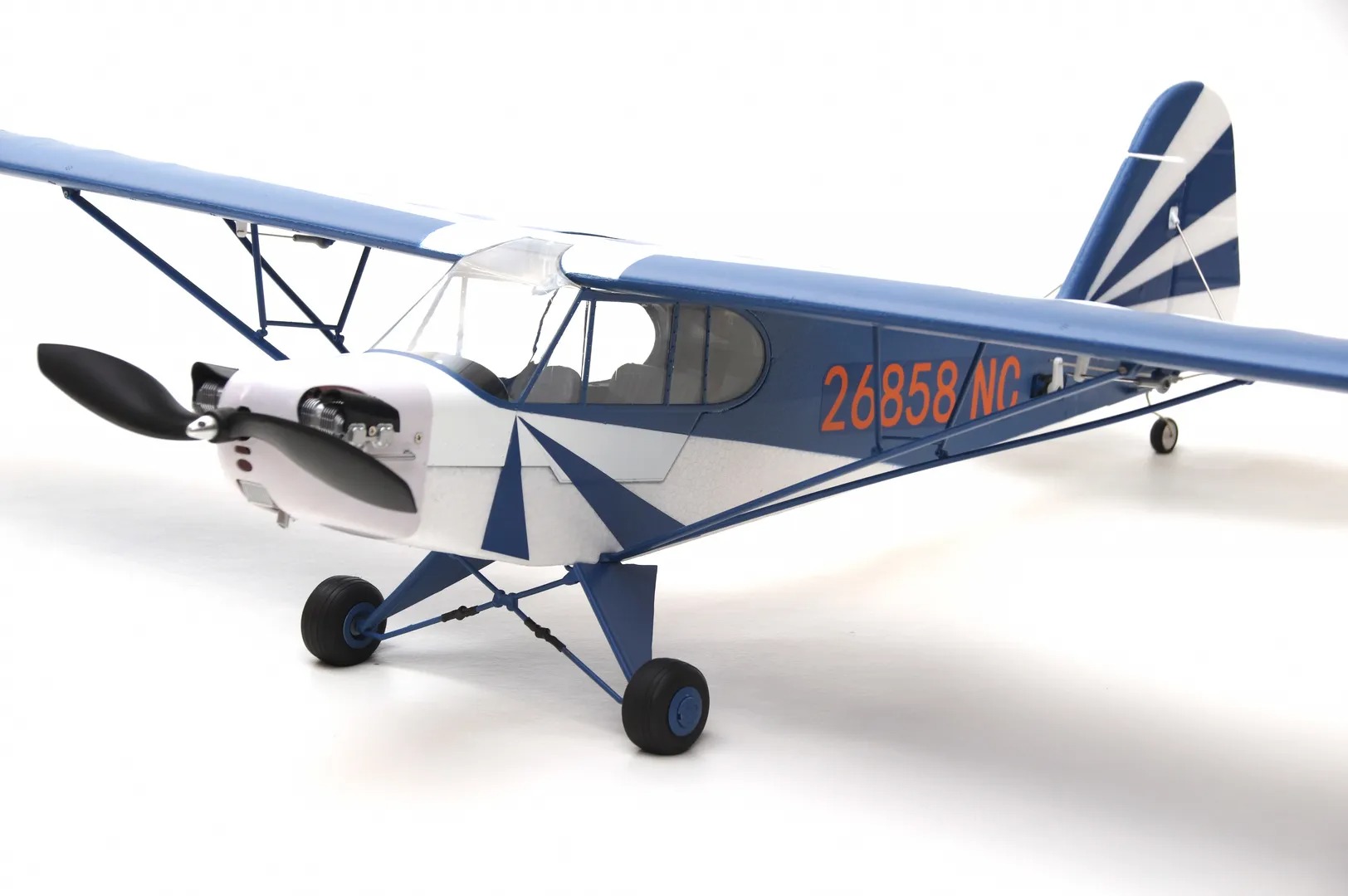

Talk about icons of the air; where civil light aircraft are concerned they don’t get more symbolic than Piper’s flat-4 powered small field runabout. Produced in huge numbers and seen in numerous colour schemes, not least standard Cub Yellow, this convenient size 1020mm span model is arguably one of the prettiest with its scale blue sunburst scheme. Those who appreciate fine detail will delight in the attention that’s been levelled on making this four-channel model look the part for not only does it feature a crisp Continental engine complete with cooling baffles, exhaust detail and oil cooler, there’s a neatly appointed cockpit, scale undercarriage and wheels, plus main struts, jury struts and even rivet detail.

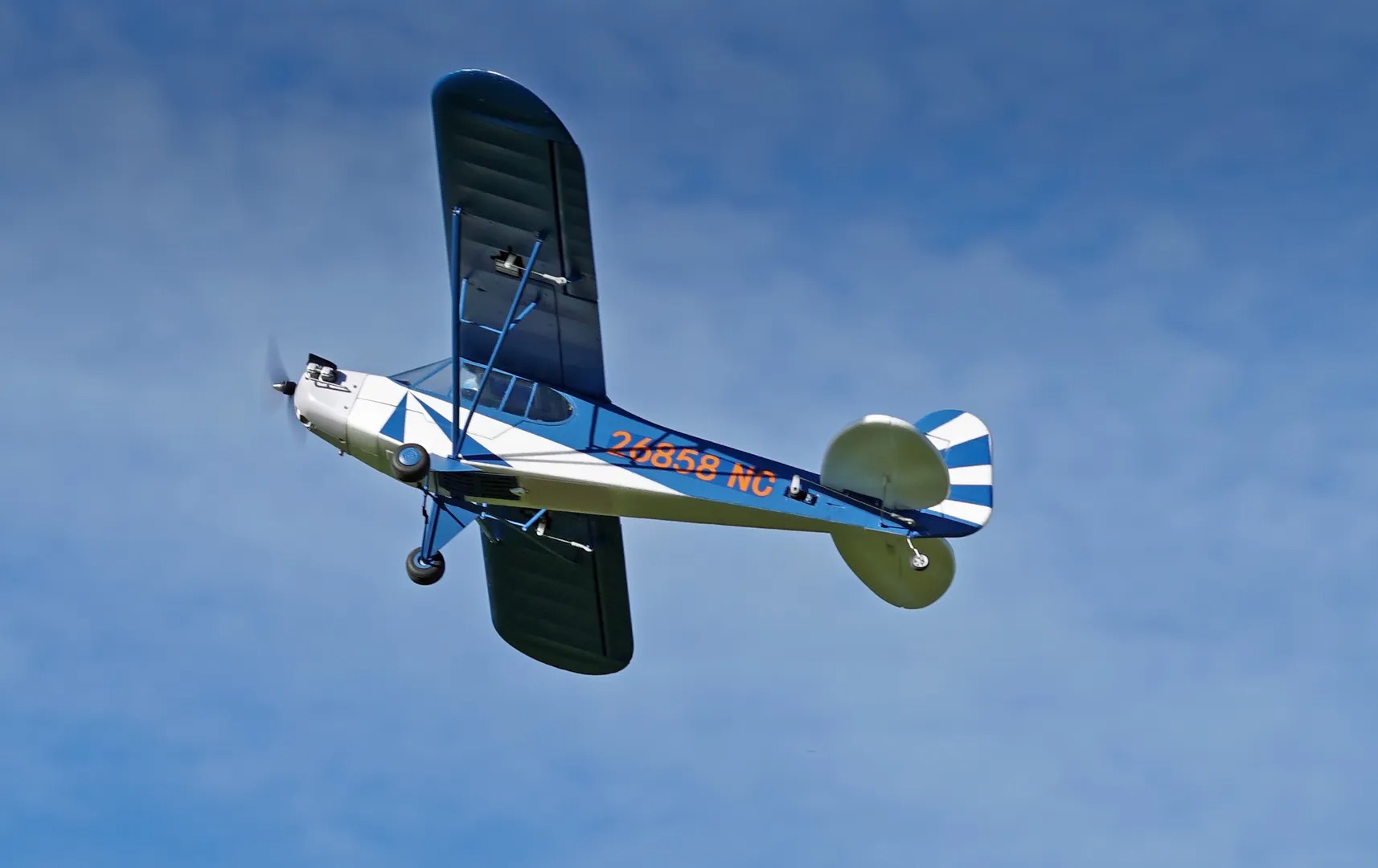

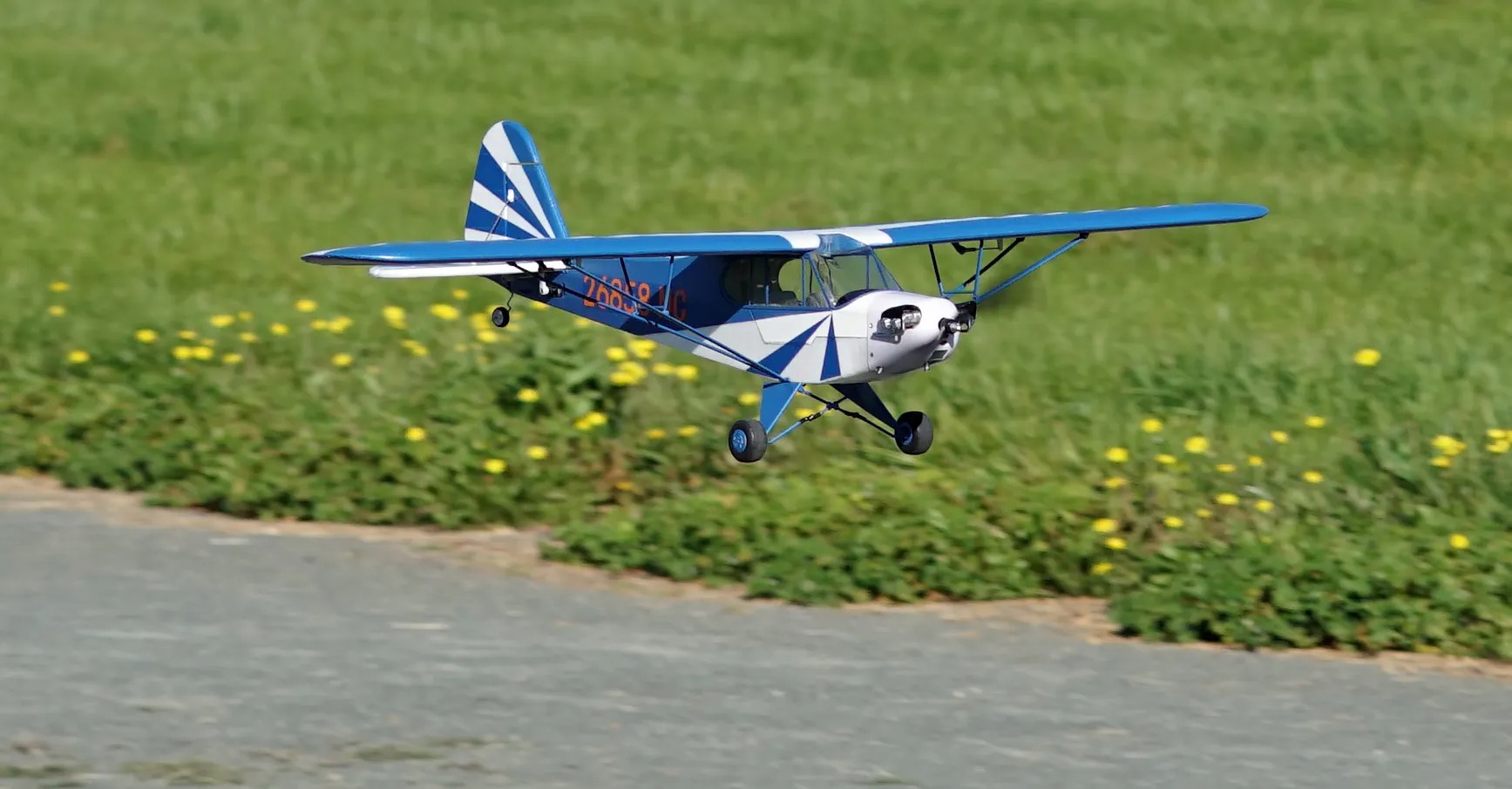

Powered by a cheap ‘n’ cheerful 1200mAh 2S LiPo (not supplied) and requiring only a basic four-channel transmitter and receiver combo to complete, this eye-catching example of the breed looks fabulous in the air and suits anyone from experienced beginner to expert. Flown in a representative manner – circuits, bumps and gentle cruising – it really will give you the authentic Cub experience and, of course, it’ll sit on the back seat of the car fully rigged which makes it massively convenient.

Features:

  • 3015 1700KV brushless motor and 20A ESC
  • High power-to-weight ratio
  • Suits standard 2S 7.4V 1200 – 1500mAh 20C LiPo
  • Oversized battery compartment to suit a multitude of battery sizes and capacities
  • Four pre-installed high quality servos
  • Highly durable EPO foam airframe
  • 30 minute assembly time
  • Water-based paint
  • Superb scale detailing
  • Takes standard 4-channel radio
  • Quality hardware
  • Ball joint control linkages

Description from Al's Hobbies

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.


Wingspan: 1030mm (40.6 in)
Length: 750mm (29.5 in)

Weight: 625 g (1.4 lbs)
  • Wingspan: 1030mm (40.5in)
  • Length: 750mm (29.5in)
  • Flying Weight: Around 625g
  • CG (Center of Gravity): 40-50mm from leading edge
  • Power System: 3015-1700kV
  • Electronic Speed Controler: 20A
  • Propeller / EDF: 8 x 4.5 x 2
  • Servos: 9 gram servo x 4
  • Landing Gear: Fixed
  • Required Battery: 2S 1300mAh 20c

Variants

AH003P
J3 Cub (White Blue)
