Marlin from Arrows RC

Details

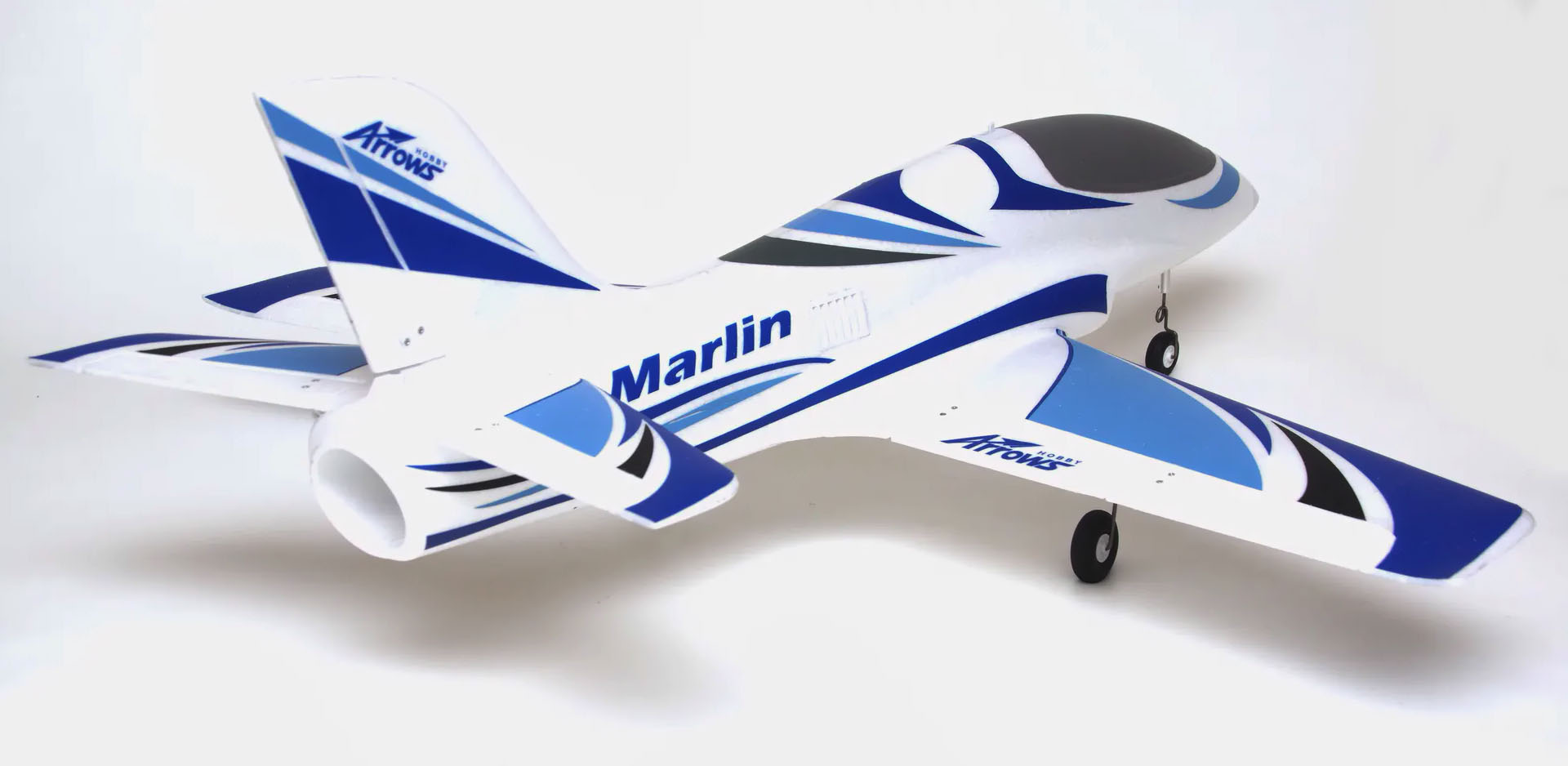

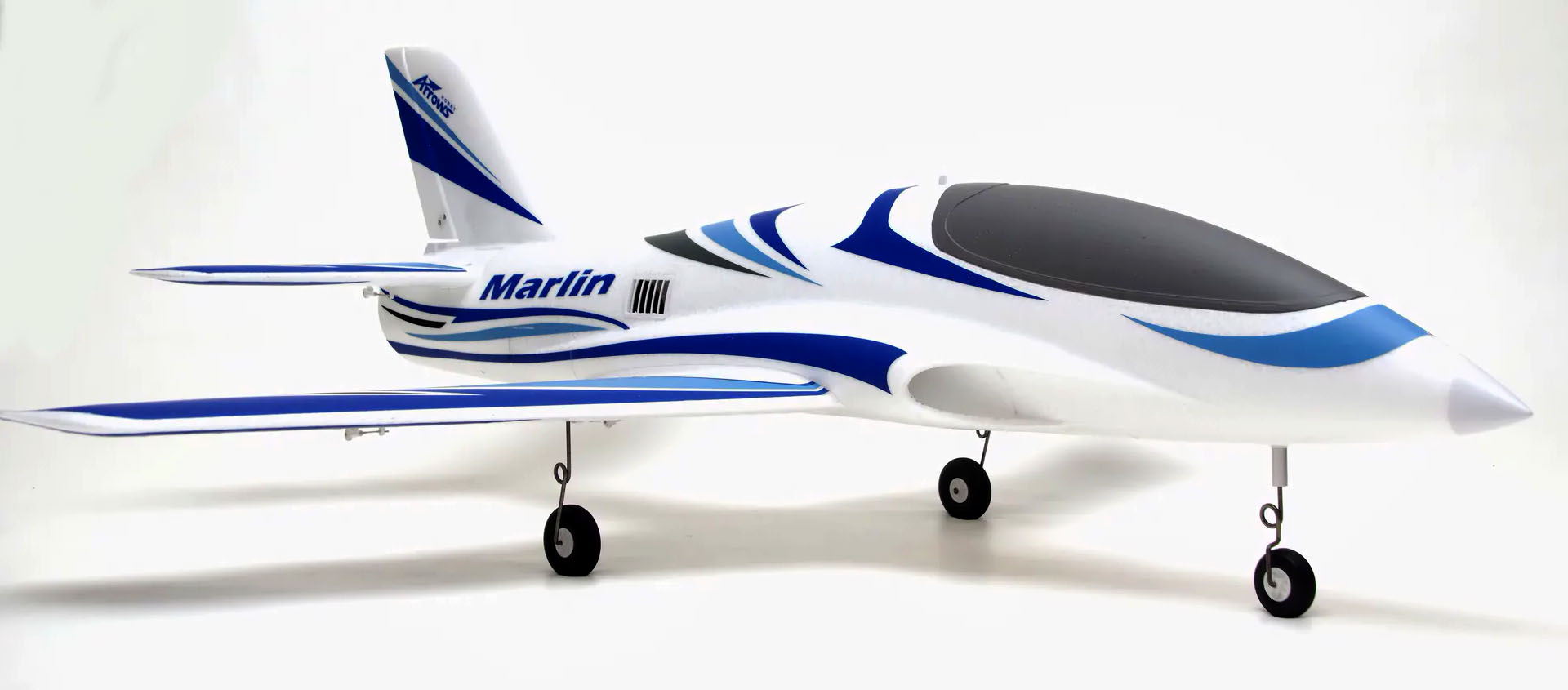

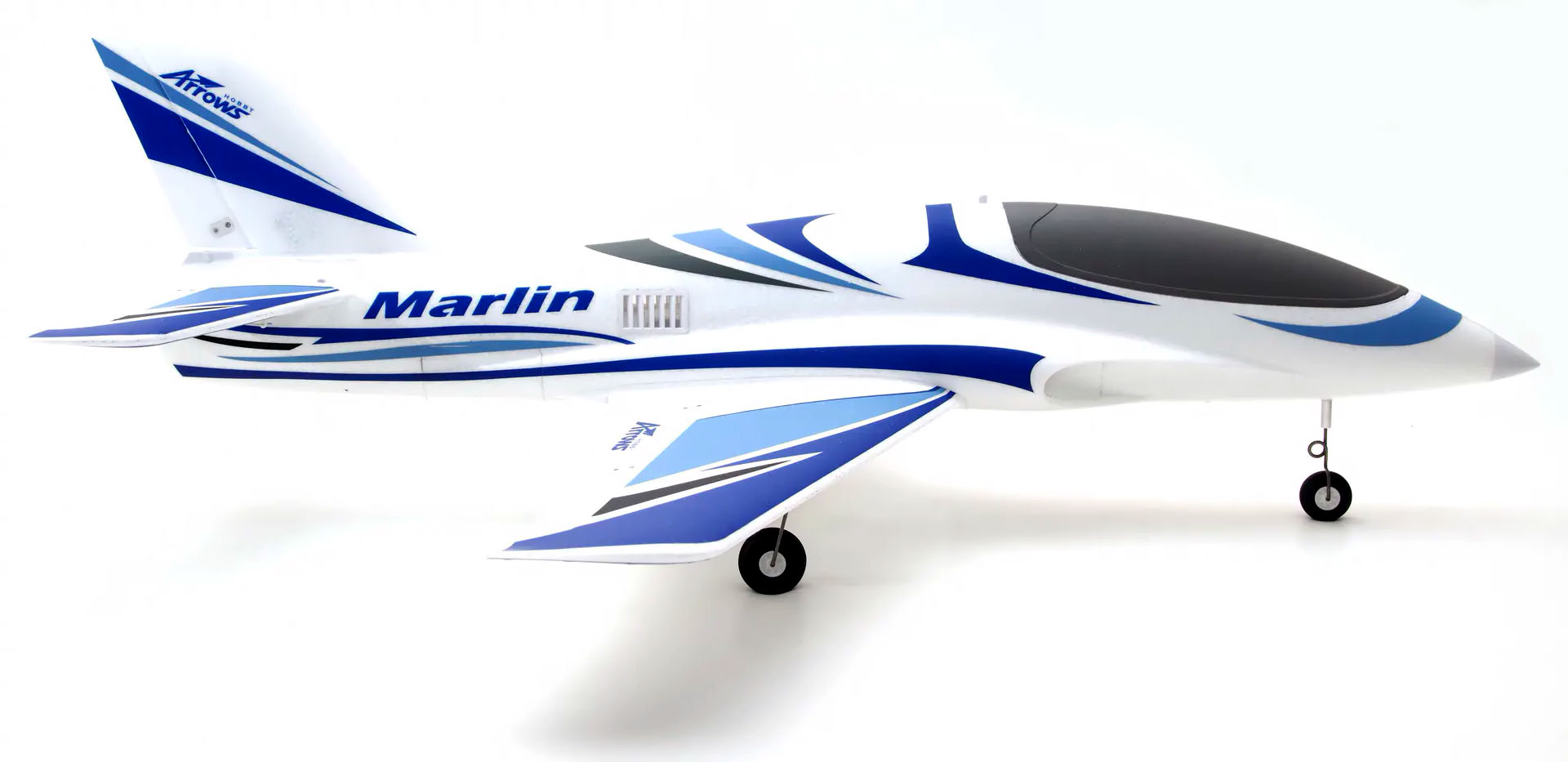

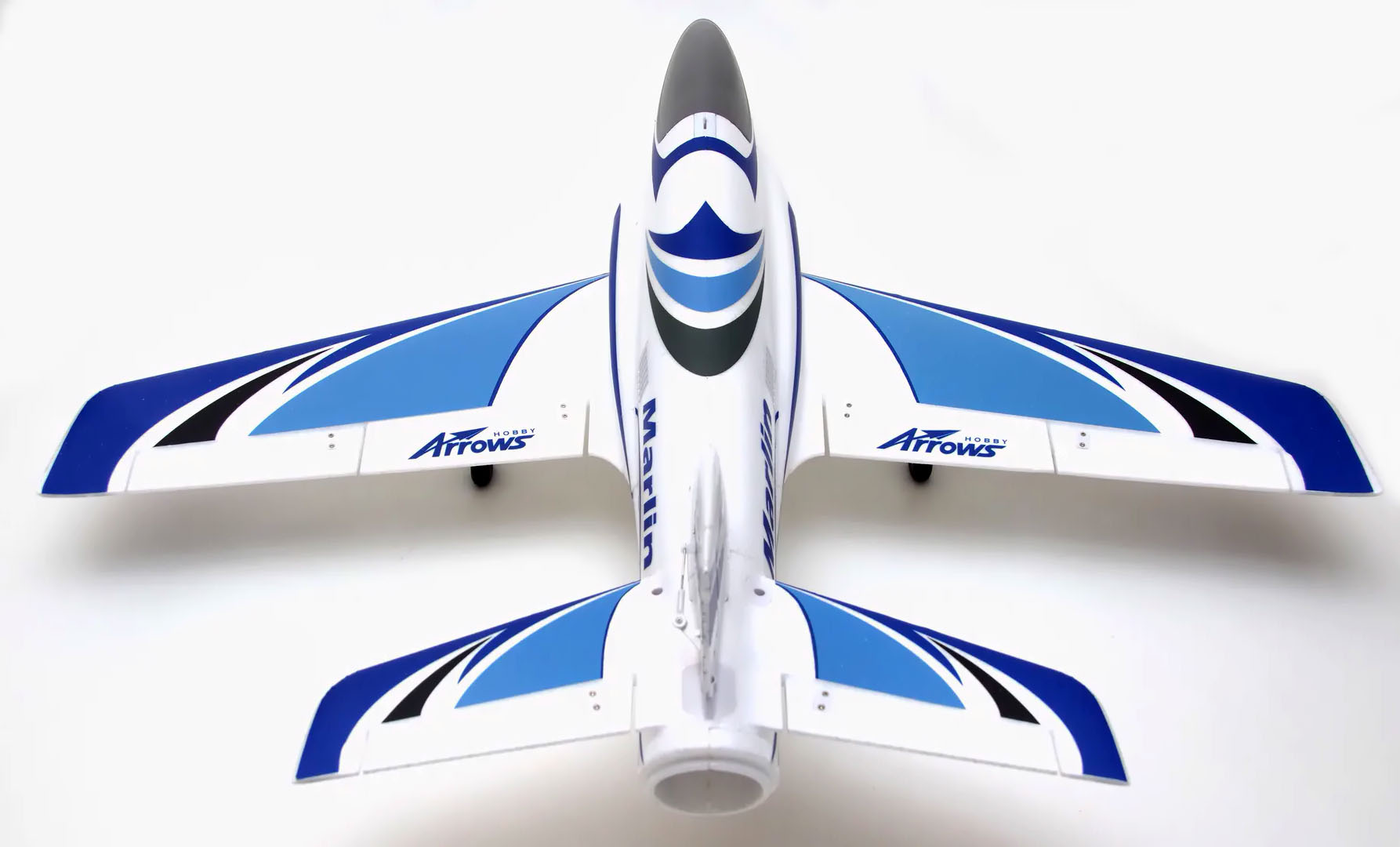

Something different! The Arrows Marlin 64mm EDF is an ALL NEW design with the beginner to intermediate pilot in mind. This plane has a more robust fixed landing gear than most, to handle bumpy landings. More importantly it is the only plane in its class to have flaps to shorten takeoff, and to make approaches and landings more like those of a high wing trainer. The 3150kV motor combined with a 40 Amp ESC, and a powerful 64mm 11 blade EDF, ensure plenty of power for takeoff and maneuvers. The fan sounds like a real turbine.

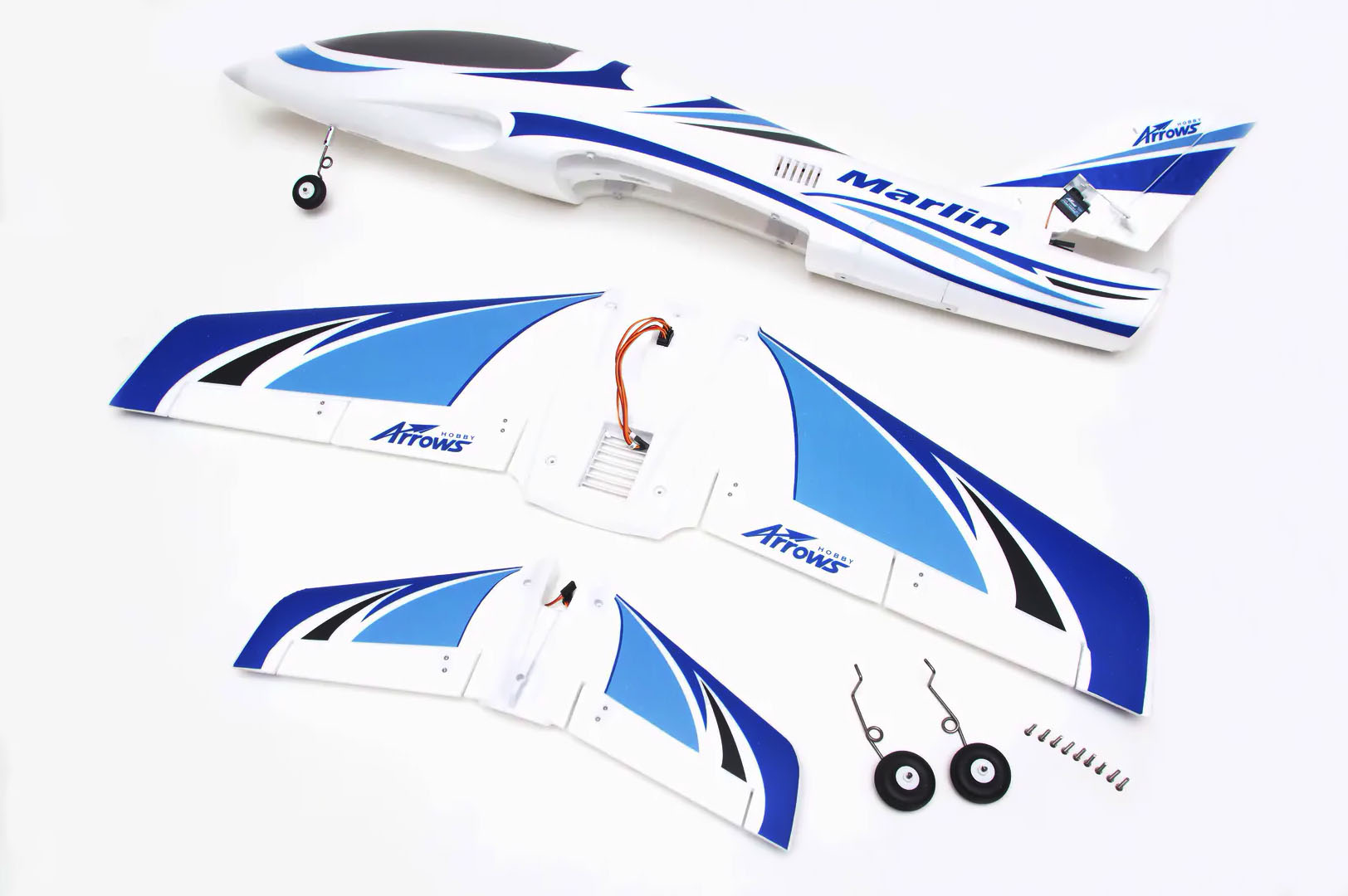

This plane basically has eight screws and some servo connections to complete assembly. No glue is necessary, and because we use 8 servos we are not running a lot of control rods around. Even the nose wheel has it's own servo. Flap and aileron connections are made with ball linkages, for greater strength at higher speeds. A latch type canopy makes in flight canopy loss a thing of the past.

Features

  • Sleek aerodynamic airframe
  • Screw together assembly
  • Flaps
  • Ball linkages
  • Latch type canopy
  • Ultra durable EPO foam
  • The perfect beginner jet!

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Marlin in particular but at least we know they do distribute Arrows RC.

Where to buy

Austria
Schweighofer AT
check web site
Ship to: International
Germany
Schweighofer GE
check web site
Ship to: Germany
France
miniplanes
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
USA
Hobby Zone
check web site
Ship to: USA
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
United Kingdom
Arrow Models
check web site
Ship to: Europe
France
Turbines RC
check web site
Ship to: Worldwide
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
UAE
Gonzo Hobbies
check web site
Ship to: UAE

Wingspan: 900mm (35.4 in)
Length: 995mm (39.2 in)

Weight: 1050 g (2.3 lbs)
  • Wingspan: 900mm (35.43in)
  • Length: 995mm (39.17in)
  • Flying Weight: Around 1050g
  • CG (Center of Gravity): 72-75mm from leading edge
  • Power System: 3150kV - 2840 size
  • Electronic Speed Control: 40A
  • EDF: EDF 64mm 11 blade
  • Servos: 9 gram servo x 8
  • Landing Gear: Robust fixed
  • Required Battery: 4S 2200-2600mAh 35C
  • Required Radio: 6 Channel transmitter and receiver required
  • Material: EPO Foam



Variants

AH009P
Marlin (White Blue)
