SZD-54 from Arrows RC

Details

Arrows Hobby, after the success of trainers, warbirds, and jets, now brings you gliders. This first glider, the 2000mm SZD-54, has been thoroughly tested, and has been brought to you in it's best form.

To achieve the best dihedral, the SZD-54 was designed with a specialized two-piece CNC threaded metal spar joiner- allowing the aircraft to maintain its wing geometry during demanding flight routines. Additionally, the pre-embedded carbon fiber spars in the fuselage and main wings ensure overall rigidity in high-G maneuvers.

A high-quality 30A ESC paired with a 3136-KV1000 motor provides ample power with a 3S pack (1300mAh-2200mAh) to perform most aerobatic maneuvers. Positive and negative loops, stall turns, point rolls, and inverted flight can be easily and excellently performed.

The wing and horizontal stabilizers are designed with a snap-fit structure, which can be installed by pressing and detached by pulling. No screws or glue necessary! This superb design makes transportation and storage easy. With the majority of the aircraft pre-assembled and no need for screws or glue, this aircraft can be built in as little as 3 minutes!

Features:

  • Powerful 3136-KV1000 motor with high-quality 30A ESC, 9g digital servos
  • Snap together assembly, no screws or glue necessary
  • Two-piece wing, two-piece CNC threaded metal spar joiner
  • Folded propeller
  • Functional flaps
  • Belly landing wheel
  • 85% factory assembled
  • Recommended 3S 1300mAh-2600mAh Lipo pack provides 10-15 minute flight time.
  • Made of highly durable EPO foam

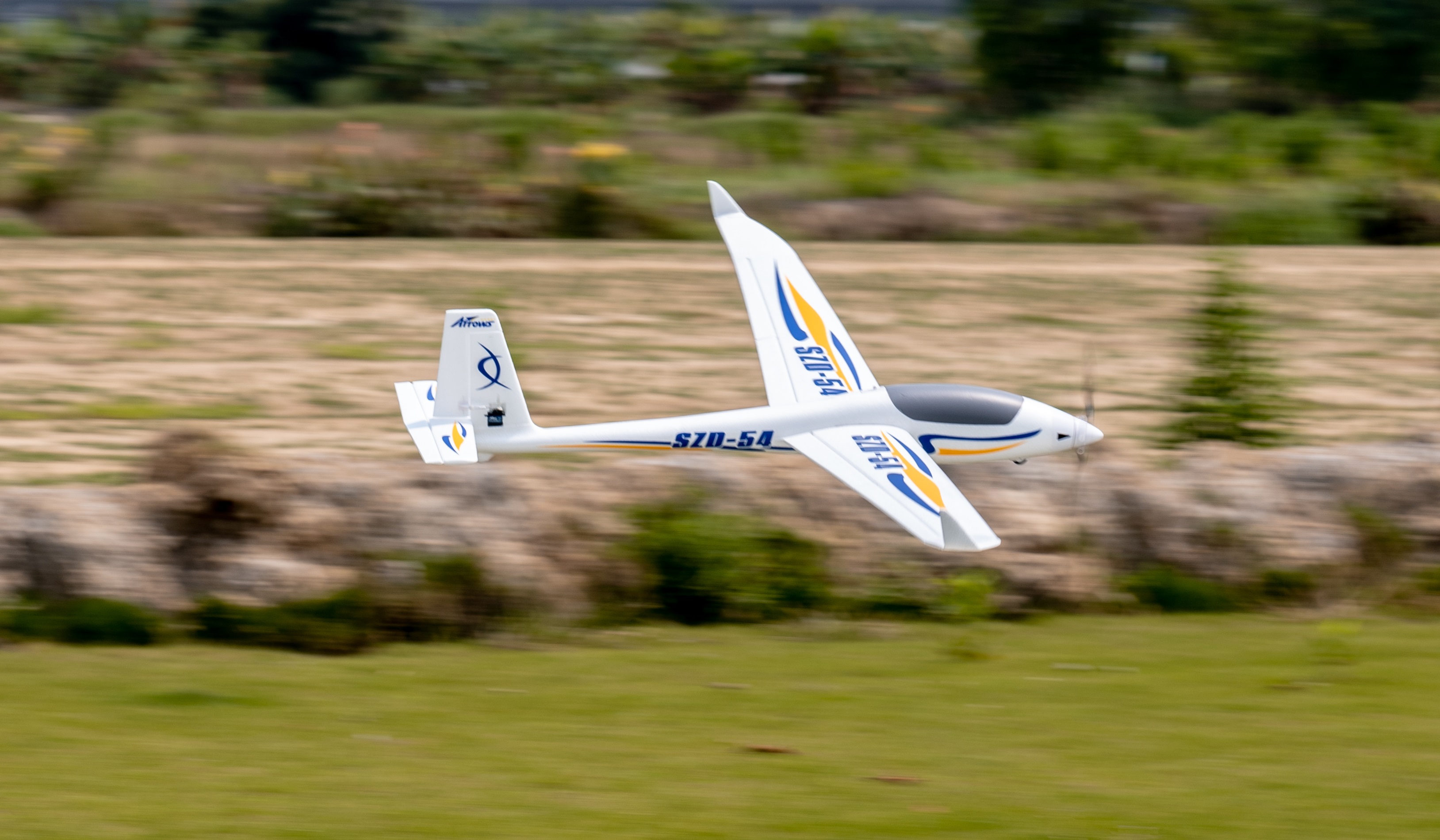

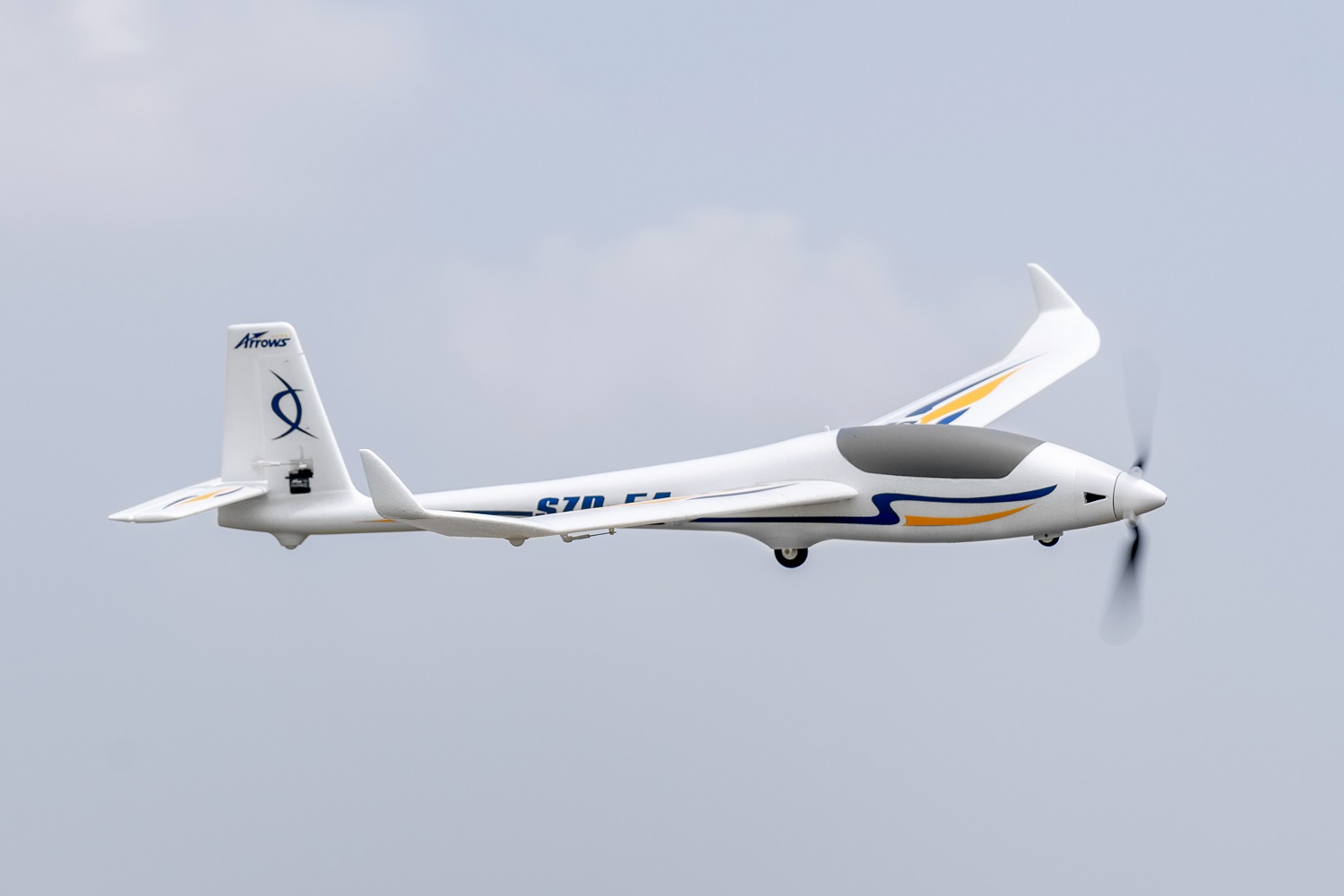

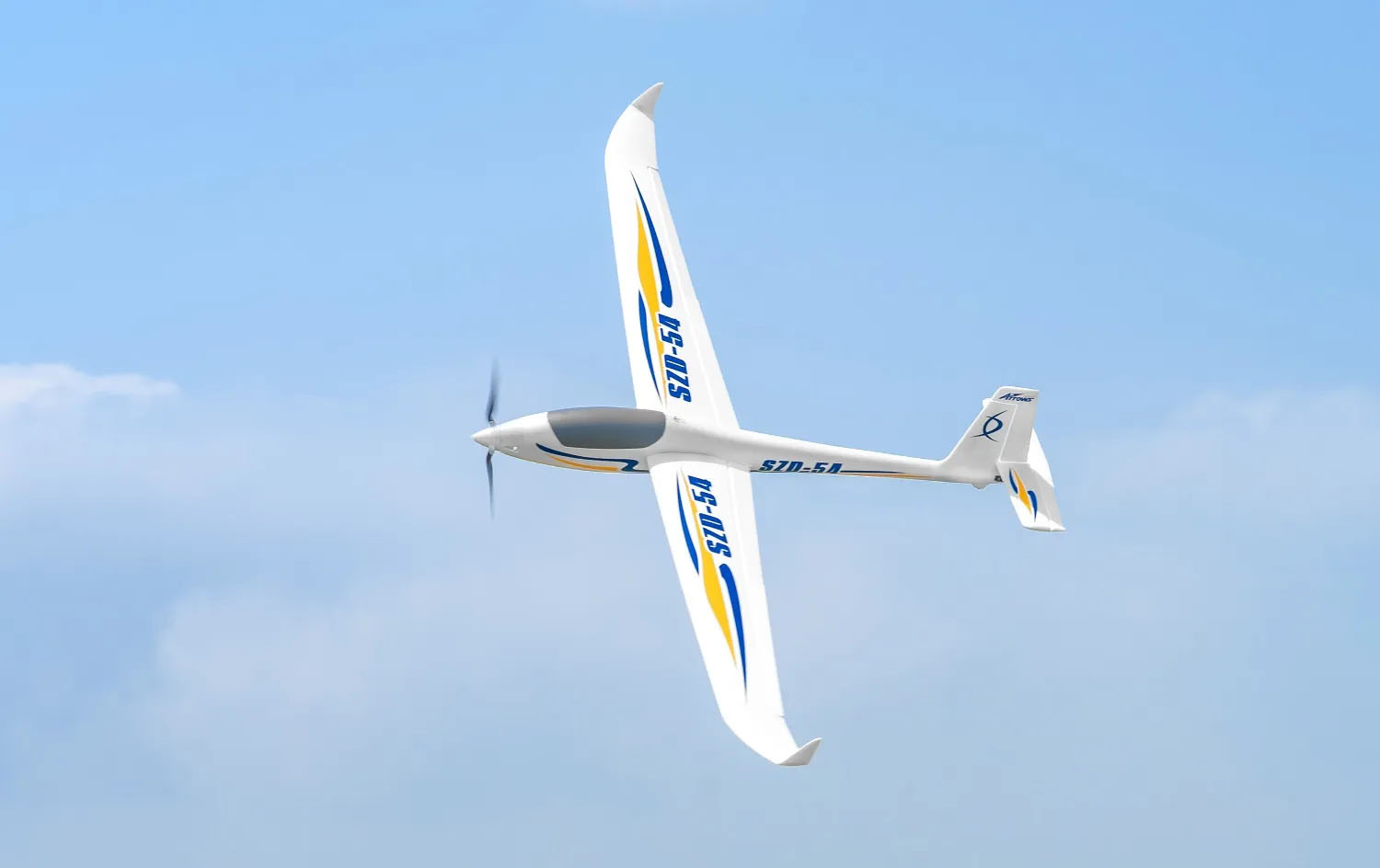

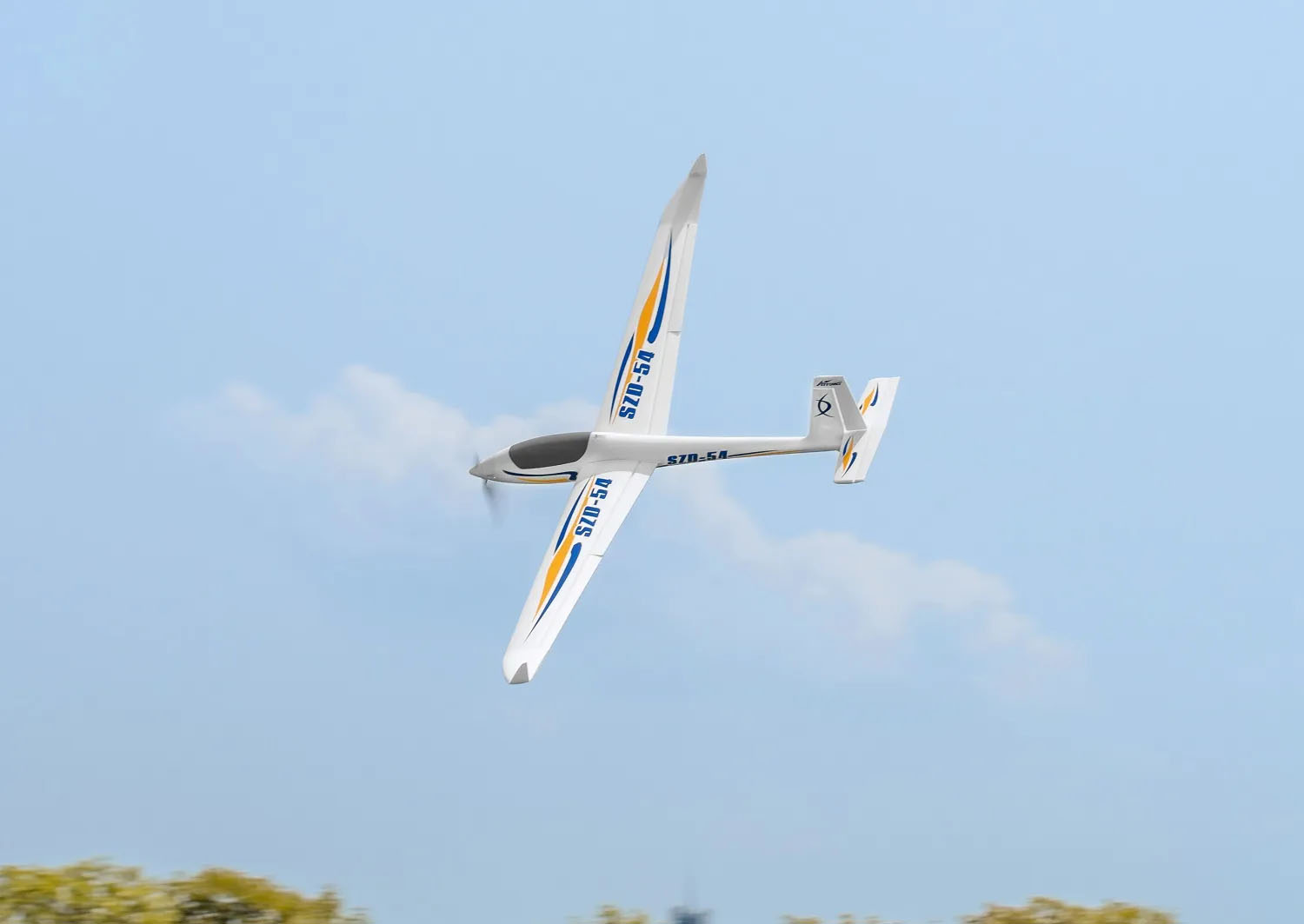

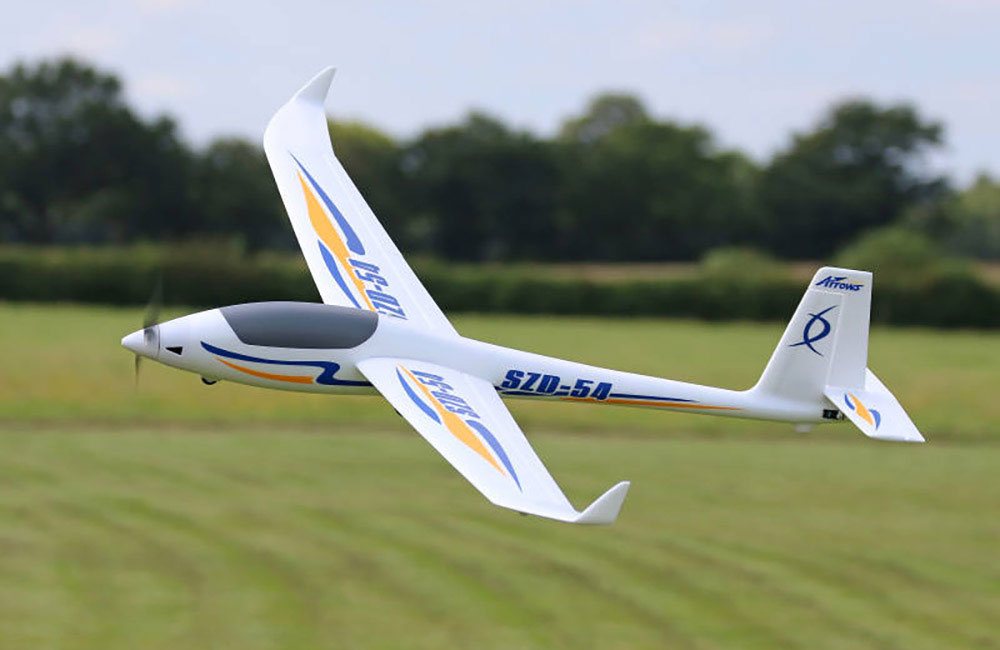

Pictures

Manual

Radio icons

(Click on the icon you want to download)

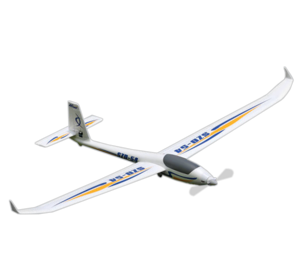

Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the SZD-54 in particular but at least we know they do distribute Arrows RC.

Where to buy

Austria
Schweighofer AT
check web site
Ship to: International
Germany
Schweighofer GE
check web site
Ship to: Germany
France
miniplanes
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
USA
Hobby Zone
check web site
Ship to: USA
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
United Kingdom
Arrow Models
check web site
Ship to: Europe
France
Turbines RC
check web site
Ship to: Worldwide
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
UAE
Gonzo Hobbies
check web site
Ship to: UAE

Wingspan: 2000mm (78.7 in)
Length: 1096mm (43.1 in)

Weight: 1130 g (2.5 lbs)
  • Wingspan: 2000mm (78.7in)
  • Length: 1096mm (43.1in)
  • Flying Weight: Around 1130g
  • CG (Center of Gravity): 45-60mm from leading edge
  • Power System: Brushless 3136-KV1000
  • Electronic Speed Control: 30A XT60
  • Servos: 9g plastic servos x 6
  • Required Battery: 3S 1300mAh-2200mAh
  • Required Radio: 6 Channel transmitter and receiver required

Variants

AH017P
SZD-54 (White)
