SkyRaccoon

Fields marked with * are required

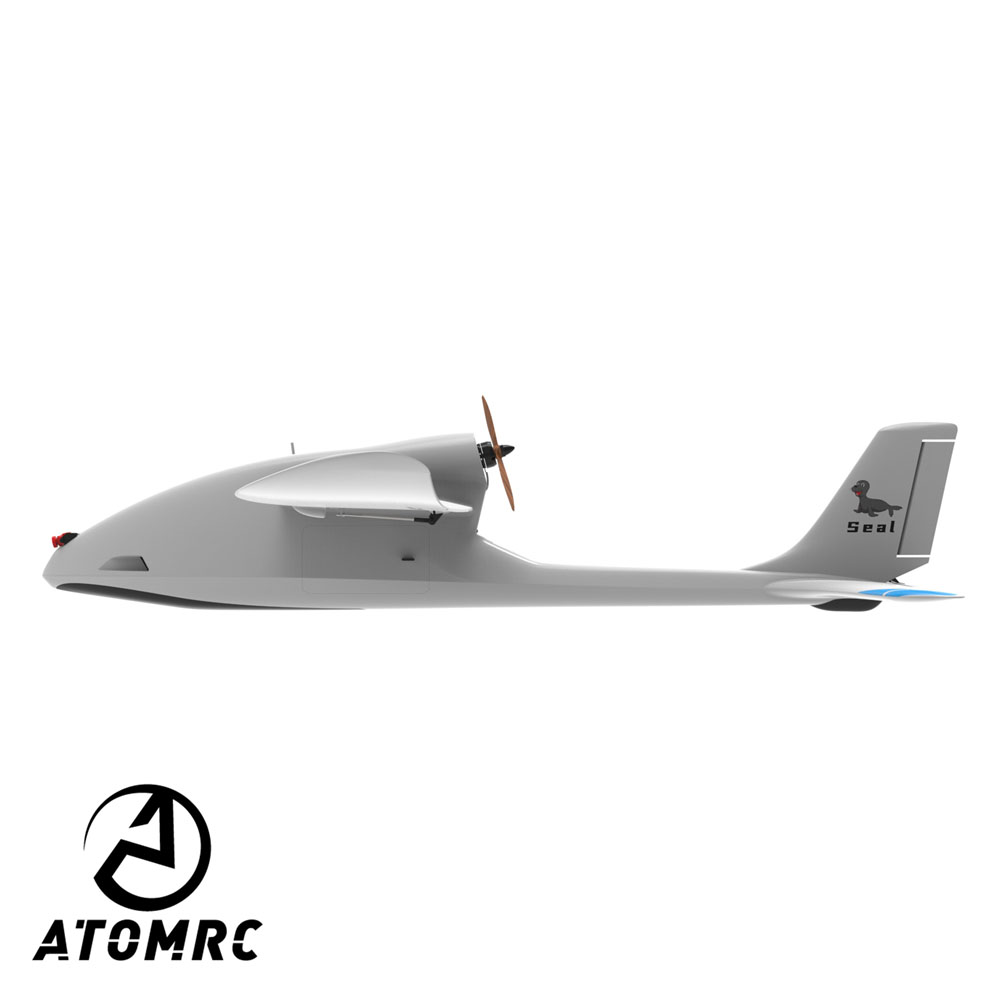

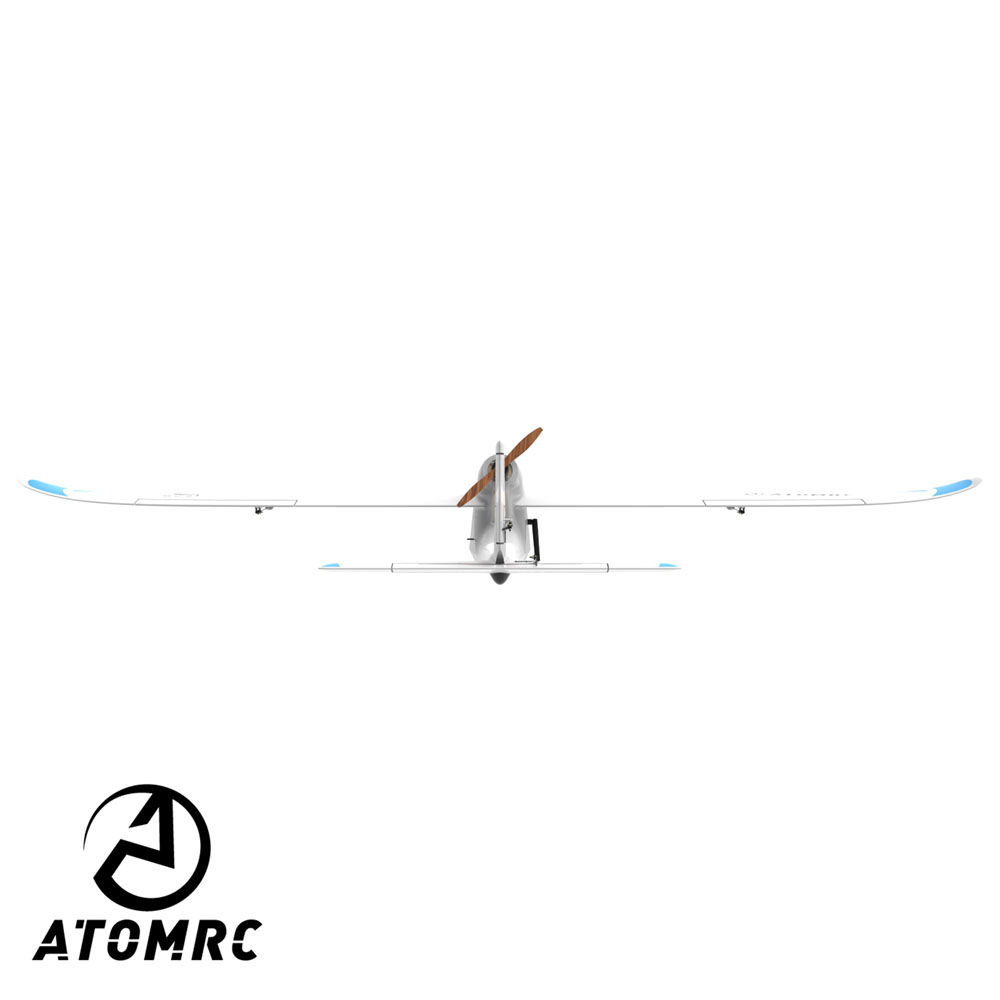

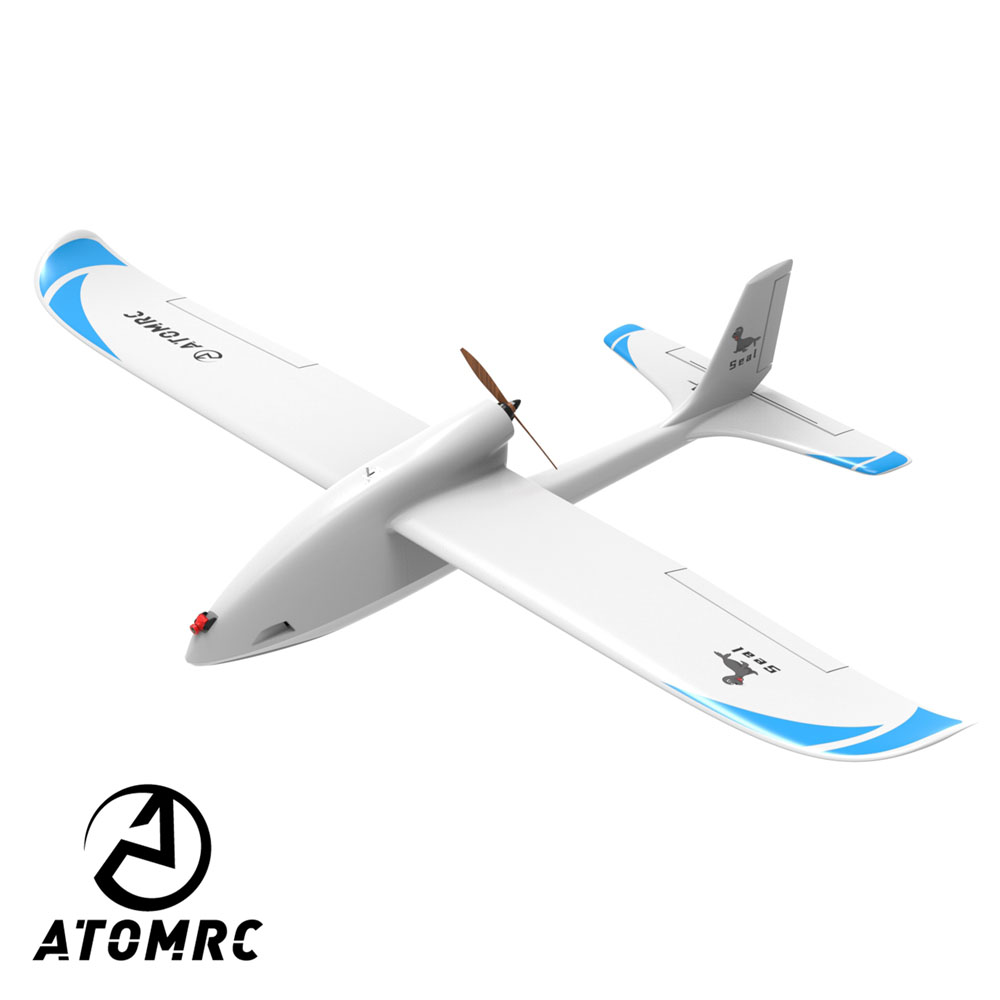

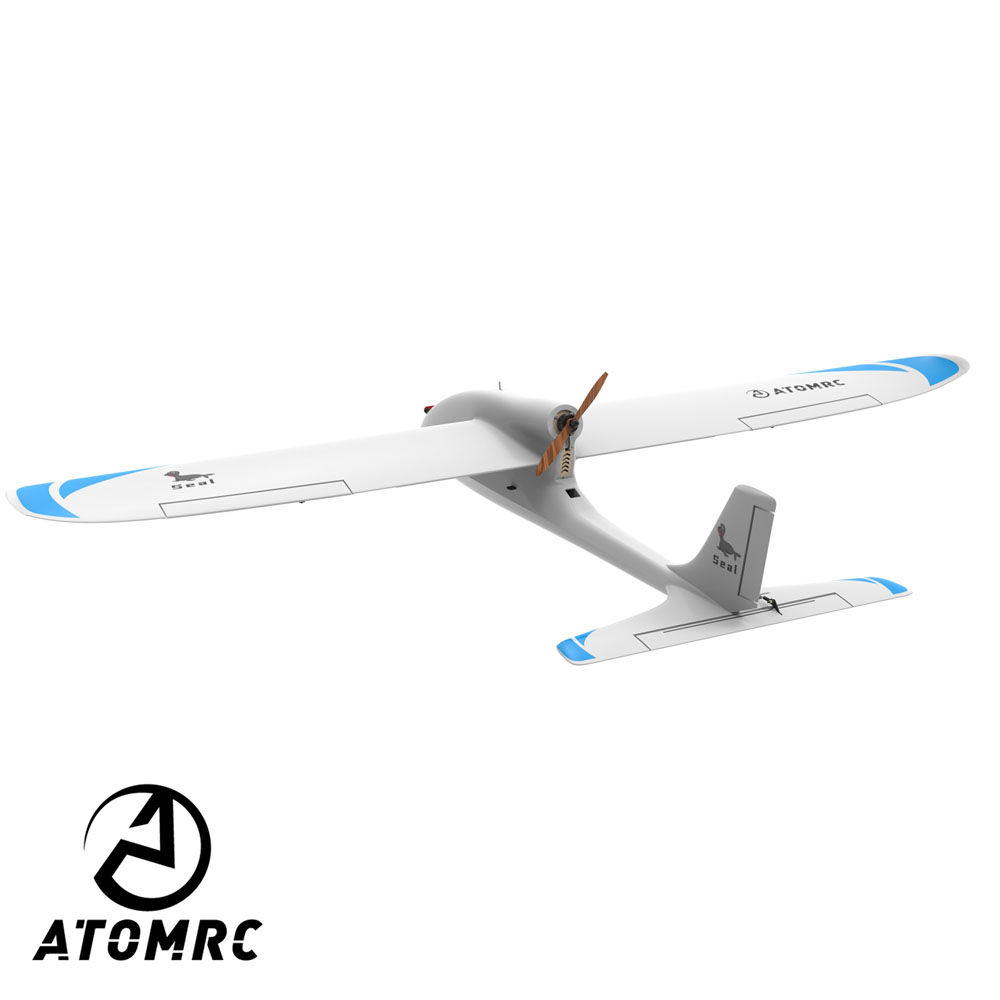

Seal from AtomRC

Details

Features:

Classic glider design, It has good gliding ability，easy for beginners.
Detachable wing design, user can choose 1100mm wing span or use extend wing to 1500mm wingspan.
Design for FPV, ESC, FC VTX and Camera all have installation area. Easy to build and maintain.
Side door for install Flight controller, easy to wiring and maintain.
Two hatch, flat hatch for gimbal or DJI Air uint.
Air cooling duct design, reduce the heat inside the fuselage.
Huge battery bay, recommend 3000~5000mAH 4s1P battery, battery support up to 4S2P 21700 lion.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Seal in particular but at least we know they do distribute AtomRC.

Where to buy

China
ATOMRC
check web site
Ship to: Wordlwide

Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 1500mm (59.1 in)
	Length: 950mm (37.4 in)
Weight: 1100 g (2.4 lbs)

See more Details

Wingspan:1500mm/1100mm
Length:950mm
Material: EPO
WingArea:25.7dm²/17.8 dm²
Recommend motor: 2212 1400KV
Recommend prop: 8040
Recommend battery: 4S1P /3000~5000mAH
Servo: 4* 9g servo
Recommend take off weight: 1100g（1500mm）
Max. take off weight:1400g（1500mm）
Cruse speed：50km/h
Cruse current：4.1A
Flight time: up to 60min
Travel：50km
