Cineon C20 V2 from Axis Flying

Details

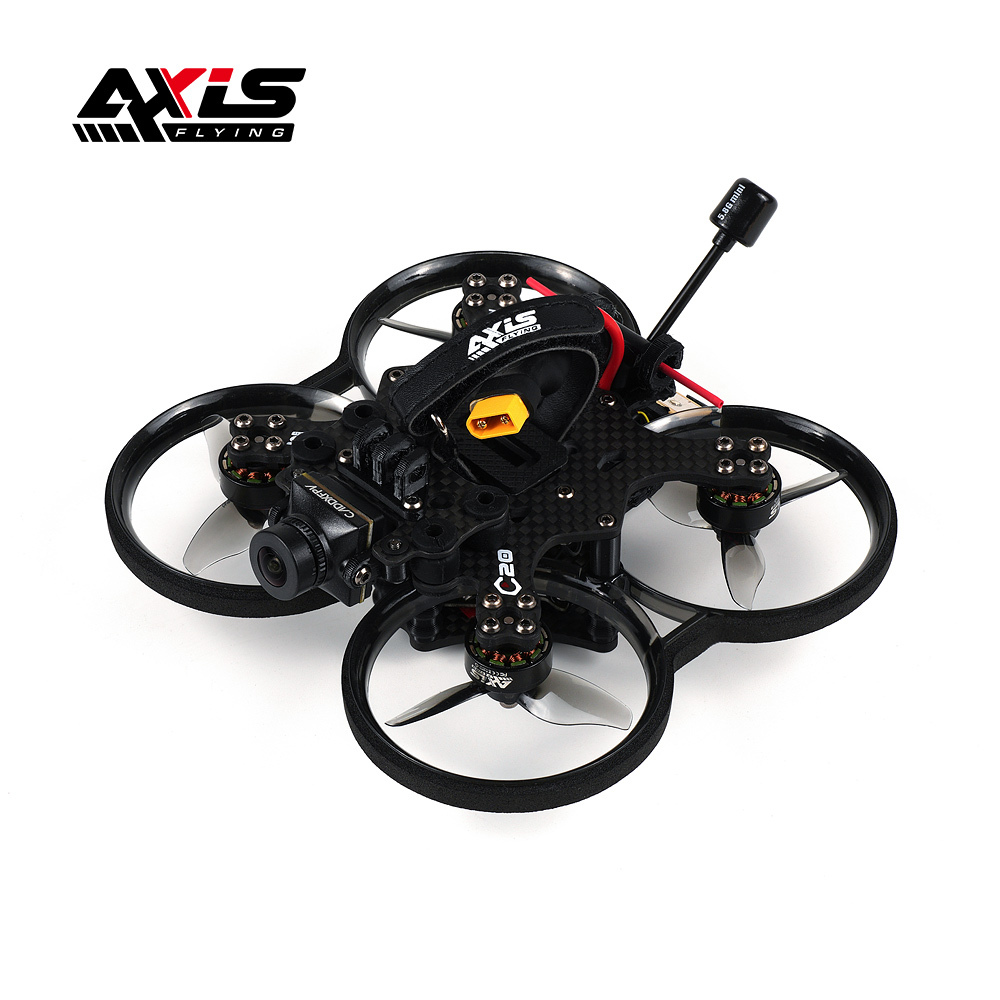

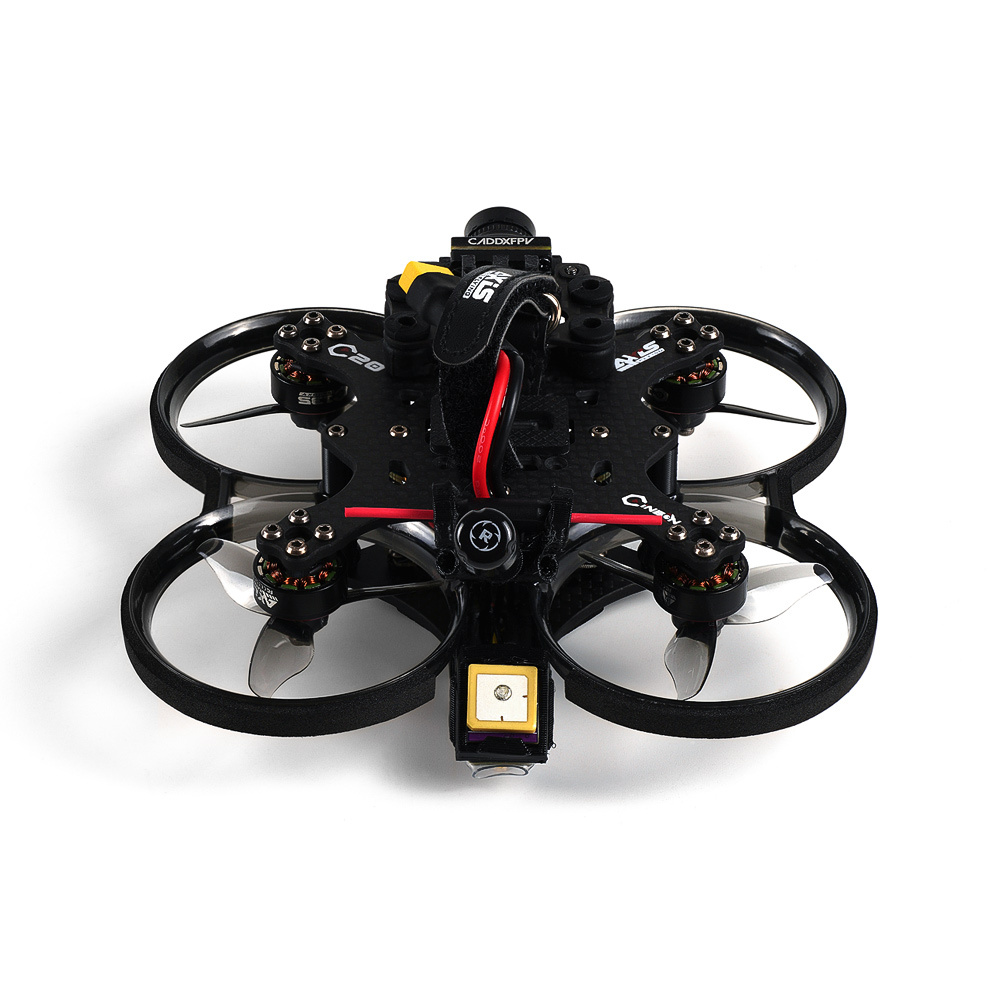

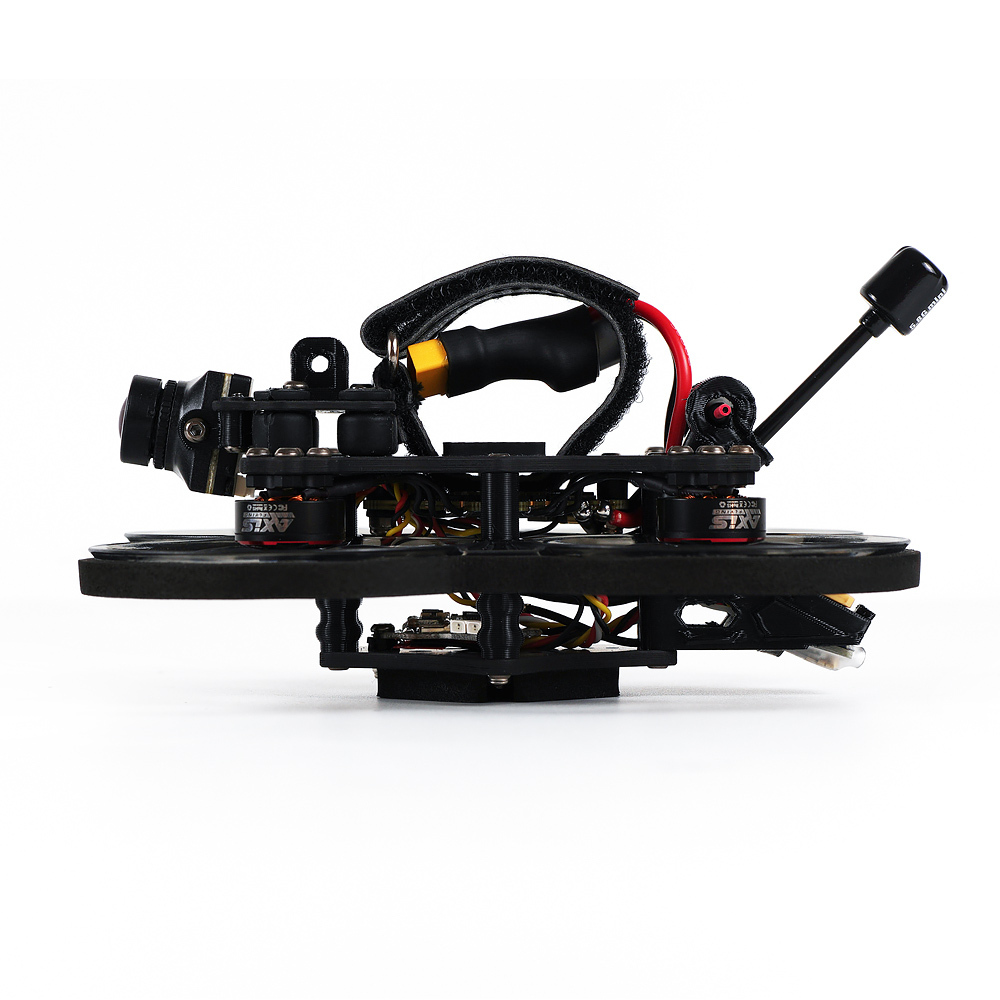

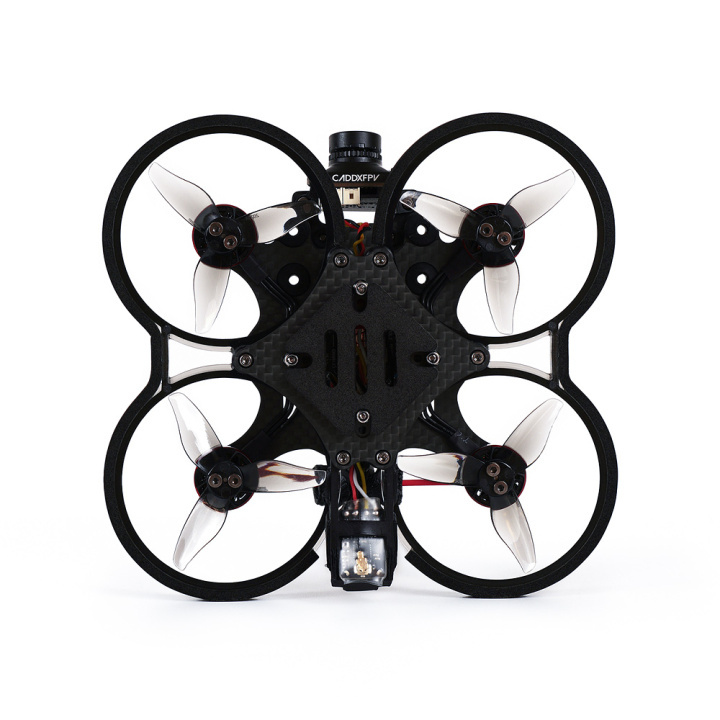

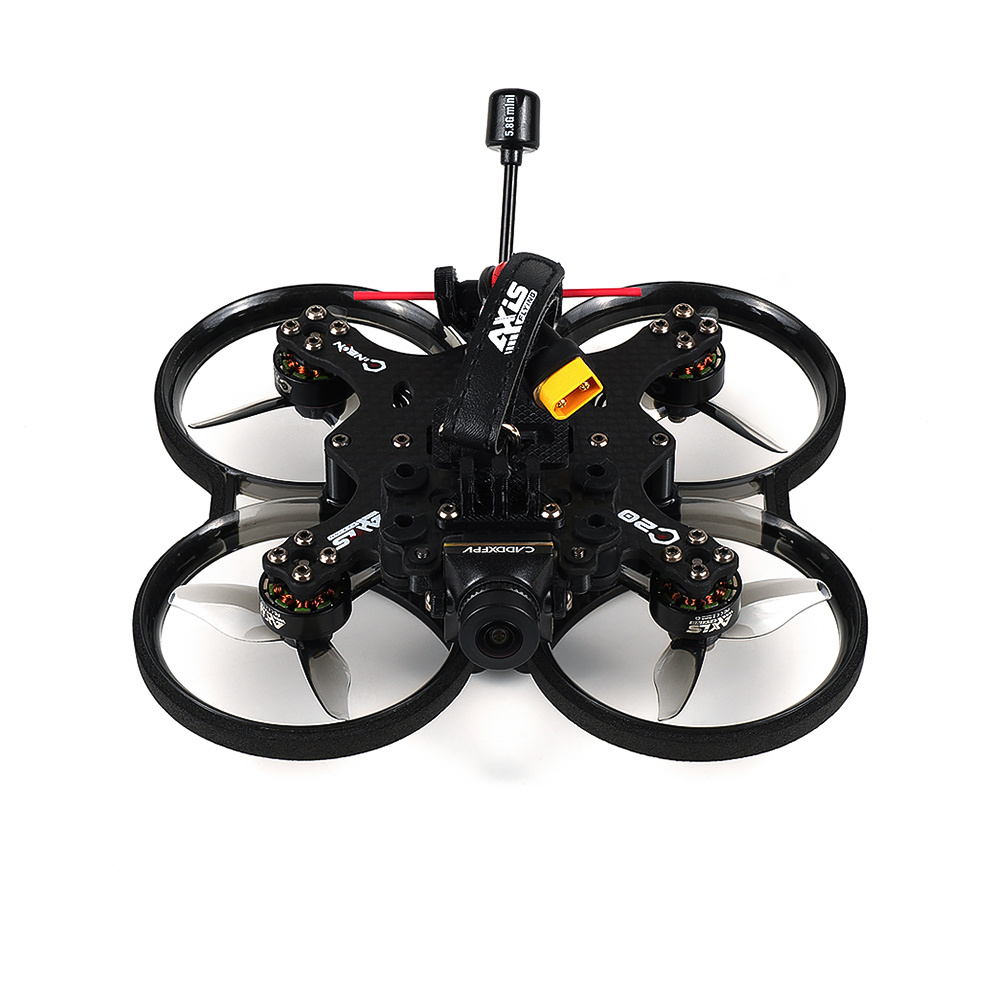

The CineON C20 V2 drone is a 2-inch Cinewhoop ideal for cinematic flights. Equipped with the DJI O3 Air Unit transmission system, this drone provides high-quality video feedback with a 155° FOV and images at up to 4K 30 fps. You can also add a GoPro naked or Insta360 action camera for even more stunning shots. This AxisFlying CineON C20 features a HackRC 20A F411 AIO flight controller, AxisFlying C145 4500Kv motors coupled to Gemfan 2023-2 shaft 1.5mm propellers. Its chassis features 20 x 20 mm and 25.5 x 25.5 mm (M2) mounting holes for easy stack and VTx mounting and changing.

Compact, lightweight and high-performance, this Cinewhoop features a tough T700 carbon chassis and propeller guards for added safety and durability. Its optimized aerodynamic design ensures effective noise reduction in flight. It also offers improved wind resistance for much sharper, smoother image rendering. This drone can be powered by a 4S LiPo battery (not included) via its XT30 connector.

Features:

  • Motor installation adopts two positive and two reverse design - Guaranteed efficiency and higher explosiveness
  • Better wind resistance for smoother footage - C135 Motor, more torque and power
  • Provide adequate security for the whoop - High performance 20A/F411 AIO
  • Newly designed ducted aerodynamic layout to effectively reduce flight noise
  • Independent receiver storage, convenient for binding

Pictures

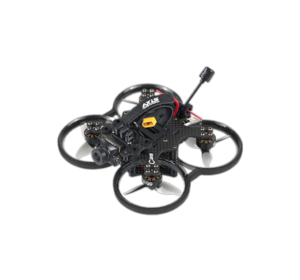

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Cineon C20 V2 in particular but at least we know they do distribute Axis Flying.

Wingspan: 94mm (3.7 in)
Length: 94mm (3.7 in)

Weight: 43 g (1.5 oz)
  • Wheelbase :94mm
  • Weight: 42.8g (with all TPU)
  • Carbon Fiber: T700
  • Props: Max 2inch

Recommended Configuration

  • Motors:  Axisflying C135-5500KV @4S
  • Lipos: Tattu / GNB 450mah - 650mah
  • AIO: Over 20A / F411
  • Propellers: Gemfan Props 2023-3
  • Flying time: 3'30" with Insta360   /  5' without takeoff
  • NOTE: HD drone outside flying with GNB 550mah
