MANTA5 SE DC from Axis Flying

Details

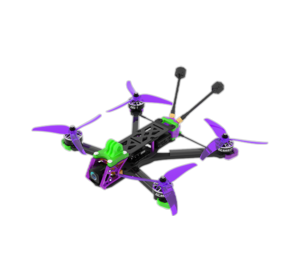

The Manta 5 SE DC features the Argus ECO F722 flight controller paired with a 60A ESC, offering a reliable, plug-and-play stack that supports both direct connectors and soldering for easy setup and maintenance. Power comes from AE2207 V2 motors, engineered with an optimized magnetic circuit to deliver strong, smooth performance across aggressive freestyle styles including Juicy, Flow, Sbang, and Bando flying.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the MANTA5 SE DC in particular but at least we know they do distribute Axis Flying.

Wingspan: 226mm (8.9 in)
Length: 226mm (8.9 in)

Weight: 454 g (16 oz)
  • Wheelbase: 226 mm
  • Weight: 454 g ±10 g
  • Frame thickness:
    • Top plate: 2 mm
    • Center plate: 3 mm
    • Bottom plate: 3 mm
    • Arms: 6 mm
  • Flight controller: Axisflying Argus ECO FC F722
  • ESC: Axisflying Argus ECO ESC 60A 6S (Bluejay 8-bit)
  • Gyro: ICM-42688-P
  • VTX: DJI O4 Unit Pro
  • Motors: AE2207 V2, 1960 KV
  • Propellers: 4.9 × 3.3 × 3
  • Battery connector: XT60
  • Receiver options: TBS Nano RX / ELRS 2.4G / ELRS 915
  • Recommended battery: LiHV / LiPo 6S, 1050–1300 mAh

Recommended Equipments:

  • Motors: Axisflying C246 cinematic motor
  • Lipos: 1050-1500mAh 4/6S
  • Stack: Axisflying ArgusPRO 55A /F7 STACK
  • Propellers: Axisflying / Gemfan / HQ 4.9"-5.1" freestyle props
