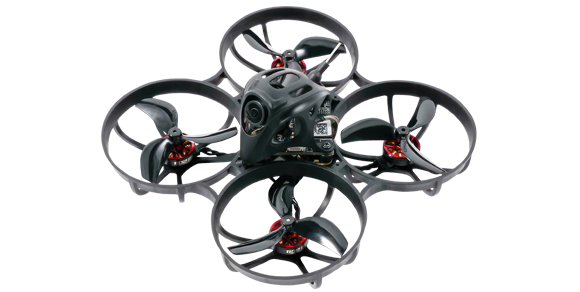

Meteor75 Pro HD from BETAFPV

Details

The new epic 1S HD digital whoop quadcopter boasts  impressive visuals and powerful performance. Upgraded frame from Meteor75 and 45mm props make it the largest 1S whoop quadcopter with greater thrust and lift, equipped with a lighter 1.1g canopy, easy to carry the Walksnail or HDZero Digital VTX system, bringing immersive flight experience and impactful images to the pilots. Combined with F4 1S 5A FC, 1102 22000KV motors and new larger BT2.0 550mAh 1S battery, it makes the Meteor75 Pro HD quadcopter faster, more responsive, and flight time, which would be ideal for FPV racing or acrobatic flying indoors or outdoors.

Features:

  • The upgraded frame that fits 45mm props perfectly makes Meteor75 Pro the largest 1S whoop drone. Powered with 1102 22000KV motors, it performs smoothly in the air and is maneuverable for freestyle tricks.

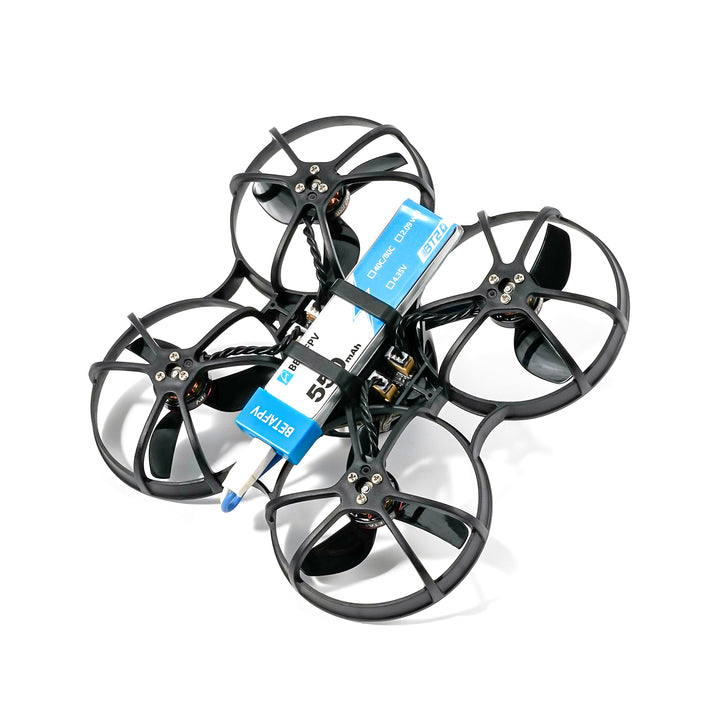

  • It features a roomier battery slot that can accommodate a bigger battery such as BT2.0 550mAh 1S battery, which provides a larger capacity and higher discharge rate, bringing more flight time and robust flight performance to the quadcopter.
  • Ultralight weight for Meteor75 Pro HD 35.77g (Walksnail)/ 34.87g (HDZero), this largest 1S drone combined with Walksnail or HDZero HD digital VTX system gives pilots an immersive flight experience and impactful visuals.
  • Micro Canopy Lite has an adjustable camera lens of 0-40°. This new canopy weighs only 1.1g, which is very suitable for HD digital VTX drone, and the open design makes the electronics cooler better.
  • Equipped with F4 1S 5A flight controller (Serial ELRS 2.4G or SPI Frsky). The ELRS 2.4G RX version comes with the default ELRS V2.0 firmware and supports being upgraded to ELRS V3.0 separately without flashing Betaflight flight controller firmware. The SPI Frsky version can be also used as the PNP version to connect external receiver due to the two UART ports on the board.
  • The various colors of the spare parts including the Meteor75 Pro frame and Micro Canopy Lite, offer pilots more choices. Using them with BETAFPV waterslide decals, pilots can easily DIY and build their unique whoop drones.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 110mm (4.3 in)
Length: 110mm (4.3 in)

Weight: 35 g (1.2 oz)
  • Flight Time: 5:30 (Walksnail)/ 5:40 (HDZero)
  • Camera Adjustable Angle: 0-40°
  • Motors: 1102 22000KV Motor
  • Battery: BT2.0 550mAh 1S Battery
  • Frame: Meteor75 Pro Brushless Whoop Frame
  • Propellers: Gemfan 45mm 3-Blade Propellers
  • Canopy: BETAFPV Micro Canopy Lite
  • Weight Without Battery: 35.77g (Walksnail)/34.87g (HDZero)
  • Receiver: Serial ELRS 2.4G/SPI Frsky/TBS
  • FC&ESC: F4 1S 5A FC (Serial ELRS 2.4G) V2.0/F4 1S 5A FC (SPI Frsky) V3.0
  • VTX Power Output: 350mW (Walksnail), 25mW/200mW (HDZero)
  • VTX: Walksnail Avatar HD Mini 1S Lite Kit/HDZero Whoop Lite Bundle
  • Camera: Wanlksnail Avatar Lite Camera/HDZero Nano Lite Camera
