Piper PA-18 Super Cub from Black Horse Model

Details

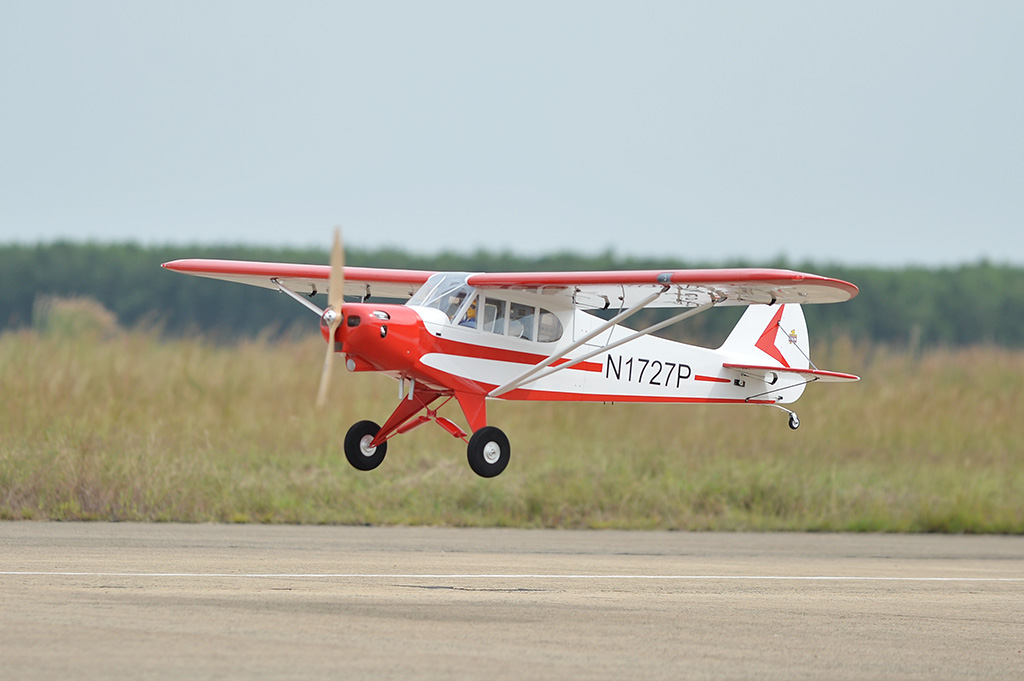

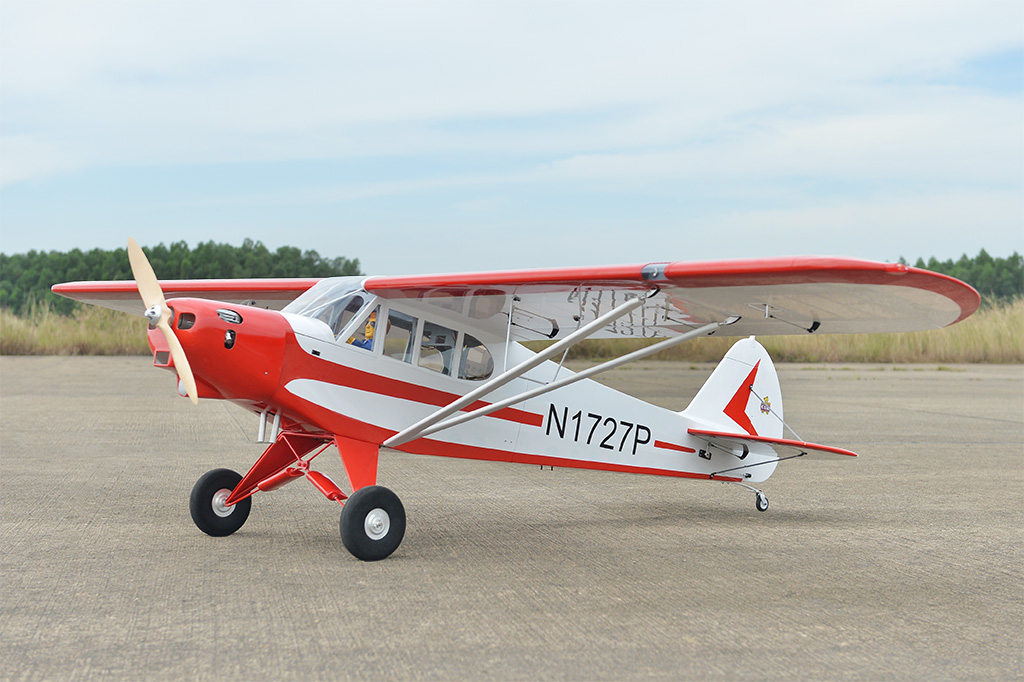

The PA-18 Super Cub was a big step up from the good old J3 Cub. Not only did it gain a much more powerful, 150Bhp engine there was also the addition of electrical flaps. All at the front of the market back in 1949. many survive today doing sterling work as glider tugs.

The Black Horse Super Cub is a big model at 3.58m span (nearly 12 feet!) yet she manages to sneak under the 20Kg weight limit and avoid the UK large model rules. This was achived by careful design and attention to detail during construction.

Good detail is provided, but has been simplified a little to keep under the weight limit. The size and wing loading means very docile flight characteristics and those flaps bring her down to ridiculously low speeds for operation out of amazingly small fields. No need for a full size airfield! This is by no means an aerobatic model and the flight envelope mirrors the full size.

Construction is the conventional balsa/ply/hardwood used in all Black Horse models and then covered in a classic scheme using Oracover. The cowl is of course GRP and then painted.

Although a big model, she dismantles into reasonable sections for transport.

You will need a good 120cc engine and need to be conscious of the weight when selecting it.

Pictures

Manual

Radio icons

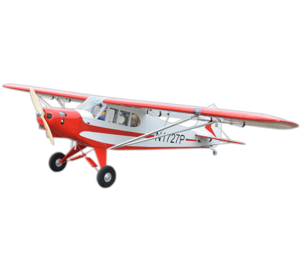

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 3580mm (140.9 in)
Length: 2237mm (88.1 in)

Weight: 19500 g (43 lbs)
  • Wingspan: 3,580 mm (140.94 in).
  • Length: 2,237 mm (88.07 in).
  • Weight: 19 – 19.5 kg (41.8- 42.9 lbs).
  • Wing area: 180.1 dm2.
  • Wing loading: 105.5 g/dm2.
  • Servo mount: 42mm x 21mm.

Parts listing required (not included):

  • Radio:  06 channels.
  • Servo: 10 standard high torque servos.
  • Engine: 120 cc gas.
  • Motor: Brushless outrunner 185 KV.
  • Propeller motor: 28 x 10.
  • Propeller engine: 27 x 10.

Recommended motor and battery set up (not included):

  • Electric Motor: BOOST 180.
  • or 120cc petrol motor
  • Battery: 12S LIPO 44,4V 6,000mAh.
  • Speed control: 120A. HV.
  • Receiver battery: 6.0V 2400-2600mAh(2 Packs).
  • Torque servos: 11.3kg/cm – 12.9kg/cm.
