Optimus EL from CCM

Details

Optimus is brand new for 2015 and offers outstanding aerodynamic design combined with the very latest in carbon composite spread tow construction. At 3.83m wingspan it is ideally sized mid way between the popular 3.5m and 4m formats giving an ideal balance of performance and handling throughout its very wide speed range.

Made exclusively from new unidirectional bi-axial carbon spread tow material, the Optimus structure is extremely stiff and light with electric versions and lightweight glider versions ready to fly from as little as 1800g. This very low starting weight combined with a highly efficient wing planform and airfoil profiles gives the Optimus an outstanding float and minimum sink performance.

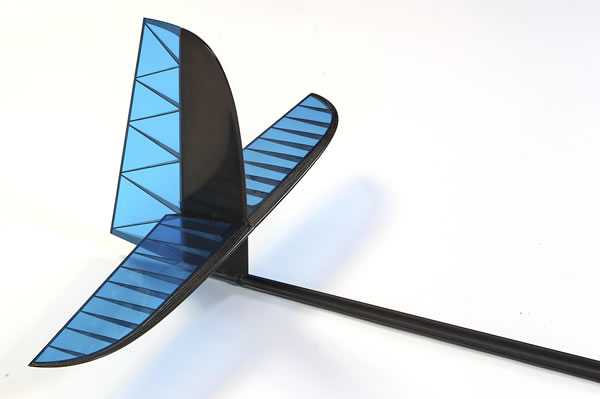

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Optimus EL in particular but at least we know they do distribute CCM.

Where to buy


Wingspan: 3830mm (150.8 in)
Length: 1784mm (70.2 in)

Weight: 1800 g (4 lbs)
Model type Optimus
F3J Light
Optimus
F3J Medium
Optimus
F3J Hard
Optimus
F5
J Light
Optimus
F5J Hard
Optimus
F5J extra Light
Wind limitm/s ≤ 3 ≤ 7 ≤ 12
Weight characteristics of model Optimus F3J, F5J and F5J extra Light
Center panel 550 g 630 g 720 g 470 g 580 g 340 g
Wing tips set. 440 g 500 g 560 g 400 g 480 g 320 g
Pod 170 g 180 g 180 g 130 g 145 g 100 g
Tail boom with rods and fin 125 g 130 g 140 g 110 g 120 g 80 g
Stabilizer 38 g 38 g 40 g 36 g 36 g 36 g
Wing joiners 40 g 40 g 44 g 24 g 40 g 10 g
Accessories 60 g 60 g 60 g 60 g 60 g 60 g
NT model weight 1423 g 1578 g 1744 g 1230 g 1461 g 946 g
Flight weight 1800 g 1950 g 2186 g 1580 g 1861 g 1296 g

Variants

optimus
Optimus EL (Black)
