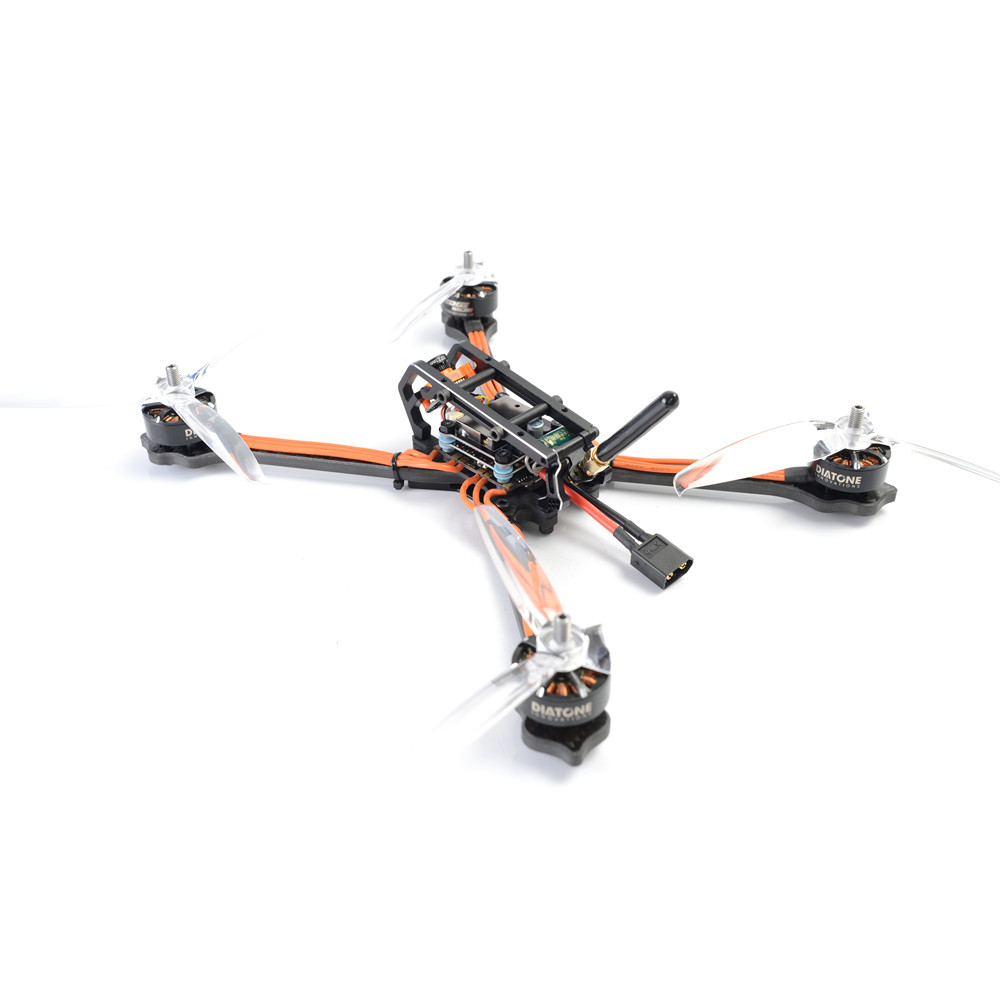

Like most of the Diatone drones, the 2018 edition of the GT-M630 also comes in two variants, Normal-X and Stretch-X. Besides the different design approach, they seems to be identical as hardware specs.
At the end of each arm is located a powerful 1950KV brushless motor. The motors are paired with 6″/3-leaf propellers. The motors are driven by the Mamba F40 4-in-1 ESC.
The frontal RunCam Swift FPV camera is paired with a high power 5.8G VTX (800mW). Thanks to the TBS feature, channels & transmission power can be remotely adjusted.
FrSky X20
FrSky XE
PNG (300x280)
BMP Recommended (300x280)
FrSky X18
FrSky Twin
PNG (180x166)
BMP Recommended (180x166)
FrSky X10
FrSky X12s
PNG (180x160)
BMP Recommended (180x160)
PNG (192x114)
FrSky X9D
FrSky X9E
BMP (64x32)
JPG (155x100)
Some content in menu 2.
Mamba F405 flight controller: MPU6000 Camera: Runcam Swift VTX: TBS ESC: Mamba F40 4IN1 / 40A 3- 6S ESC Dshot600 Motor: 2308 1950KV Rated power: 3940W Peak power: 4780W Propeller: 6 inch Voltage：3-4S （12.5-16.8V）
