GT R369 SX from DIATONE INNOVATIONS

Details

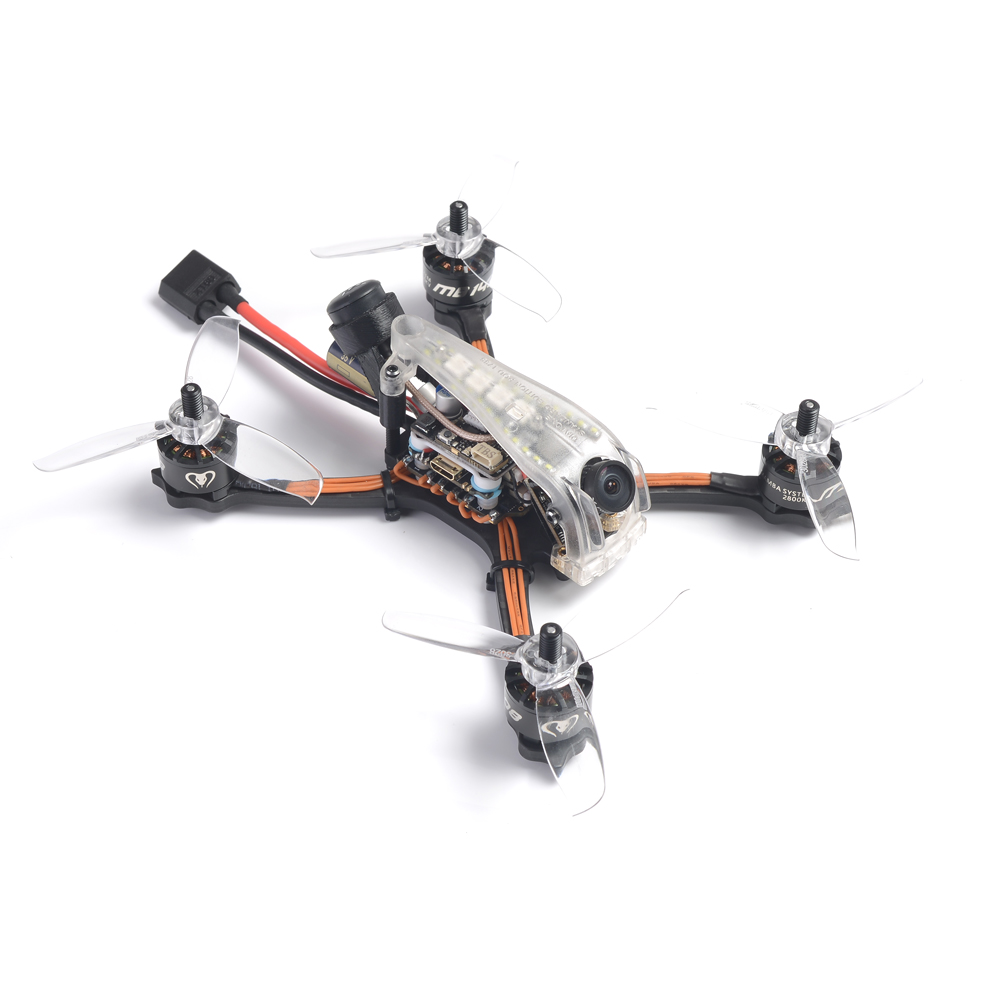

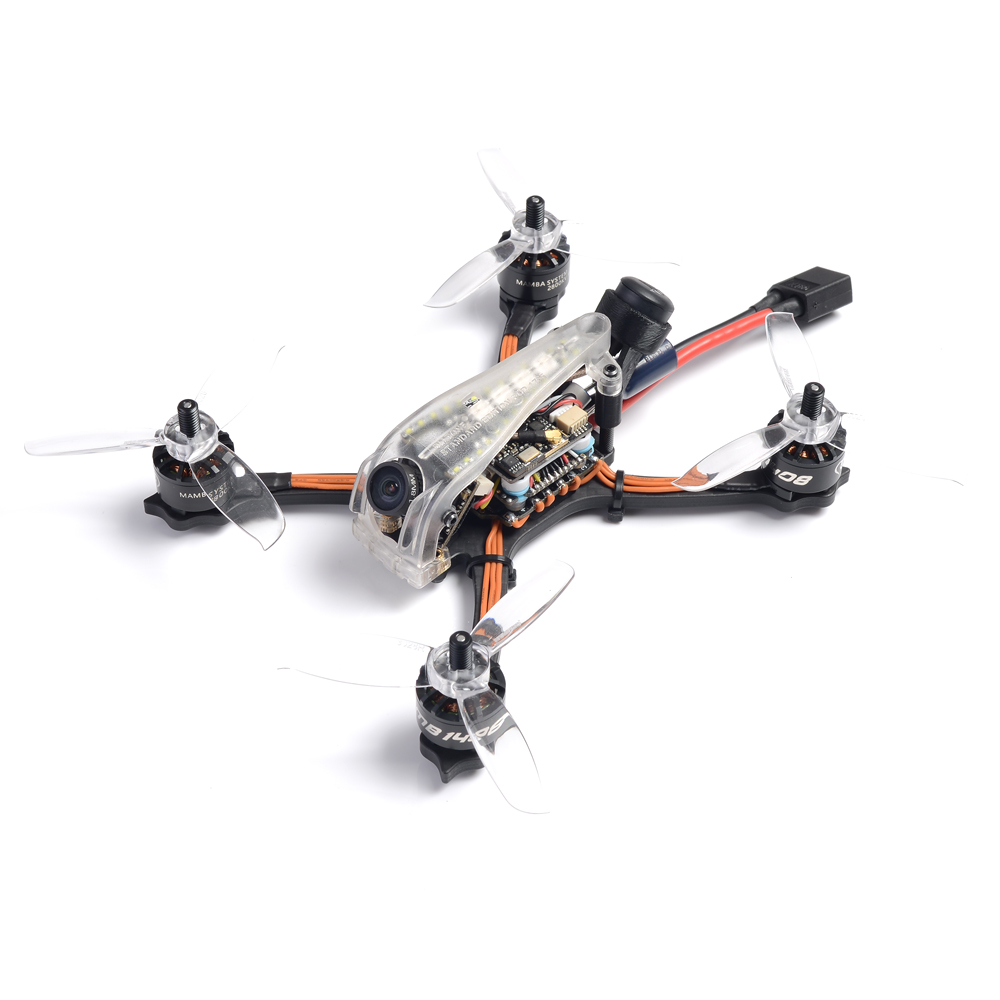

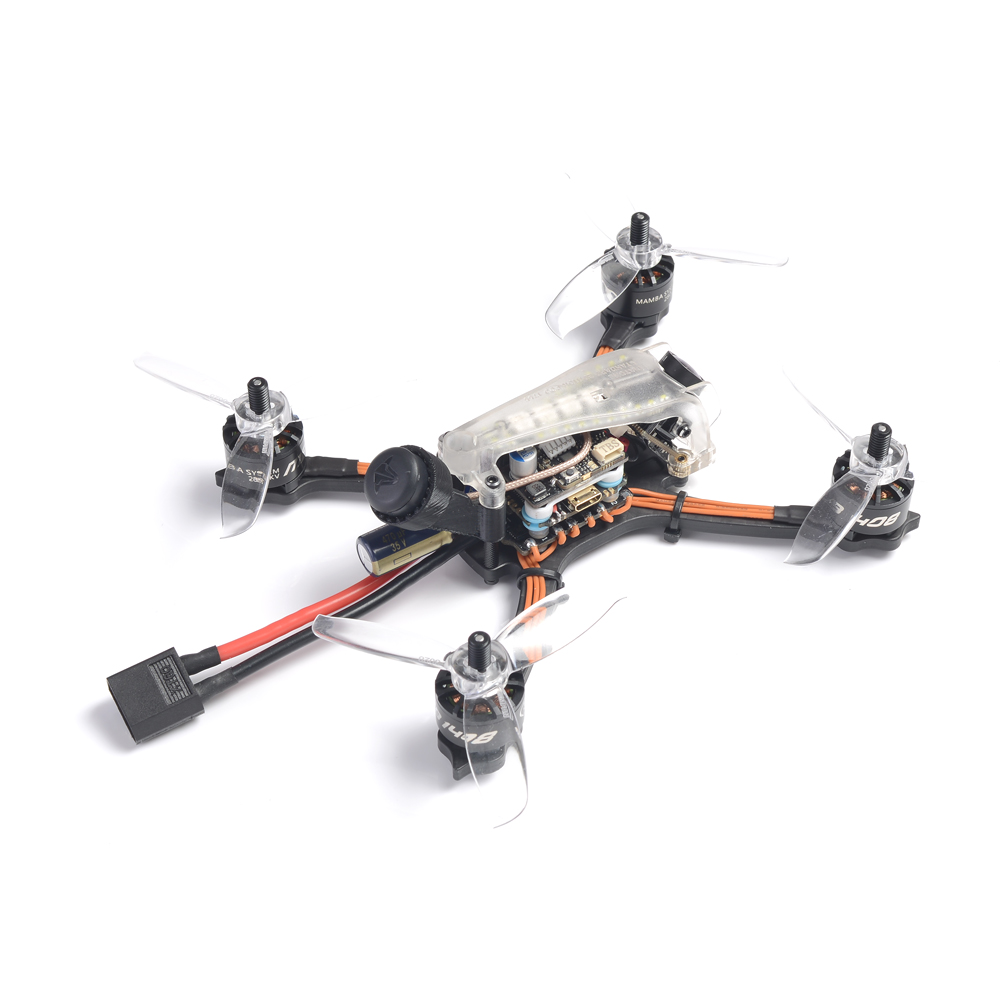

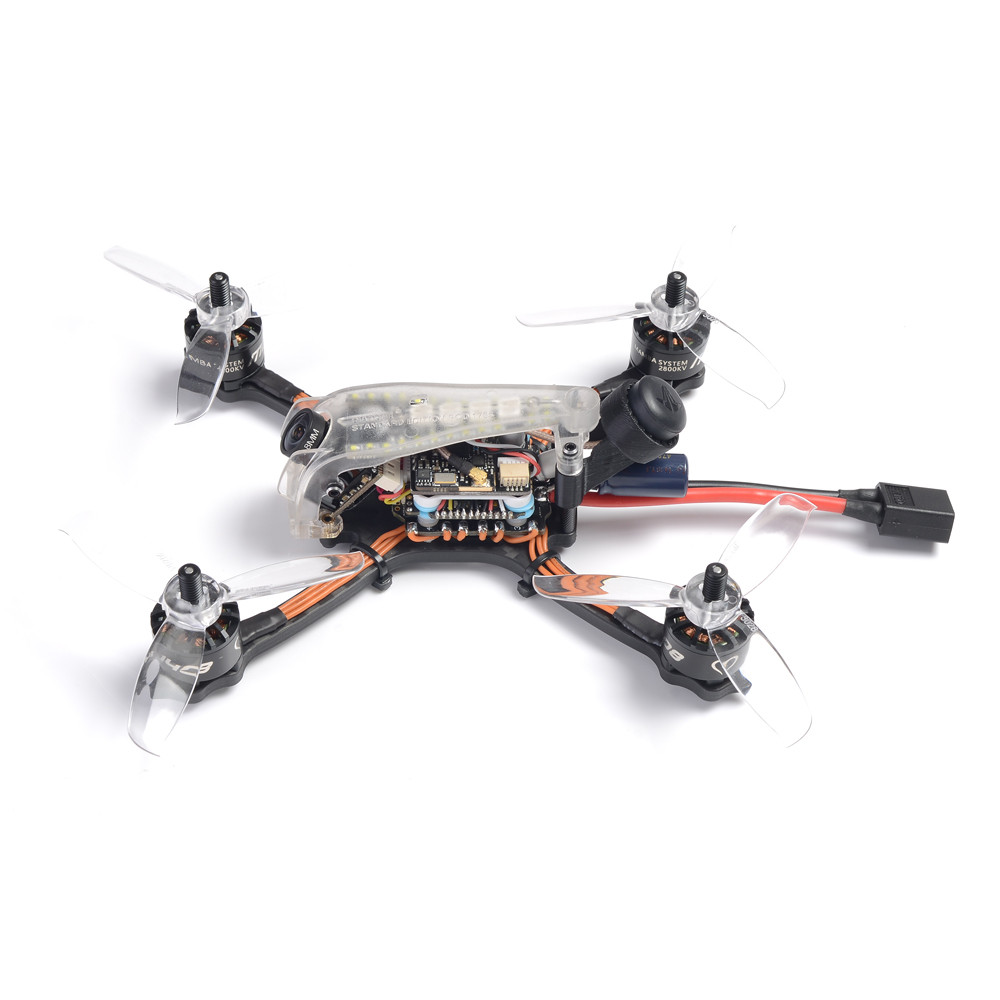

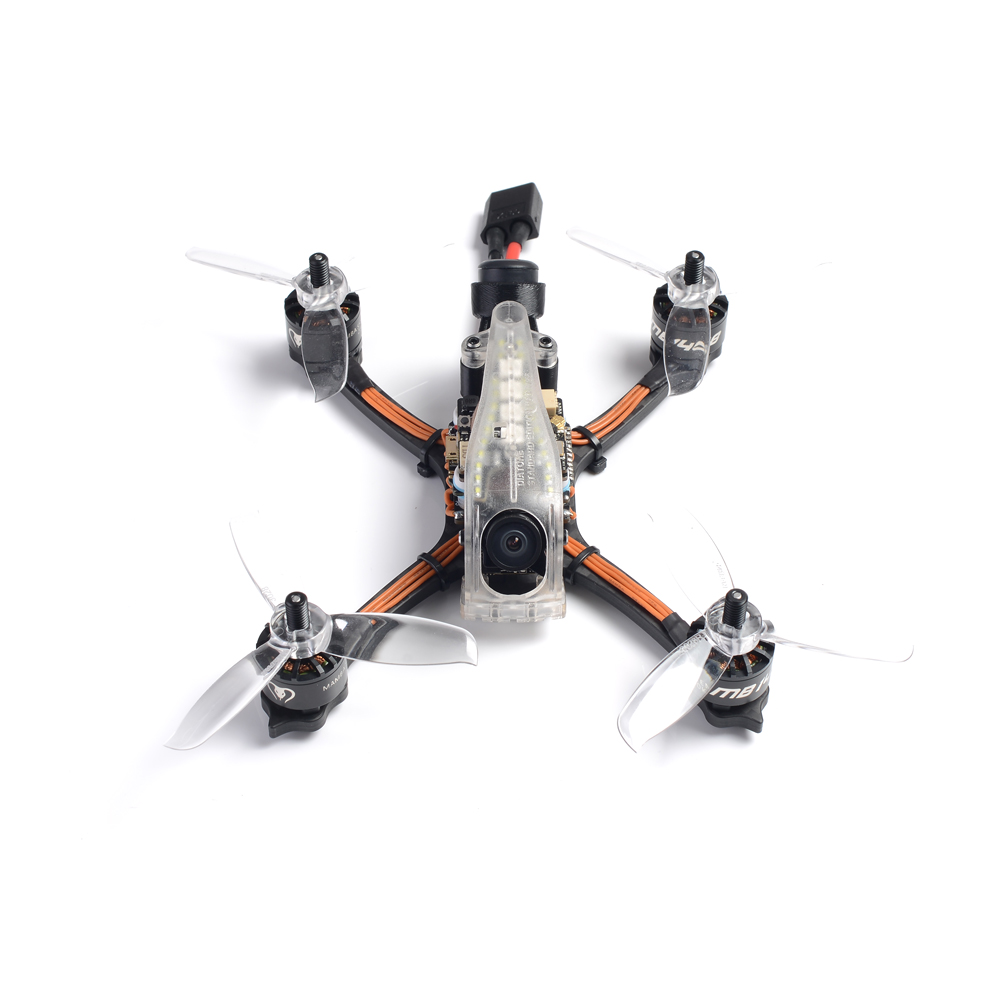

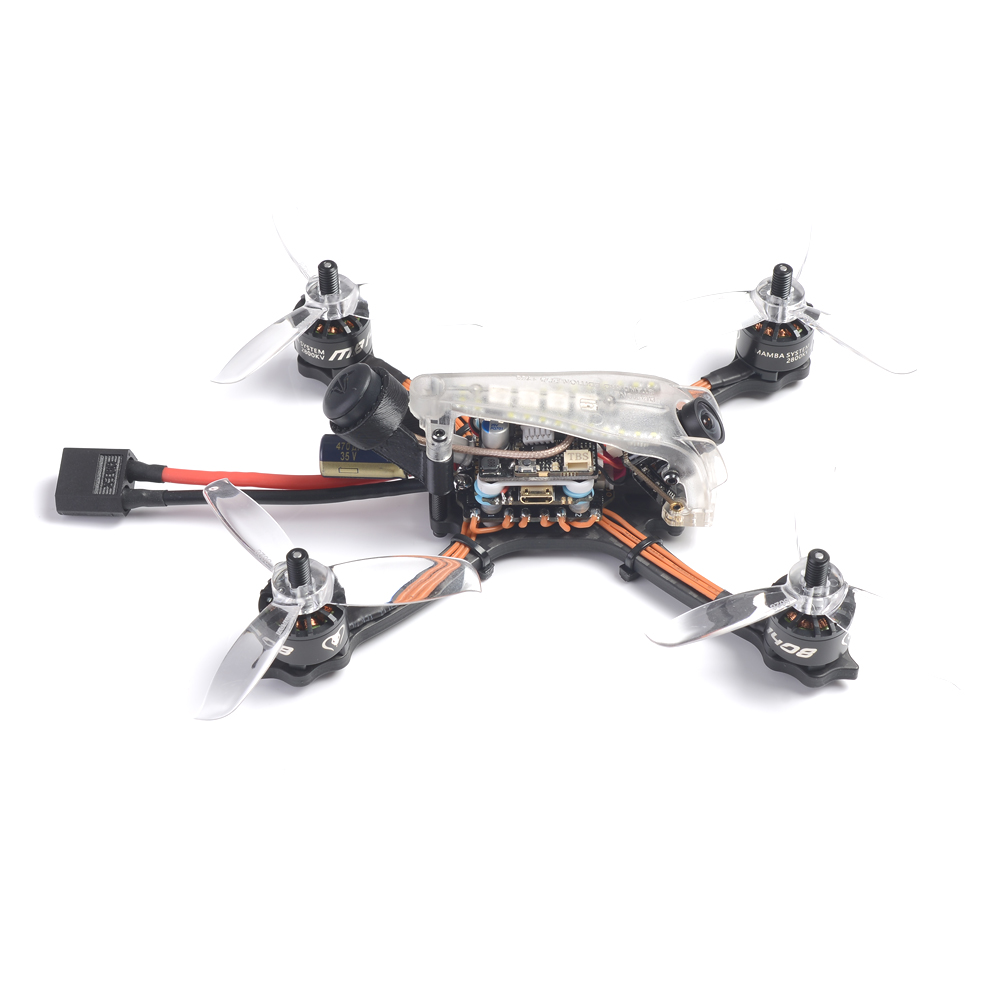

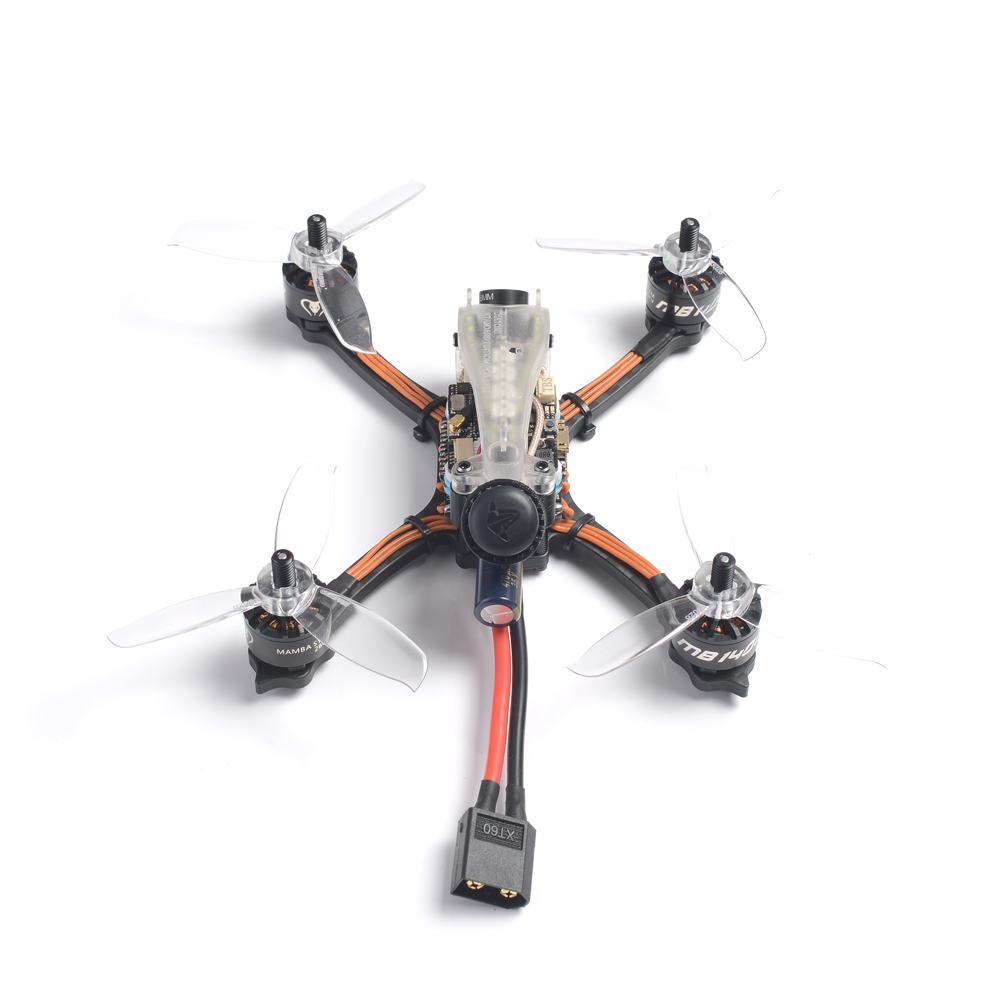

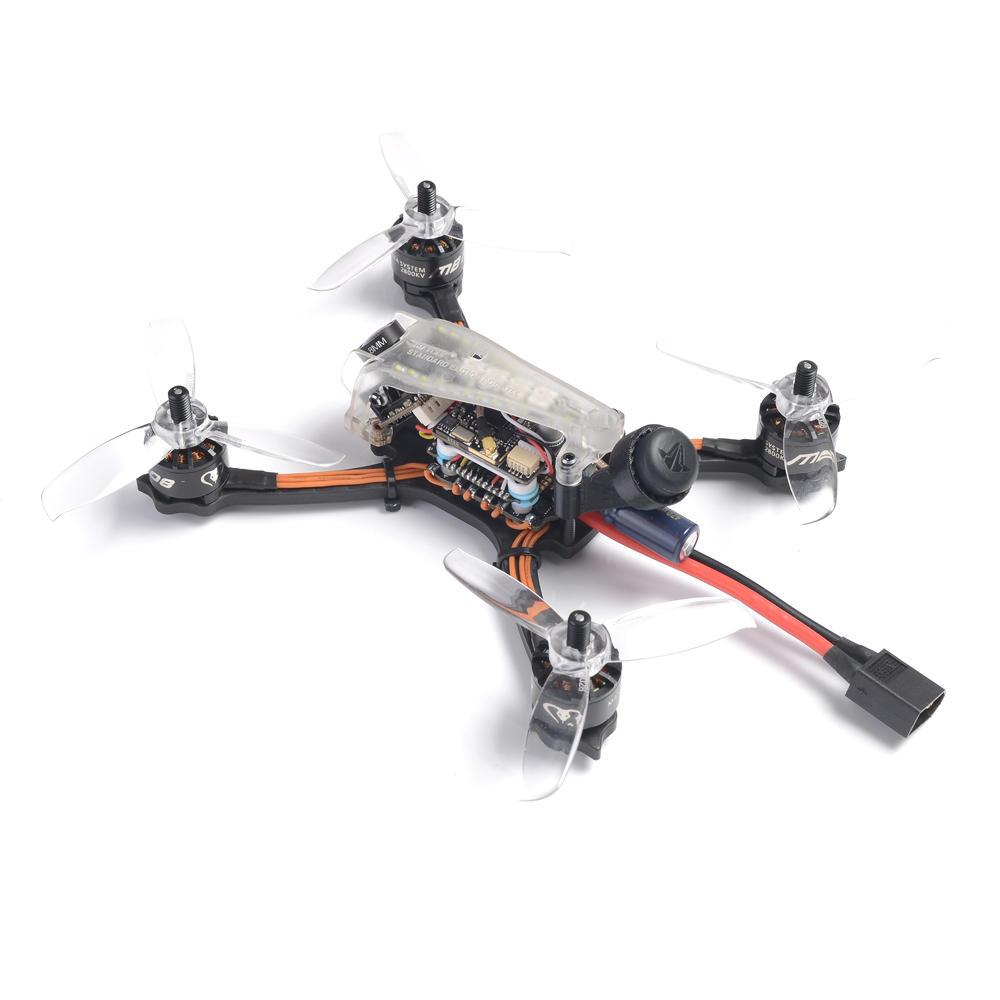

The GT R369 SX has the same look as the previous GT R, with an elongated X-shaped carbon frame of 14,3 cm diaogonal from engine to engine, with 4 mm thick arms. The motors are 1408 at 2800KV for 3 inches Gemfan 3052 transparent propellers. They are connected to the 4-in-1 ESC by bundled and channeled wires in a "clean" manner. In the center of the aircraft, partially protected by a very narrow transparent fairing, the micro tower contains the ESC 4 in 1 30A DShot600 and 1200, the flight controller just above, and the video transmitter on the top floor.

Pictures

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the GT R369 SX in particular but at least we know they do distribute DIATONE INNOVATIONS.

Where to buy

Hong-Kong
Banggood
check web site
Ship to: International

Wingspan: 143mm (5.6 in)
Length: 143mm (5.6 in)

Weight: 139 g (4.9 oz)
  • Wheelbase: 143mm
  • Weight: 139 g
  • Prop: 3 inch
  • Lipo: 6s
  • Camera: FOXEER predator V4
  • Antenna: TBS
  • VTX : TX400
  • FC: MAMBA F722 MINI
  • ESC: MAMBA 306 /30A 6S ESC Dshot 1200
  • Motor: MAMBA Racing MB1408 2800KV

Variants

GTR369SX
GT R369 SX (Black)
