These files are large, so be patient during the download. Please read the readme.txt included in the ZIP

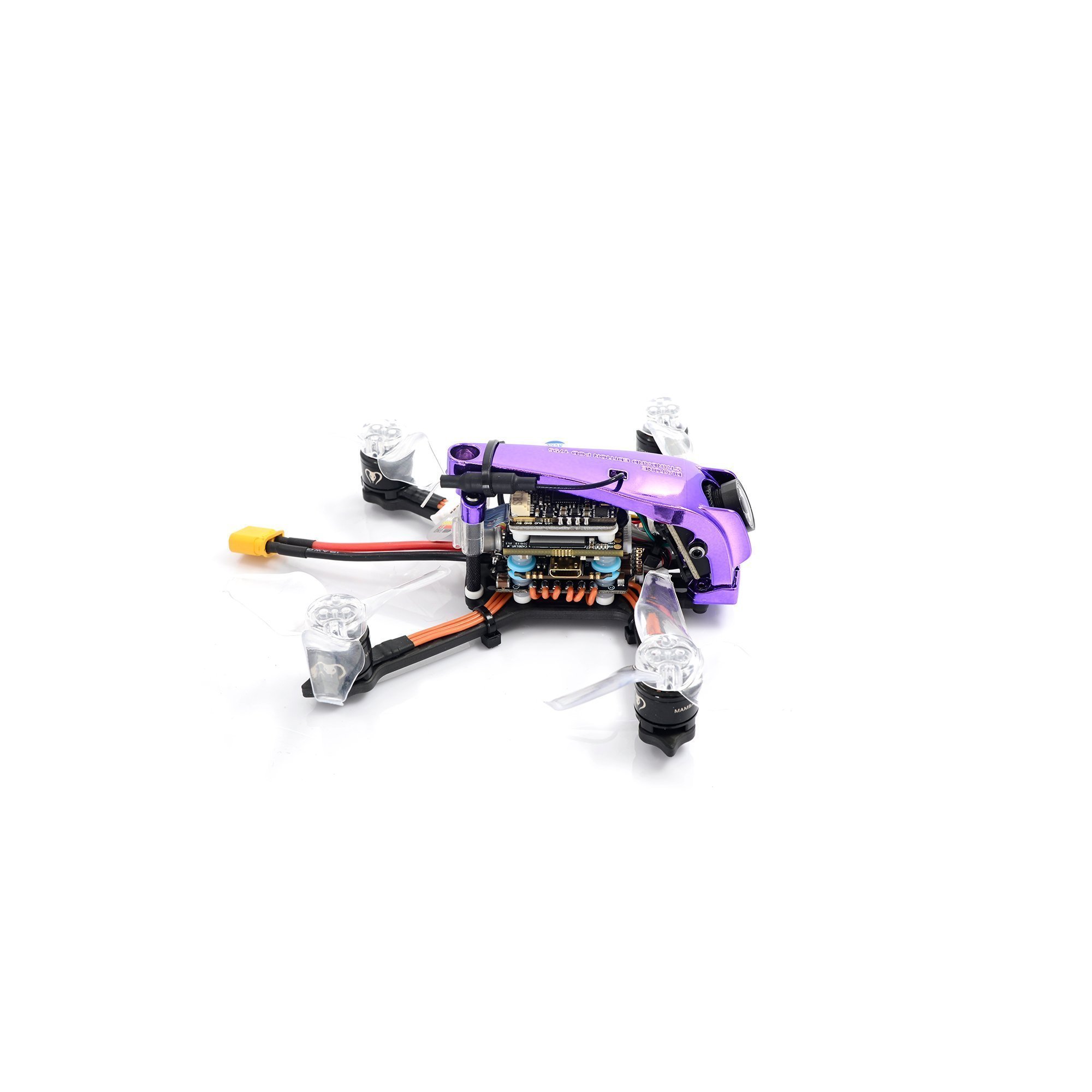

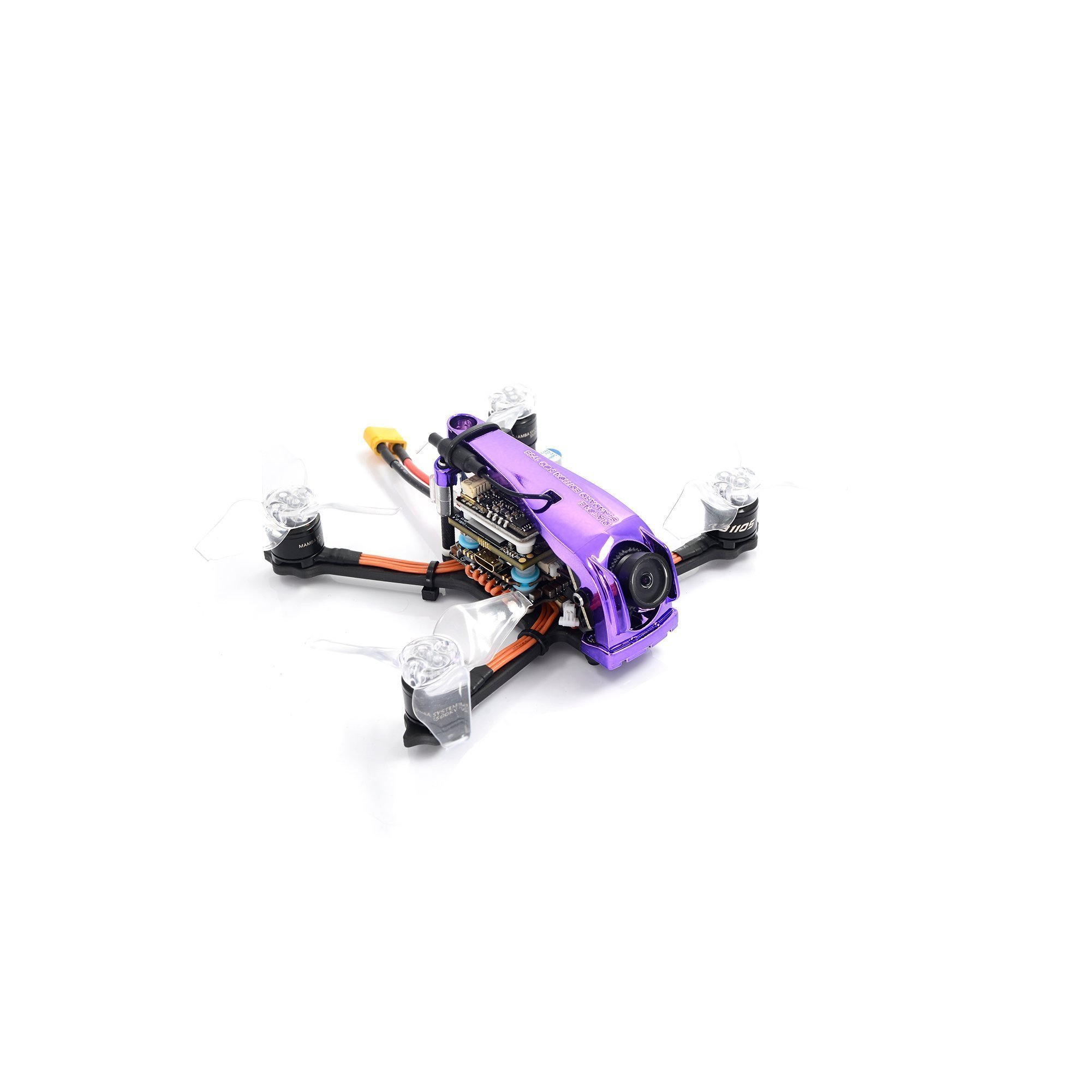

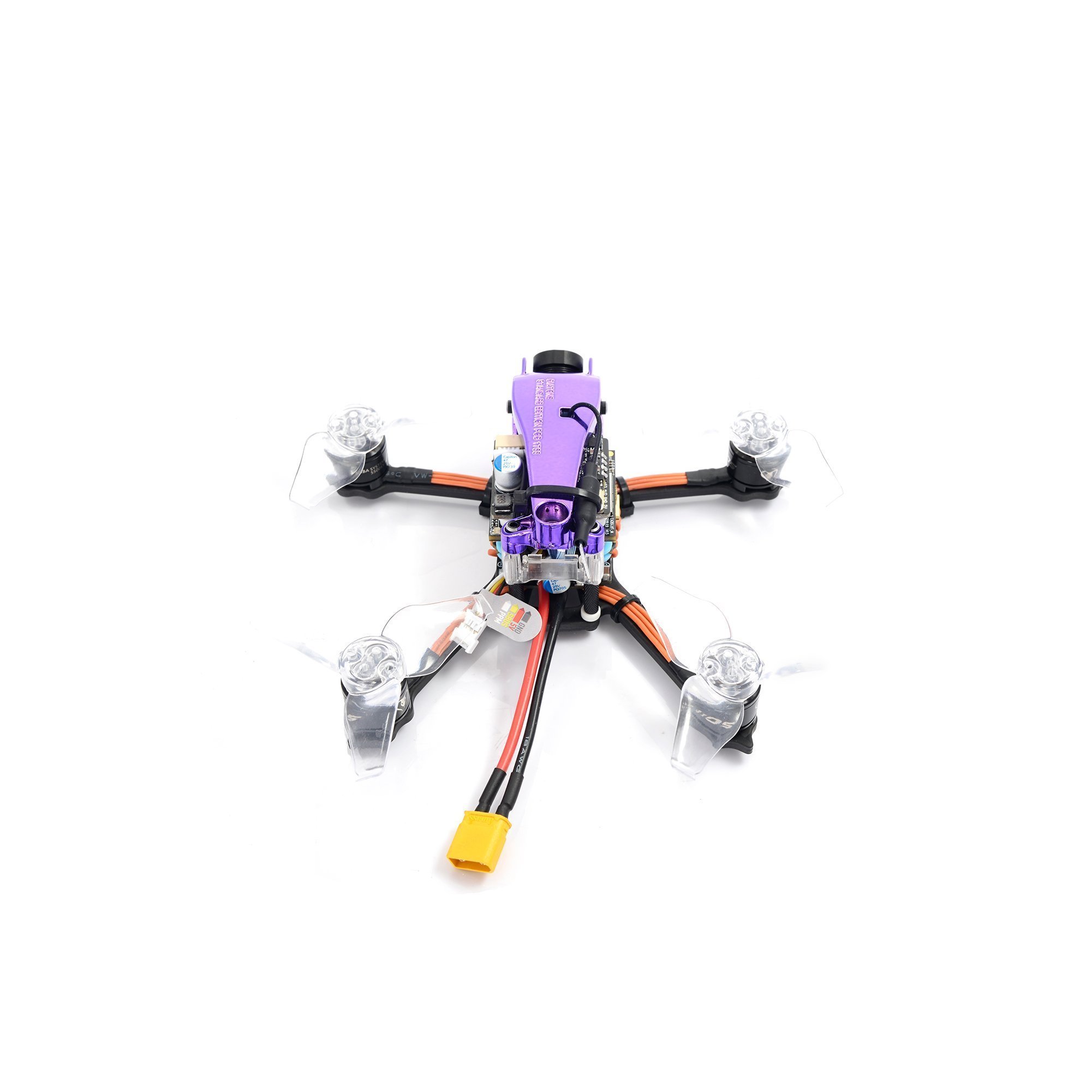

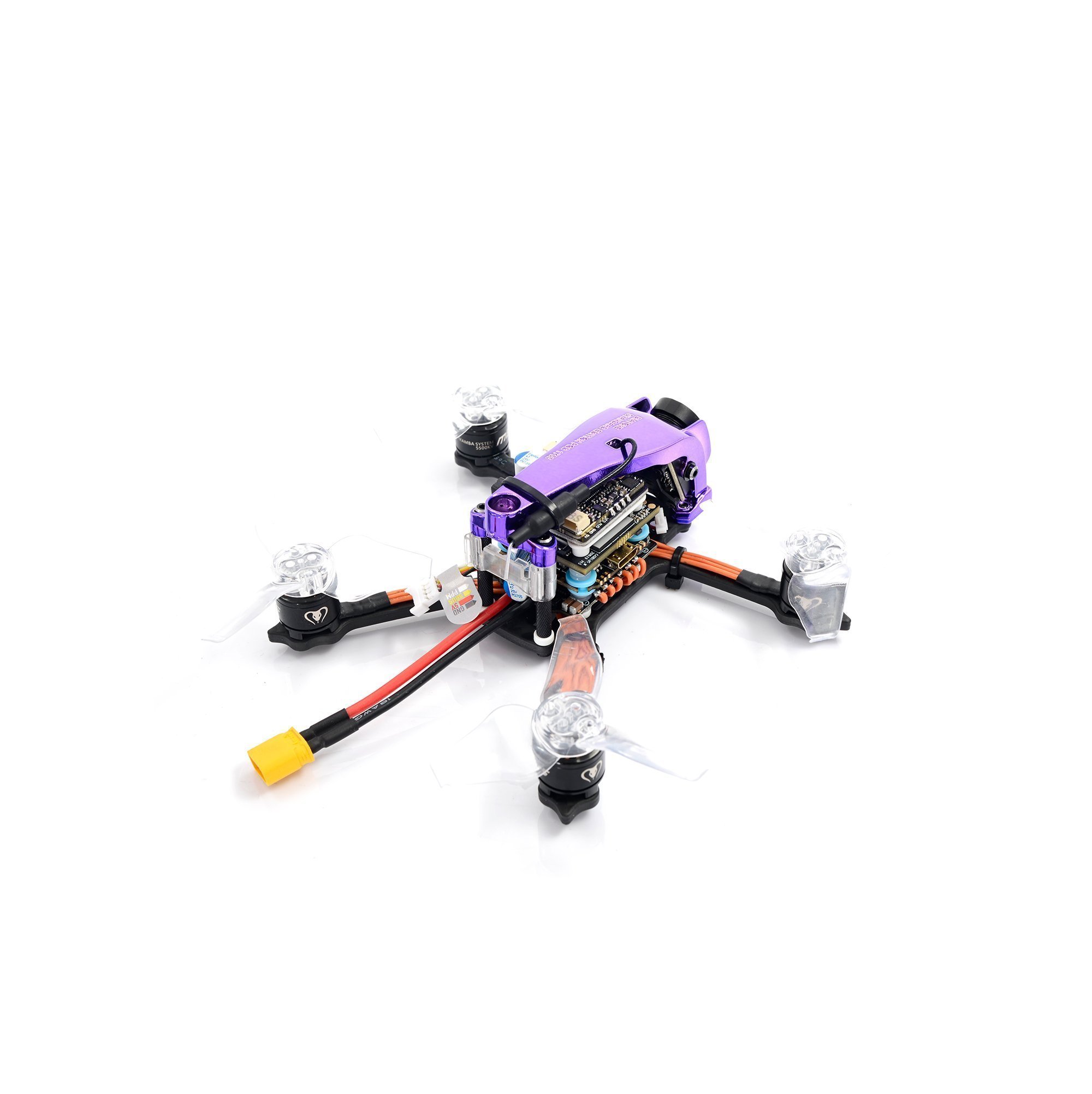

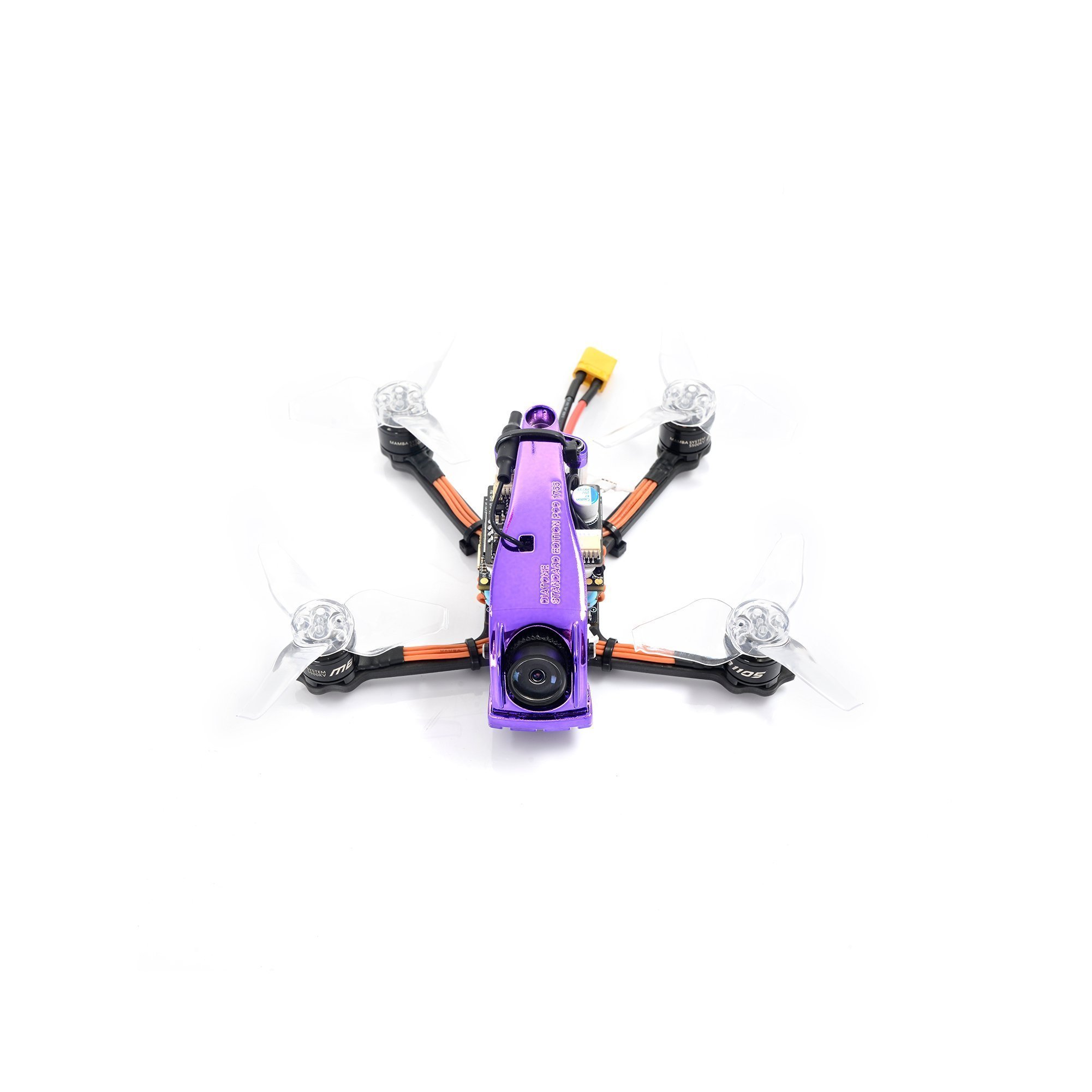

The GTR249T-HD mini drone based on a "deadcat" type chassis. The deadcat style was initiated by Dutchman Bart Jansen after he transformed a stuffed cat into a drone! This form of frame allows the propellers to be removed from the view of the on-board HD camera because a deadcat frame increases the perpendicular distance between the two front motors.
The Diatone Deadcat GTR249T-HD sports a very nice and very aesthetic look. Diatone worked the canopy by the electroplating process: this technique covers a material with a layer of metal.
The Diatone Deadcat GTR249T-HD offers Mamba 1105 5500KV motors providing speed, strength and lightness. These motors can be powered with a 650-750mAh 3S lipo for maximum power.
It also benefits from a Mamba 25A DShot600 ESC as well as a programmable Mamba F405 Mini MK2 flight controller with Betaflight.
FrSky X20
FrSky XE
PNG (300x280)
BMP Recommended (300x280)
FrSky X18
FrSky Twin
PNG (180x166)
BMP Recommended (180x166)
FrSky X10
FrSky X12s
PNG (180x160)
BMP Recommended (180x160)
PNG (192x114)
FrSky X9D
FrSky X9E
BMP (64x32)
JPG (155x100)
Some content in menu 2.
FC: Fury F4 OSD 8K ESC: F25 20A Current Sensor 3-4S Motor: Mamba racing 1105 5500KV 3-4S Propeller: 2.3-2.5 inch. Wheelbase: 115 mm Weight：86g Rec. Battery: 3S 650-750mah
Although I do my best to complete this library, you may not find the model you are looking for.
In this case, do not hesitate to ask me to add it : You're not bothering me. Please be patient, depending on my workload, I may take a few days to work on your model and gather information.
