MXC Taycan from DIATONE INNOVATIONS

Details

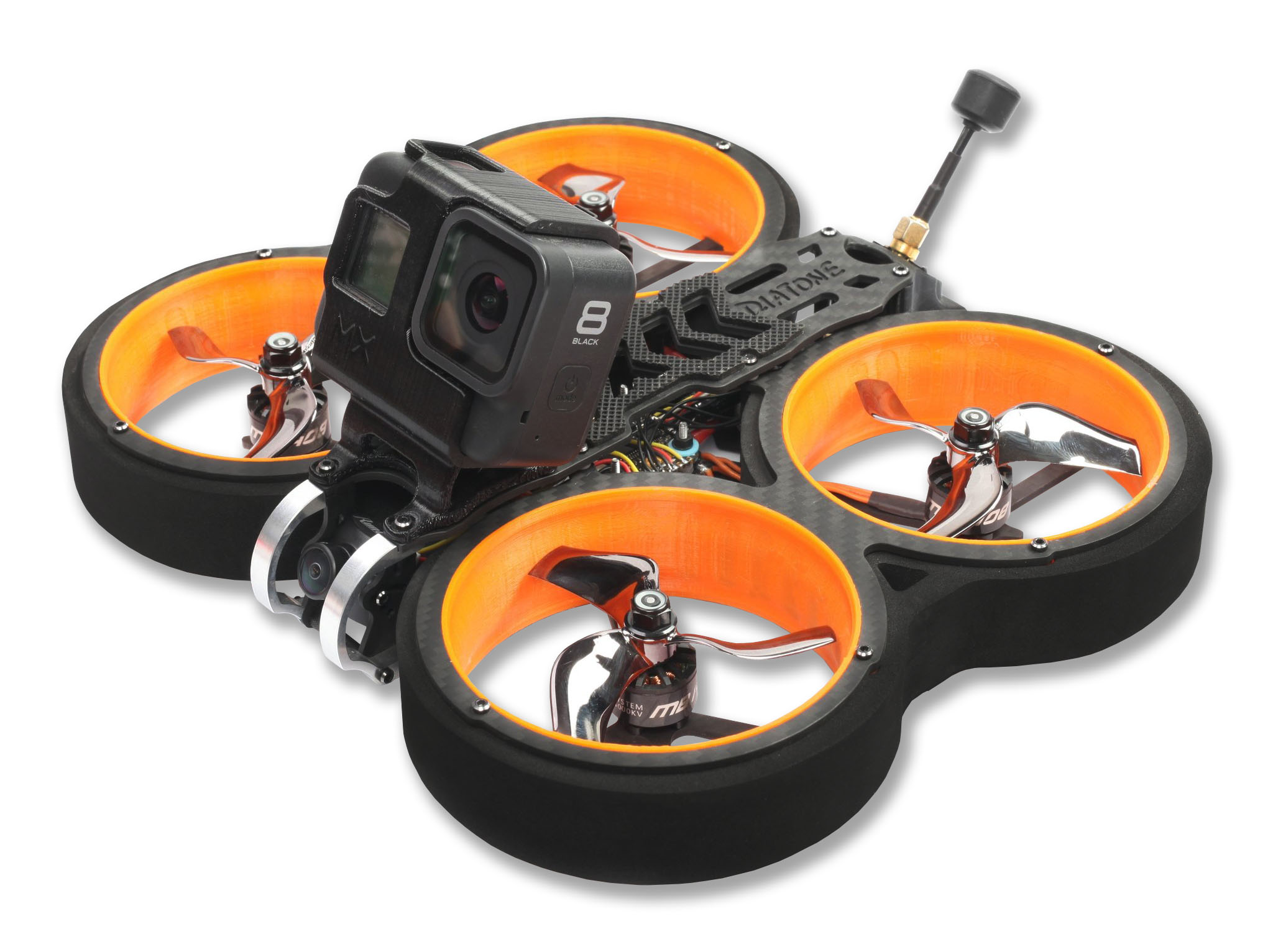

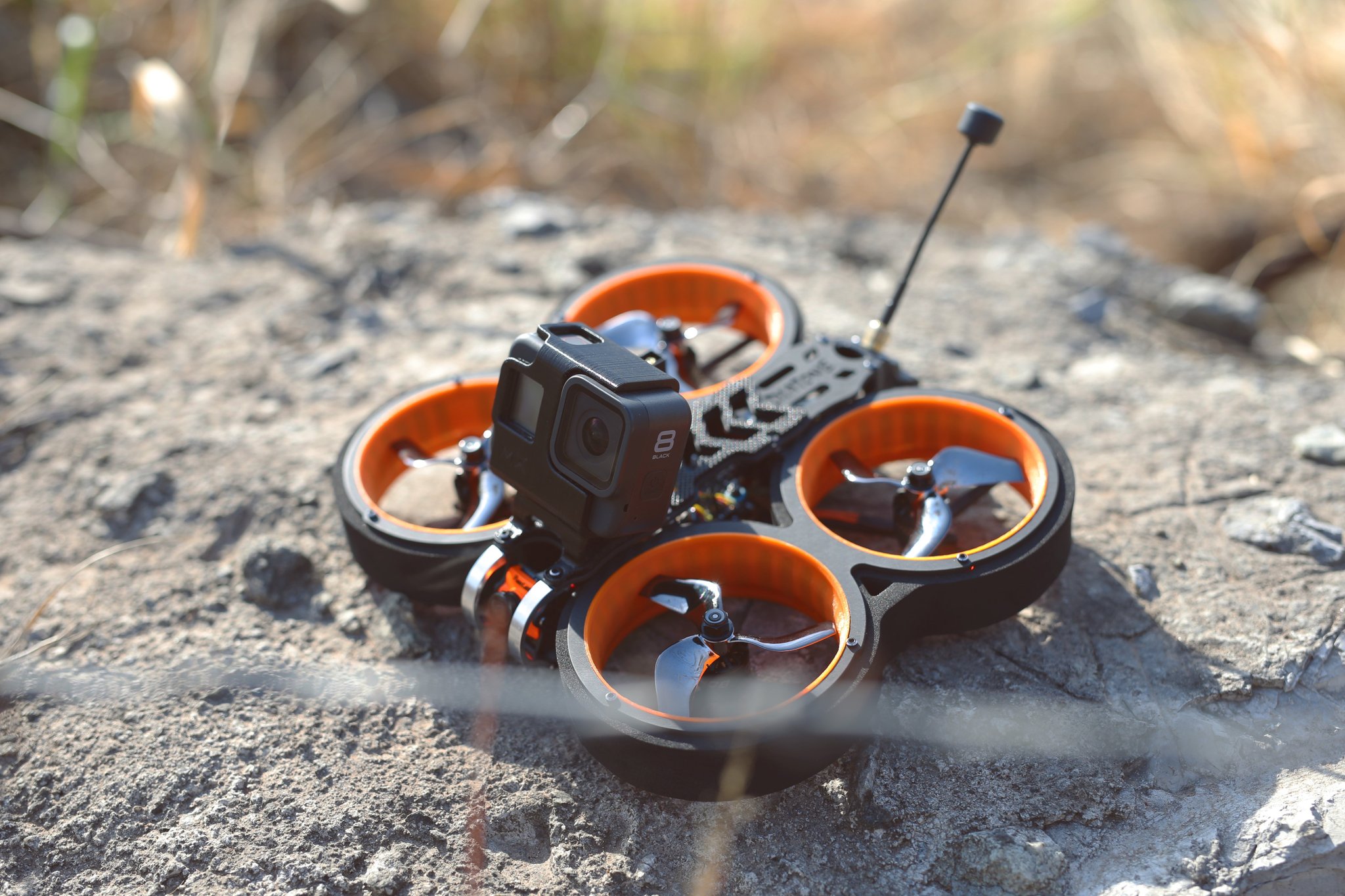

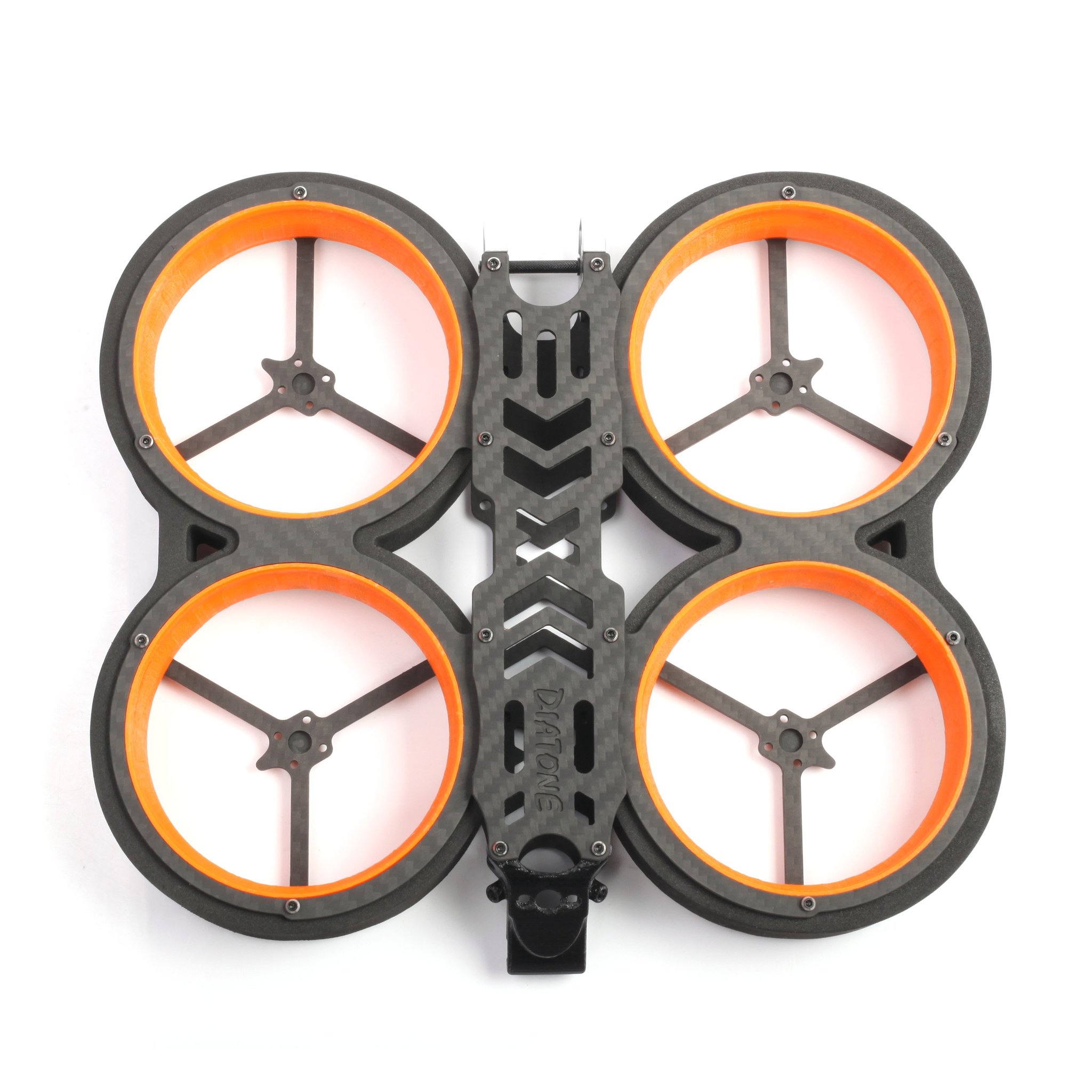

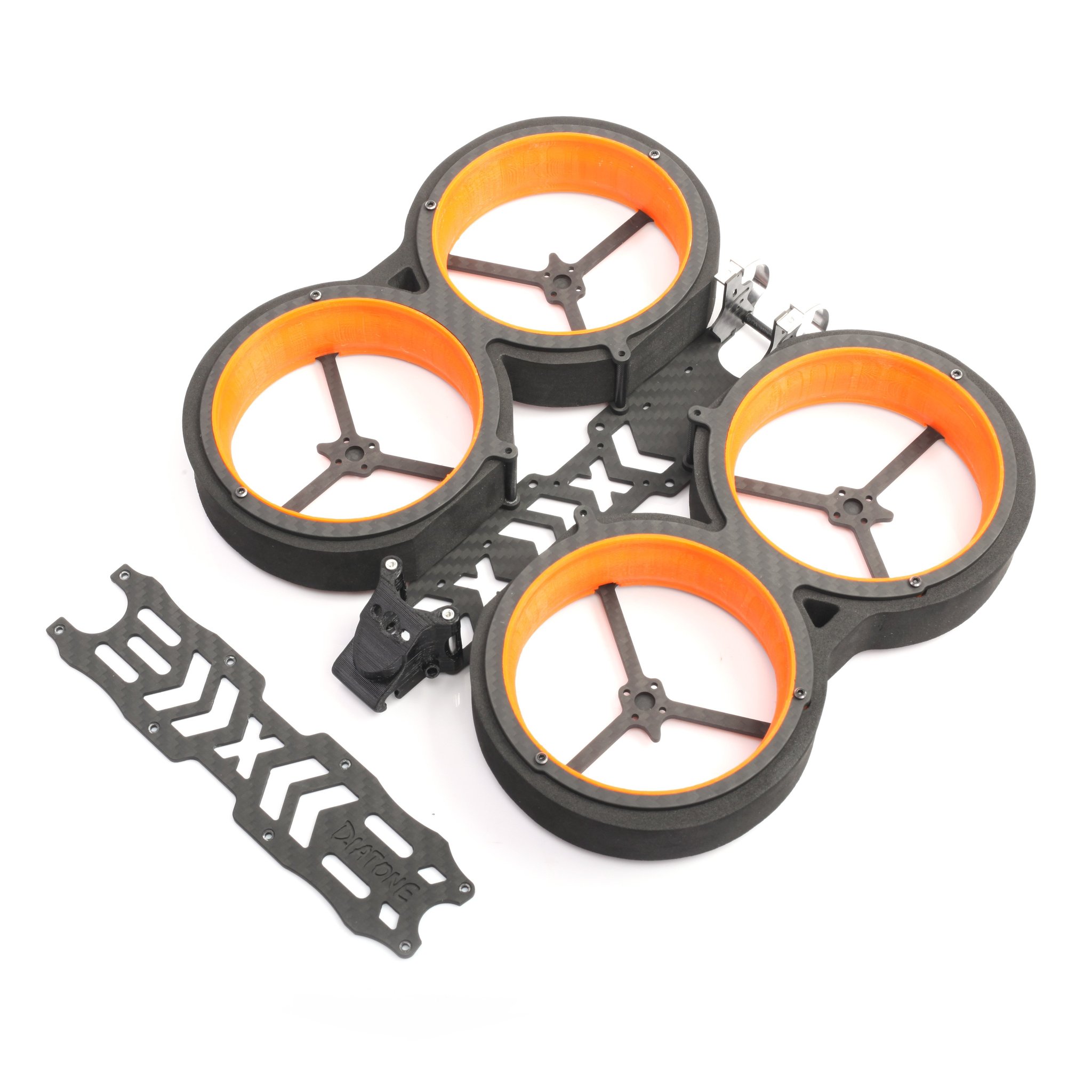

Despite the name, it has nothing to do with the electric Porsche. It is a device from the Cinewhoop category, with streamlined propellers and intended to film in HD with a GoPro type camera. Its carbon structure measures 15.8 cm diagonally from motor to motor, with a bottom plate 2.5 mm thick, and an upper plate 2 mm thick. It is capable of accommodating electronic components in 20 x 20 mm or 30.5 x 30.5 cm.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the MXC Taycan in particular but at least we know they do distribute DIATONE INNOVATIONS.

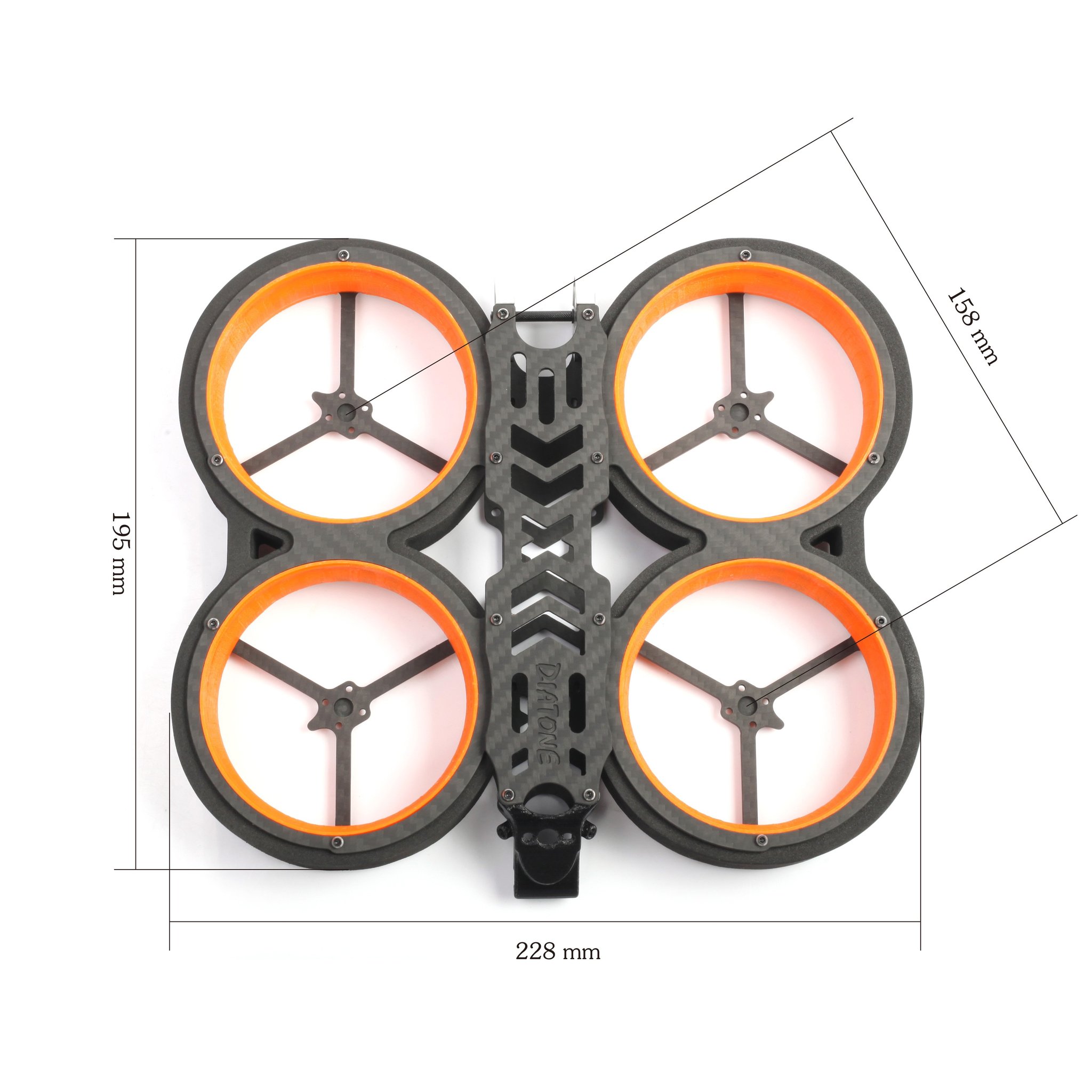

Wingspan: 158mm (6.2 in)
Length: 158mm (6.2 in)

Weight: 175 g (6.2 oz)

Wheelbase: 158mm
Weight: 175g
Paddle size: 3 inch
Top plate: 2mm
Base plate: 2.5mm
Voltage (Recommendation): 4-6S
Flight control mounting hole : 20mm (M2) /30.5mm (M3)
Motor mounting hole position: 12mm
Camera pitch: 19mm, compatible with 4K dual camera  (Gopro Mount no included)
