Mitsubishi J8M Shusui from Durafly

Details

The Mitsubishi J8M Shusui was a World War II jet designed for the Japanese Navy and was based on the German ME-163 design. Only a small number of development planes were built to help combat the US Boeing B-29 bombers.

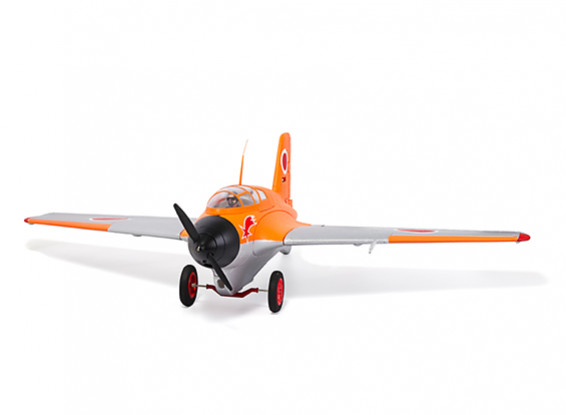

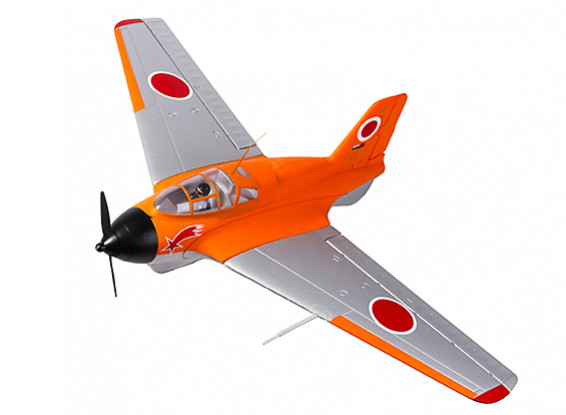

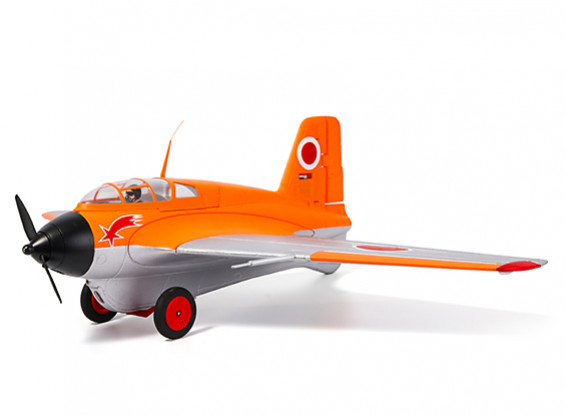

Durafly have based this model on one of the development planes that had a striking orange and silver color scheme which is combined with the highly detailed, molded EPO foam, strong carbon reinforcement and features a color matched hard plastic belly skid. The J8M Shusui still has the blistering performance of the earlier ME-163 and the wide track “dolly” for easier ground handling and take off.

As a PnF model, the J8M Shusui comes with all electronics pre-installed and requires you to hook up to your 6ch receiver. This is an easy build with only a few parts to be put together. A big hatch gives easy access to the battery bay and electronics.

This plane is designed with the more experienced pilots in mind. The J8M Shusui has incredible flight performance and is stable throughout the complete speed range. Full power climb outs, virtually unlimited vertical, huge loops, blistering rolls and very fast passes are easily had at full throttle. At slower speeds, the J8M Shusui is just as stable with no hint of a stall.

Using the recommended 2200mAh 30-65C 3S lipo and supplied 6x4 prop, you can expect flight times well beyond 6 minutes and with excellent performance throughout. But if you want a bit more punch then a 1300~2200mAh 4S 30C+ lipo can be used with the standard J8M Shusui setup.

For those of you looking for the ultimate scale experience, the optional rocket system is a simple drop-in affair (see manual for details), and will give you a thrill like no other. The working dolly-drop is activated at the flick of a switch on your transmitter, allowing for the most scale of take-offs.

Features:
• Fully functional dolly style undercarriage
• Ready-made for drop-in optional rocket motor system
• High level of pre-assembly and minimal part count
• Tough EPO construction with extensive carbon reinforcement
• Super smooth surface finish
• Stable and high performing aerodynamic design
• Large canopy/battery hatch for easy access to electronics
• Authentic and re-applied decals and paint finish
• Standard setup will run 3S and 4S lipo batteries

Pictures

Manual

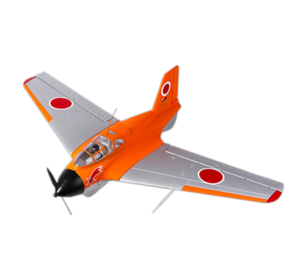

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Mitsubishi J8M Shusui in particular but at least we know they do distribute Durafly.

Wingspan: 950mm (37.4 in)
Length: 585mm (23 in)

Weight: 1120 g (2.5 lbs)

Wingspan: 950mm (37.4")
Length: 585mm (23')
Flying Weight: 1220g (with electronic and battery)
ESC: Durafly 40A brushless ESC
Motor: Durafly 2836 2200kv Outrunner
Prop: 6x4 (2 included)
Servos: 2 x metal geared 9g (aileron/elevator), 1 x 9g rudder
Controls: 6 ch 'Elevons' (aileron/elevator), throttle, rudder, gear (dolly), optional rocket switch
