EMB-312 Tucano from Dynam

Details

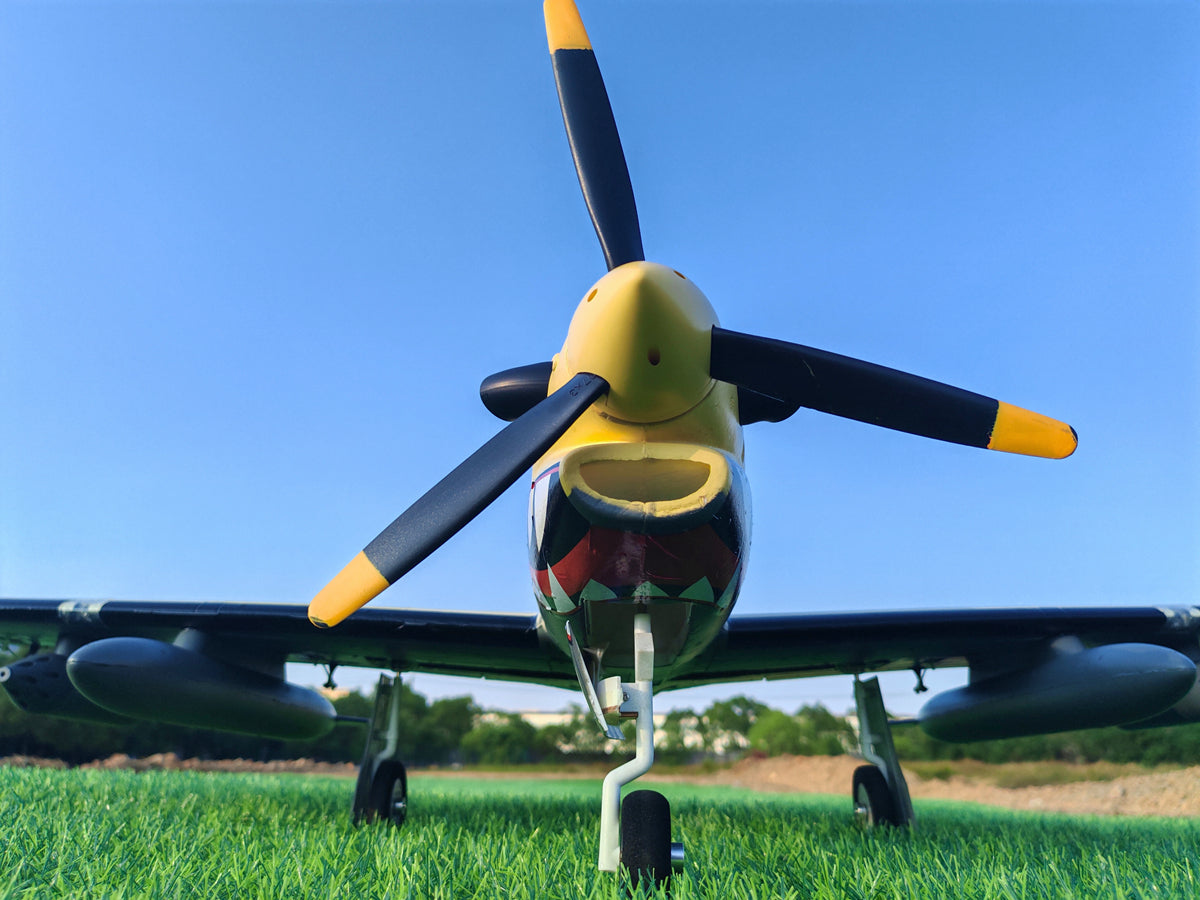

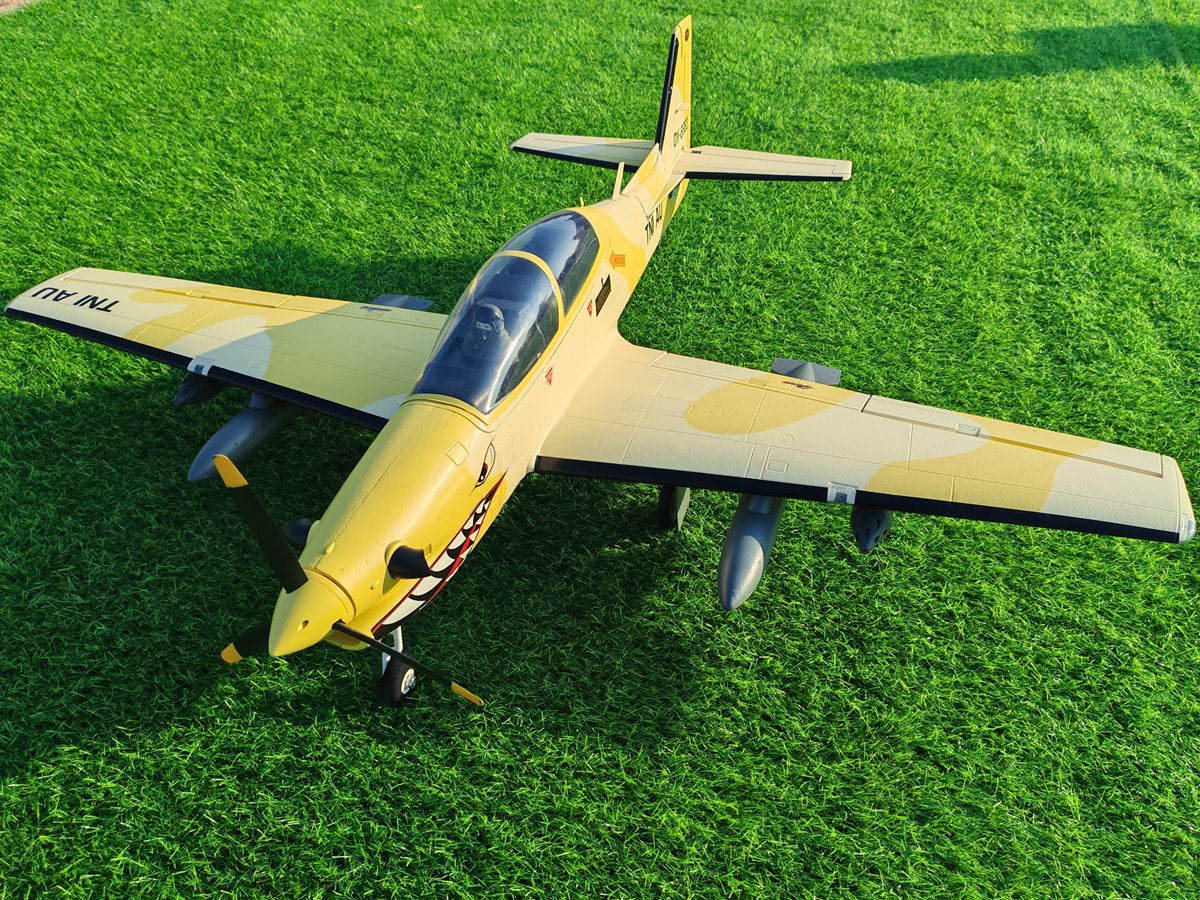

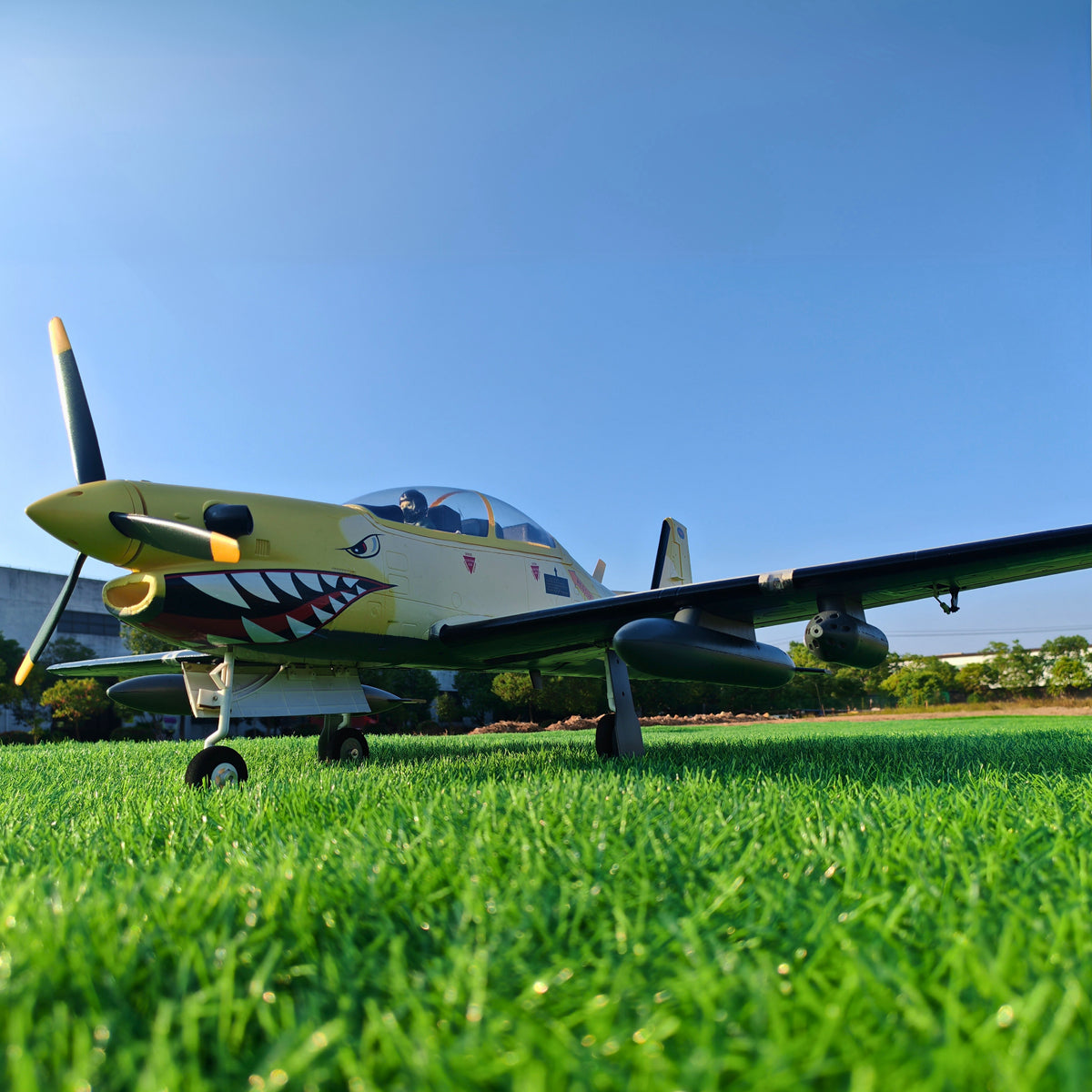

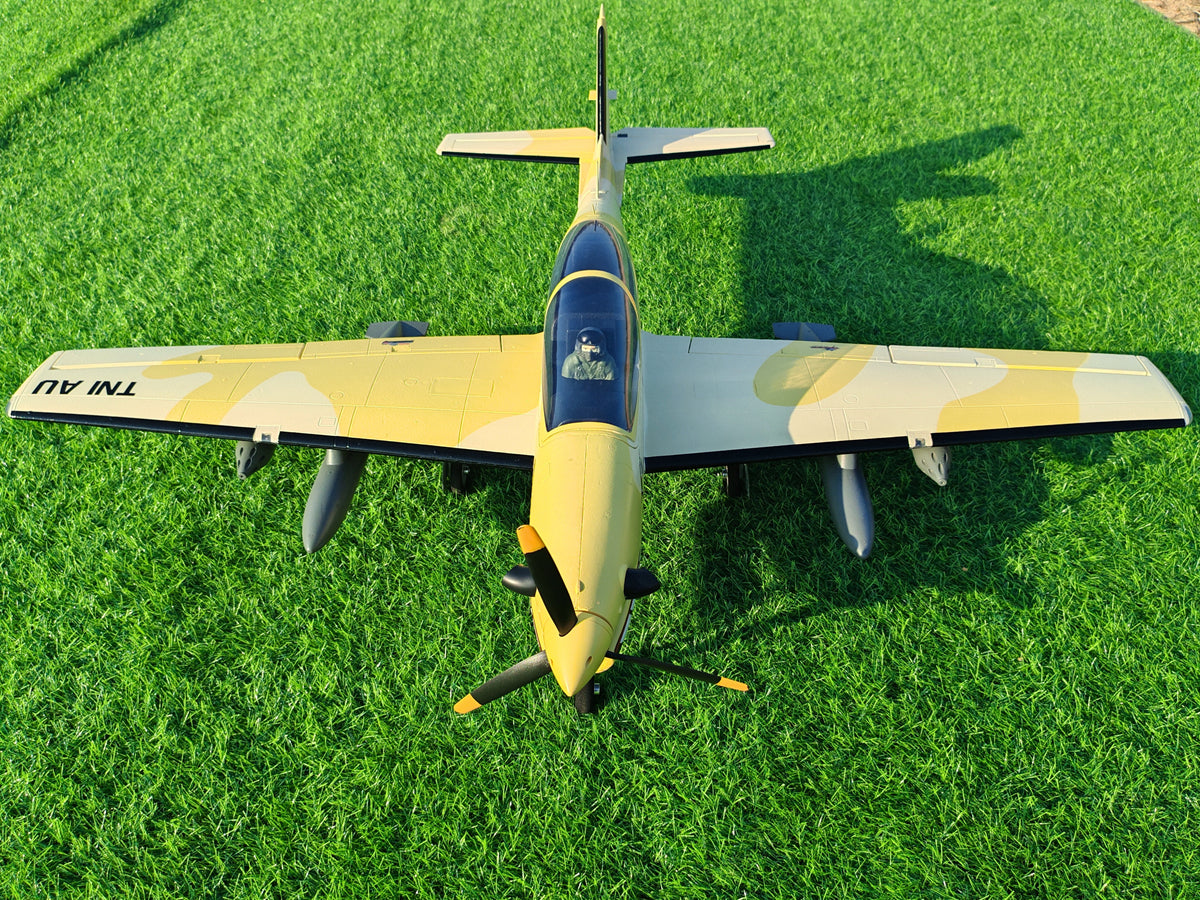

The Dynam EMB-312 Tucano is a well-designed RC scale plane that combines historical charm with advanced technology and exceptional performance. Modeled after the iconic Brazilian trainer aircraft, this 1250mm wingspan airplane delivers an authentic scale appearance while providing thrilling flight capabilities for pilots of all skill levels.

Features:

  • Made from EPO foam for enhanced durability and performance.
  • Aileron, flap, rudder, and elevator controls for precise handling and aerobatics.
  •  Equipped with a Detrum BM3720-KV900 brushlessmotor, TomCat Skylord-50A ESC, and 2524g thrust capacity.

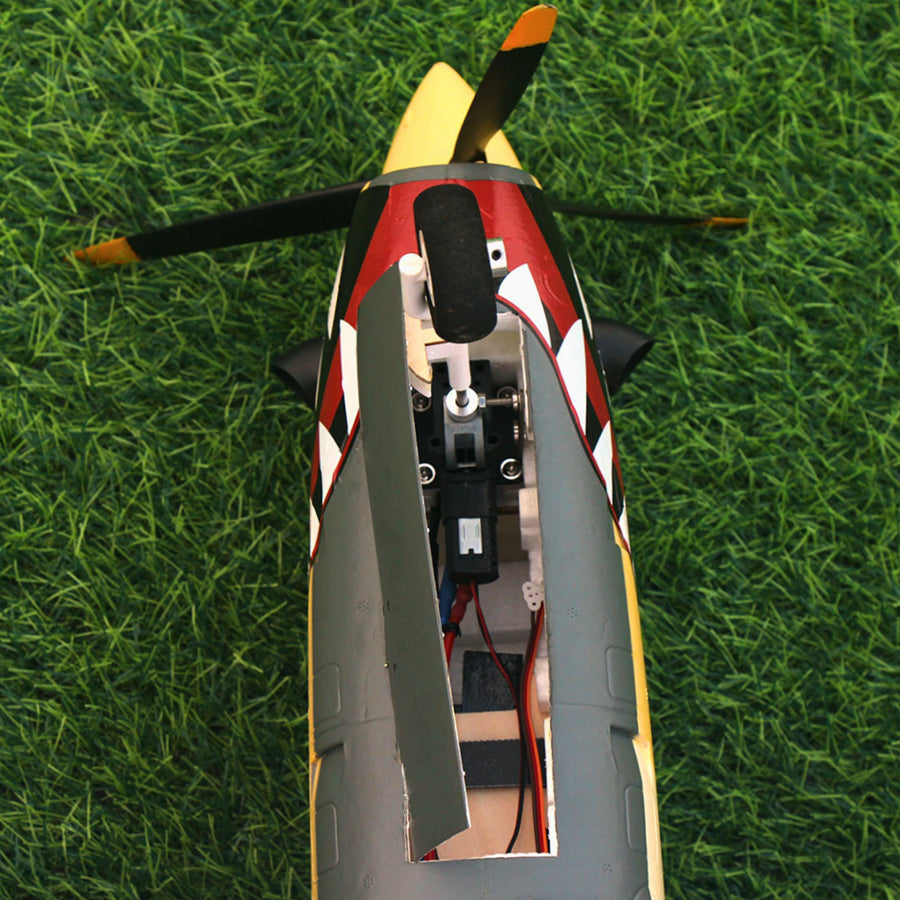

  • Servoless electronic retracts with a functional nose gear door for realistic operation.
  • Detrum MSR66A 6-Axis iStone Mini Gyro for stable, smooth flights.
  • 11x7 3-blade propeller for maximum efficiency and aesthetics.
  • Easy assembly with 11 screws and removable wings for transport.
  • Built-in LED lights for improved visibility in low light.
  • Fits a 4S 14.8V 2600mAh Li-Po battery for over 10 minutes of flight.

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1250mm (49.2 in)
Length: 1110mm (43.7 in)

Weight: 1525 g (3.4 lbs)
  • Wingspan: 1250mm (49.2in)
  • Overall Length: 1110mm (43.7in)
  • Flying Weight: 1525g (53.8oz)
  • Wing Loading: 69g/dm²
  • CG (Center of Gravity): 78-83mm from the leading edge of the wing at the root
  • Power System: Detrum BM3720-KV900 brushless motor - (pre-installed)
  • Thrust: 2524g
  • Electronic Speed Control: TomCat Skylord-50A ESC 5A BEC - (pre-installed)
  • Propeller: 3-blade propeller 11*7
  • Servo: 9x 9g metal servos - (pre-installed)
  • Landing Gear: E-Retract (Retractable) - (pre-installed)
  • Required Transmitter: GAVIN-6C 2.4Ghz 6-Channel or above
  • Required Receiver: MSR66A 6CH 2.4Ghz (iStone 6-Axis Gyro Stabilizer w/ ABS System) or above
  • Required Battery: 4S 14.8V 2600mAh Li-Po 35C w/ XT60 Connector
