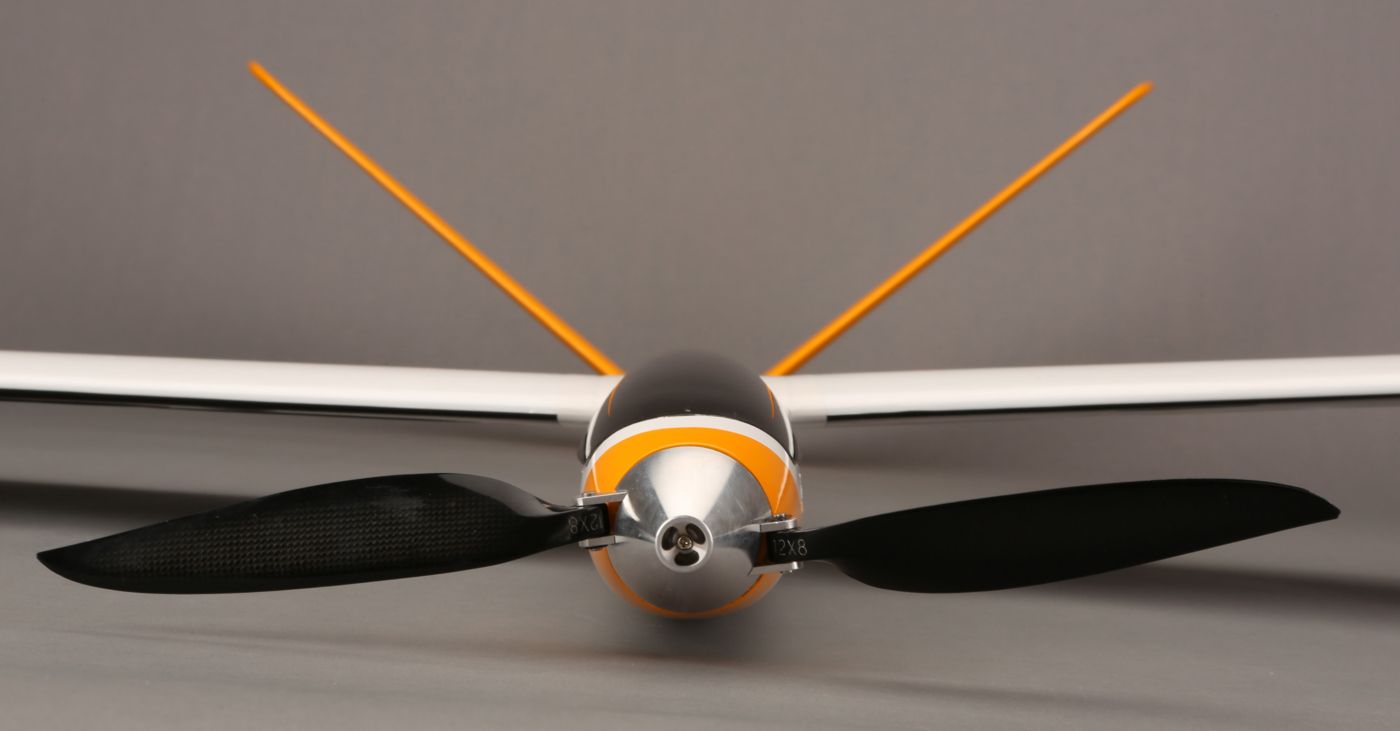

Allusive from E-flite

Details

The E-flite® Allusive™ 2.2 m ARF sailplane is an interesting breed of thermal soaring ship that’s both a capable glider and aerobatic sport model. Sleek from nose to tail and tip-to-tip, its wings are a fully-balsa sheeted foam core for a strong structure that naturally maintains airfoil integrity. The removable surfaces of the V-tail are a fully sheeted built-up structure and, like the wings, are covered with Hangar 9® UltraCote® covering in a high-contrast scheme. The ailerons and ruddervators feature film-hinging that’s sealed at the factory.

Thanks to a front fuse diameter of 40mm, a broad range of popular brushless outrunner motors like the E-flite Power 15 fits inside and has ample cooling. Just a 3S 2200mAh Li-Po flight pack is required for catching a thermal or grooving around. When equipped with a 4-channel radio with V-tail mix, the Allusive 2.2 m sailplane is the most fun you’ll have eluding the end of a great flying day.

Features:

  • Streamlined fiberglass fuselage with a painted finish that’s ready for your electronics
  • Four-channel control with V-tail, ailerons and throttle
  • Large canopy provides easy access to factory-installed plywood mounting points
  • Two-piece, fully-balsa sheeted, foam-core, plug-in wings
  • Built-up, balsa plug-in stabilizers
  • Solid carbon fiber wing and stabilizer joiners
  • Ready for installation of an E-flite® Power 15 outrunner
  • Complete, high-quality hardware package
  • Fiberglass control horns and pre-bent steel pushrods
  • Factory finished, film hinging on the ailerons and ruddervators
  • High-contrast, genuine Hangar 9® UltraCote® covering

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 2200mm (86.6 in)
Length: 1100mm (43.3 in)

Weight: 1400 g (3.1 lbs)
Airfoil Shape: S3021
Approximate Assembly Time: 3-5 Hours
CG (Center of Gravity): 65mm 2.5"
Completion Level: Almost Ready-To-Fly
Flaps: No
Flying Weight: 48 oz (1400g)
Length: 43.0 in (1100mm)
Material: Balsa and fiberglass
Minimum Required Radio: 4+ channel with v-tail mixing
Minimum Speed Control: 40A
Motor Size: Power 15
Propeller Size: 12 x 8
Recommended Fuel: Electric
Recommended Motor Battery: 3S Li-Po
Servos: 2 wing servos, 2 mini servos
Spinner Size: 40mm 2.5"
Wing Area: 546 sq in (35.2 sq dm)
Wing Loading: 12.7 oz
Wingspan: 87.5 in (2200mm)
