Carbon-Z Yak 54 from E-flite

Details

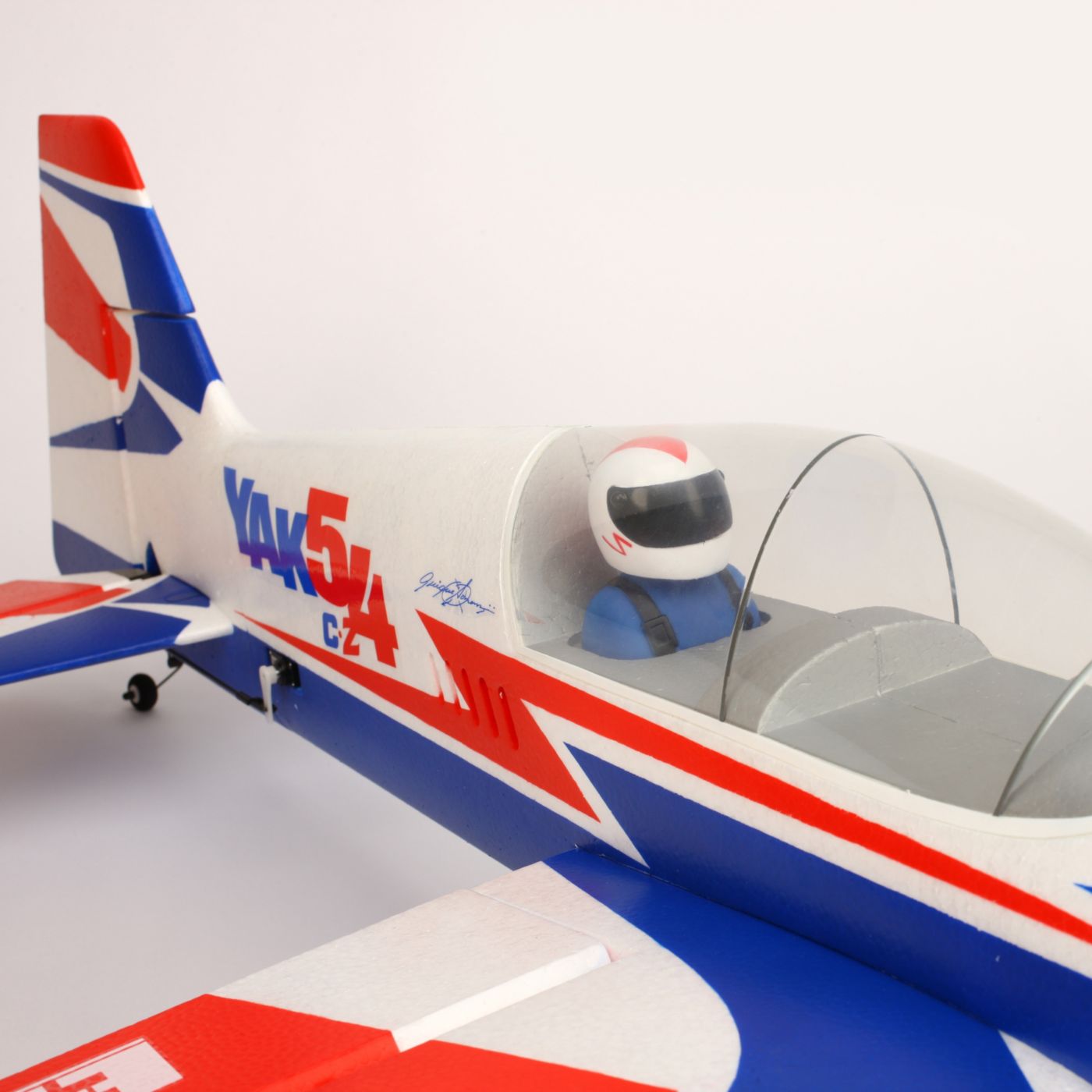

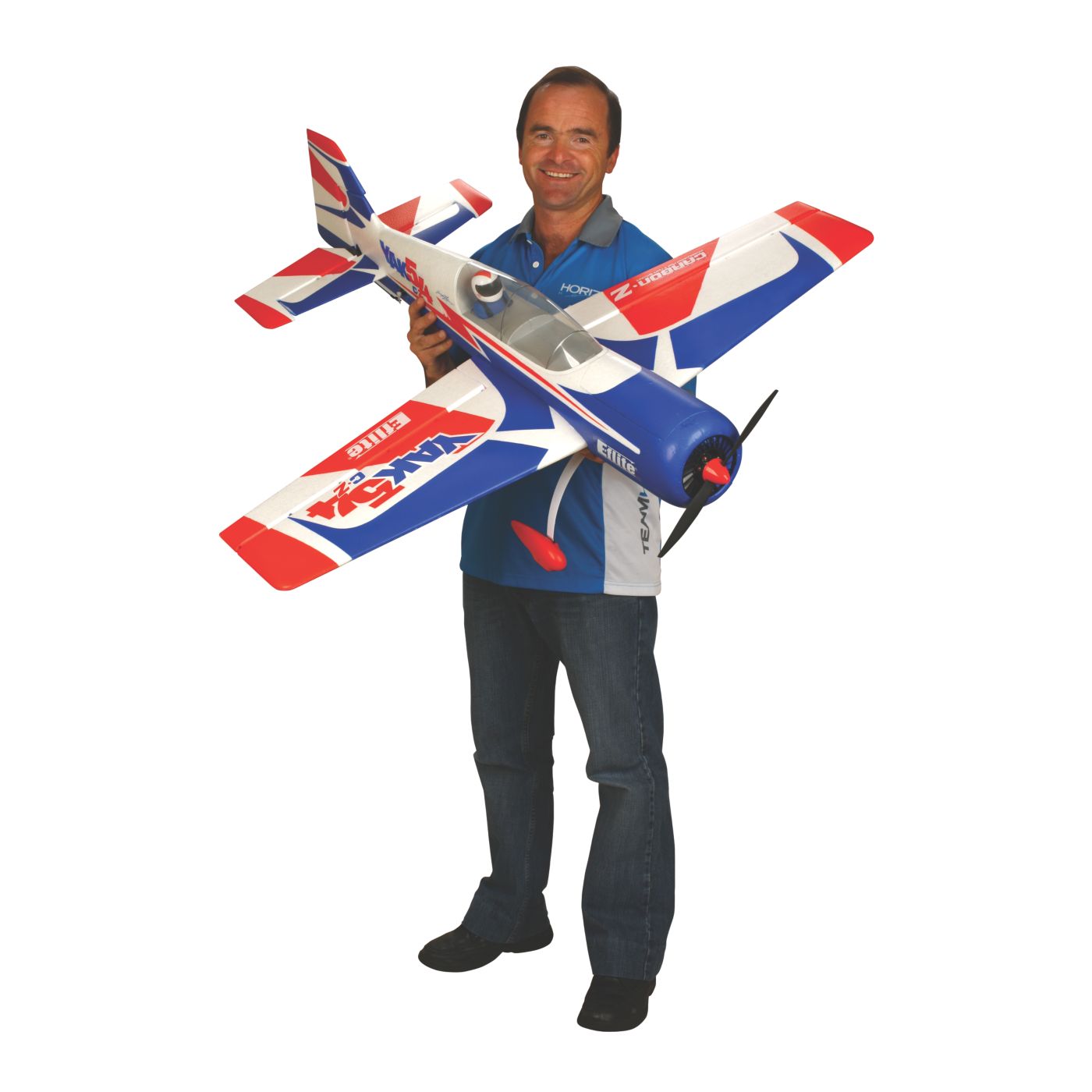

he Carbon-Z™ Yak 54 is a quantum leap in unlimited aircraft design that uses patent pending Carbon-Z construction. Carbon-Z is as strong and light as wood and gives the Yak 54 the kind of rigidity that allows it to fly with the energy and precision of a larger scale model. The brainchild of world aerobatic champion, Quique Somenzini, it comes out of the box equipped with a customized high-output brushless power system and digital high-speed servos. The combination of these high-performance components with the light weight and superb rigidity of the Carbon-Z airframe result in a 3D airplane with a 2:1 thrust-to-weight ratio that knows no limits.

Best of all, you can have this Bind-N-Fly® version flying in as little time as it takes to charge its battery and bind the receiver to a full-range DSM2/DSMX aircraft transmitter. To get the most from the Carbon-Z Yak 54, a programmable DSM2/DSMX aircraft transmitter with dual rates and exponential function is recommended.

Features:

  • Exceptionally strong and lightweight Carbon-Z airframe
  • High-performance prop optimized for precision and 3D flying
  • High-output 25-size brushless power system installed
  • E-flite 60A Pro brushless ESC installed
  • Spektrum 6-Channel AR600 DSMX receiver installed
  • Digital high-speed metal gear servos installed
  • 4S 2800mAh 14.8V 30C Li-Po battery included
  • 4S variable rate DC Li-Po balancing charger included
  • Low friction carbon rod hinges
  • Replaceable wings, stab, landing gear and control surfaces
  • Quickly disassembles for transport or storage in this box
  • Requires a full range DSM2/DSMX aircraft system (sold separately)

Pictures

Manual

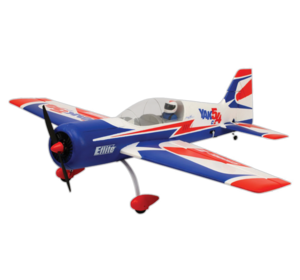

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 1220mm (48 in)
Length: unknown

Weight: 1730 g (3.8 lbs)
  • Approximate Assembly Time: Less than 1 Hour
  • Approximate Flight Time:  5 minutes
  • Charger: 4S variable rate DC Li-Po balancing charger (included)
  • Control Throw (Ailerons up/down at aileron root):
    • Low: 30mm
    • High: 65-70mm
  • Control Throw (Elevator up/down at counter balance leading):
    • Low: 15mm,
    • High: 48-50mm edge
  • Control Throw (Rudder right/left at counter balance leading edge):
    • Low: 45mm,
    • High: 65mm
  • Flaps: No
  • Flying Weight: 3.75 to 3.80 lb (1.70 to 1.73kg)
  • Recommended Fuel: Electric
  • Retracts: No
  • Spinner Size: 1.57 in (40mm)
  • Wing Loading: 16.2 oz/sq foot (50.1 grams/sq dm)
