F-16 Falcon from E-flite

Details

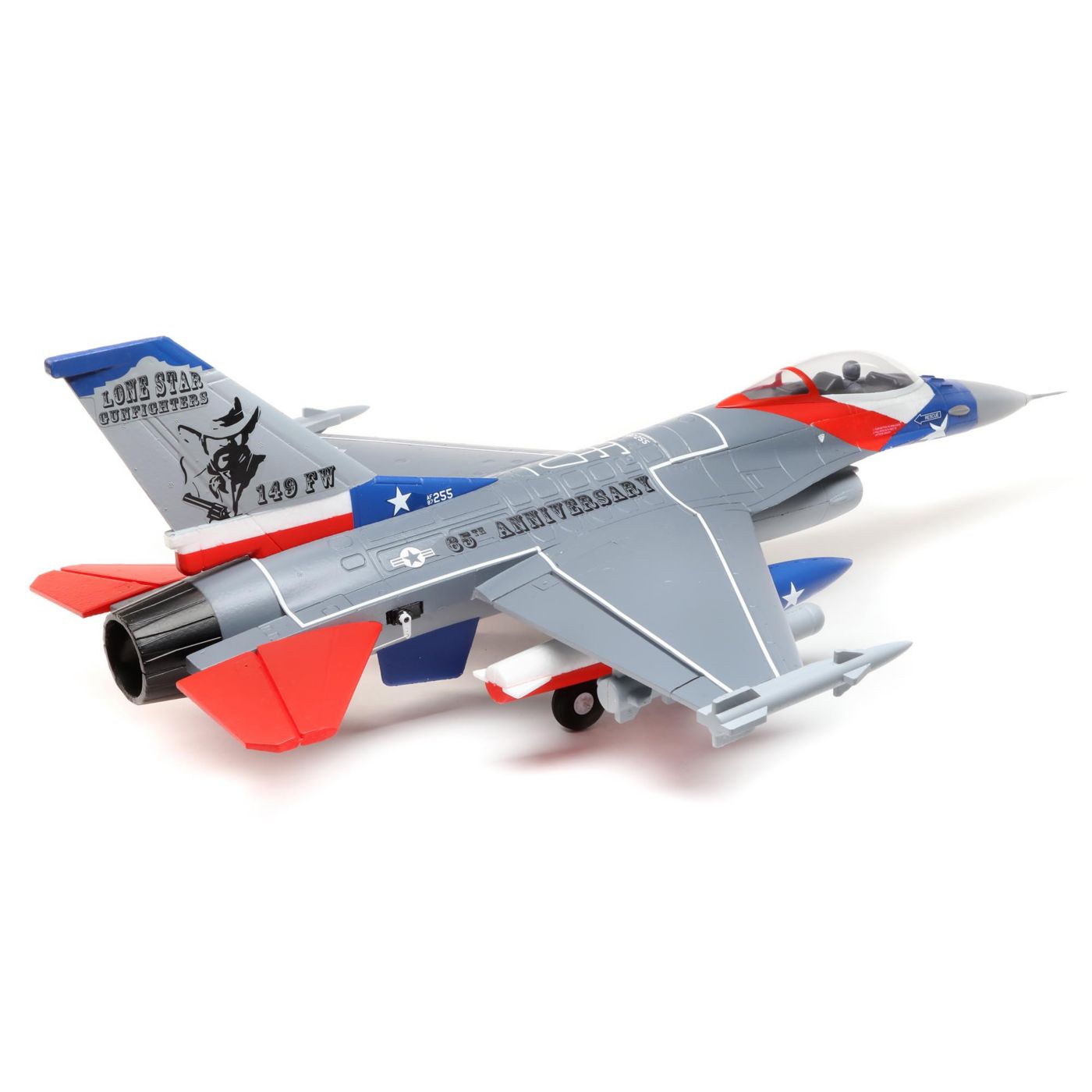

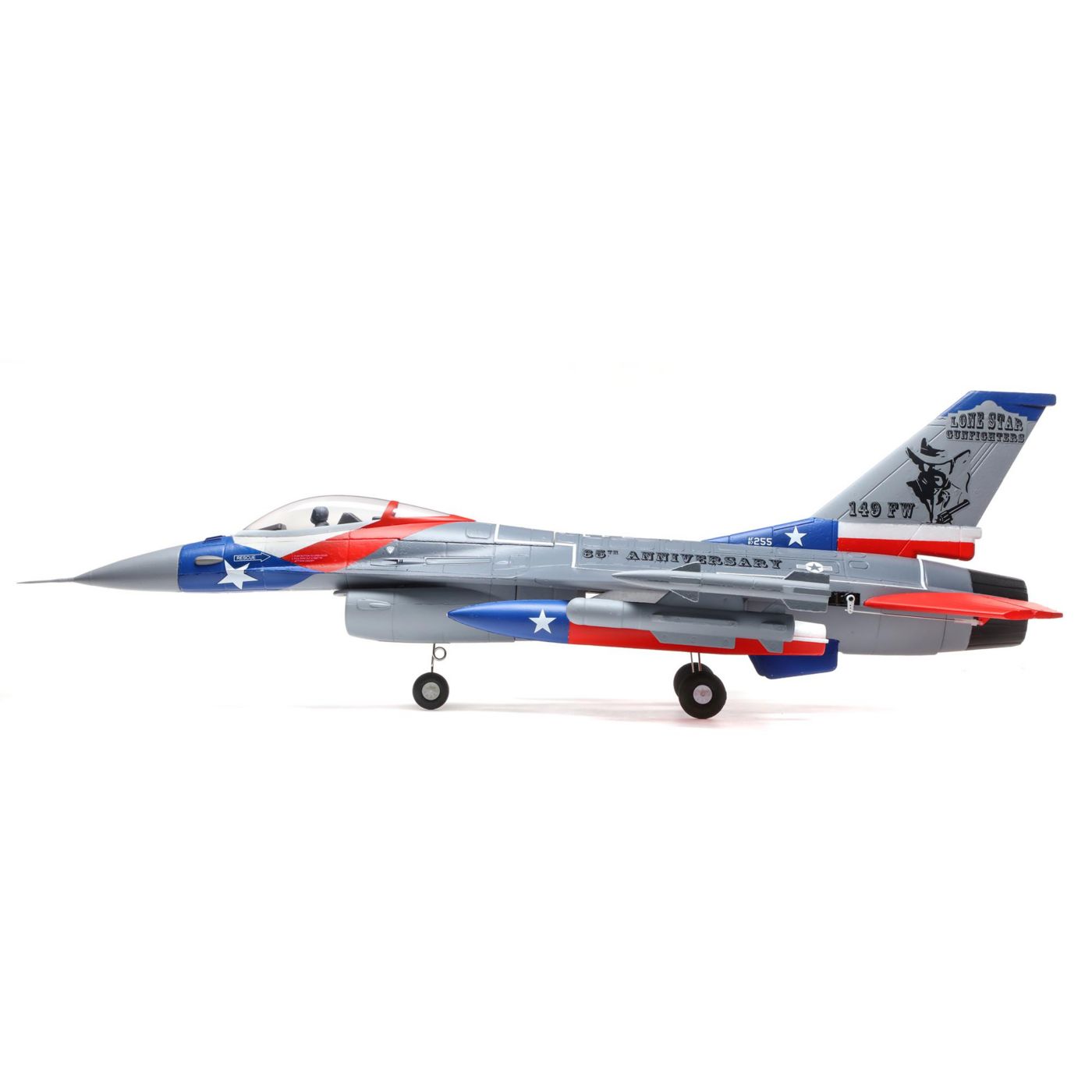

The E-flite® F-16 Falcon 64mm EDF jet is a scale replica of one of the most recognized and successful single-engine fighters in the world. Its 4S-compatible high-RPM brushless motor is matched to a 40-amp ESC and high-thrust 11-blade fan unit to deliver incredible performance enhanced by a realistic, turbine-like sound. Integrated composites and advanced EPO material form a lightweight, durable airframe that offers precise handling with the factory-installed servos. Nose-wheel steering provides easy ground handling – or you can remove the landing gear entirely for improved scale appearance and performance, plus nearly effortless hand launches when flying over grass. Authentic scale touches include molded-in surface details, a cockpit with pilot figure, plus optional-use simulated external fuel tanks and ordnance. It also arrives factory-finished in a unique scale trim scheme that offers great visibility and makes a strong impression both on the ground and in the air. And it all combines to deliver one of the easiest and most fun to fly Falcon models ever!

Features

  • One of the easiest and most fun to fly F-16 Falcon EDF (Electric Ducted Fan) jet models yet
  • Scale replica of the world-renowned fighter flown by the U.S. and numerous allied air forces
  • 11-blade 64mm fan delivers great vertical performance and top speed plus turbine-like sound
  • Factory-installed high-power 4S-compatible brushless motor, 40-amp ESC and 5 servos
  • Durable yet lightweight molded EPO airframe
  • Magnetically-secured nose cone and top hatch
  • Spektrum™ AR636 6-channel receiver with industry-leading 2.4GHz DSMX® technology
  • Easy to fly with innovative and optional-use SAFE® Select flight envelope protection
  • The unmatched stability and locked-in feel of exclusive AS3X® technology
  • Optional-use fixed landing gear with steerable nose wheel
  • Bolt-on wings plus optional-use tanks and ordnance

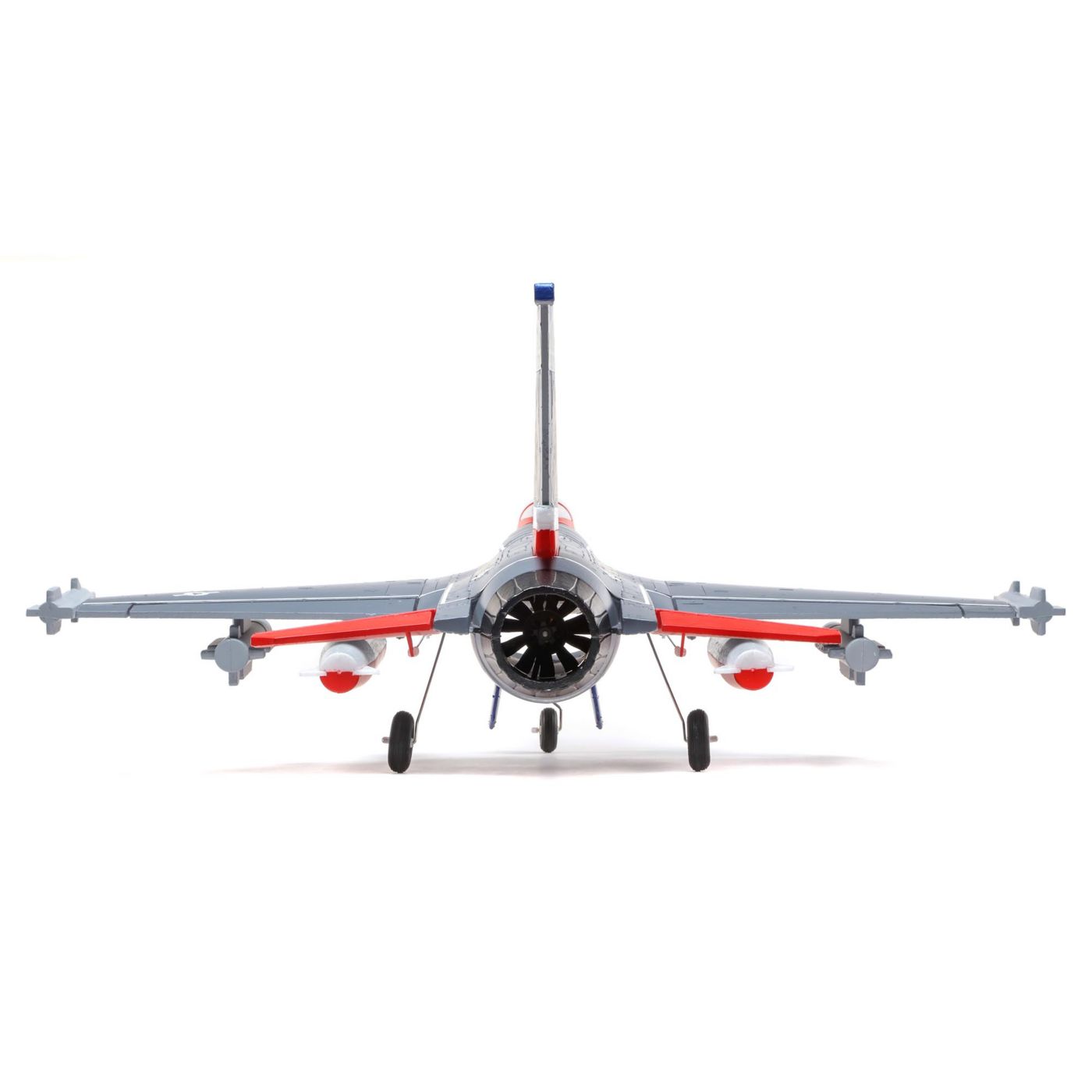

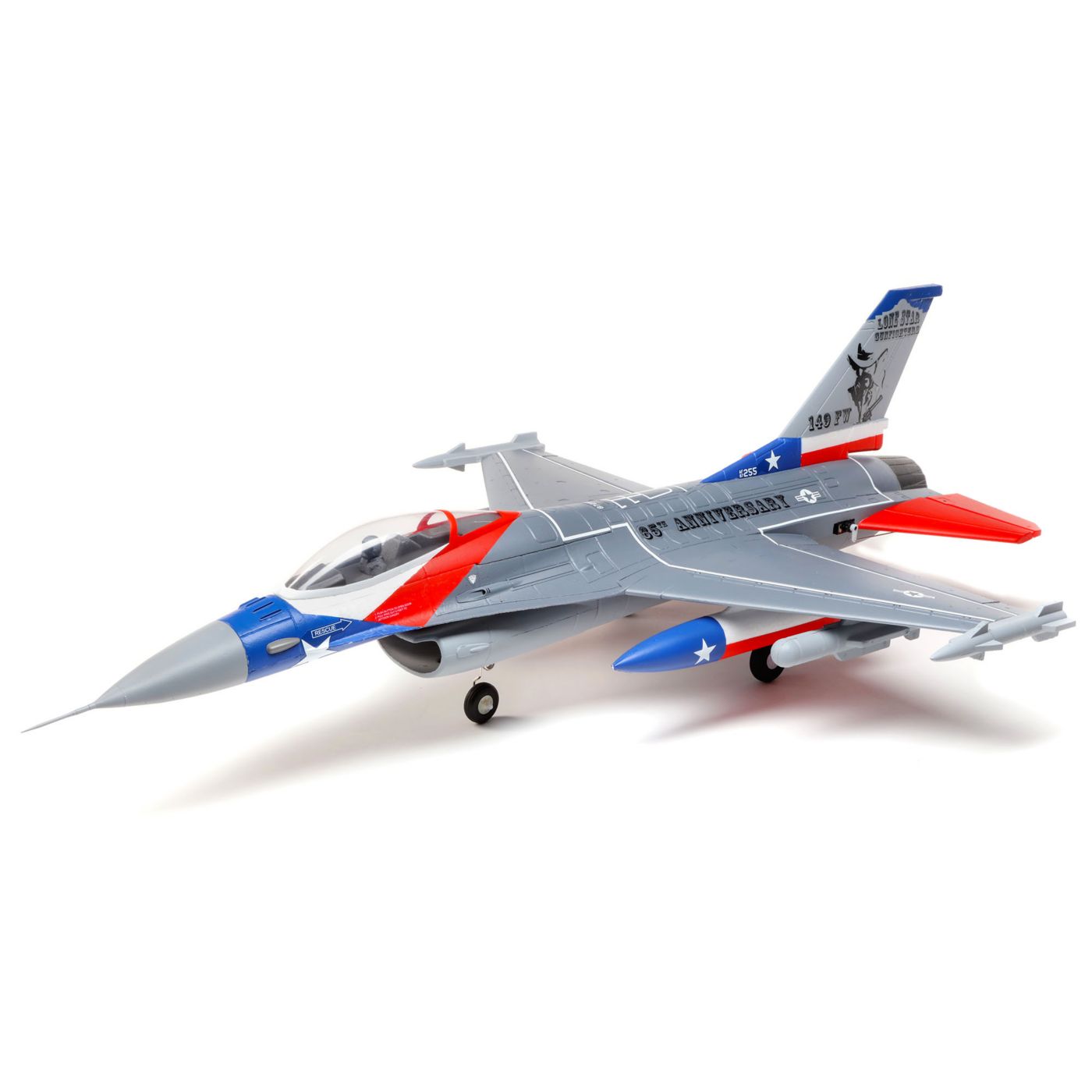

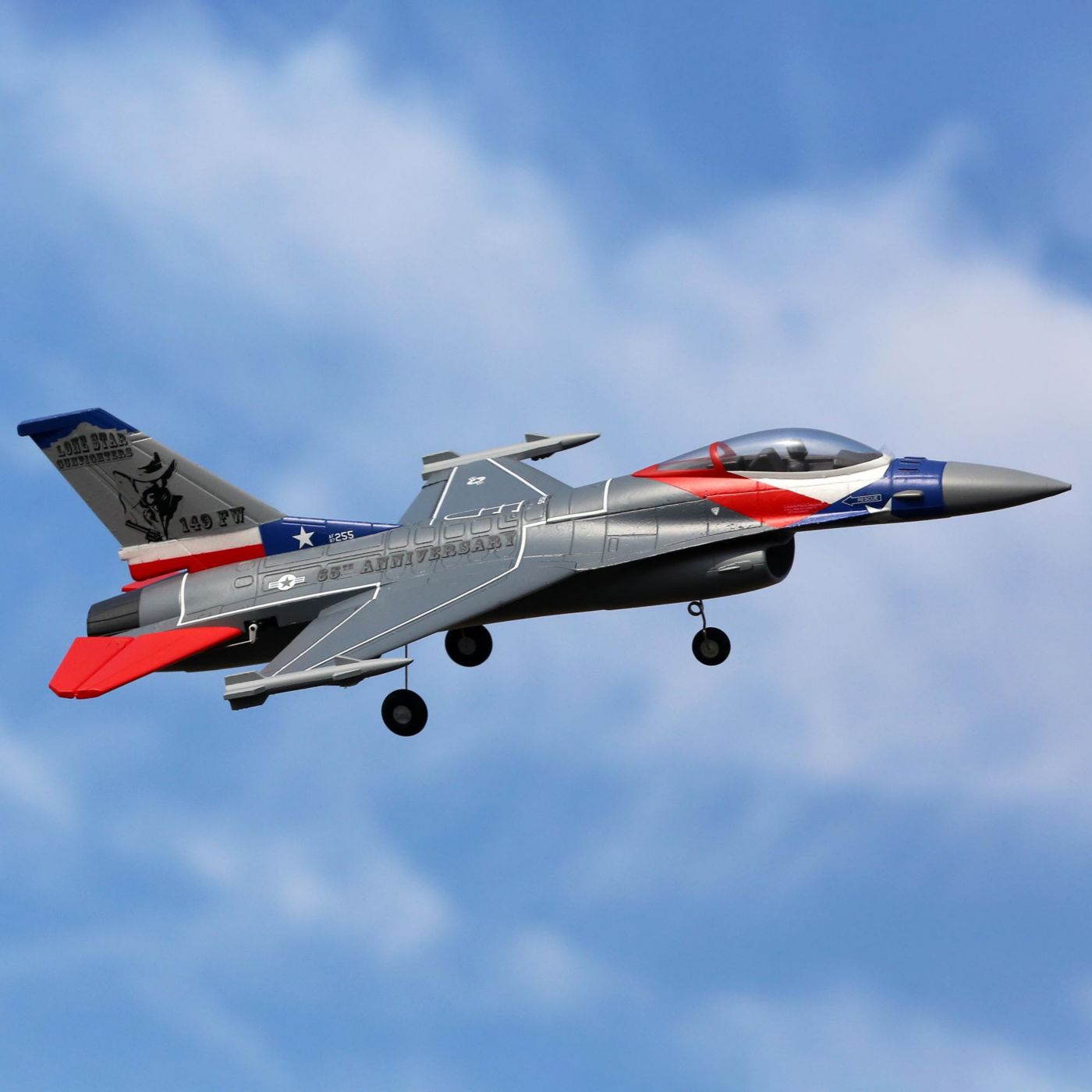

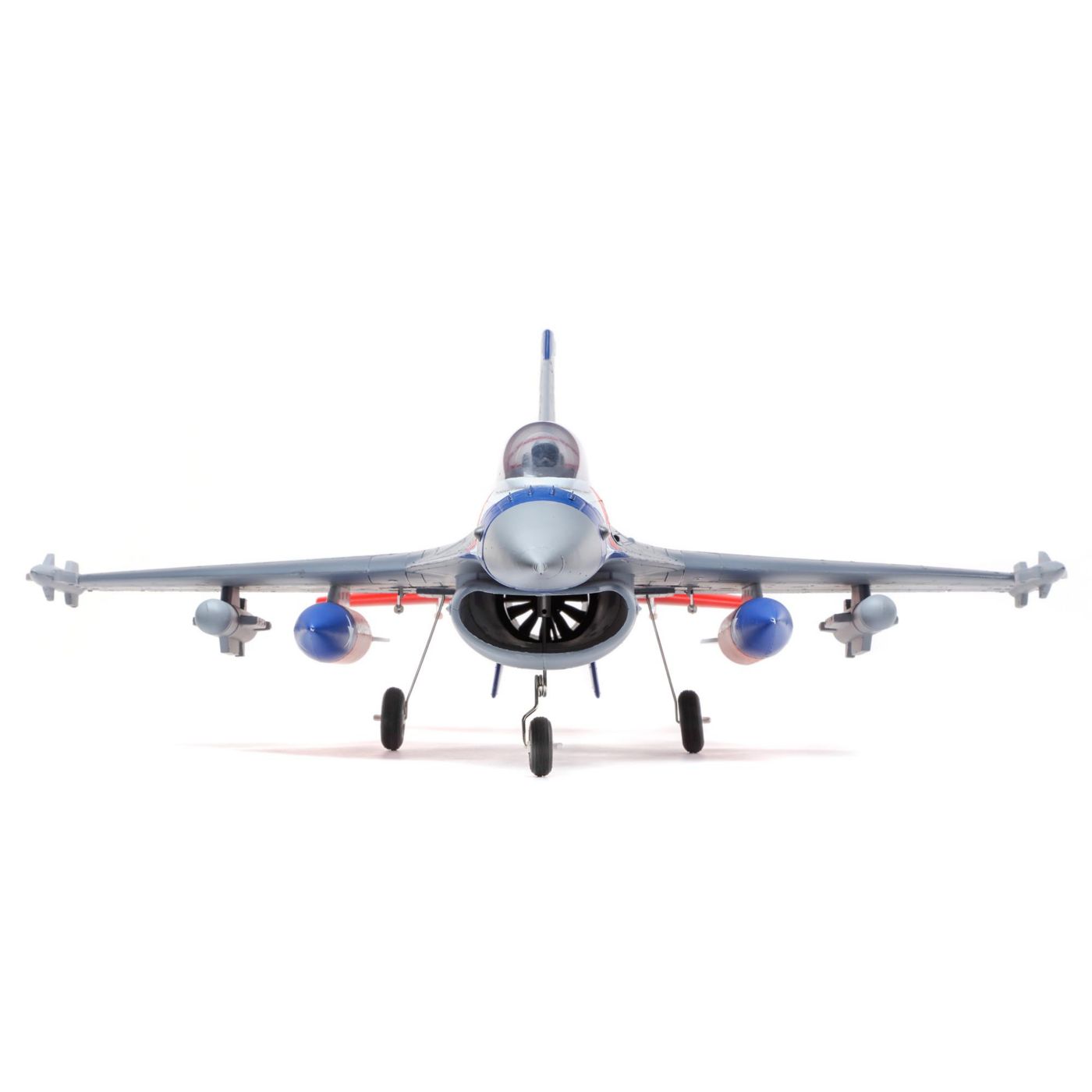

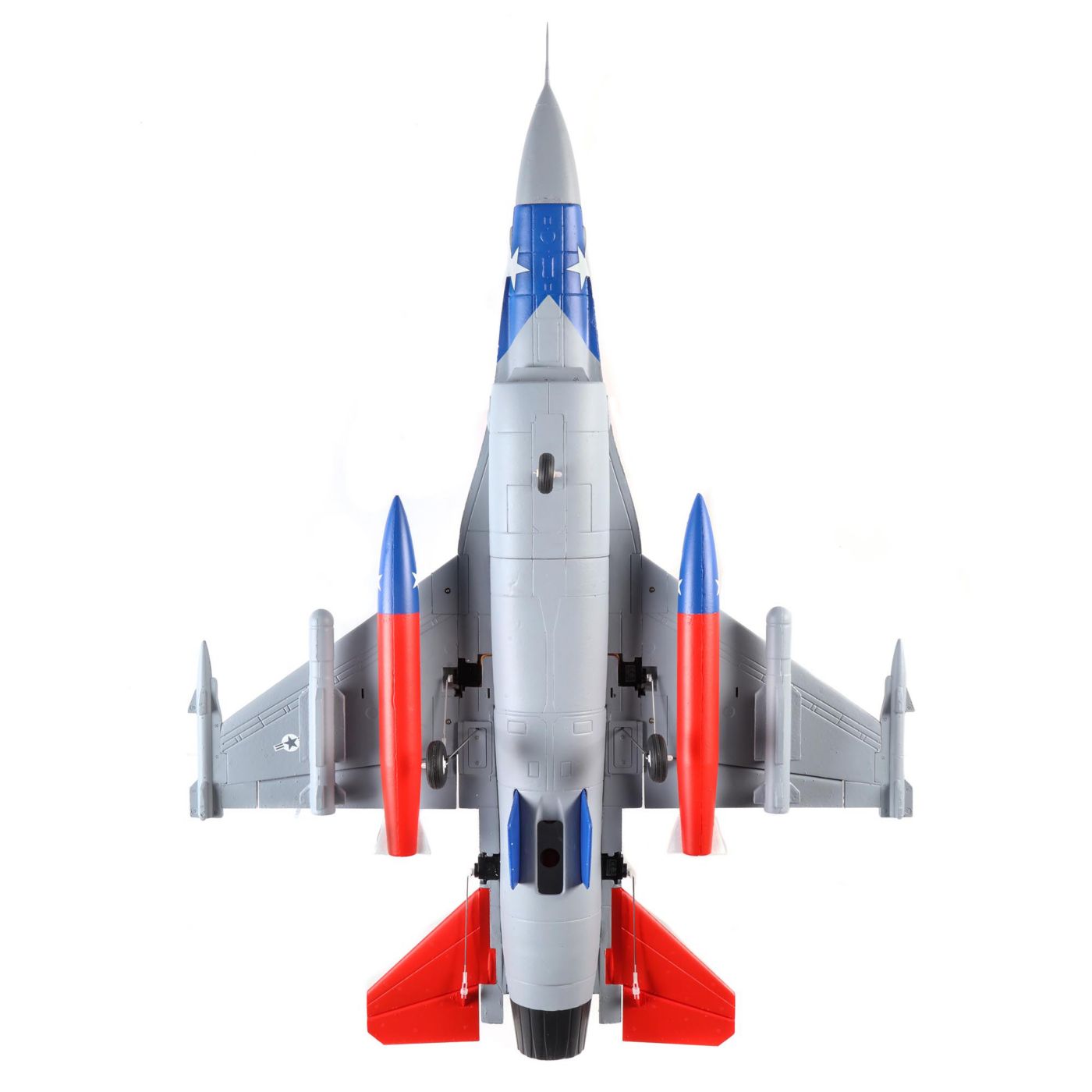

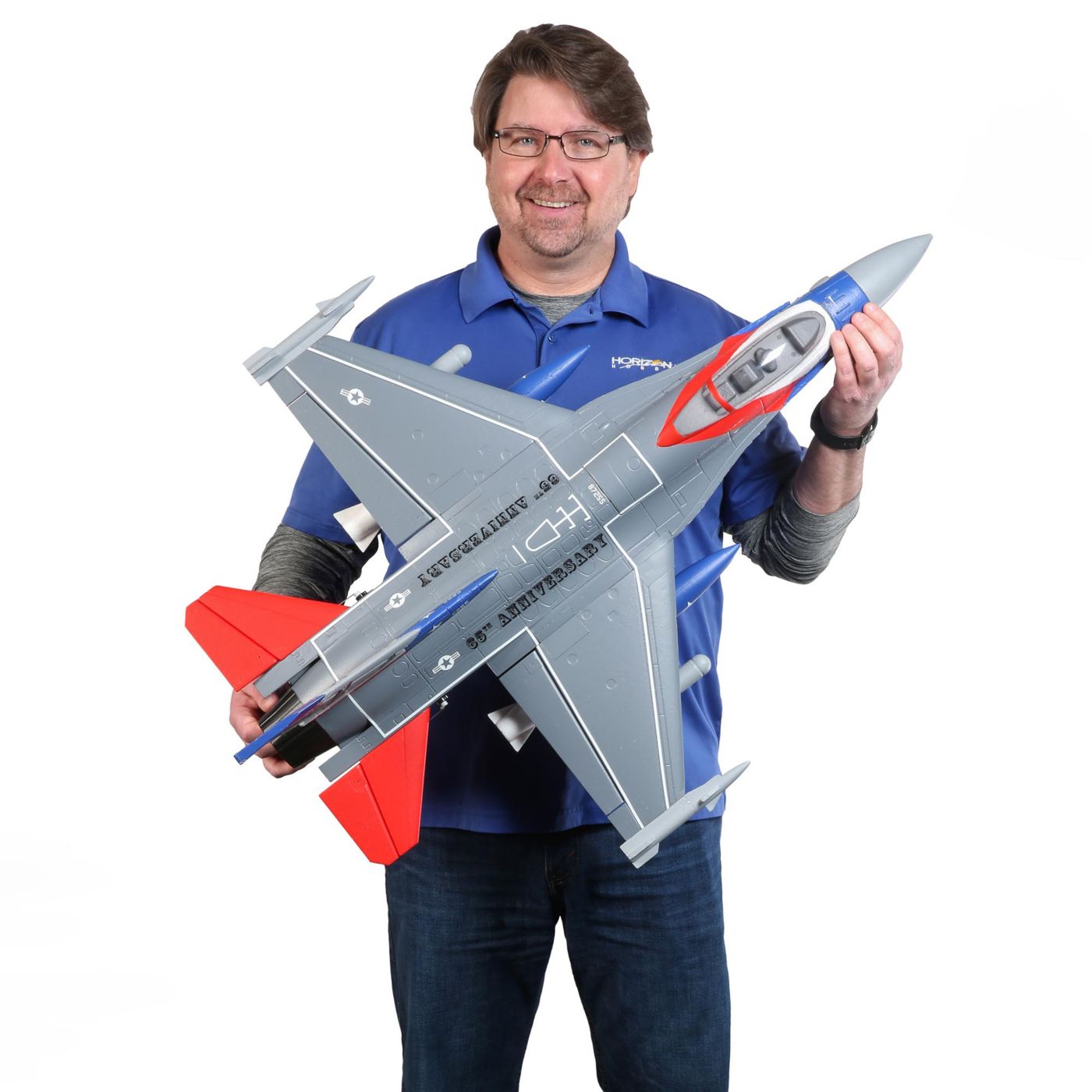

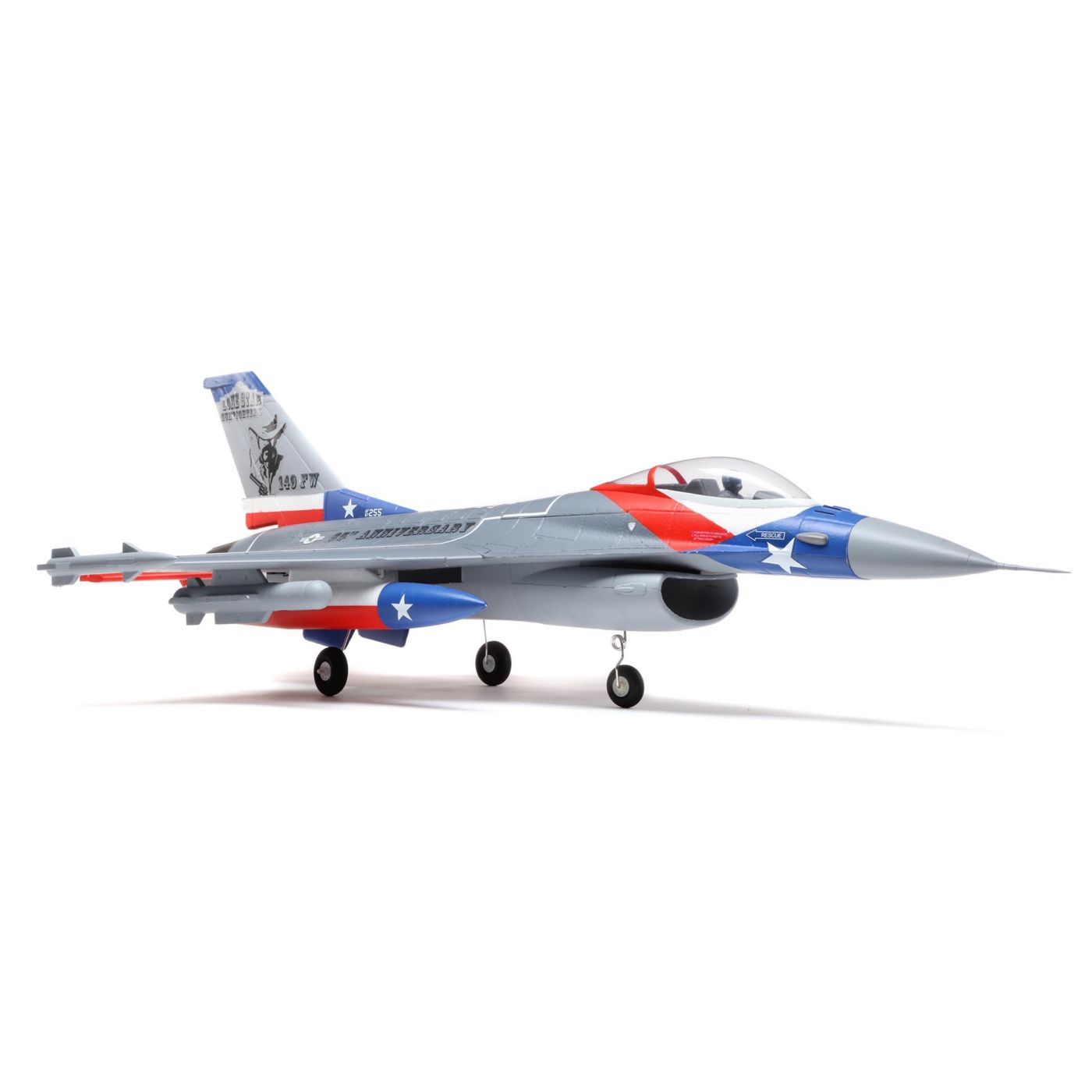

Pictures

Manual

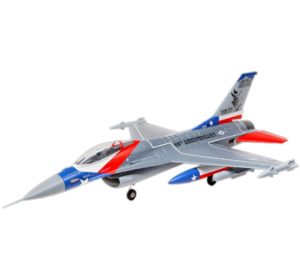

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the F-16 Falcon in particular but at least we know they do distribute E-flite.

Where to buy

Usa
Horizon Hobby USA
check web site
Ship to: USA
Austria
Lindinger ModellBau
check web site
Ship to: Europe
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
USA
TOWER HOBBIES
check web site
Ship to: International
Hungary
RC Hungary
check web site
Ship to: Hungary
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
France
Weymuller Modélisme
check web site
Ship to: France
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire
Switzerland
ModellMarkt24
check web site
Ship to: Europe
France
Turbines RC
check web site
Ship to: Worldwide
USA
Gator RC
check web site
Ship to: USA
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
Germany
Voltmaster
check web site
Ship to: Europe
Spain
ACRO RC
check web site
Ship to: Europe
France
miniplanes
check web site
Ship to: France

Wingspan: 729mm (28.7 in)
Length: 1099mm (43.3 in)

Weight: 900 g (2 lbs)
Approximate Assembly Time: Less than 1 Hour
CG (Center of Gravity): 3.5 - 3.7" (90 - 95mm) back from leading edge of wing measured at the fuselage
Charger: Sold Separately
Completion Level: Bind-N-Fly Basic
Control Throw - High (Ailerons): Up/Down 0.59" (15mm)
Control Throw - High (Elevator): Up/Down 0.79" (20mm)
Control Throw - Low (Ailerons): Up/Down 0.31" (8mm)
Control Throw - Low (Elevator): Up/Down 0.31" (8mm)
Expo (Ailerons): High Rate 10%, Low Rate 0%
Expo (Elevator): High Rate 10%, Low Rate 0%
Fan Size: 64mm, 11 blade
Flying Weight: 31.75oz (900g)
Landing Gear: Yes
Length: 43.3" (1099mm),1099mm
Minimum Required Radio: 4-Channel
Minimum Speed Control: 40A Installed
Motor Size: 2840 3150Kv
Recommended Motor Battery: 4S LiPo 2200mAh 30+C LiPo with EC3 or IC3 Connector
Servos: Five Micro Included,Five Micro Included
Transmitter Range: Full Range Transmitter Required
Wing Tube Length: 13.8" (350mm)
Wingspan: 28.7" (729mm),729mm

Variants

EFL9850
F-16 Falcon (Grey)
