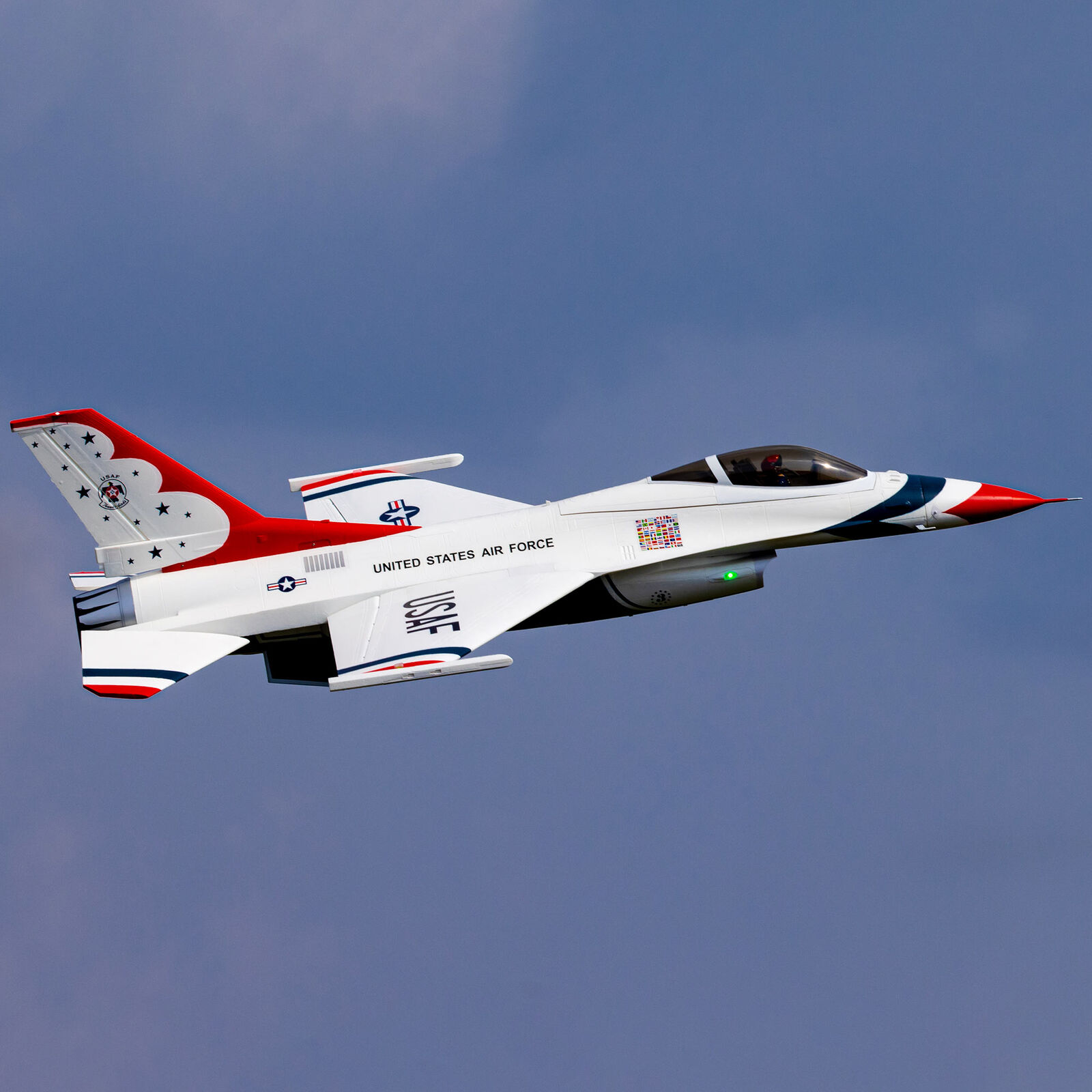

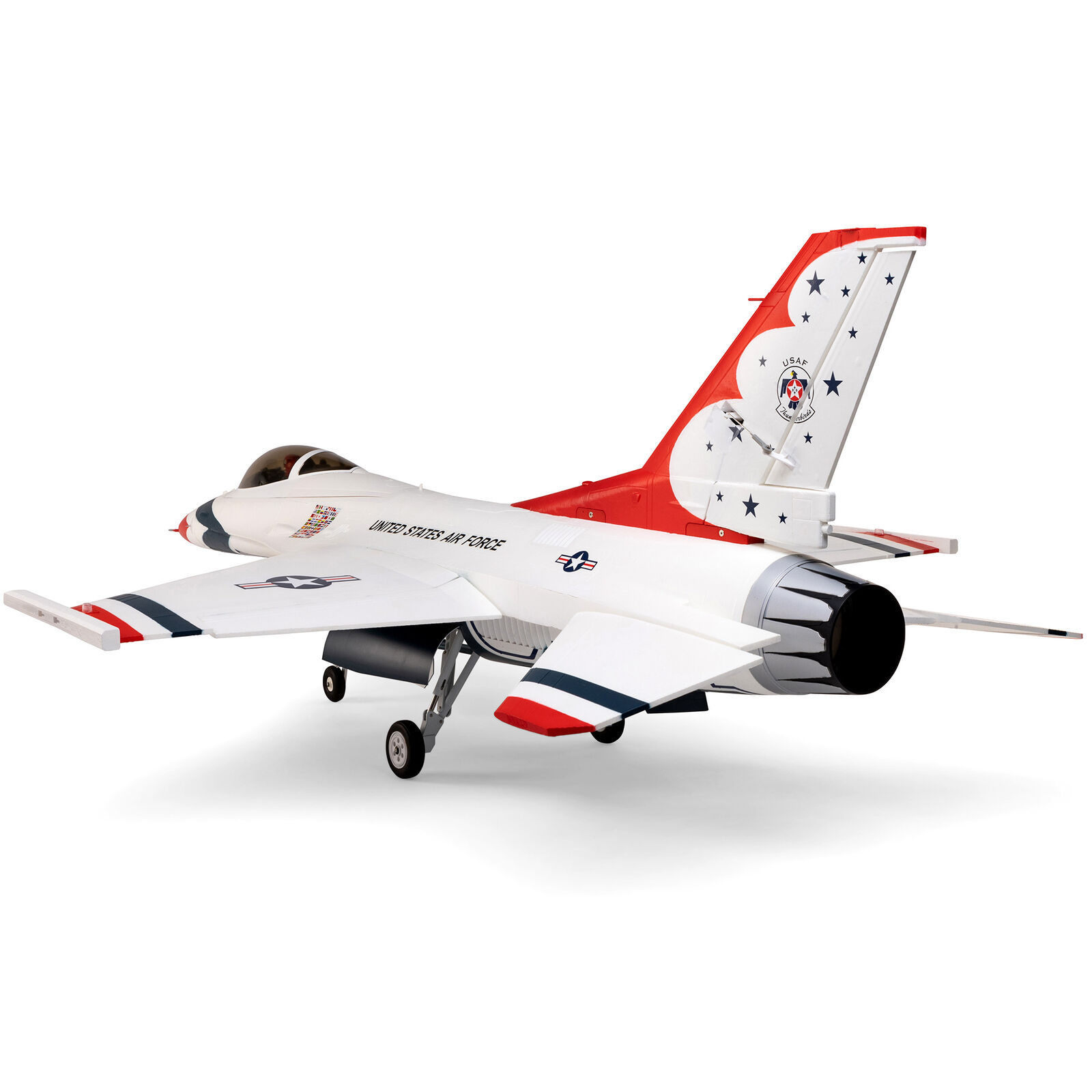

F-16 Thunderbirds 80mm from E-flite

Details

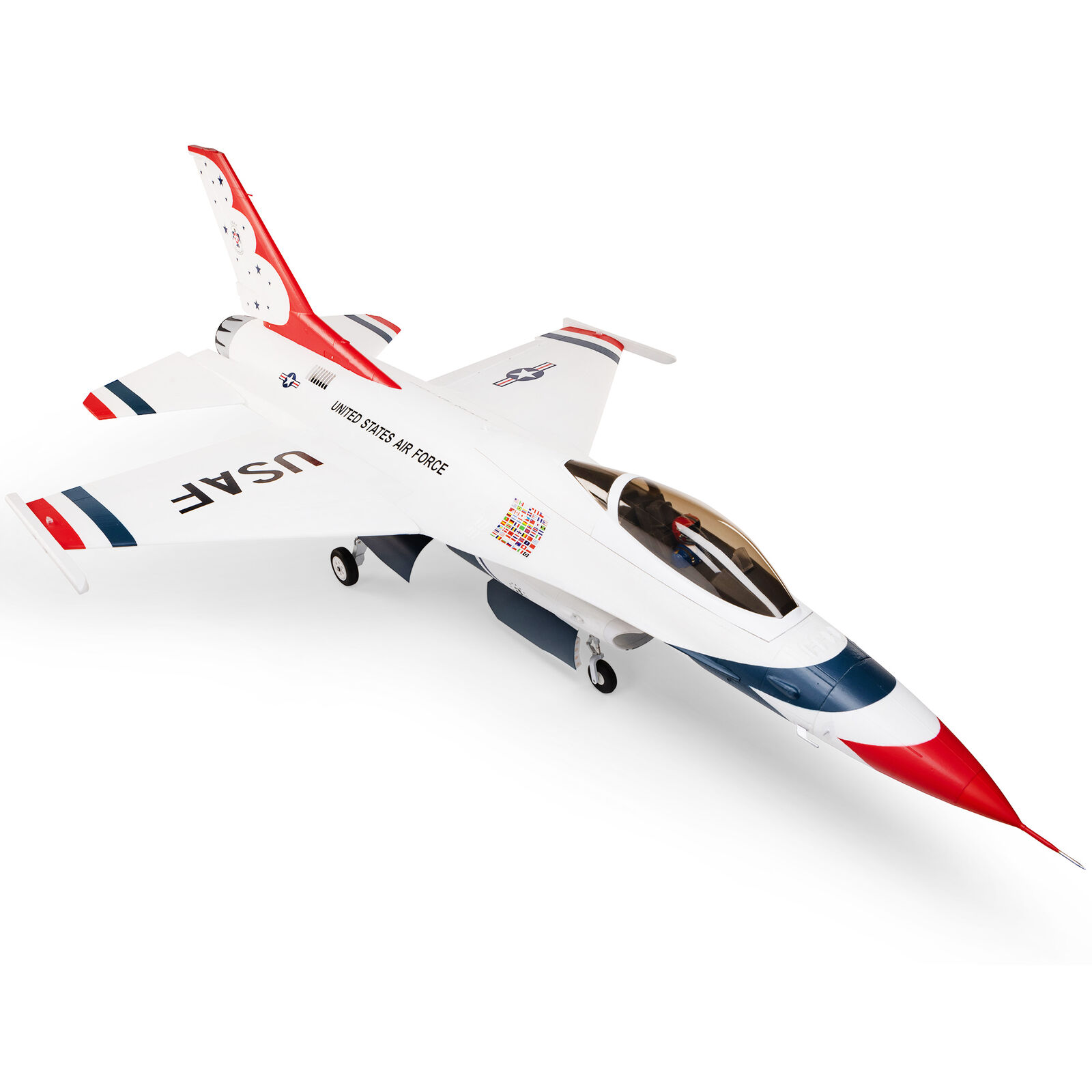

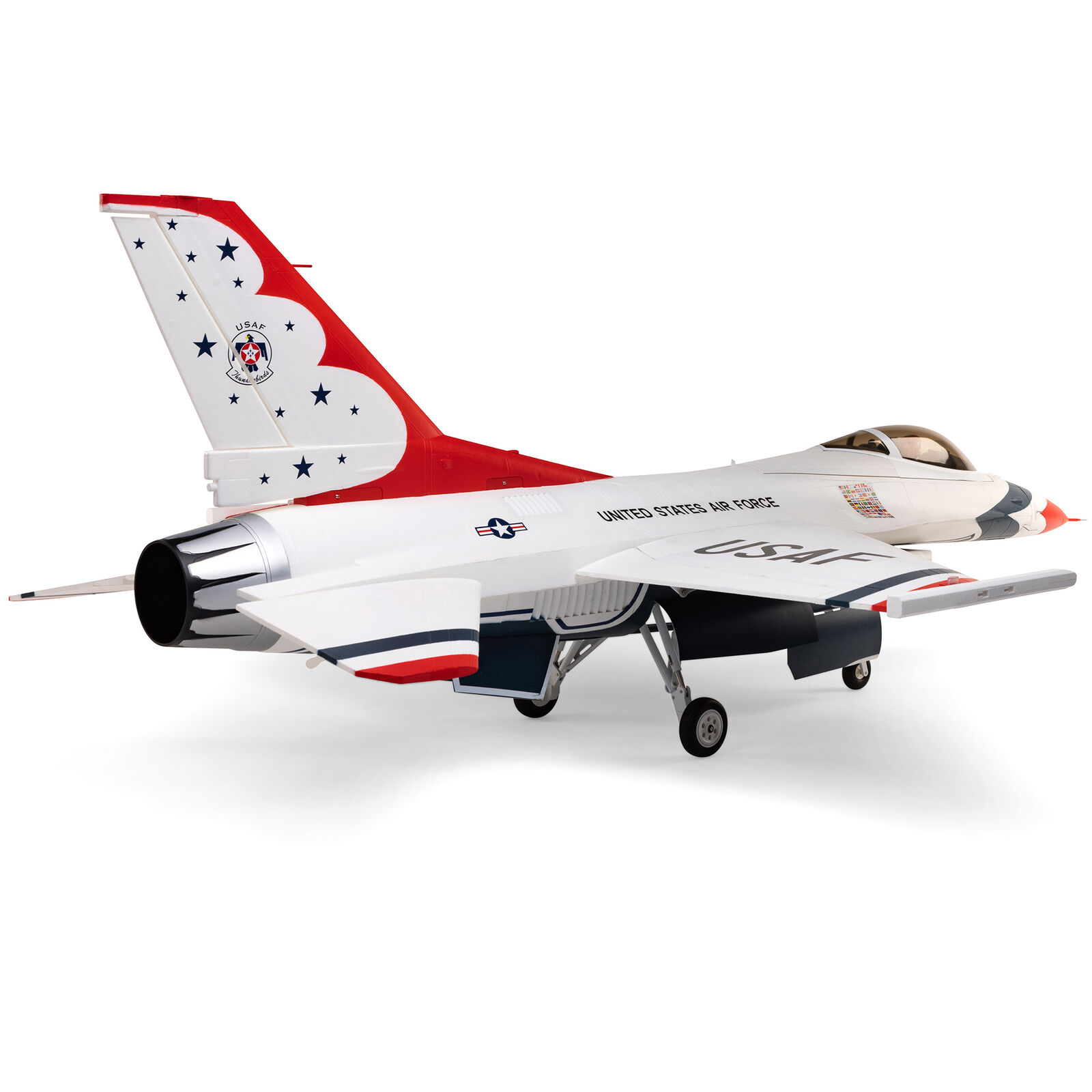

The E-flite® F-16 Thunderbirds 80mm EDF jet is the Smartest and most detailed high-performance model of the iconic airshow aircraft yet! Extra Scale details, including molded-in panel lines, simulated antennas, indicators, sensors and more, take realism to the next level. Functional Extra Scale features include LED navigation and landing lights, full-flying stabs, optional-use flaperons, sequenced gear doors plus the most scale-like retractable landing gear installed on an F-16 EDF model yet. Both versions include nine factory-installed digital, metal-geared servos, and with the ARF Plus version you can install the compatible receiver and an 80mm EDF power system of your choice — from another similar class model or using other compatible components.

The BNF® Basic version includes a V2 12-blade 80mm fan, high-power 2100Kv brushless inrunner motor, and a 100-amp Spektrum Avian™ Smart ESC to deliver fantastic performance with popular 6S 4000–7000mAh LiPo batteries – plus an incredible turbine-like sound. This efficient power system provides better performance and longer flight times than the 6S-compatible power systems used in similar-sized models powered by 90mm EDFs. It's also equipped with a factory-installed Spektrum™ AR8360T receiver featuring exclusive AS3X® and optional-use SAFE® Select technologies. When using compatible transmitters, the receiver and Smart ESC supply overall battery voltage, current, motor RPM and other telemetry data in real-time – with Smart and non-Smart batteries – along with optional-use motor reversing to shorten rollouts after landing and for other special ground handling capabilities. Constructed of molded EPO with plastic-capped strakes, hatch edges and openings to prevent damage to the fully-painted white plus red and blue finish during handling and when installing/removing batteries, this F-16 assembles without glue and can be ready to fly in much less time than other similar class models!

Features:

  • The Smartest and most detailed high-performance F-16 EDF (Electric Ducted Fan) jet model yet
  • Scale replica of the iconic aircraft flown by the U.S. Air Force Thunderbirds demonstration team
  • Fully painted white plus red and blue trim scheme with factory-applied stars and other markings
  • Extra Scale details including molded-in panel lines, simulated antennas, indicators, sensors and much more
  • Functional Extra Scale features including LED navigation and landing lights, full-flying stabs and more
  • V2 12-blade 80mm fan delivers excellent top speed and vertical performance plus turbine-like sound
  • Factory-installed, high-power 6S-compatible 2100Kv brushless inrunner motor and 100-amp ESC
  • 100-amp Spektrum Avian™ Smart ESC provides real-time battery voltage, motor RPM and other data – with Smart and non-Smart batteries – via compatible receivers and transmitters
  • Optional-use thrust reversing to help shorten rollout after landing and for other special ground handling capabilities
  • Fits a wide range of 6S batteries from 4000-7000mAh to deliver class-leading flight times and performance
  • Spektrum™ AR8360T receiver with full-range telemetry and industry-leading DSMX® technology
  • Easier to fly with innovative and optional-use SAFE® Select flight envelope protection
  • The unmatched stability and locked-in feel of exclusive AS3X® technology

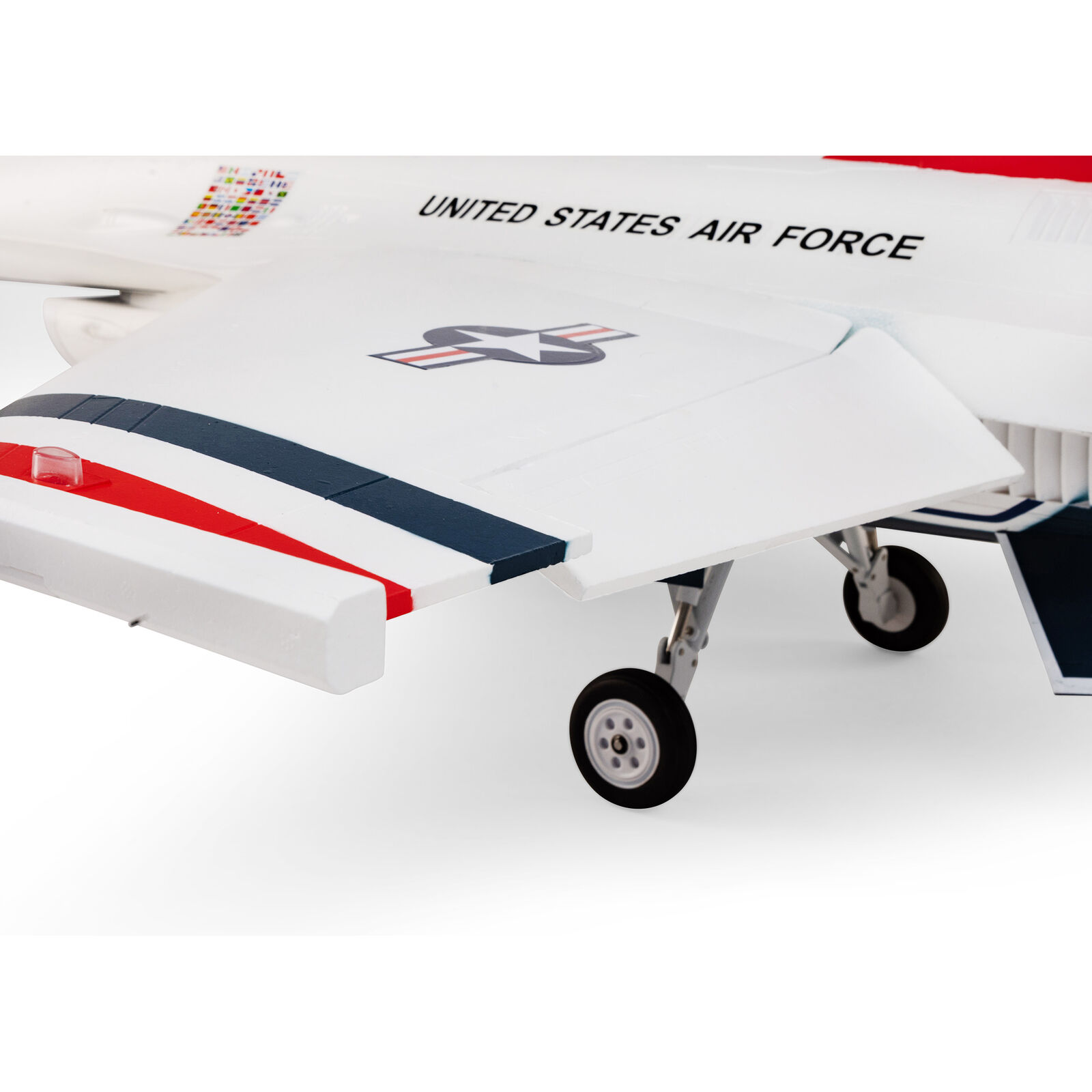

  • Functional, optional-use flaperons pre-programmed for proper operation with AS3X and SAFE Select
  • Nine (9) factory-installed digital, metal-geared servos with ball-link equipped linkages

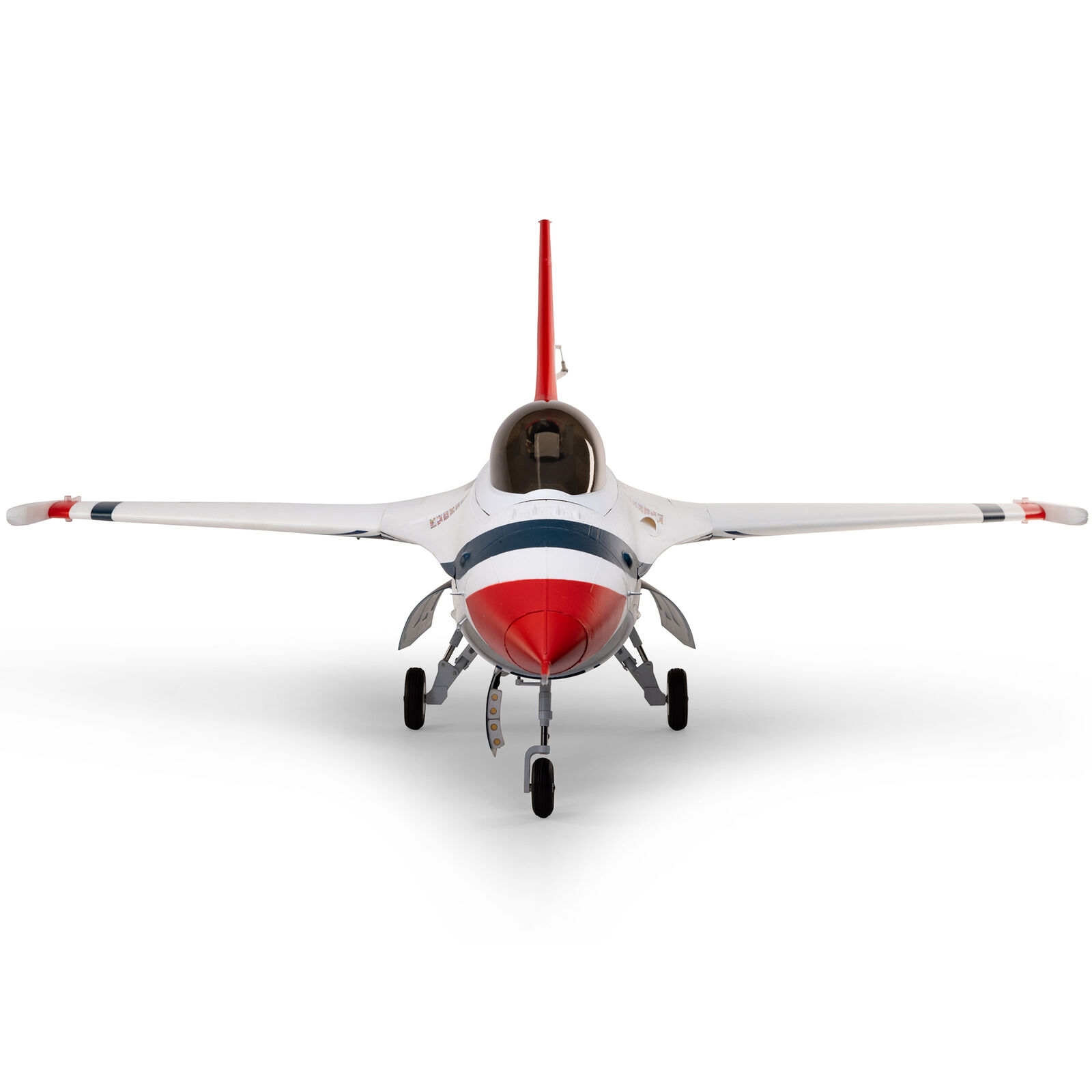

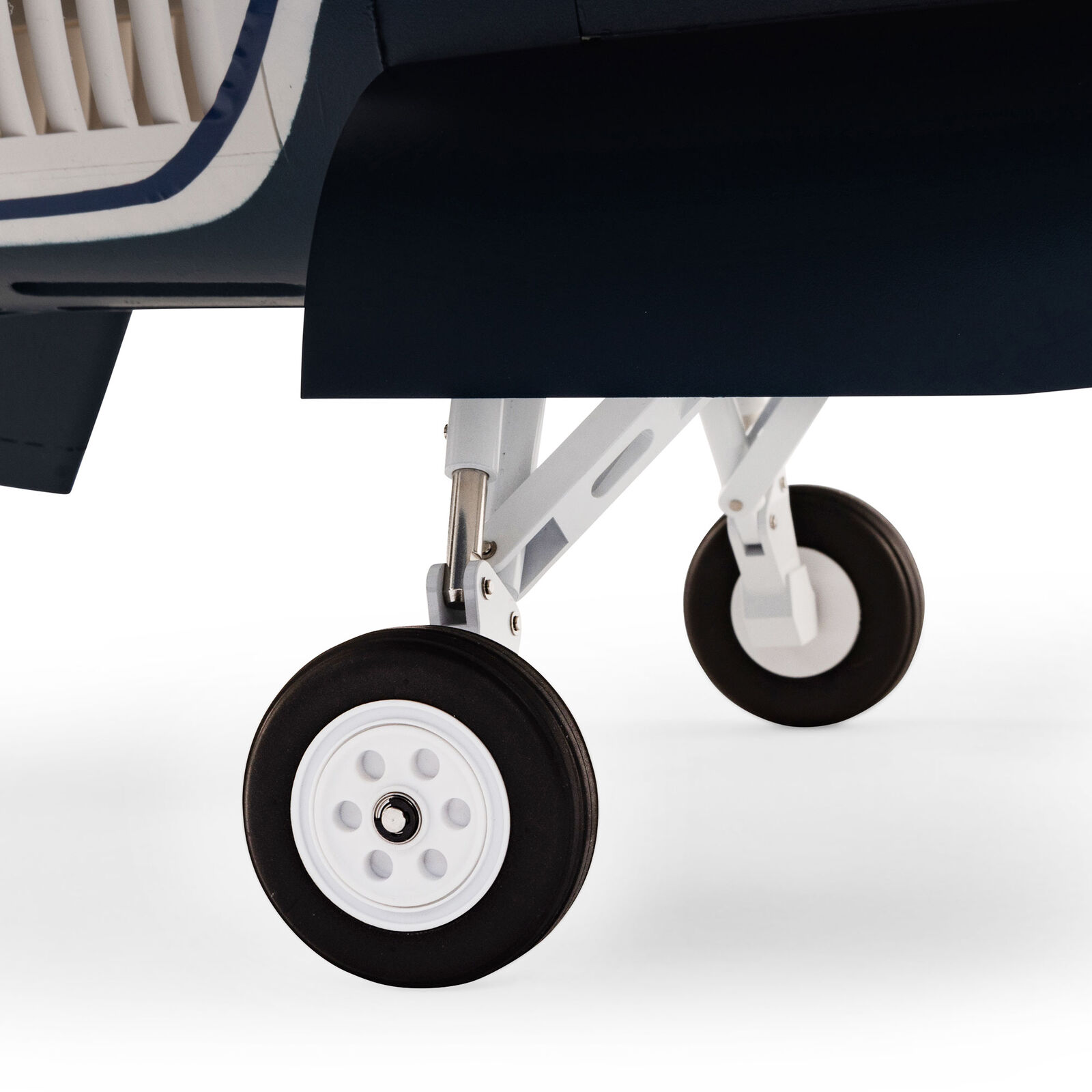

  • Electric retracts with scale-like painted, articulated and shock-absorbing struts

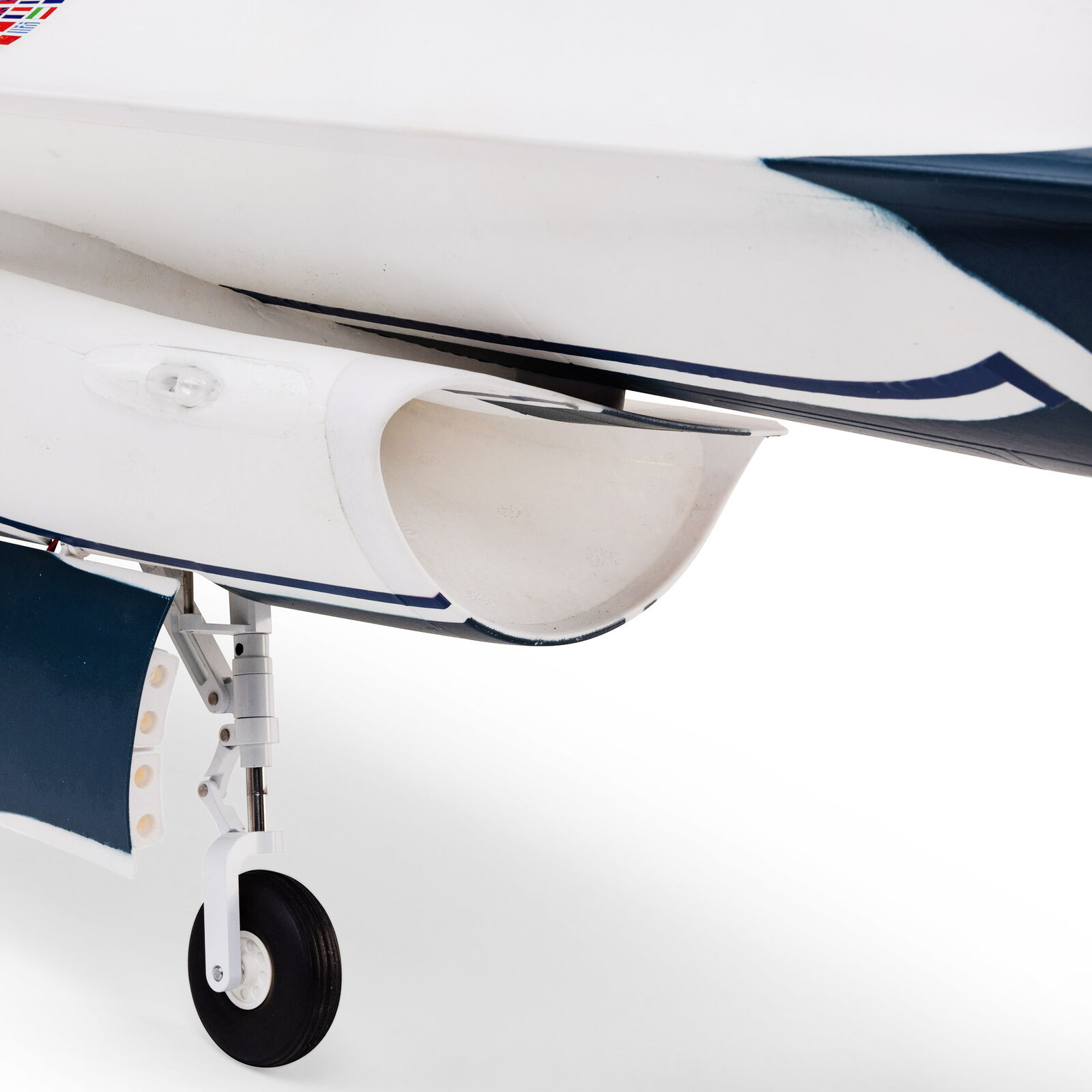

  • Sequenced, servo-operated nose and main gear doors with molded in details
  • Plastic capped strakes, hatch edges and opening for added durability to prevent damage and paint chipping

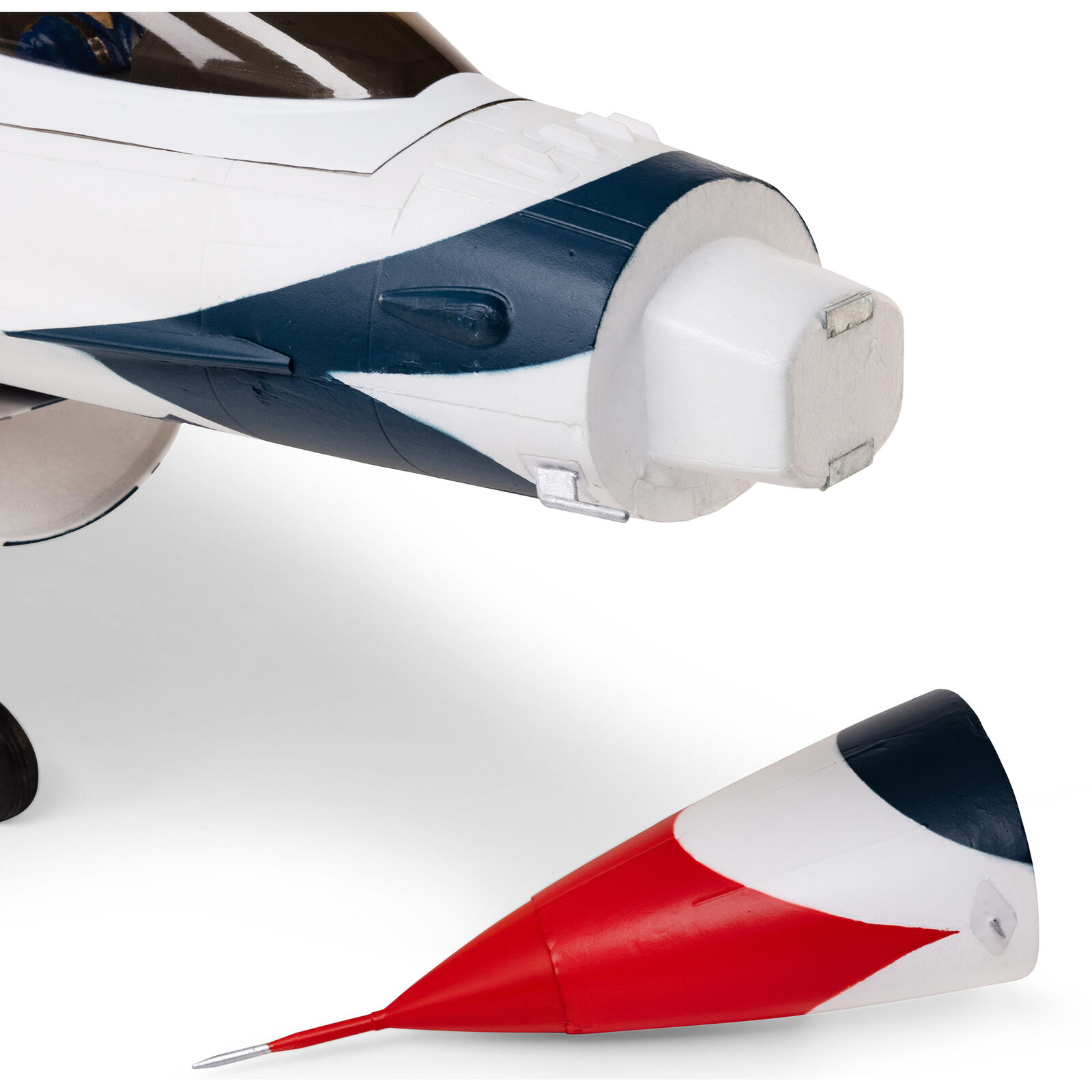

  • Two-piece wing with hands-free connections that bolts into place and a magnetically secured nose cone
  • No glue required for assembly and can be ready to fly in less time than it takes to charge a battery

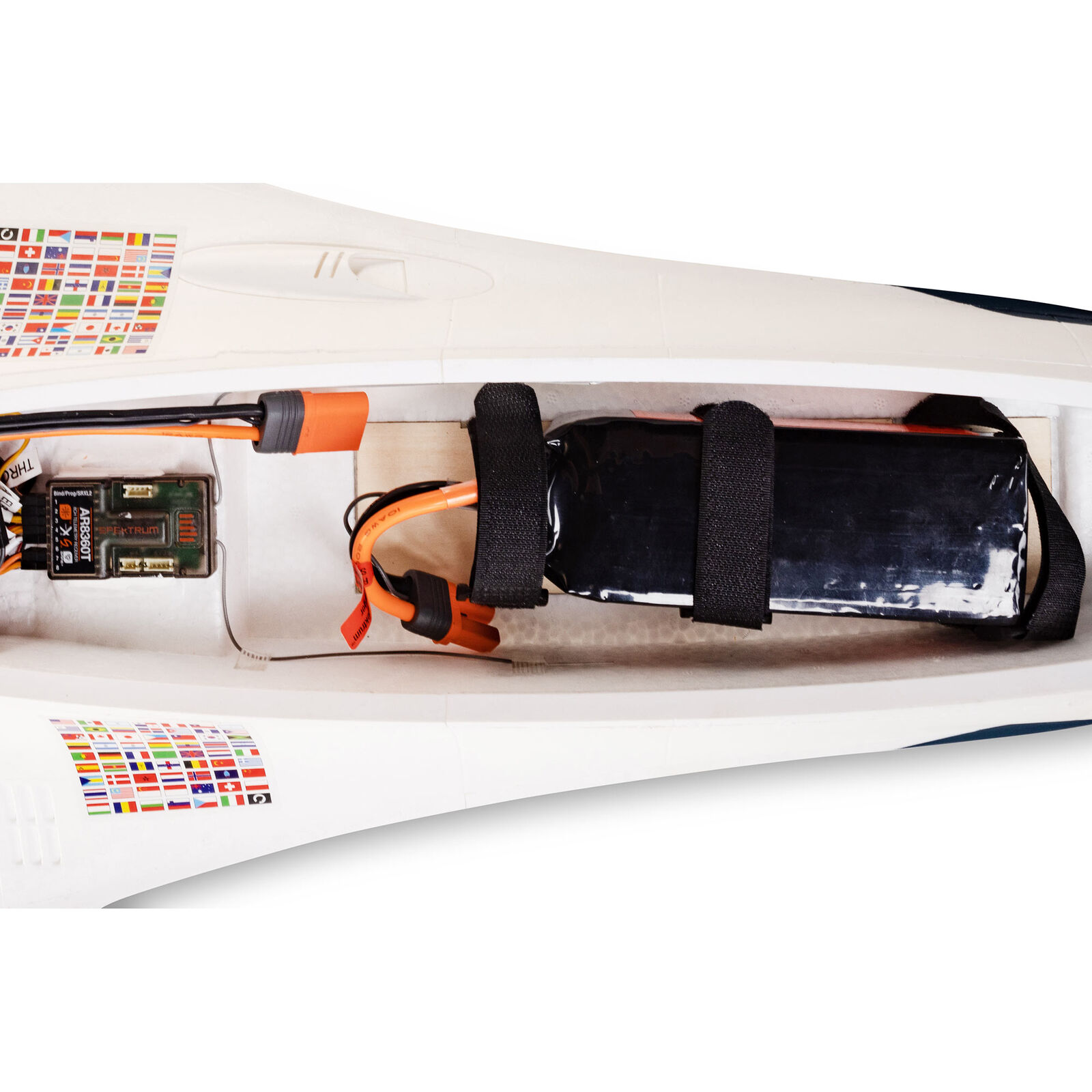

  • Convenient top hatch with clear canopy, cockpit detail and a pilot figure

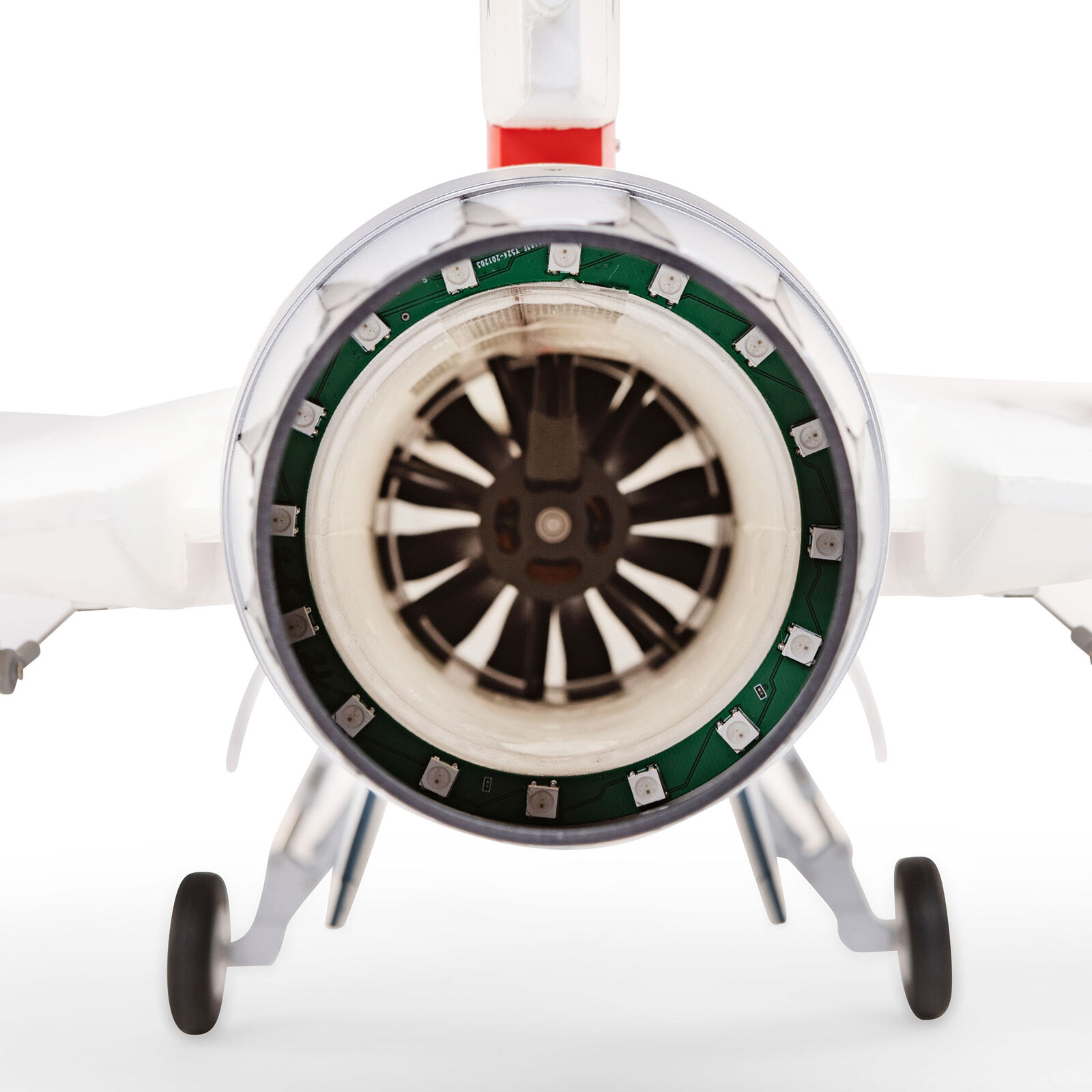

  • Optional simulated afterburner LED ring available separately
  • Extremely durable, fully molded EPO airframe

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the F-16 Thunderbirds 80mm in particular but at least we know they do distribute E-flite.

Where to buy

Usa
Horizon Hobby USA
check web site
Ship to: USA
Austria
Lindinger ModellBau
check web site
Ship to: Europe
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
USA
TOWER HOBBIES
check web site
Ship to: International
Hungary
RC Hungary
check web site
Ship to: Hungary
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
France
Weymuller Modélisme
check web site
Ship to: France
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire
Switzerland
ModellMarkt24
check web site
Ship to: Europe
France
Turbines RC
check web site
Ship to: Worldwide
USA
Gator RC
check web site
Ship to: USA
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
Germany
Voltmaster
check web site
Ship to: Europe
Spain
ACRO RC
check web site
Ship to: Europe
France
miniplanes
check web site
Ship to: France

Wingspan: 1000mm (39.4 in)
Length: 1450mm (57.1 in)

Weight: 2727 g (6 lbs)
Power Type Electric
Wingspan 39.37" (1000 mm)
Material EPO
Fan Size 80mm EDF
Technology Smart, AS3X and SAFE
Motor Type Brushless
Minimum Required Radio 8 Channel
Product Weight 96 oz (2727 g) Without Battery
Connector Type IC5
Motor Size 3280-2100Kv
Product Length 57.09" (1450 mm)

Variants

EFL87950
F-16 Thunderbirds 80mm (White Red Blue)
