Habu 32 DF from E-flite

Details

E-flite takes ARF ducted fan performance and engineering to new heights with the Habu 32 DF. Designed around the E-flite® Delta-V® 32 80mm fan unit and 2150Kv DF32 brushless motor, its hyper-efficient intake and exhaust ducting allows this potent combo to produce large amounts of thrust when powered with a high-C 6S Li-Po pack. And it does so without resorting to drag-inducing cheater holes. The result is a sport EDF with exhilarating speed that will give even experienced jet jockeys goose bumps.

As the first Platinum Series E-flite ducted fan, the Habu 32 DF also boasts a level of fit and finish that is every bit as impressive as its performance. Its sleek fiberglass fuselage comes pre-painted and integrates the vertical stabilizer. The fully-sheeted wings and horizontal stabilizers are reinforced with carbon blade spars and covered with genuine UltraCote® covering. The control surfaces are hinged for you. Just add the optional E-flite electric retracts (sold separately), and you've got a sport jet that truly stands out from the crowd.

Features:

  • Painted fiberglass fuselage and vertical stabilizer
  • Sheeted balsa wings and horizontal stabilizers covered in genuine UltraCote® covering

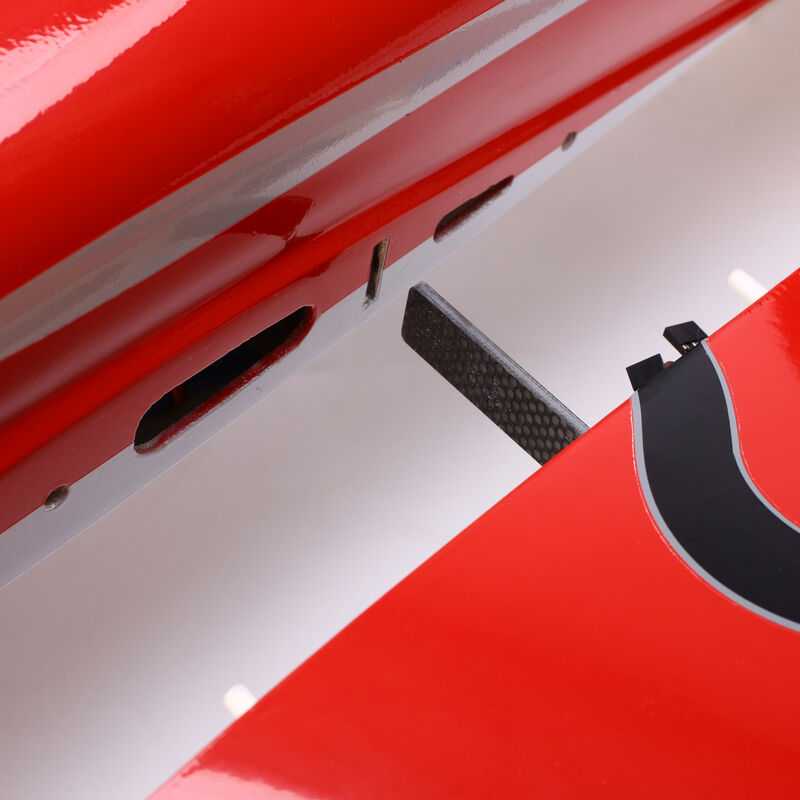

  • Wings and stabilizers are removable using carbon blade spars and aluminum sockets for easy transport
  • Pre-hinged control surfaces
  • Flap Ready

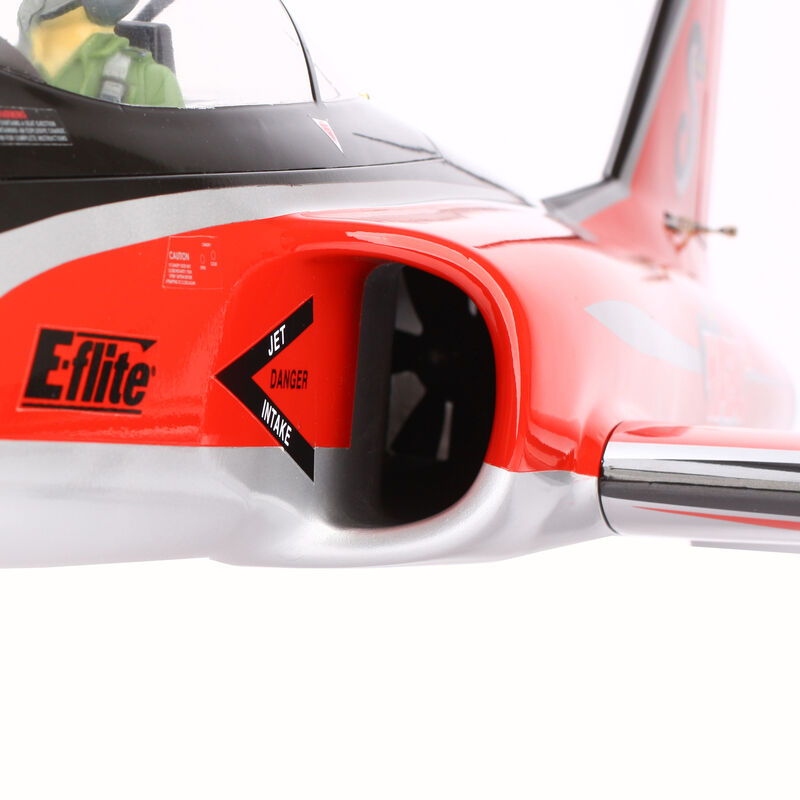

  • Hyper-efficient duct design—no cheater holes
  • Bolt-on compatibility with E-flite® Delta-V® 32 power system (sold separately)
  • Ready for E-flite 15-25 size electric retracts (sold separately)

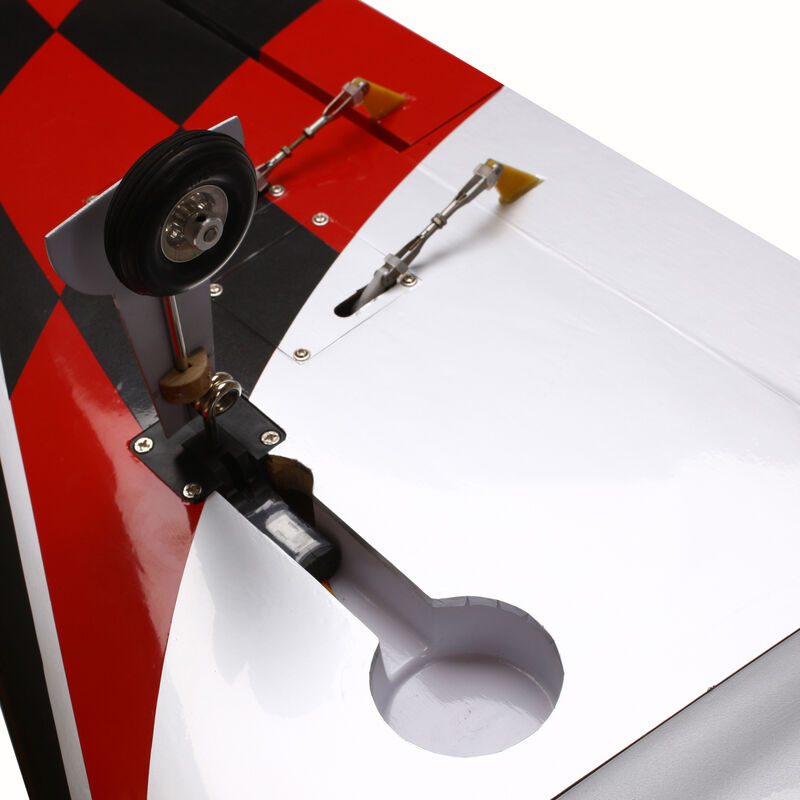

  • Machined aluminum wheels
  • Optional landing gear doors included
  • Access hatch for the fan unit and a canopy hatch for easy battery access
  • Quick-release access hatch/cockpit deck

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.


Wingspan: 1030mm (40.6 in)
Length: 1250mm (49.2 in)

Weight: 3350 g (7.4 lbs)
Wingspan 1030 mm (40.5 in)
Overall Length 1250 mm (49.5 in)
Wing Area 25.3 dm² (392 sq in)
Flying Weight 3200 - 3350 g (7.05 - 7.40 lb)
Motor Size DF 32 Brushless Motor, 2150Kv
Servos Micro Servos (8 required)
Trim Scheme Colors Ultracote - Deep Red, Silver, Pearl Charcoal
CG (center of gravity) 100-115mm back from the leading edge at wing root
Speed Control  80 Amp brushless
Recommended Battery 6S 22.2V 5000mAh 30C LiPo, 10AWG, EC5
Retracts Optional

Variants

EFL8075
Habu 32 DF (Red Black)
