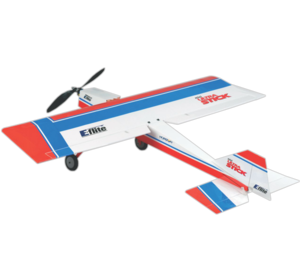

Mini Ultra Stick from E-flite

Details

Based on the popular Hangar 9 Ultra Stick, the E-flite Mini Ultra Stick comes 95% prebuilt from balsa and light-ply and is covered in genuine UltraCote. At the heart of the Mini Ultra Stick’s fun factor are two firewall options that let you use a wide variety of motor sizes, types and brands. This along with the ample clearance for larger props that its tall, lightweight aluminum landing gear provides gives the Mini Ultra Stick huge performance potential. You can push the envelope even further by adding the optional split quad-flaps.

Features:

  • Perfect transitional airplane for advancing pilots who want to learn aerobatics and for sport flyers who want easy comfortable sport flyer
  • 95% factory-built; get flying in 2 hours or less
  • Lightweight balsa and plywood construction

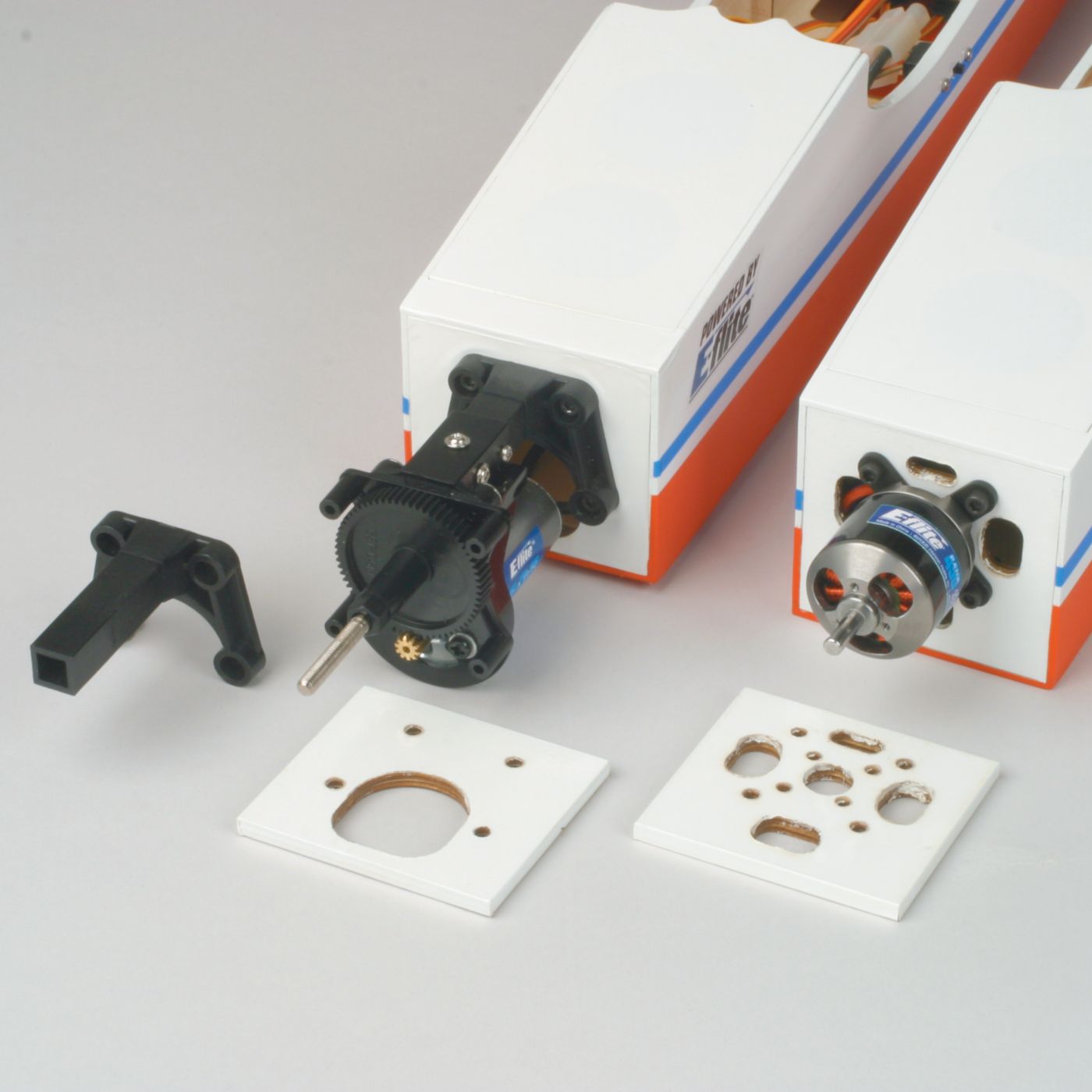

  • Two firewall options to use a variety of motor sizes, types & brands
  • Includes molded firewall stick mount
  • Control surfaces have factory-installed hinges and control horns

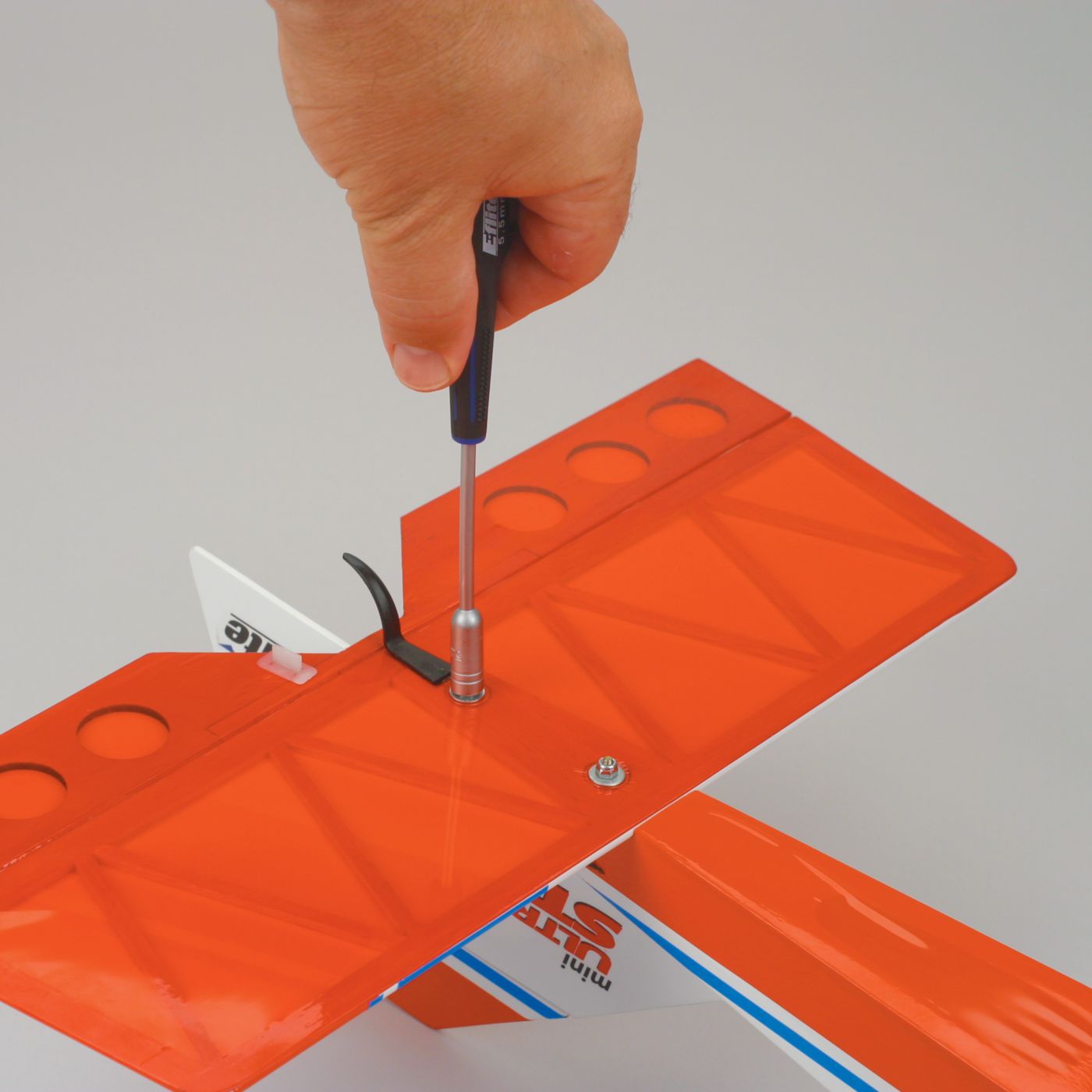

  • Bolt-on tail requires no gluing and secures with two lock nuts
  • Optional quad-flap configuration
  • Tough, lightweight aluminum landing gear that's factory-assembled and tall enough to accommodate larger prop sizes
  • Covered in genuine Hangar 9 UltraCote
  • Great match for E-flite Park 450 Outrunner Brushless Motor

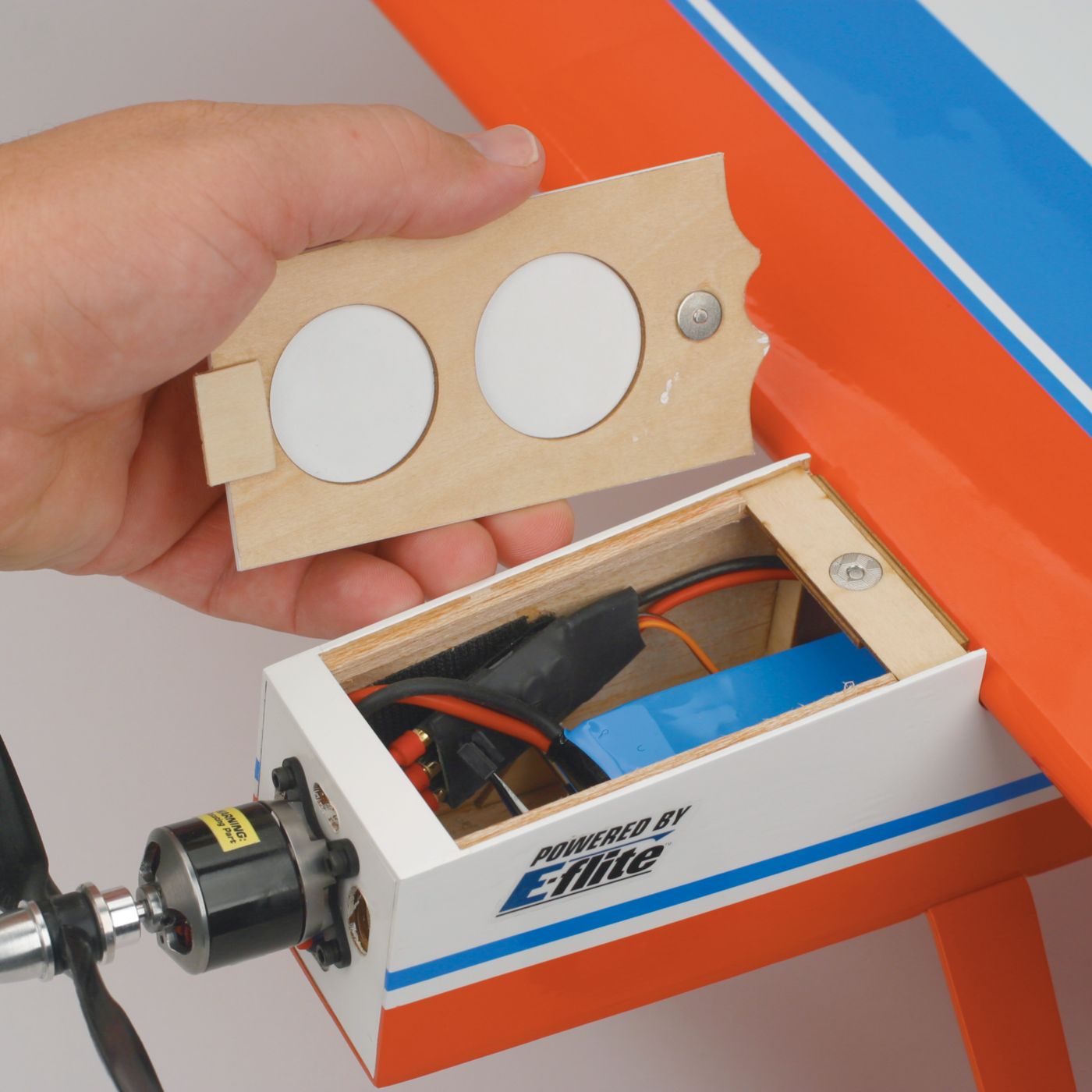

  • Easy access top battery hatch
  • Design based on Hangar 9’s popular line of Ultra Sticks

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.


Wingspan: 985mm (38.8 in)
Length: 865mm (34.1 in)

Weight: 710 g (1.6 lbs)
Approximate Flight Time: 10 to 20 minutes
CG (Center of Gravity): 2.25 in (57mm) behind the leading edge
Completion Level: Almost Ready-To-Fly
Control Throw (Ailerons): 1/2 in (15mm) Up/Down Low Rate or 5/8 in (19mm) High Rate
Control Throw (Elevator): 9/16 in (18mm) Up/Down Low Rate or 7/8 in (23mm) High Rate
Control Throw (Rudder): 7/8 in (23mm) Right/Left Low Rate or 1-1/4 in (32mm) High Rate
Flaps: Yes (optional)
Flying Weight: 22 to 25 oz (625 to 710g)
Gear Ratio: 6.5:1 when using Park 400 Brushless Inrunner
Hardware Included: Yes
Motor Size: Park 400 Inrunner or Park 450 Outrunner
Recommended Fuel: Electric
Length 34 in (865mm)
Wingspan: 38.75 in (985mm)
