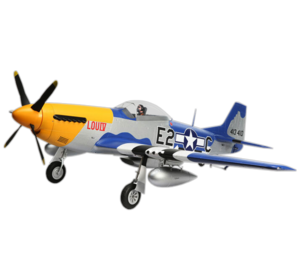

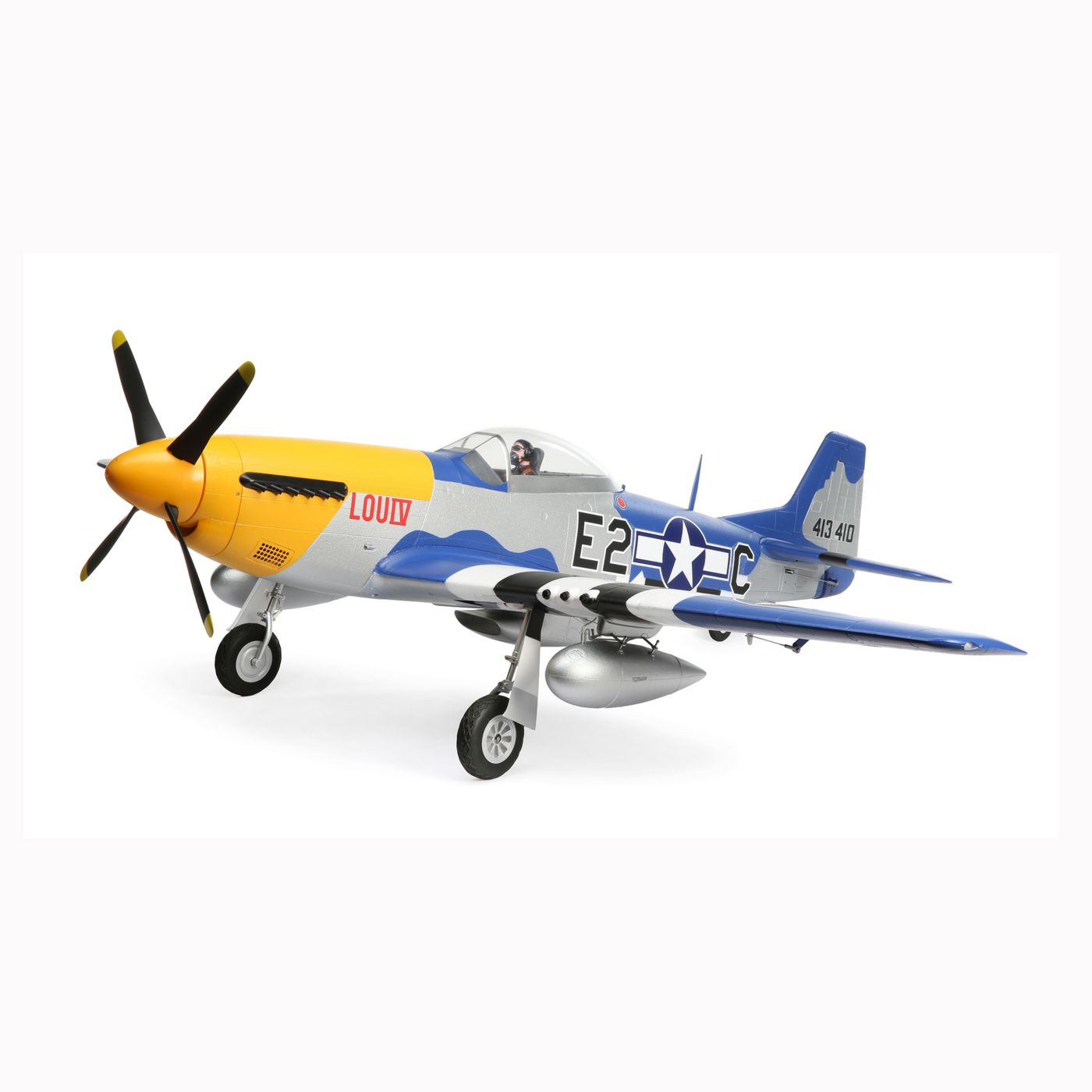

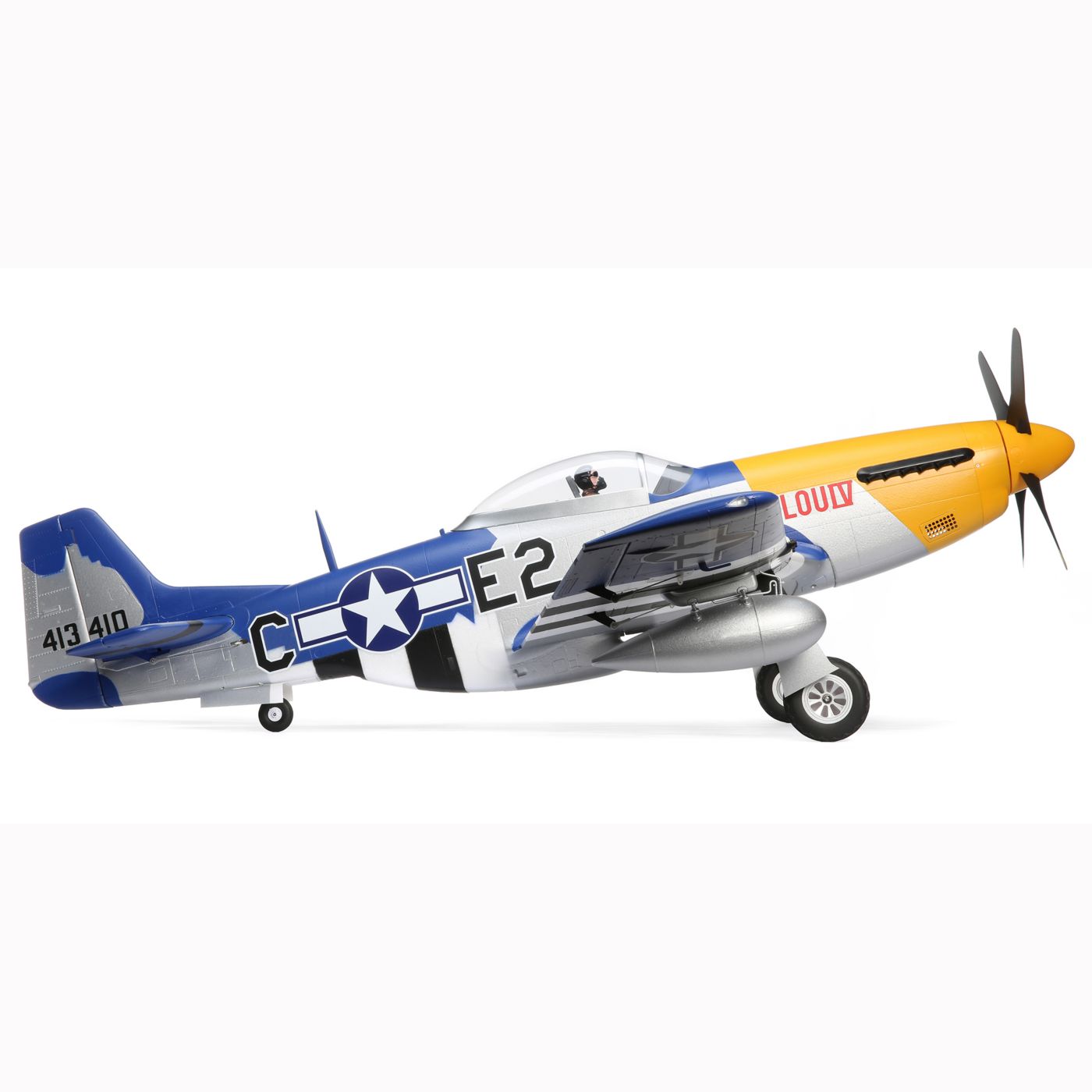

P-51D Mustang from E-flite

Details

The P-51D Mustang 1.5m is the largest, most detailed and best performing replica of the legendary fighter from E-flite® yet! Along with an accurate outline, it also features an abundance of Extra Scale details including molded in panel lines and hatches, guns and removable drop tanks, plus a striking factory-applied “Lou IV” finish. Functional Extra Scale features include LED navigation lights, sequenced main and tailwheel gear doors, flaps and more. The shock-absorbing struts feature ball-bearing equipped wheels with diamond tread tires for added scale appearance and make it possible to fly from a variety of surfaces including grass, and reliable electric retracts operate the main gear and tailwheel. And at the heart of it all is a factory-installed brushless motor that’s compatible with 6S LiPo power—simply drop in a 6S 3200-7000mAh battery to achieve level flight speeds in excess of 80+ MPH and unlimited vertical performance! Both versions include a 100-amp Spektrum™ Avian™ Smart ESC, and the BNF® Basic version is also equipped with an AR637T receiver that offers full-range telemetry including real-time battery voltage, current, temperature and more to compatible transmitters, plus the advantages of exclusive AS3X® and SAFE® Select technologies to make this one of the easiest to fly Mustangs ever. The unique 3-piece wing design makes transport and storage as convenient as possible because the center section includes the main gear and the outer panels simply snap into place securely without requiring fasteners. It’s also quick and easy to assemble because the factory-finished EPO airframe bolts together—no glue required—in less time than it takes to charge a battery.

Features

  • The most detailed, best handling and highest performance large-scale P-51D Mustang model yet.
  • Scale replica of the iconic aircraft flown by the U.S. and other allied forces during World War II.
  • Extra Scale details including removable drop tanks, molded-in panel lines, guns and much more.
  • Functional Extra Scale features including LED navigation lights, sequenced main gear and tailwheel doors, flaps and more.
  • Factory-installed, high-power 6S-compatible brushless motor with large diameter 4-blade prop.
  • Fits 6S batteries from 3200-7000+mAh to deliver level flight top speeds up to 80+ MPH and unlimited vertical performance.
  • 100-amp Spektrum™ Avian™ Smart ESC provides real-time battery voltage, capacity used and other data via compatible receivers and transmitters.
  • Nine factory-installed servos with precise ball-link equipped linkages.
  • Ball-bearing equipped wheels with diamond tread pattern tires for added scale appearance.
  • Retractable tailwheel plus main gear with scale shock-absorbing struts for operation from a variety of surfaces including grass.
  • Unique 3-piece wing includes center section with main gear plus outer panels that snap into place securely without fasteners.
  • No glue required for assembly and can be ready to fly in less time than it takes to charge a battery.
  • Large top hatch with molded in stop for added security of the quick-release battery tray.
  • Factory-applied “Lou IV” painted trim scheme offers excellent visibility.
  • Durable EPO airframe with carbon fiber and wood reinforcement.

Pictures

Manual

North American P-51 Mustang variants


North American P-51 Mustang variants

Over twenty variants of the North American P-51 Mustang fighter were produced from 1940, when it first flew, to after the Second World War, some of which were employed also in the Korean War and in several other conflicts. Numerous examples of the aircraft survive to this day, often as heavily modified air racers.



This article is an extract from the Wikipedia article "North American P-51 Mustang variants", which is released under the Creative Commons Attribution-Share-Alike License 3.0

Radio icons

(Click on the icon you want to download)
Horus & T16 OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
Spektrum IX12
Futaba 18MZ
Jeti DS-24

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the P-51D Mustang in particular but at least we know they do distribute E-flite.

Where to buy

Usa
Horizon Hobby USA
check web site
Ship to: USA
Austria
Lindinger ModellBau
check web site
Ship to: Europe
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
USA
TOWER HOBBIES
check web site
Ship to: International
Hungary
RC Hungary
check web site
Ship to: Hungary
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
France
Weymuller Modélisme
check web site
Ship to: France
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire

Wingspan: 1500mm (59.1 in)
Length: 1320mm (52 in)

Weight: 2700 g (6 lbs)
CG (Center of Gravity): 4.9 - 5.4" (124 - 137mm) back from leading edge of wing measured at wing root
Control Throw - High (Ailerons): 0.59" (15mm)
Control Throw - High (Elevator): Up 0.51" (13mm), Down 0.39" (10mm)
Control Throw - High (Rudder): 0.87" (22mm)
Control Throw - Low (Ailerons): 0.47" (12mm)
Control Throw - Low (Elevator): Up 0.51" (13mm), Down 0.39" (10mm)
Control Throw - Low (Rudder): 0.59" (15mm)
Expo (Ailerons): Low 70%, High 100%
Expo (Elevator): Low 70%, High 100%
Expo (Rudder): Low 70%, High 100%
Flaps: Take-off 1.1" (27mm), Landing 2.4" (60mm),Yes
Flying Weight: 6lbs (2.7kg)
Length: 52" (1320mm)
Material: EPO with carbon fiber and wood reinforcement
Minimum Speed Control: Smart 100A with IC5 battery connector
Motor Size: 4650 - 460kV
Propeller Size: 11x6 4-blade
Recommended Motor Battery: 22.2V 5000mAh 6S 30C Smart LiPo battery with IC5 connector
Wingspan: 59" (1500mm)

Variants

EFL01275
P-51D Mustang (Silver Blue Yellow)
