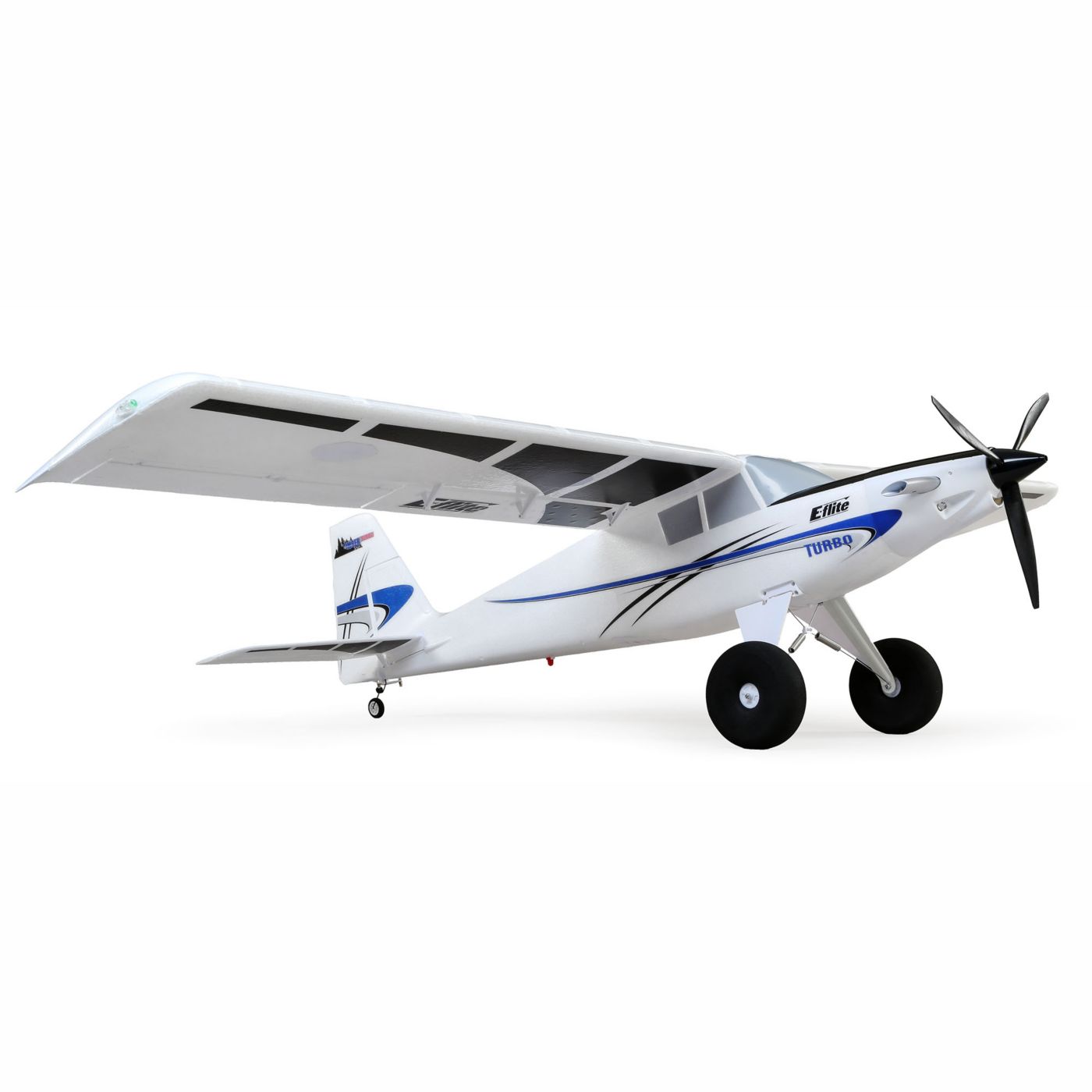

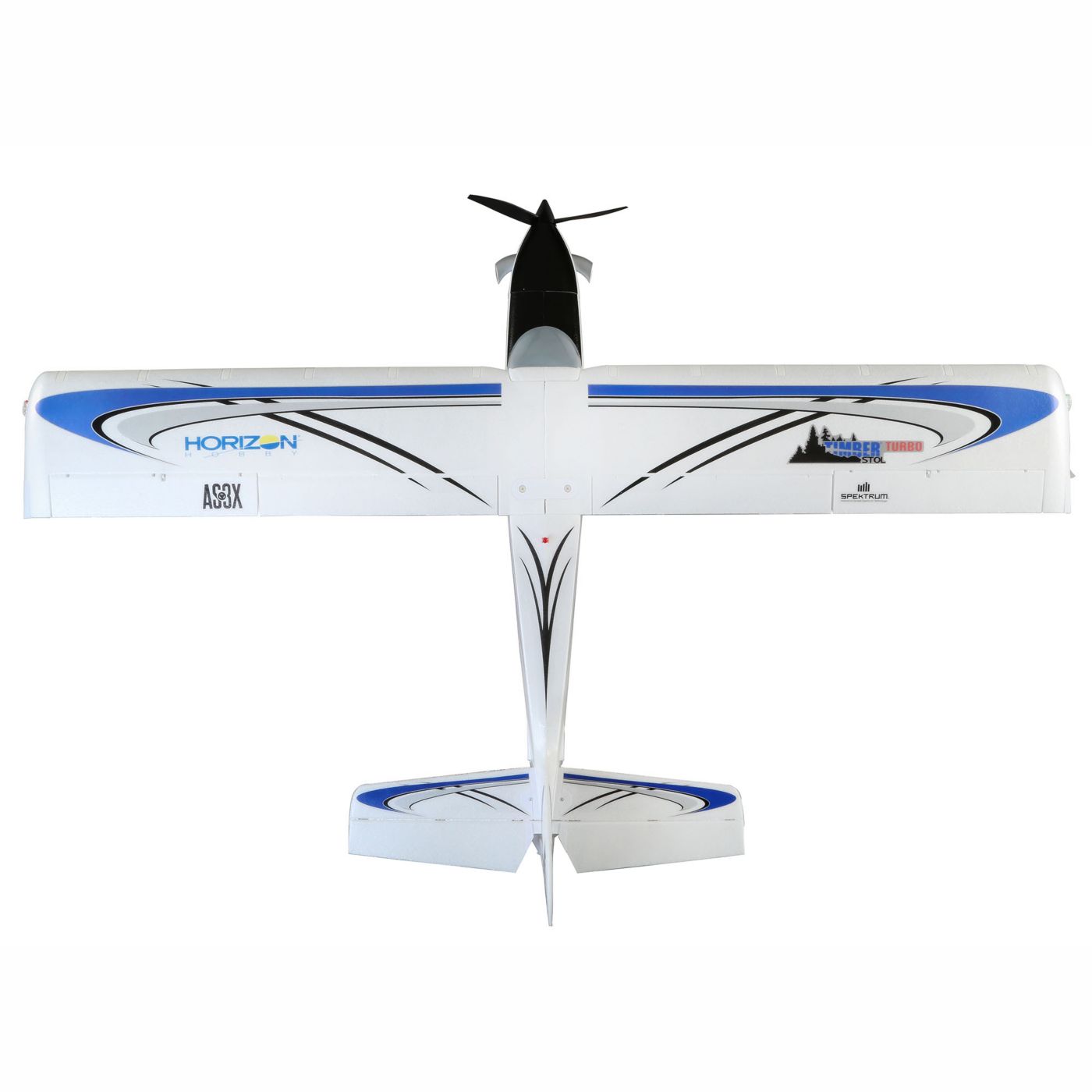

Turbo Timber from E-flite

Details

The Turbo Timber 1.5m is equipped with an unbeatable combination of features that make it possible for everyone from low-time to expert pilots to enjoy a versatile STOL and sport flying experience unlike any other. Shock-absorbing landing gear equipped with oversized, tundra-style wheels plus the optional-use float set and leading edge slats, functional slotted flaps and the LED light system from the original are all standard. Add to that a turboprop-styled nose, capped off with a 3-blade prop and spinner that are driven by a more powerful 3S and 4S compatible power system- supported by a stiffer airframe that's equipped with more durable and reliable metal-geared servos- and you have enhanced performance and capabilities that make this the most fun you can have with a Timber yet!

Features

  • Incredible Short Take Off and Landing (STOL) plus sport and aerobatic flight capabilities
  • High-power 3S and 4S compatible 50A ESC and outrunner motor with 3-blade prop
  • Stiffer wing for improved aileron authority, roll rates and handling
  • Functional slotted flaps for shorter takeoffs and landings
  • Six durable and factory-installed metal-geared servos

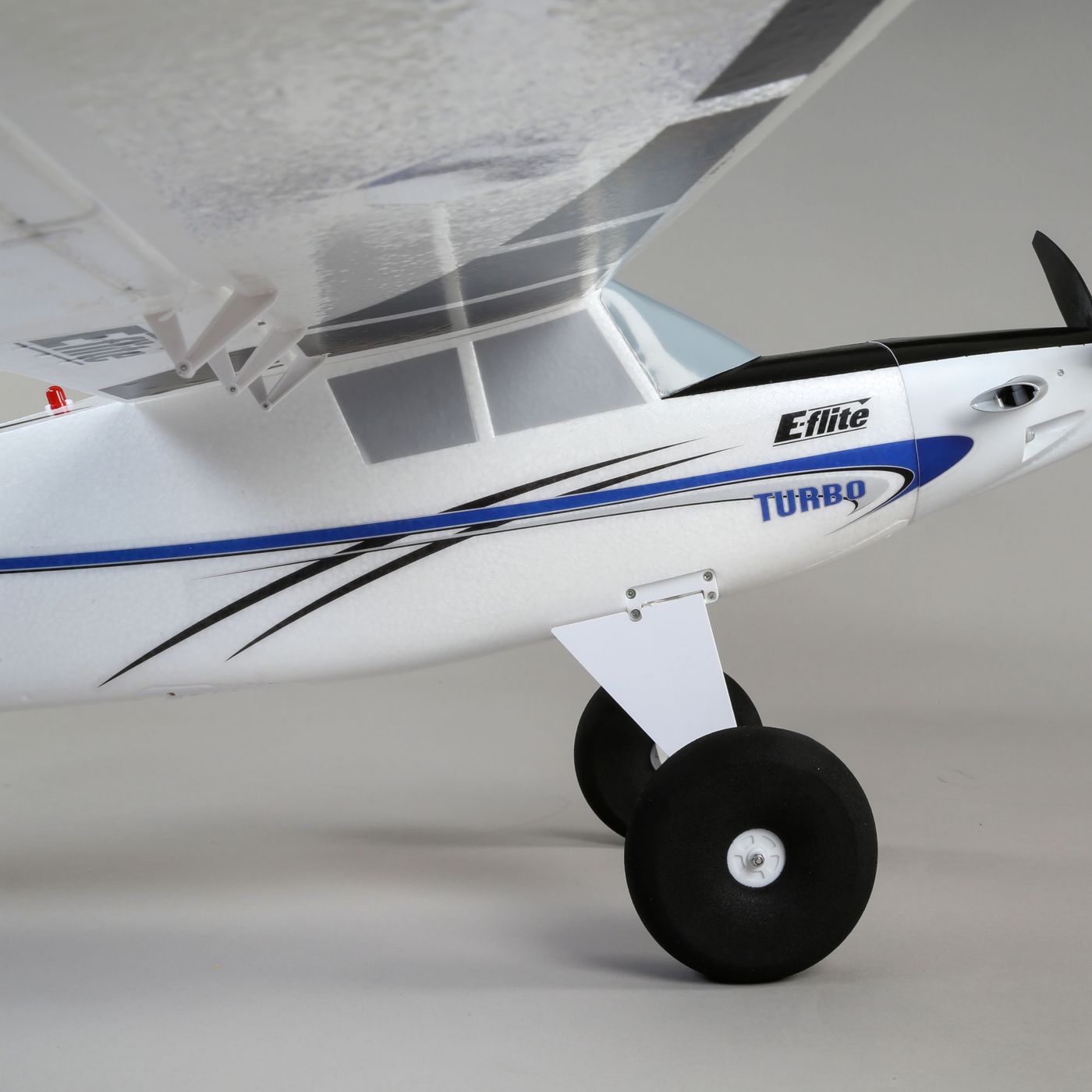

  • Shock-absorbing landing gear with oversized tundra-style wheels
  • Includes optional-use floats with steerable rudders for flying from water
  • Functional and factory-installed LED landing, navigation and strobe lights
  • Lightweight yet durable composite-reinforced, hollow-core EPO construction
  • Optional-use leading edge slats for improved STOL and slow flight performance
  • Fast and easy bolt-together assembly- no glue required

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Turbo Timber in particular but at least we know they do distribute E-flite.

Where to buy

Usa
Horizon Hobby USA
check web site
Ship to: USA
Austria
Lindinger ModellBau
check web site
Ship to: Europe
Germany
Horizon Hobby Europe
check web site
Ship to: Europe
Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
USA
TOWER HOBBIES
check web site
Ship to: International
Hungary
RC Hungary
check web site
Ship to: Hungary
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Ireland
Radio Controlled Shop
check web site
Ship to: Ireland
Switzerland
Scamora
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
France
Weymuller Modélisme
check web site
Ship to: France
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire
Switzerland
ModellMarkt24
check web site
Ship to: Europe
France
Turbines RC
check web site
Ship to: Worldwide
USA
Gator RC
check web site
Ship to: USA
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
Germany
Voltmaster
check web site
Ship to: Europe
Spain
ACRO RC
check web site
Ship to: Europe

Wingspan: 1555mm (61.2 in)
Length: 1040mm (40.9 in)

Weight: 1650 g (3.6 lbs)
Airfoil Shape: Semi-symmetrical
Approximate Assembly Time: Less than 1 Hour
Approximate Flight Time: 6 - 8 minutes
CG (Center of Gravity): 2.4" (60mm) +/- 0.20" (5mm) back from the leading edge of the wing measured at the fuselage
Charger: Required to match selected battery
Completion Level: Bind-N-Fly Basic
Control Throw (Flaps): Full, 1.4" (35mm), Half, 0.79" (20mm)
Control Throw - High (Ailerons): 1.2" (30mm)
Control Throw - High (Elevator): 0.87" (22mm)
Control Throw - High (Rudder): 1.4" (35mm)
Control Throw - Low (Ailerons): 0.87" (22mm)
Control Throw - Low (Elevator): 0.63" (16mm)
Control Throw - Low (Rudder): 0.98" (25mm)
Flying Weight: 57 - 60oz (1.61 - 1.7kg)
Landing Gear: Fixed main LG with steerable tail wheel
Length: 40.9" (1040mm)
Material: EPO
Minimum Required Radio: 6-channel
Minimum Speed Control: 50A w/EC3 battery connector
Motor Size: 10 size, 800Kv brushless outrunner
Propeller Size: 11x7.5 3-blade
Recommended Motor Battery: 2200mAh 3 - 4S LiPo w/EC3 connector
Servos: 9g metal gear (6)
Stabilizer Tube Length: 11.8" (300mm)
Stabilizer Tube OD: 0.16" (4mm)
Transmitter Range: Full
Wing Area: 559.5 sq in (36.1 sq dm)
Wing Loading: 13.45 oz sq/ft (14.04 g sq/dm)
Wing Tube Length: 12.8" (605mm)
Wing Tube OD: 0.39" (10mm)
Wingspan: 61" (1555mm)

Variants

EFL15275
Turbo Timber (White-blue)
