Cvatar from Eachine

Details

The Cvatar is Eachine's new cinewhoop. Cvatar comes from the word Avatar, it combines with Cinewhoop and the sci-fi feeling of Avatar, it is very stable and can fly around people and property safely. The possibilities for creating videos are therefore limitless. Cvatar's newest F722 FC is also DJI ready, so you can easily upgrade to the DJI digital system. Get the Cvatar now and you will be able to experience a different feeling of cinewhoops.

Pictures

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Cvatar in particular but at least we know they do distribute Eachine.

Wingspan: 142mm (5.6 in)
Length: 142mm (5.6 in)

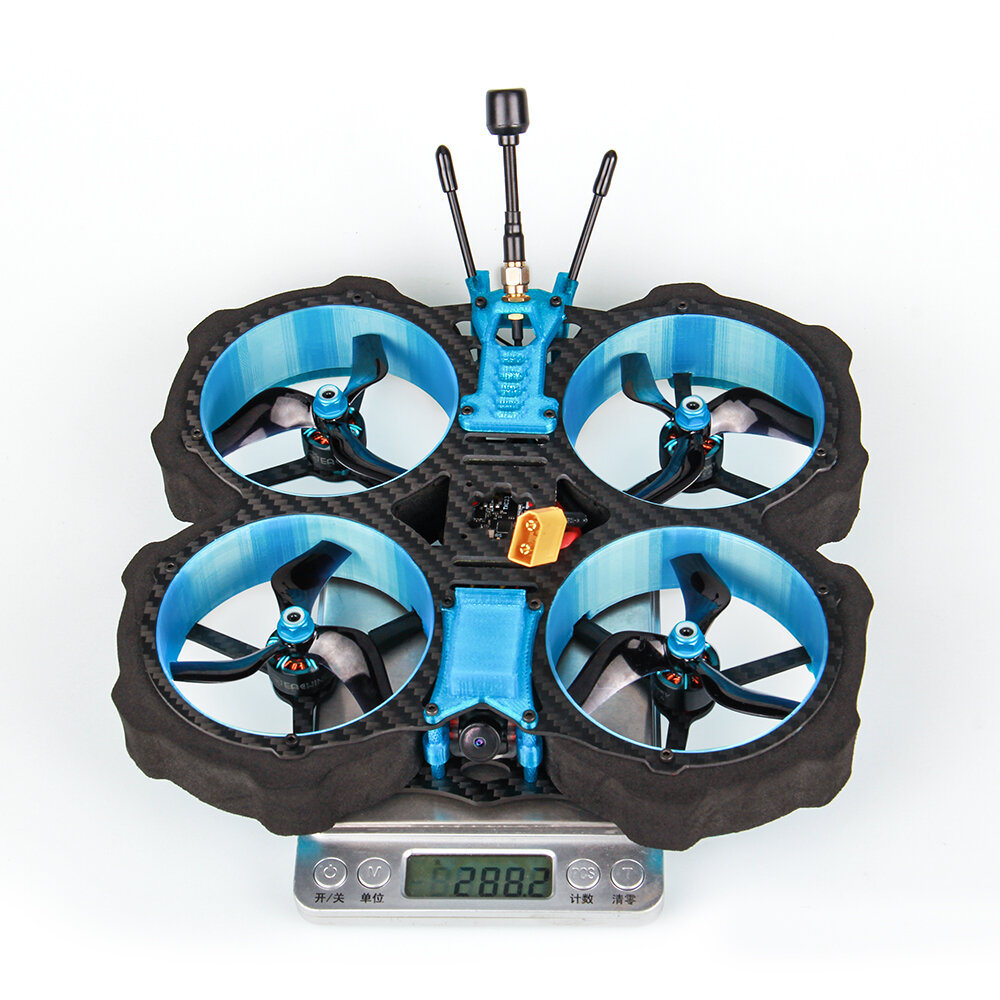

Weight: 125 g (4.4 oz)
  • Framework
    • Wheelbase: 142 mm
    • Top plate thickness: 2mm
    • Bottom plate thickness: 2mm
    • Top and bottom plate spacing: 25mm
    • FPV Camera Compatibility: 19 / 20mm
    • Type: 3 inch Cinewhoop Frame
    • Weight: 92.4g (excluding TPU PLA)
  • Flight controller
    • Mini Flight Controller F722
    • MPU: MPU6000
    • CPU: STM32F722 RET6
    • Input voltage: 2-6S Lipo
    • Barometer: BMP280
    • Flash / black box: 8 MB
    • UARTS: 5 ports
    • Firmware: EACHINEF722.HEX
    • Compatibility FC: 20 mm (M2) / 30,5 mm (M3) / 25,5-26,5 mm (M2)
    • Dimensions: 28,5 * 28,5 mm
    • Mounting: 20 mm M3
    • Weight: 3.7g
  • ESC
    • ESC 35A BL_S 3-6S 4en1
    • CPU: STM32F051
    • Input voltage: 3-6S Lipo
    • Stable current: 35A
    • Peak current: 40A (10 Sec)
    • Dimensions: 32,5 * 31,5 mm
    • Montage: 20 * 20mm M2
    • Weight: 6.5g
  • VTX
    • EACH TXC23 VTX
    • Output power: PIT / 25/200/600 / 800mW
    • Input: DC 6-36V
    • Antenna: MMCX
    • Fonction VTX: IRC Tramp
    • Weight: 5g
  • Camera
    • Caméra FPV RunCam Nano2
    • Image sensor: 1/3 700TVL CMOS
    • Spring: 2.1mm
    • Input power: DC 5V
    • Dimensions: 14 mm * 14 mm * 16 mm
    • Net weight: 3.2g
  • Brushless motor

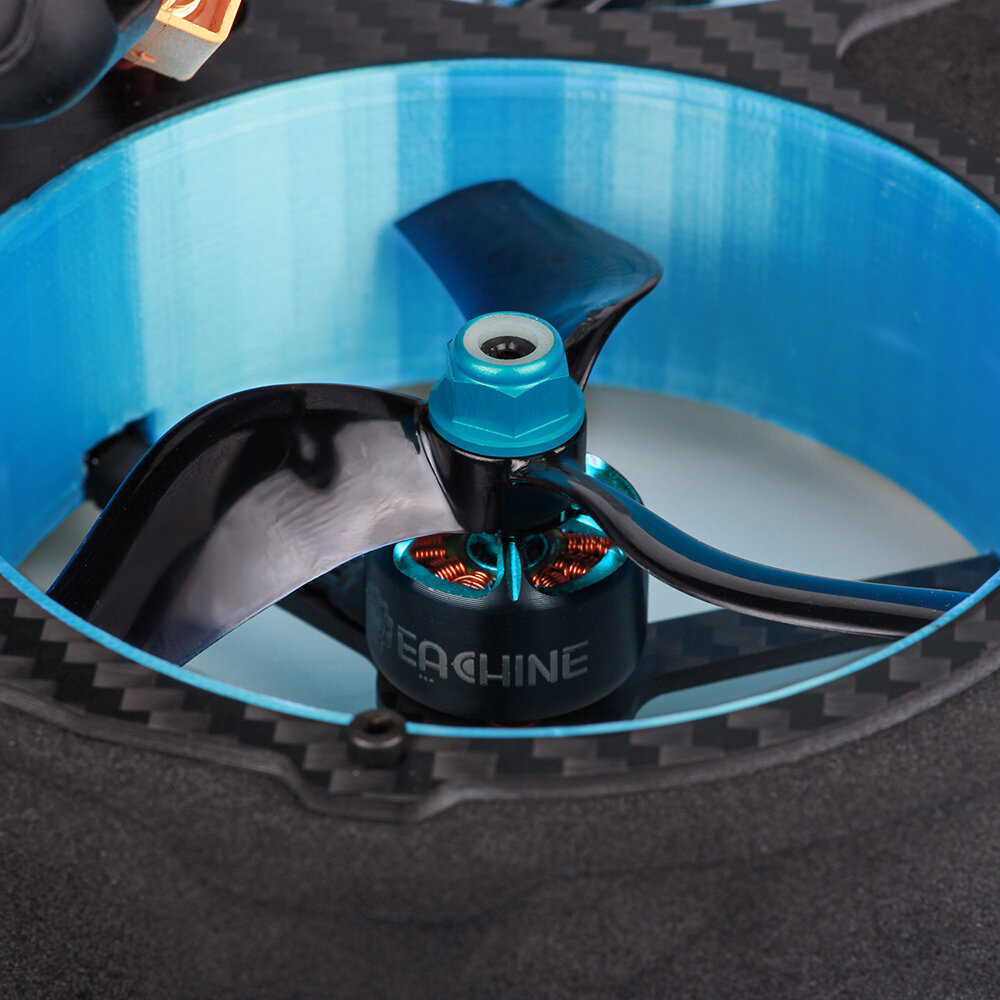

    • 1507 2400KV brushless motor
    • Engine: KV2400 (6S)
    • Input voltage: 3-6S
    • Recommended propeller (inch): 3 inch
    • Weight: 15.9g
  • Helix
    • Gemfan 75 mm 3 inch 3-blade propeller
    • Quantity: 4 CW and 4 CCW
