E150 from Eachine

Details

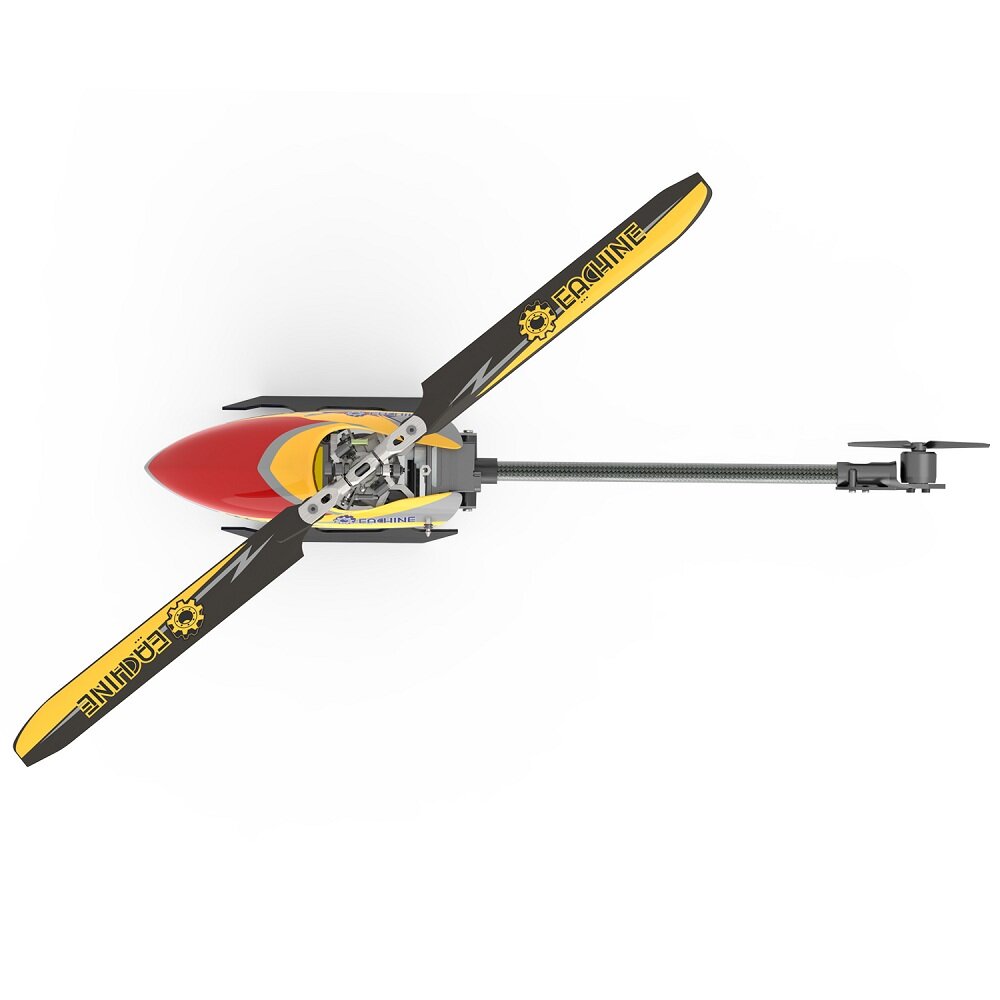

Eachine’s E150 is a small helicopter with a 35 cm diagonal rotor, which operates with variable pitch blades. They are driven by a 2507 brushless motor. The tail rotor is also powered by a 1103 brushless motor. The 4.3g digital servos are designed to ensure clean and fast movements. The device measures 30 cm in length and 9.8 cm in height. The E150 is based on a flight controller with 6-axis stabilization that allows beginners to get the hang of it. But it can also be used for aerobatics with the passage of back flights and figures.

  • Employs a flybarless stabilization system, powered by direct-drive brushless motor. It provides precise control, achieves stable flight, and has an optimized body structure that reduces damage sustained during crashes.
  • Rotor blades are aerodynamically designed, supports aggressive flight while maintaining stability. They are also highly efficient, allowing longer flight time. They are made of nylon and carbon fiber composite material, which give them strength, high durability, and resistant to deformation.
  • Fitted with 2507 brushless motor, which directly drives the main rotor blades to reduce vibrations while being highly energy efficient and operating at high torque. Made with special magnets that can withstand up to 150°C, which greatly lengthens the lifespan of the motor .
  • Fitted with a 1103 brushless tail motor, which can withstand high temperatures allowing it to be highly durable, while operating at high speeds, and delivering superior tail lock capability.
  • Fitted with large, durable 4.3gram metal digital servos, which have high torque, fast response (60°/0.05ms), high precision, especially accurate when returning to the neutral position. These high-performance servos give the helicopter the locked -in feel.
  • Uses 6-axis stabilization system, which is highly stable, precise in movements, especially suitable for beginners.
  • Built in 2.4GHz radio system, and supports external receivers via protocols such as DSMX, DSM2, PPM or SBUS.
  • Rotor head, blade grip, swash plate, are high-precision CNC components, giving them strength and durability, while being light-weight and offering great performance.
  • Landing gear and main body frame are made of 3K carbon fiber composite material, giving the components strength yet reduces damage.
  • Modular design, allow replacing of damaged parts to be highly cost effective.
  • Standard 6-channel transmitter with LCD, supports configuration of helicopter parameters, simulator, and has optimized the gimbal sticks output to achieve precise control.
  • High performance 3S 11.1V 500mAh 30C lipo battery, supports high-current discharge while not compromising on durability. Allows 6-10 minutes of sports flight, and up to 500 charging cycles.
  • Special USB balance charger to perform balance charging of the 3S lipo battery.
  • Uses thicker than usual feathering shaft, giving it strength and durability.

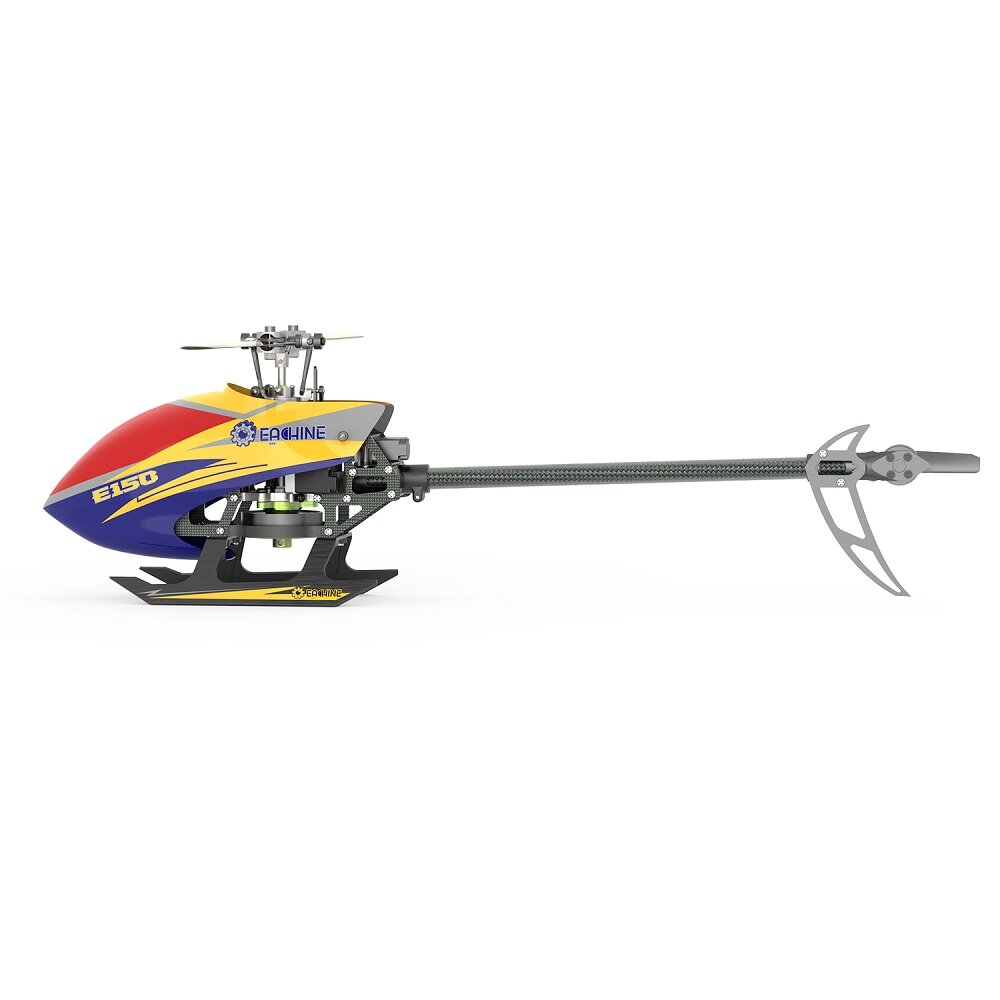

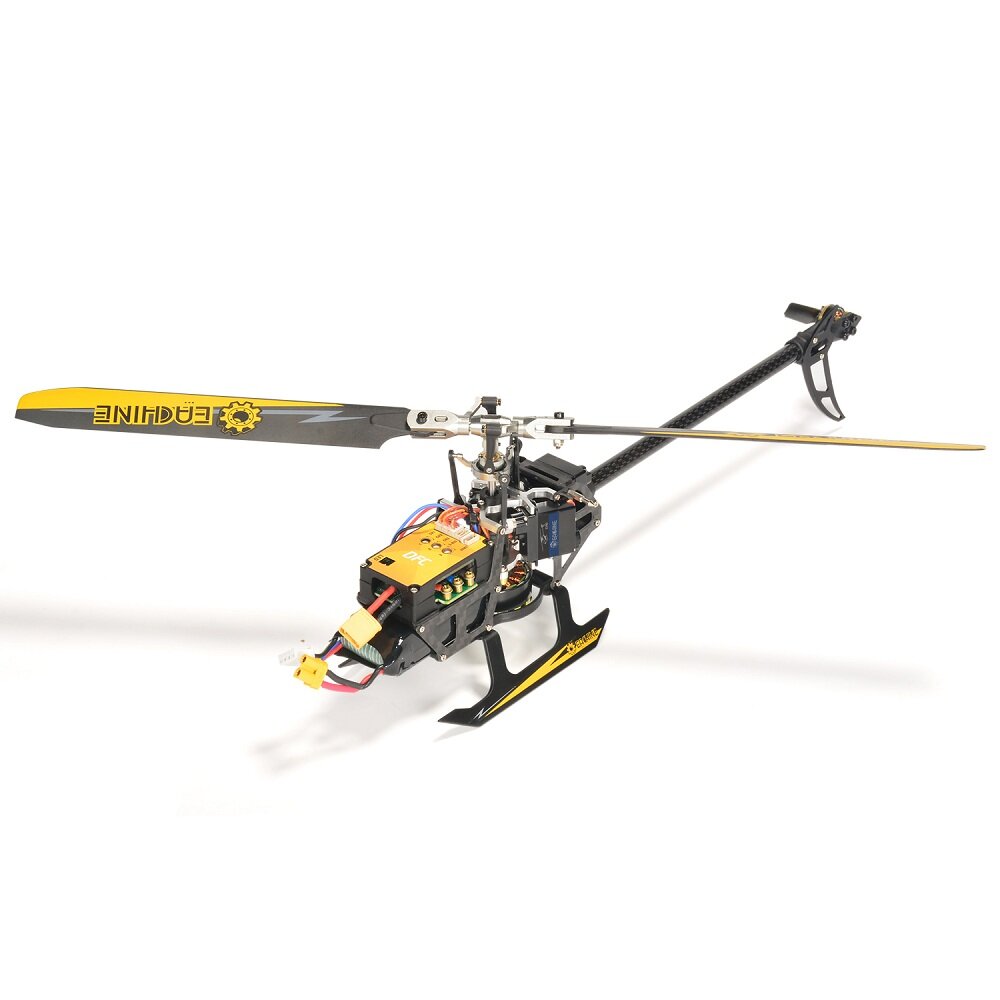

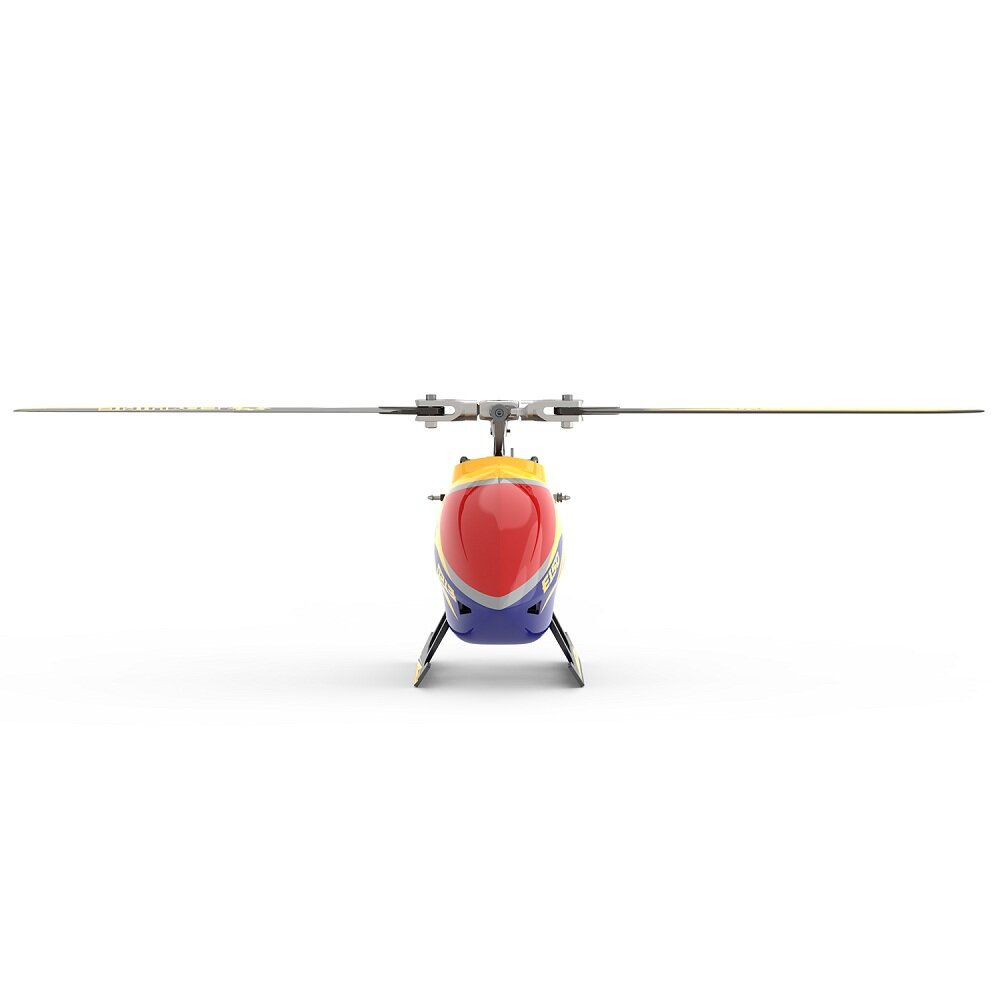

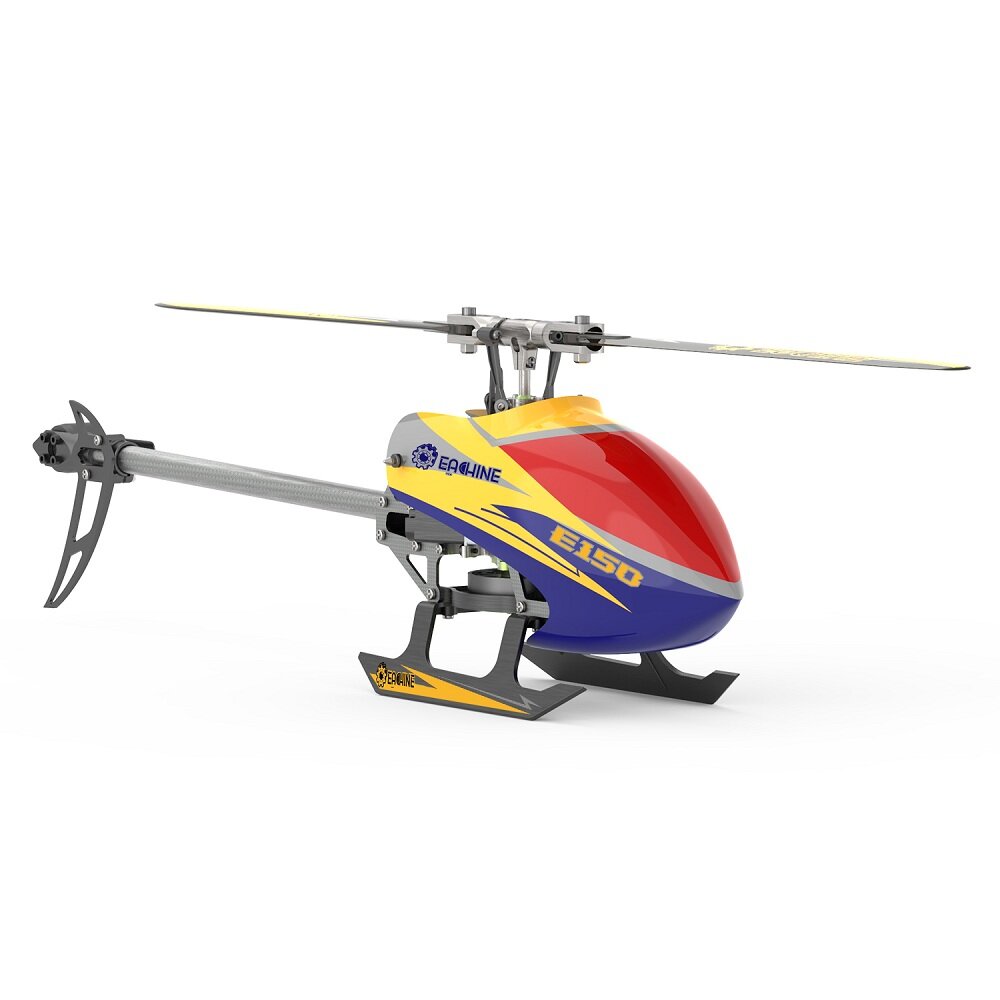

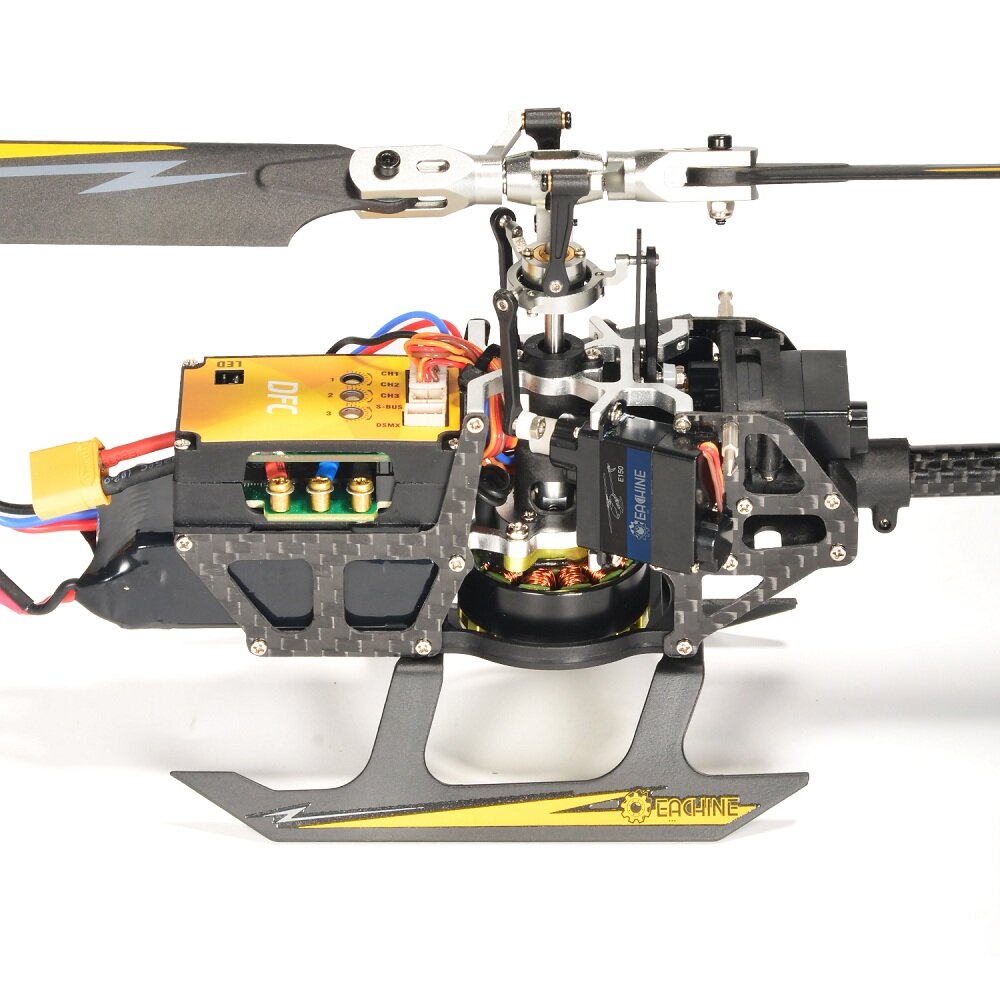

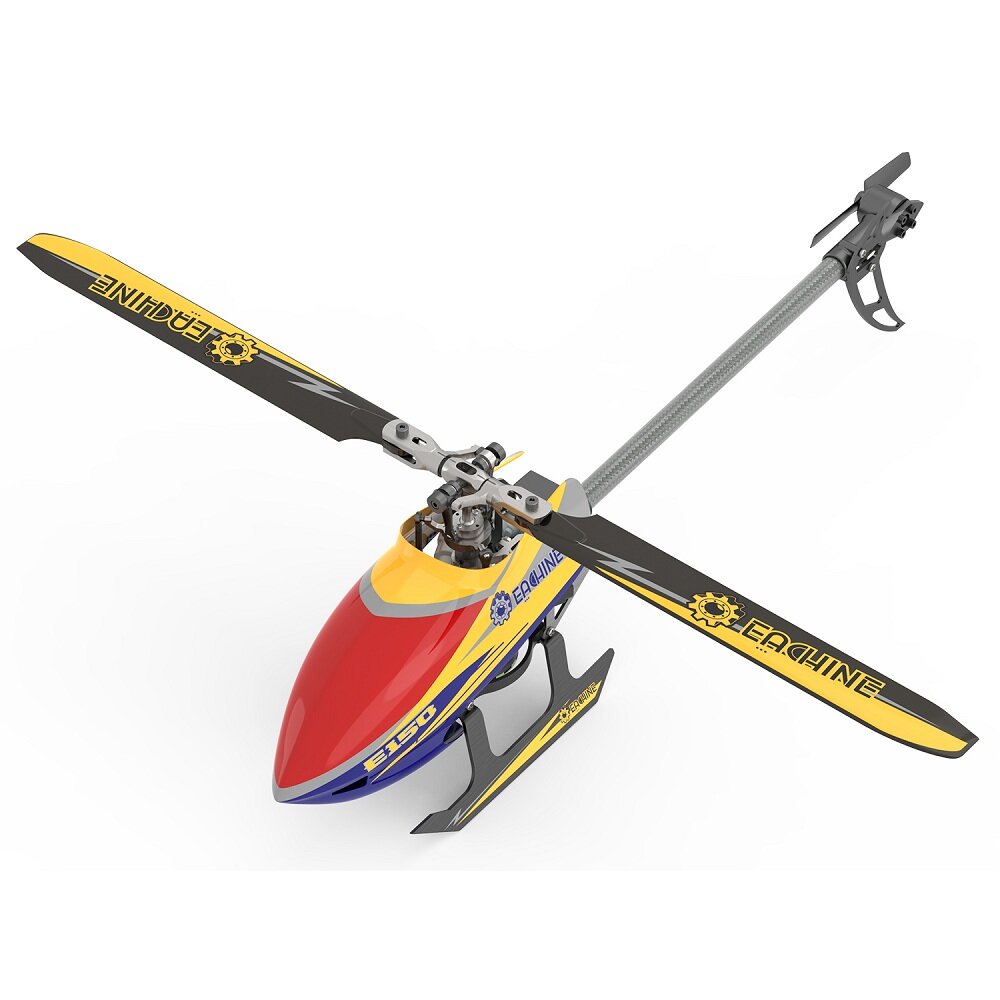

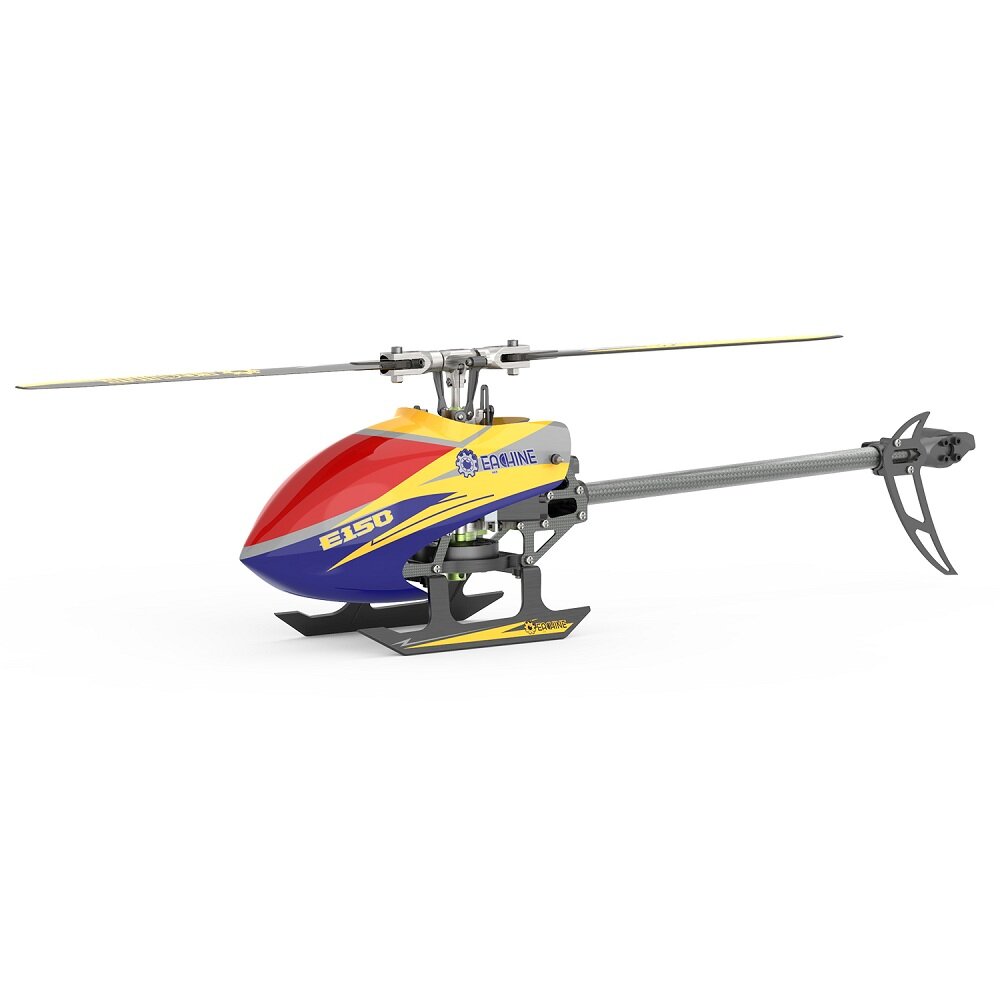

Pictures

Radio icons

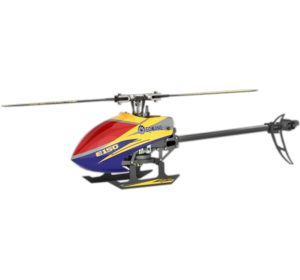

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the E150 in particular but at least we know they do distribute Eachine.

Wingspan: 350mm (13.8 in)
Length: 350mm (13.8 in)

Weight: 145 g (5.1 oz)
  • Main Rotor Diameter: 350mm
  • Body Length: 300mm
  • Body Height: 98mm
  • Helicopter weight (g): 145g
  • Battery: LI-POLY 11.1V(500MAH) 30C 3S 11.V 500mAh 30C Lipo
  • Flight time: Approx. 6-10 minutes
  • Aggressive 3D flight time:Approx. 3-4 minutes
