Model B from Eclipson Airplanes

Details

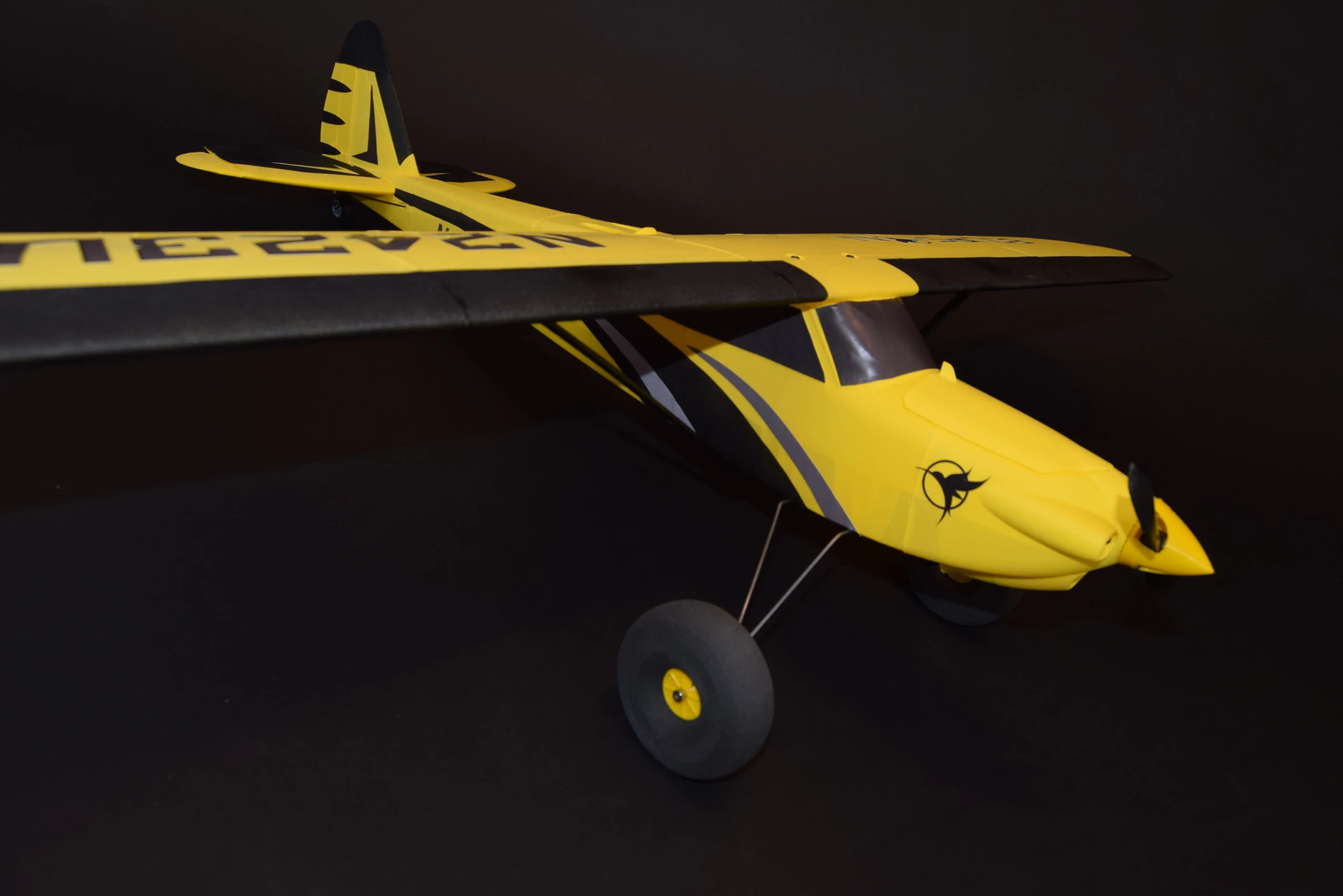

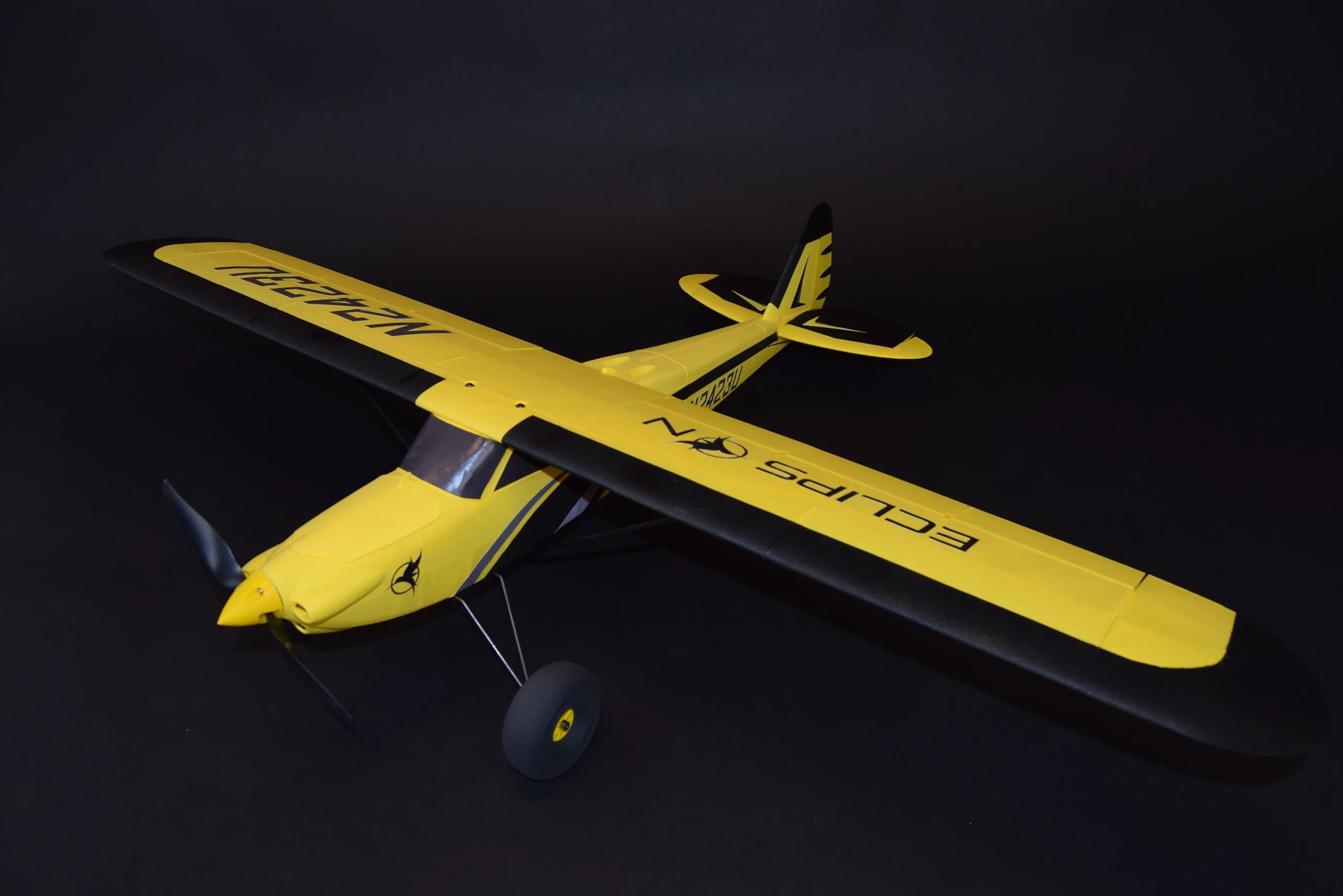

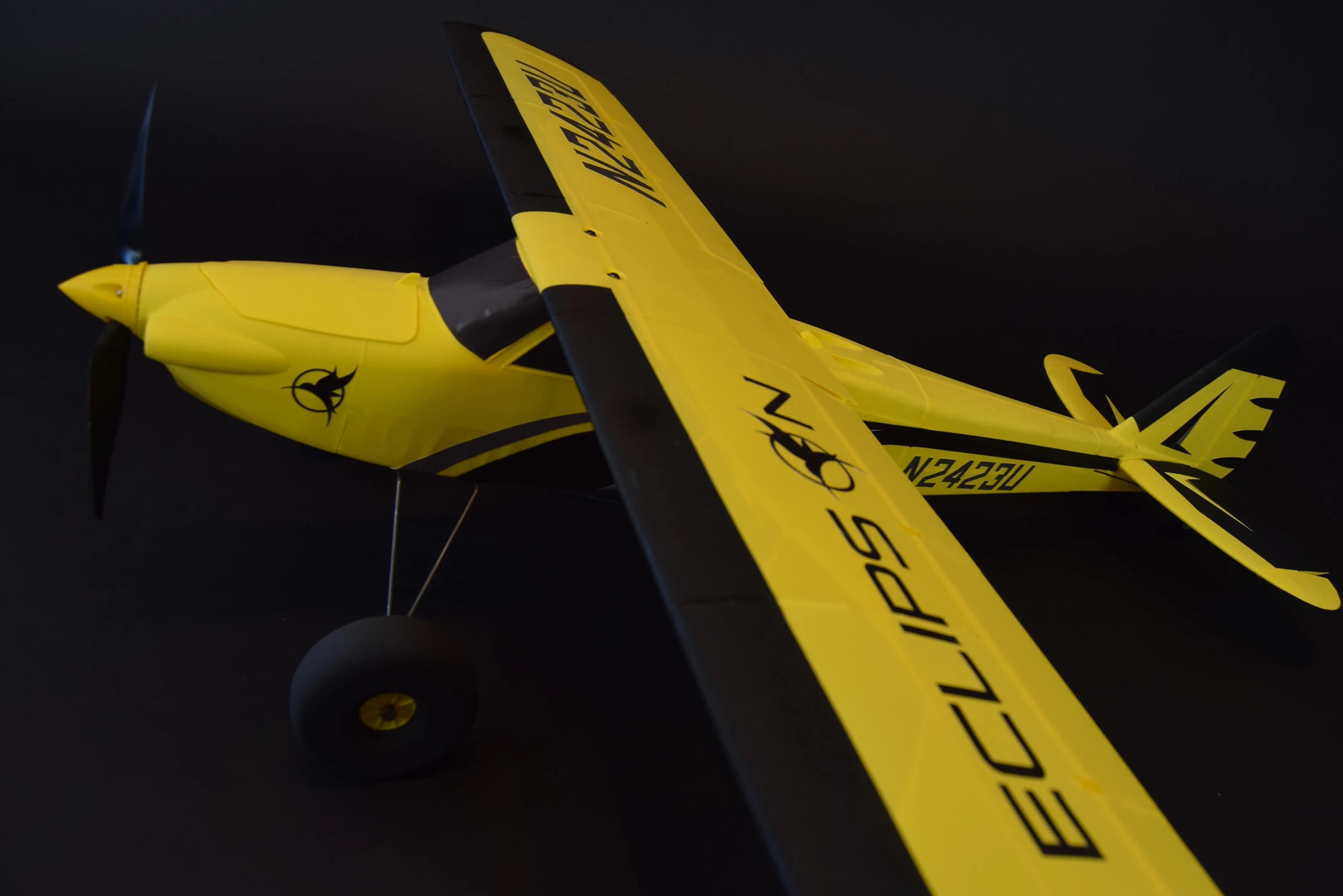

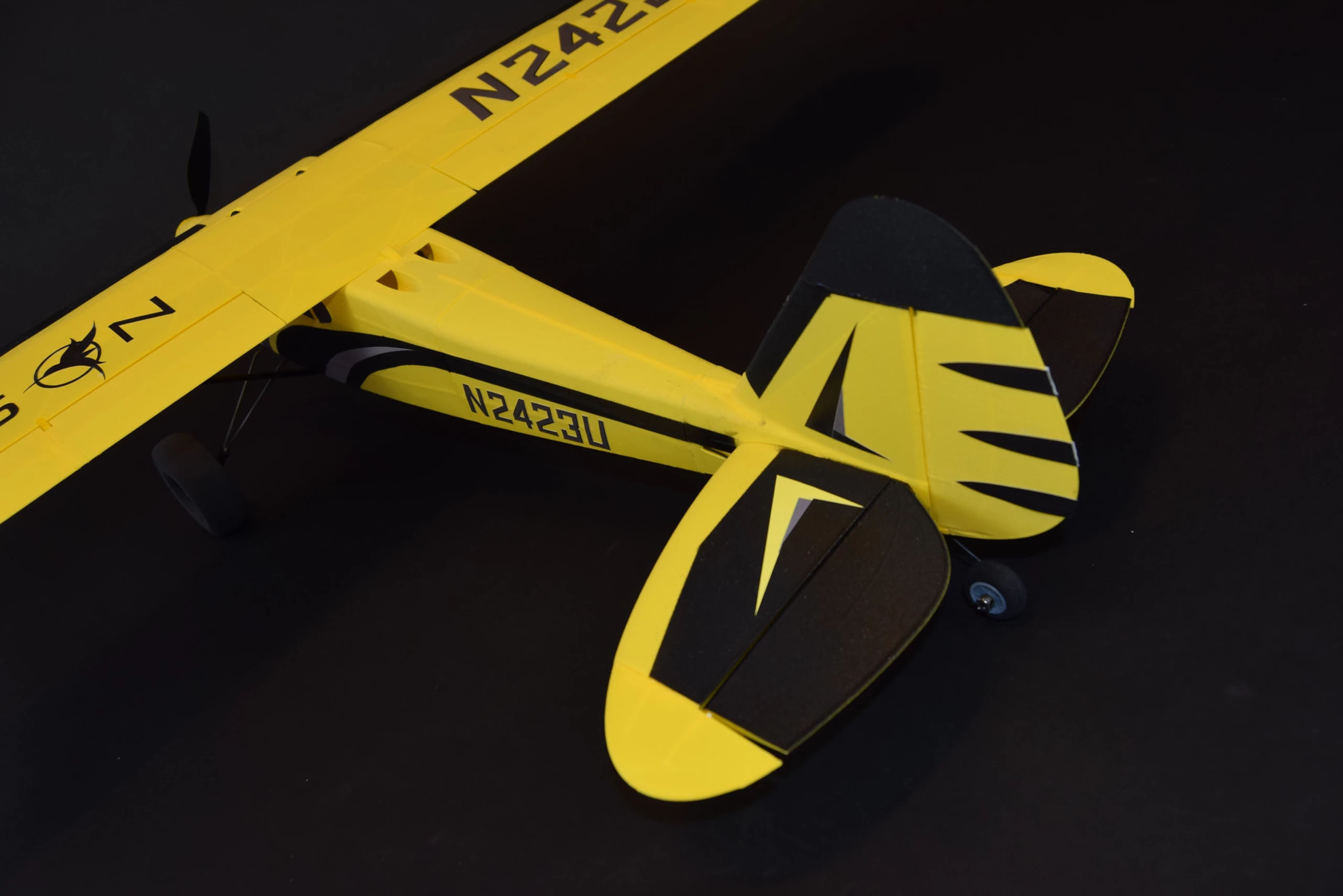

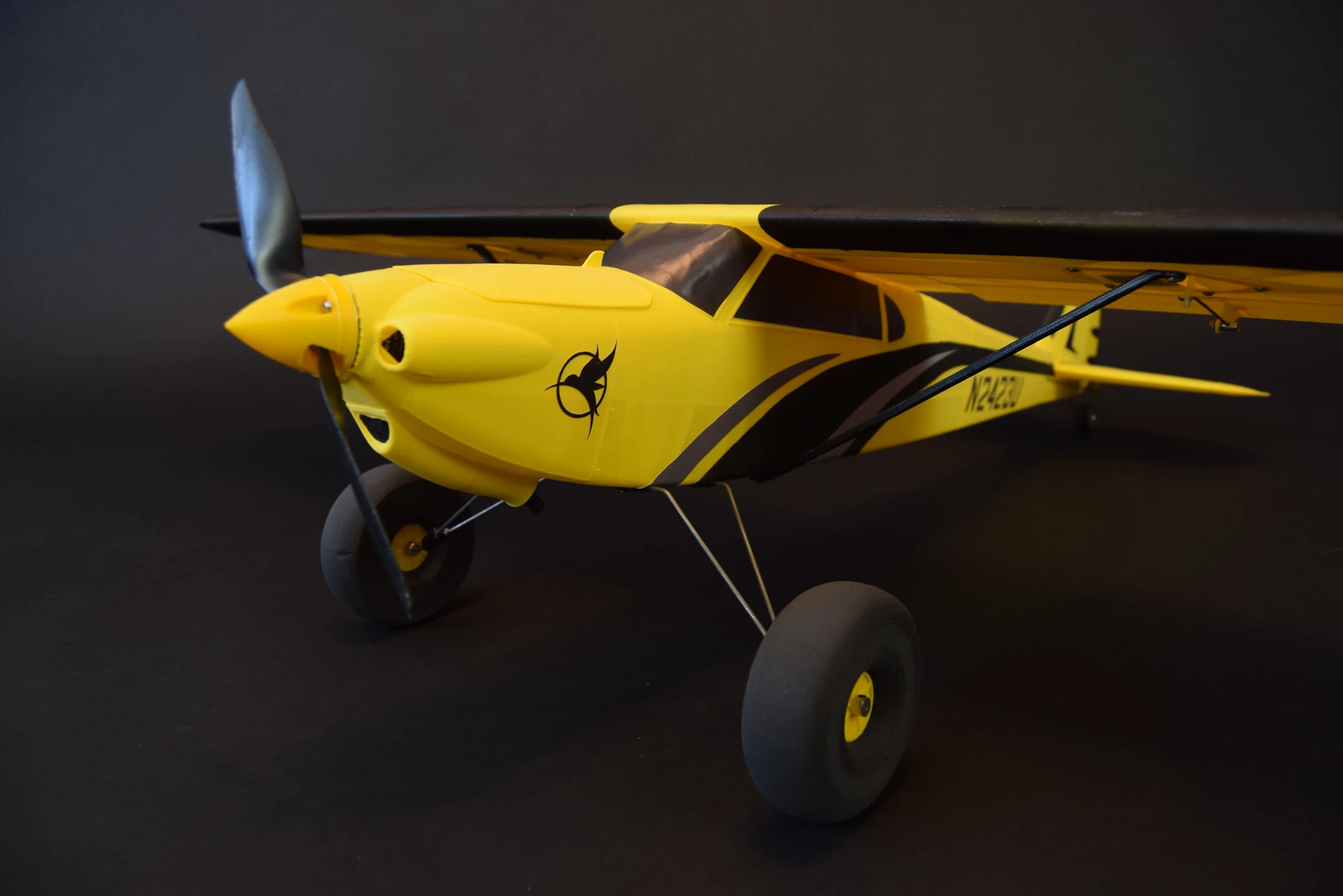

Eclipson Model B is a classic looking Alaskan bush plane design. The big Tundra wheels along with a very robust landing gear concept based on steel rods will allow you to take off and land from almost everywhere. Wing struts have been added not only to provide a nicer scale look but also to provide an exceptional strength which is ideal for an aggressive or aerobatic flight . The model is very agile if needed due to its huge control surfaces but also very stable and with a low stall speed ( if printed with LW-PLA) which makes the plane ideal for all kinds of pilot levels, from experienced to beginners.

Features:

  • Bush plane
  • Printed without retractions

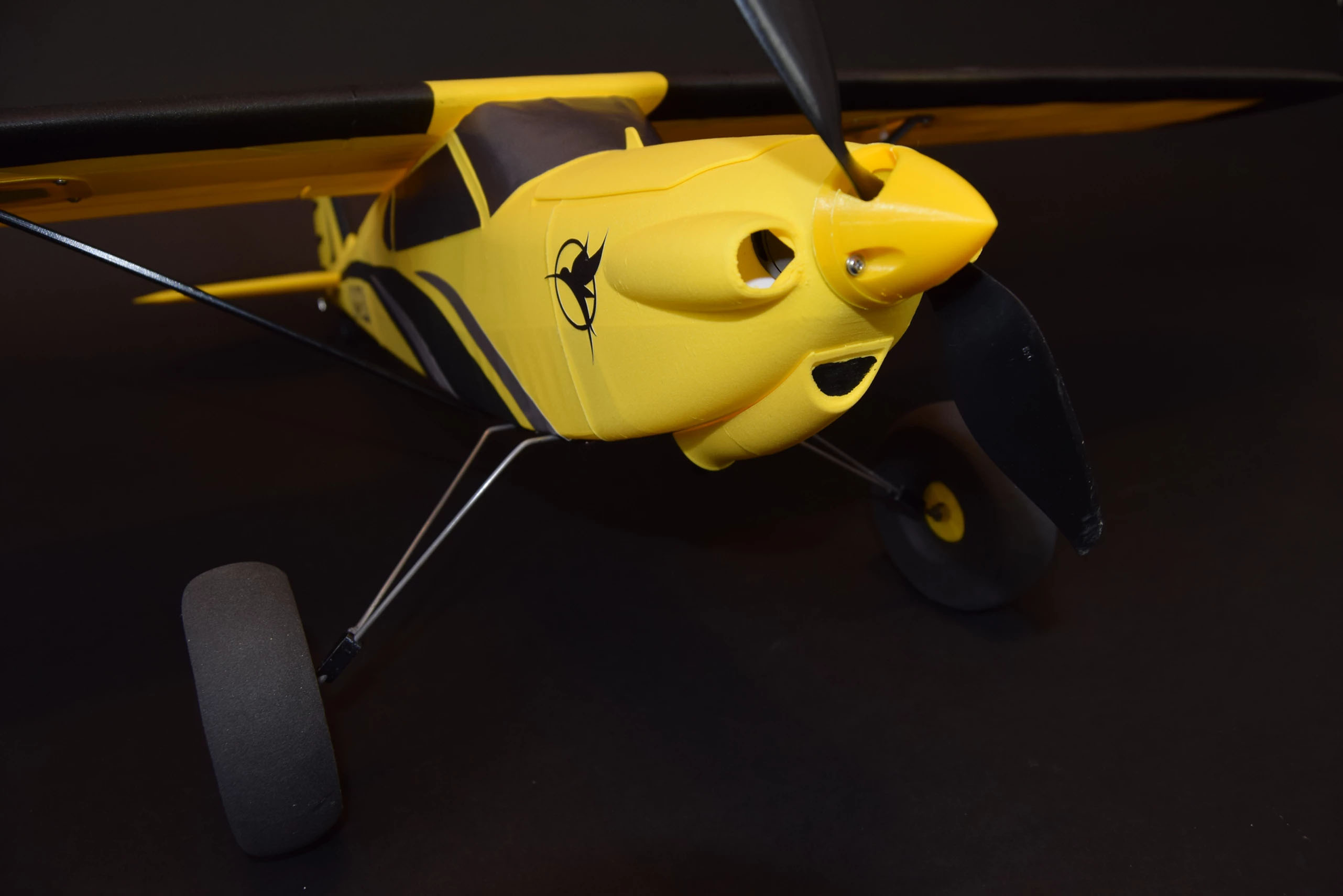

  • Durable landing gear
  • Full flaperon design
  • Trainer (LW-PLA)

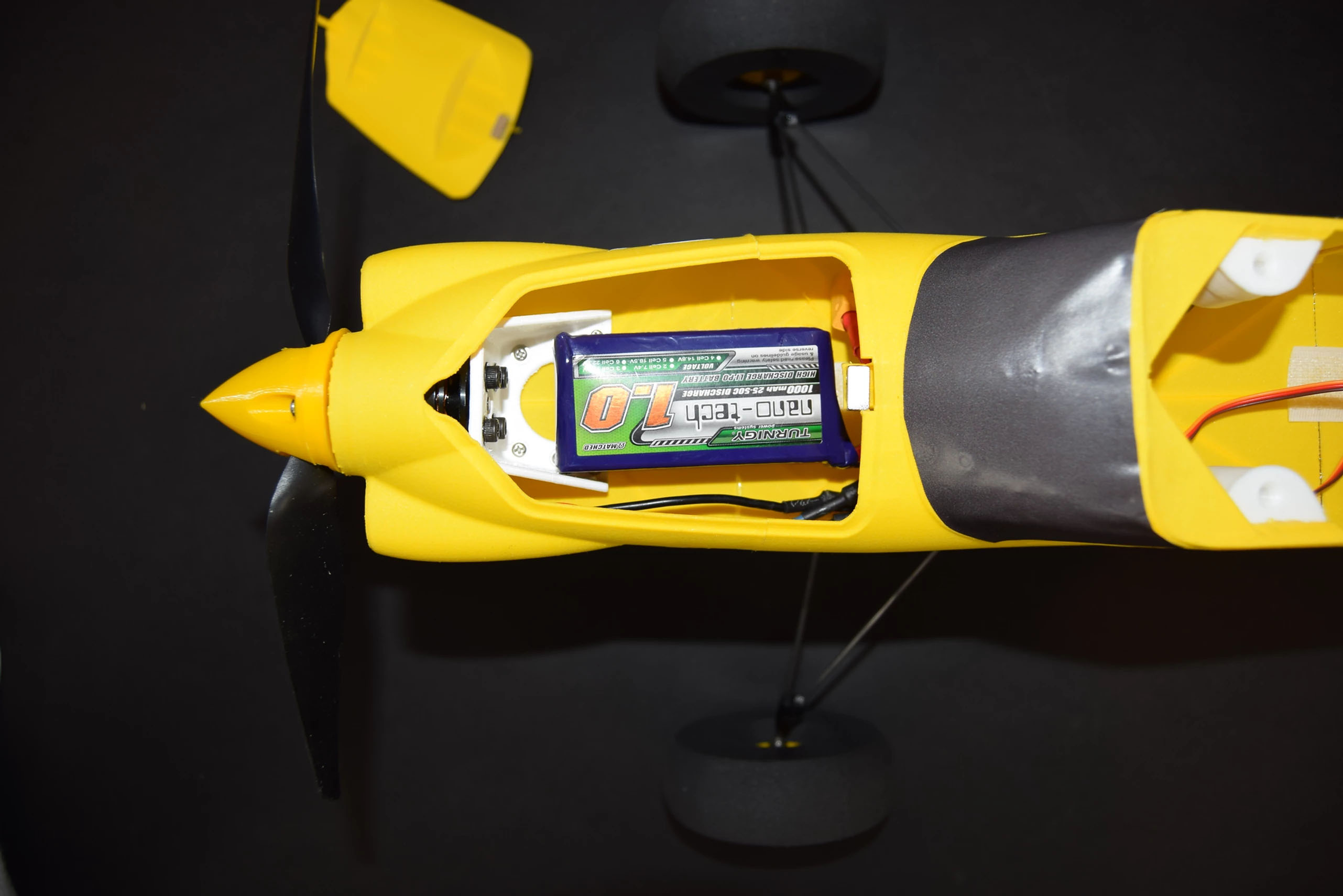

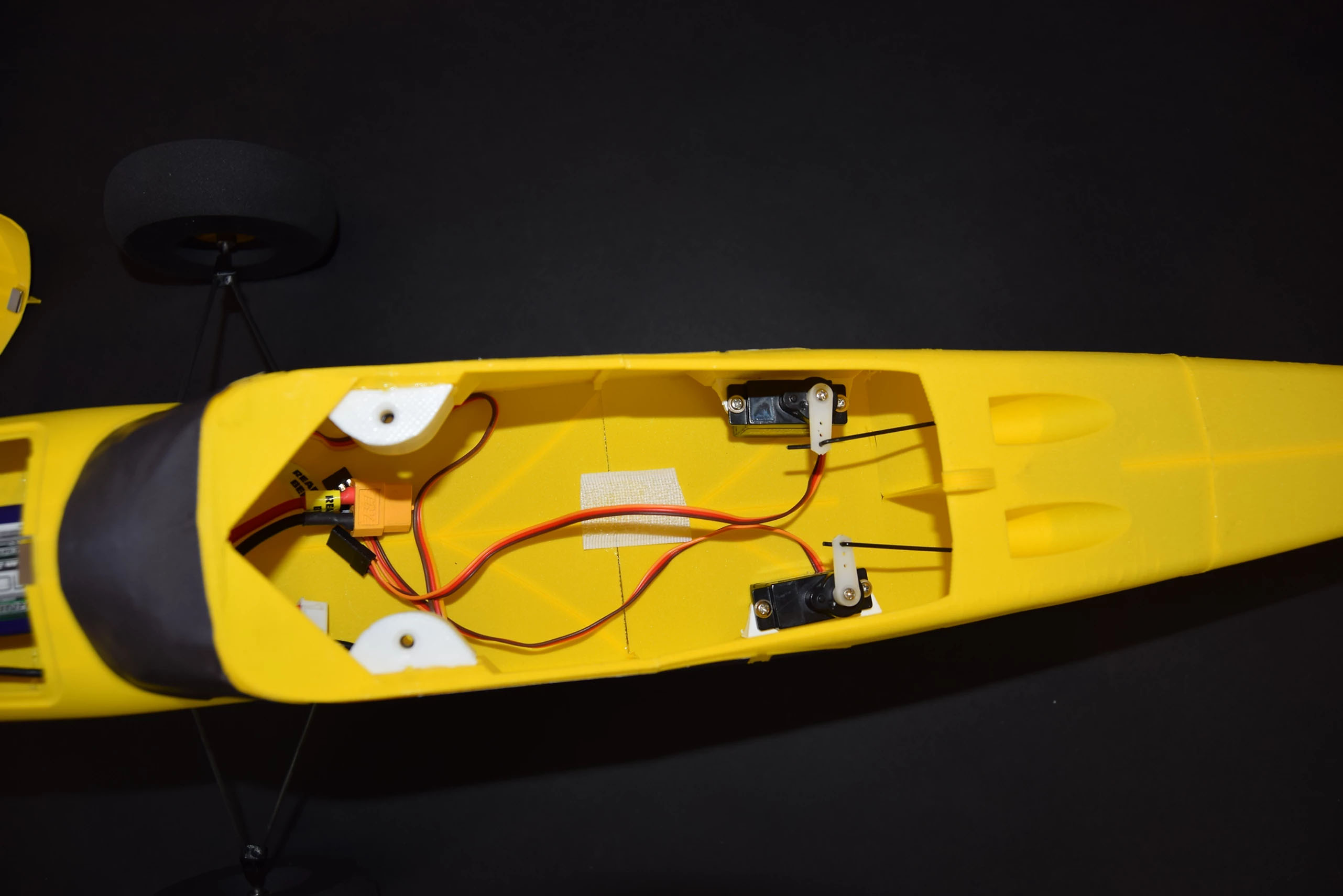

Pictures

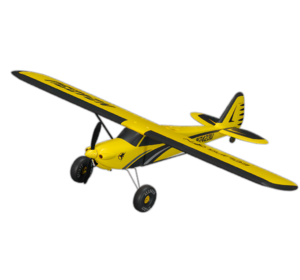

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Model B in particular but at least we know they do distribute Eclipson Airplanes.

Where to buy


Wingspan: 1150mm (45.3 in)
Length: 776mm (30.6 in)

Weight: 590 g (1.3 lbs)

Wingspan: 1150 mm (45")
Wing Surface: 19 dm²
Wing Aspect Ratio: 7
Length: 776 mm

  LW-PLA PLA
Printed Weight 250 g 500 g
Take Off Weight 590 g 950 g
Stall Speed 24 km/h 32 km/h
Min Wing Loading 30 g/dm² 50 g/dm²



Variants

modelB

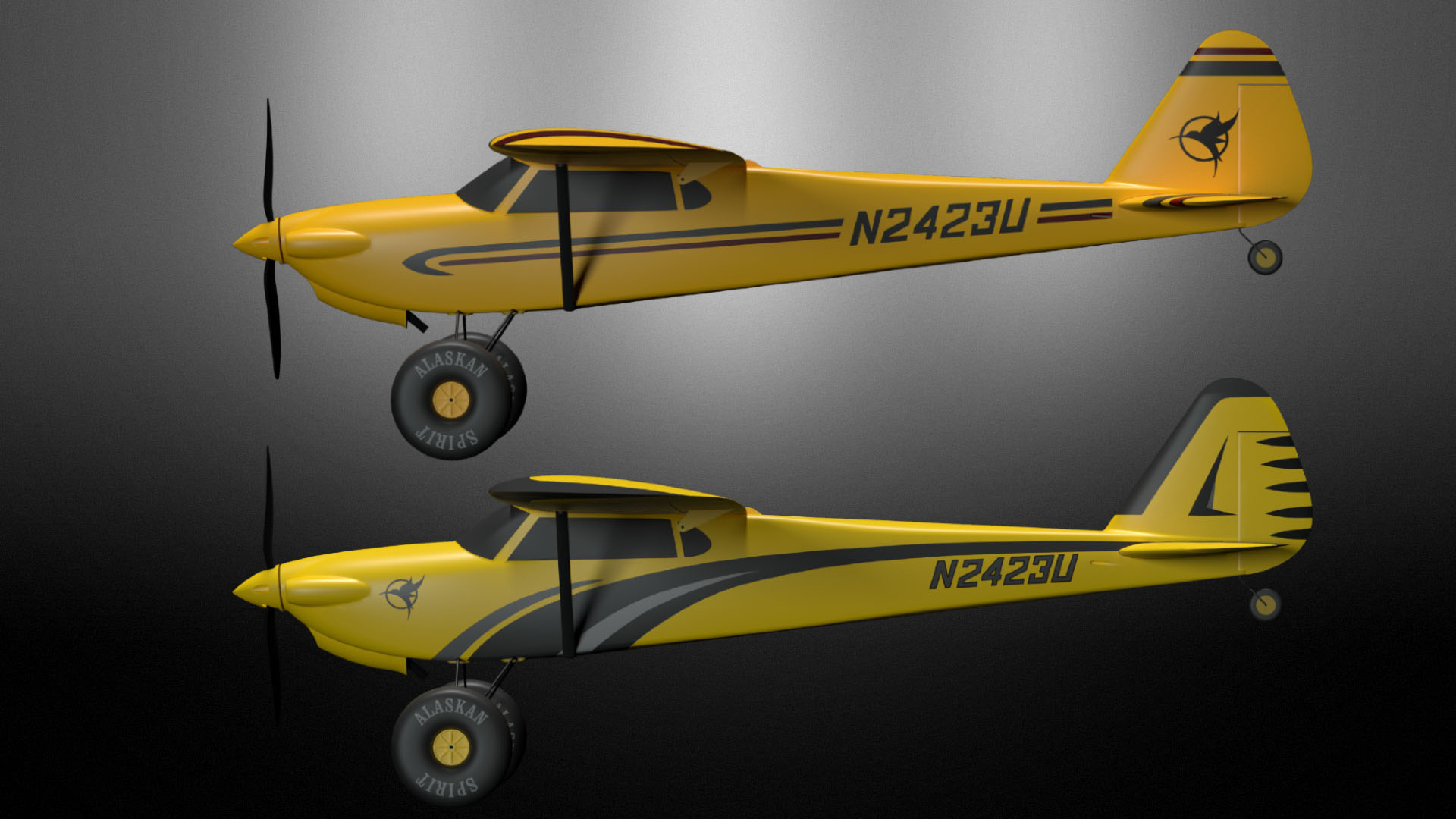

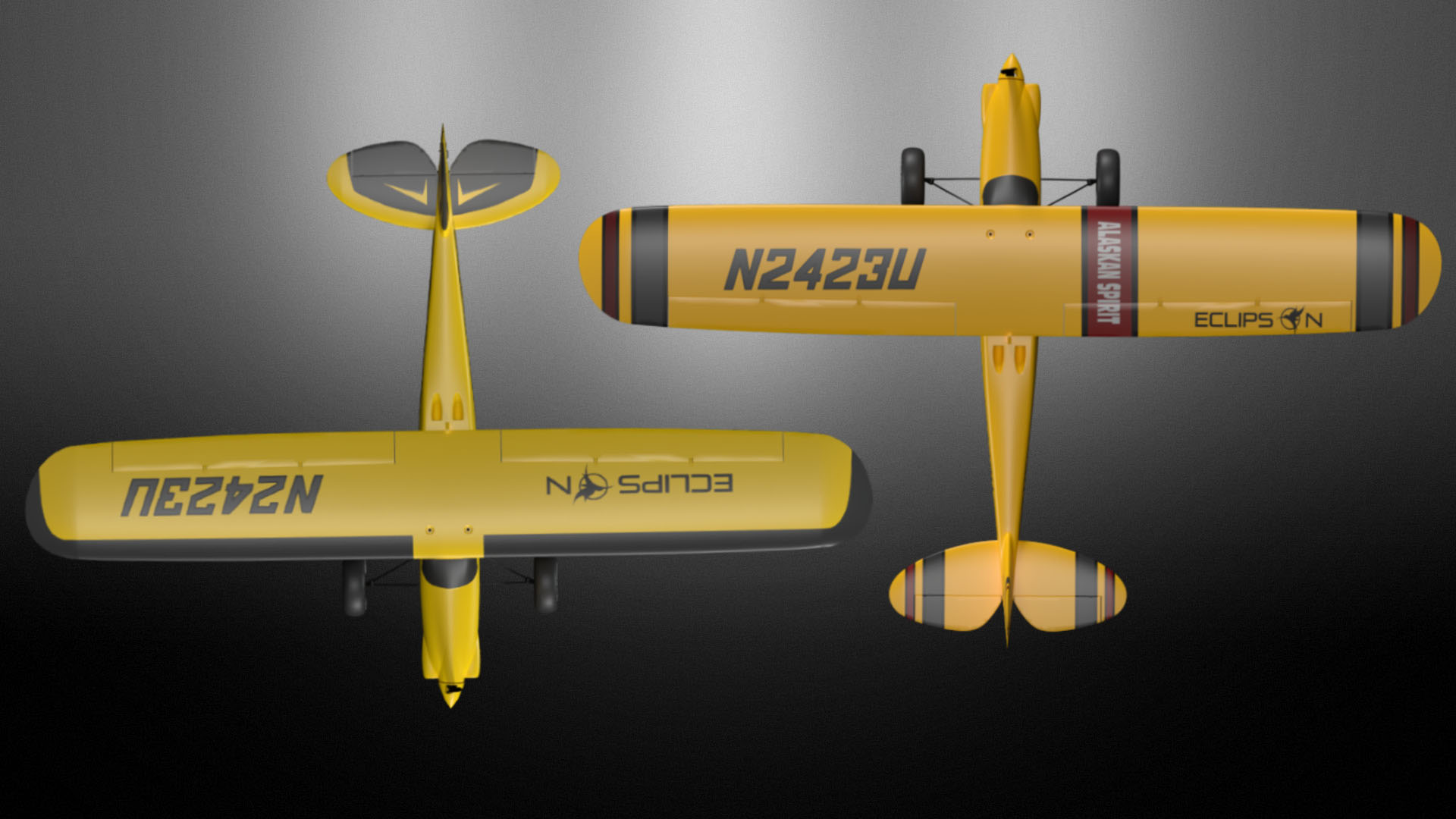

Model B (Yellow Black)
