Pitts S12 from Eclipson Airplanes

Details

This semiscale model is extremely easy to fly and very agile, therefore this plane is ideal for novice pilots but also intermediate or even advanced pilots who are looking for a fun plane to make some aerobatics. The design is compatible with foamy filaments, this option is highly  recommendable for less experienced pilots but the model has been  designed and tested to be printed only with standard PLA, even using this material the wing loading is more than acceptable for an RC plane (40g/dm²) and much more adequate for windy days.

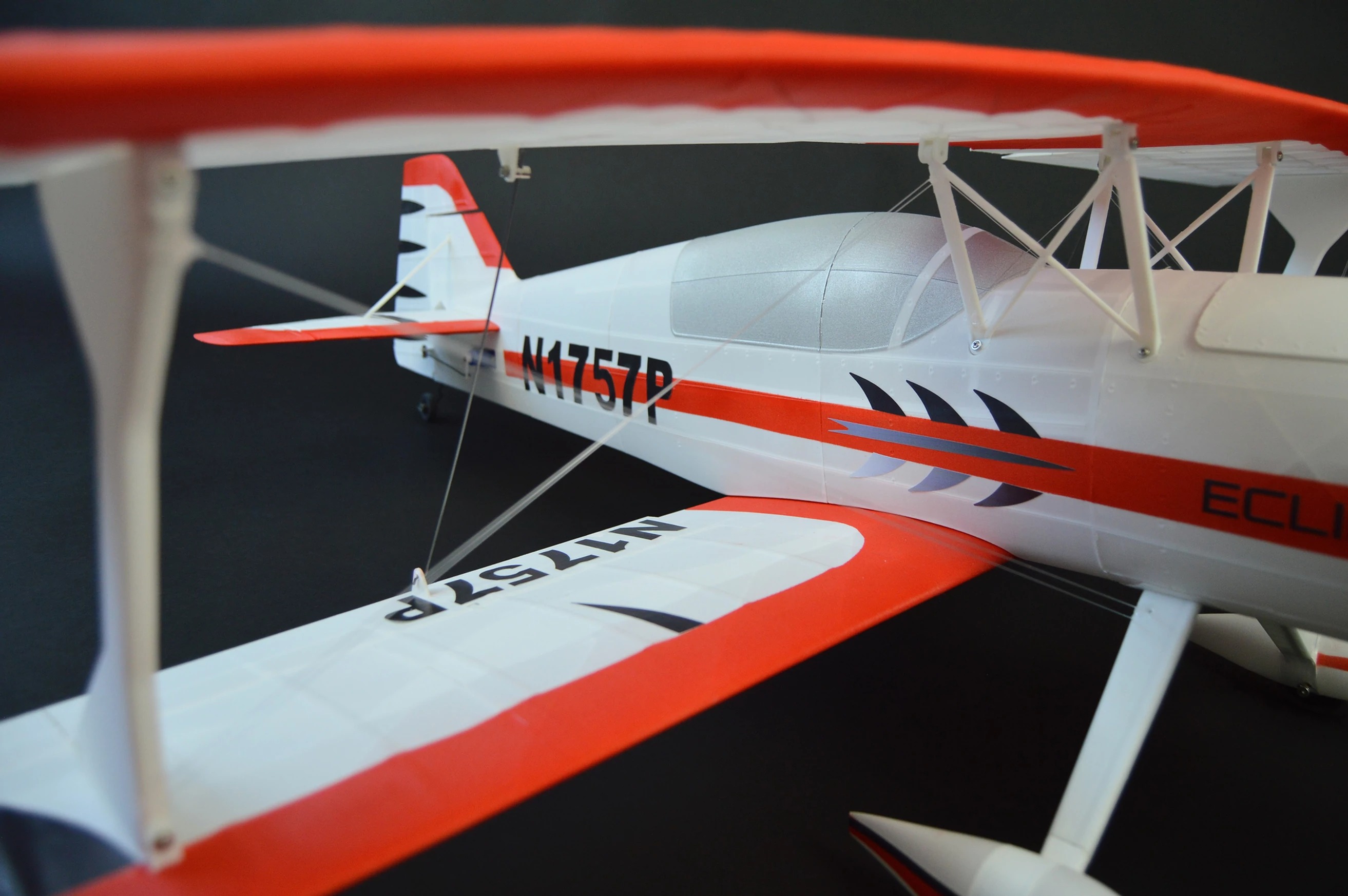

The tension wires (fishing line) used on the wings are not just decorative, they are working in the same manner they do in the full scale model, that solution allowed us to avoid the use of carbon fiber tubes which saves weight and money. The model has a perfect size to be easily transported in your car without the need to disassemble the wings. Anyway the wings and landing gear are detachable mainly to allow you to replace them in a crash event. Special mention deserves the new landing gear locking mechanism developed and patented by Eclipson airplanes, the system is fast, simple and effective.

Features:

  • Easy to fly
  • Agile
  • Detachable wings and landing gear
  • Printed without retraction

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Pitts S12 in particular but at least we know they do distribute Eclipson Airplanes.

Where to buy


Wingspan: 1250mm (49.2 in)
Length: 1000mm (39.4 in)

Weight: 1950 g (4.3 lbs)
  LW-PLA PLA
Structure Weight 600 g   1100 g
Take off Weight 1100 g    1950 g
Stall Speed 22 km/h 28 km/h
Wing Loading 23 g/dm² 40 g/dm²
Wingspan 1,250mm
Length 1,000 mm
Wing Surface 48 dm²
Wing Airfoil NACA1410
