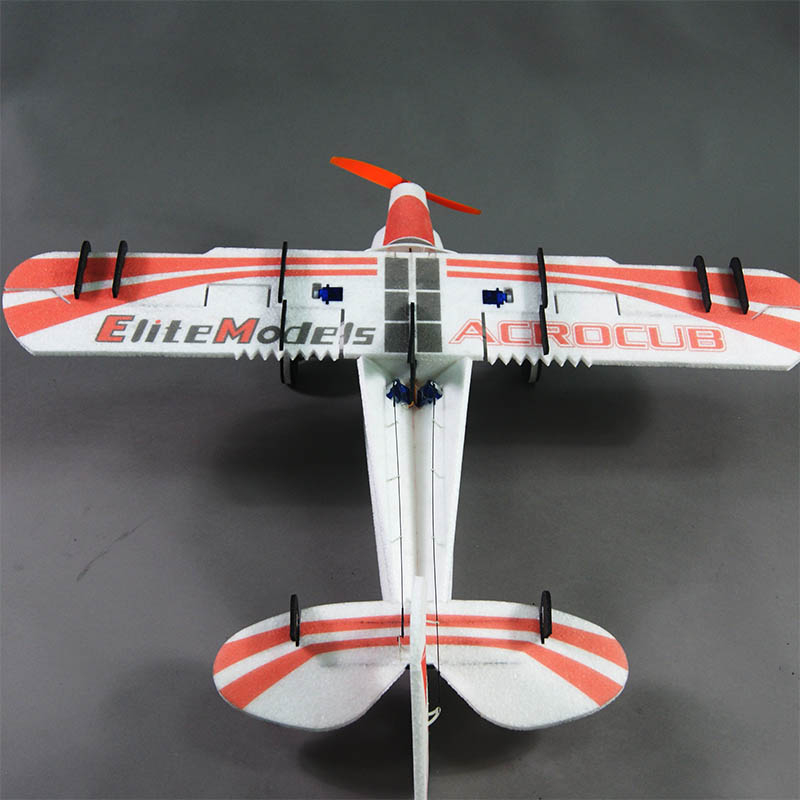

Acrocub J3 35" from Elite Models

Details

The Acrocub J3 is constructed from 8mm EPP sheet. 8mm EPP is much stiffer and more durable than 3mm or 5mm EPP, so less reinforcements are required. The fuselage and wing incorporates one carbon fiber square tube and strip.
This plane features the X-shape fuselage, which adds the scale looks and extra stiffness.

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Acrocub J3 35" in particular but at least we know they do distribute Elite Models.

Wingspan: 880mm (34.6 in)
Length: 800mm (31.5 in)

Weight: 270 g (9.5 oz)
  • Wingspan: 880 mm (34.6 in)
  • Length: 800 mm (31.5 in)
  • Wing Area: 13.8 dm² (213.9 sq in)
  • Flying Weight: 270 g (Approx. 9oz)

Recommended Setup(2S):

  • 2206-1900KV brushless motor
  • 12A ESC
  • 4 x 9g servo
  • 500mah 2S LiPO
  • 8 x 4.5 SF prop

Recommended Setup(3S):

  • 2206-1500KV brushless motor
  • 12A ESC
  • 4 x 9g servo
  • 500mah 3S LiPO
  • 8 x 4.5 SF prop
