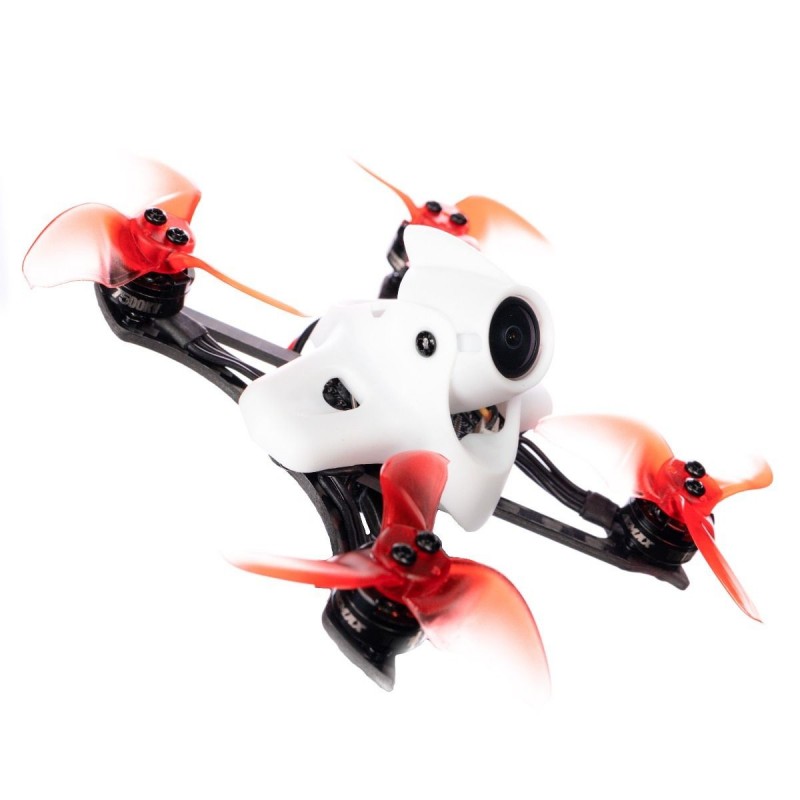

Tinyhawk 2 Race from Emax Model

Details

Equipped with a power system focused on speed and performance, the Tinyhawk 2 Race by EMAX is equipped with 1103-7500kv motors and AVAN blur 2 "propellers to increase its flight time and guarantee the pilot a flight long, fast and durable.

Features

  • Redesigned TinyHawk 2 for increased performance
  • Innovative power system
  • High quality carbon frame design
  • Reinforced aerodynamic outer canopy
  • Improved video system for more range and better picture quality

Pictures

Manual

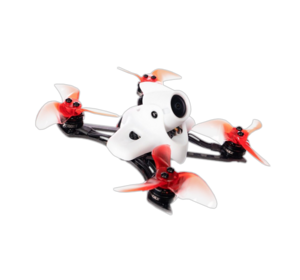

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Tinyhawk 2 Race in particular but at least we know they do distribute Emax Model.

Wingspan: 90mm (3.5 in)
Length: 90mm (3.5 in)

Weight: 73 g (2.6 oz)
  • Wheelbase: 90 mm
  • Weight: 47.5g (73g with 2 450mAh 1S batteries)
  • Frame material: polypropylene and carbon fiber

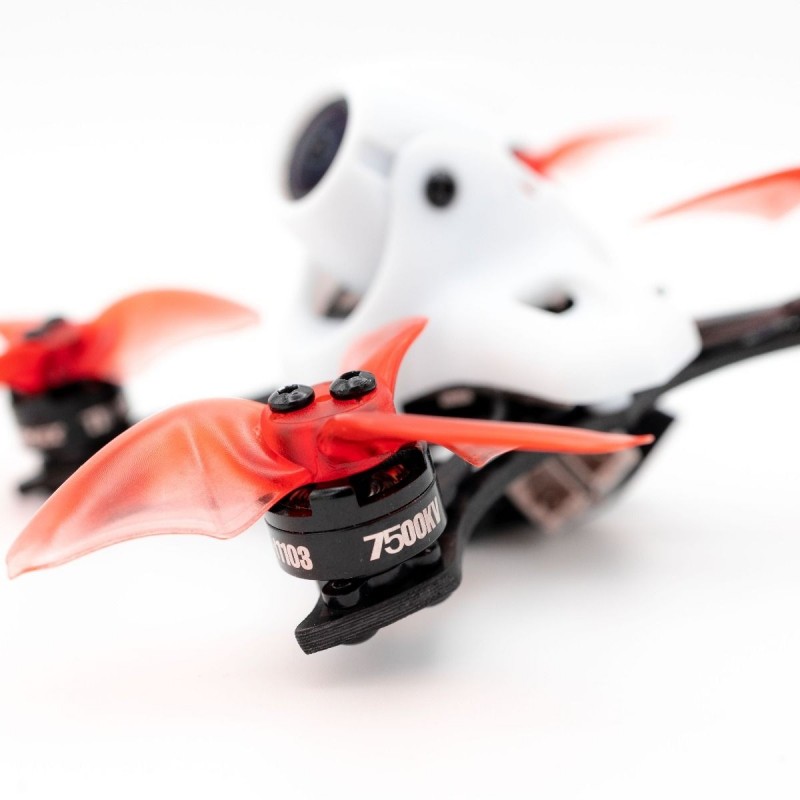

  • Motors: 1103 - 7500KV
  • Propeller support: T-mount

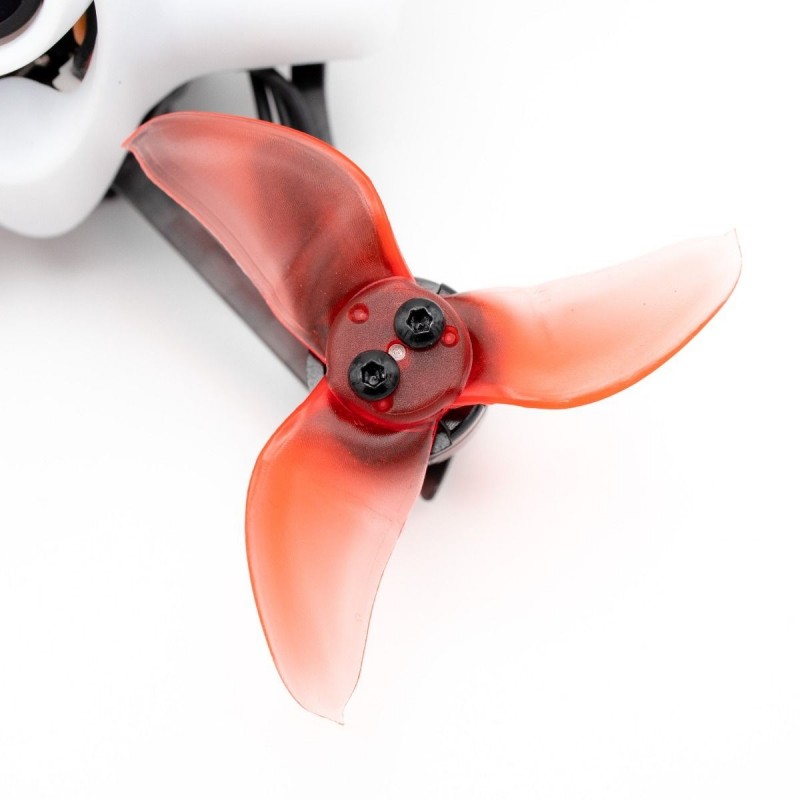

  • Propeller: Avan Blur 2 "
  • Flight controller: AIO F4 (MATEKF411RX Firmware)
  • ESC: 4in1 5A BlHeli_S
  • Receiver: EMAX SPI (compatible with FrSky D8 mode)
  • Battery connector: JST-PH2.0 Duo
  • VTX Power: 25/100/200 mw switchable (set to stay at 25 mW until armed)
  • Channels: 37CH incl. Raceband
  • Camera: RunCam Nano 2 1/3 "700TVL CMOS
  • Smart Audio Connected
