These files are large, so be patient during the download. Please read the readme.txt included in the ZIP

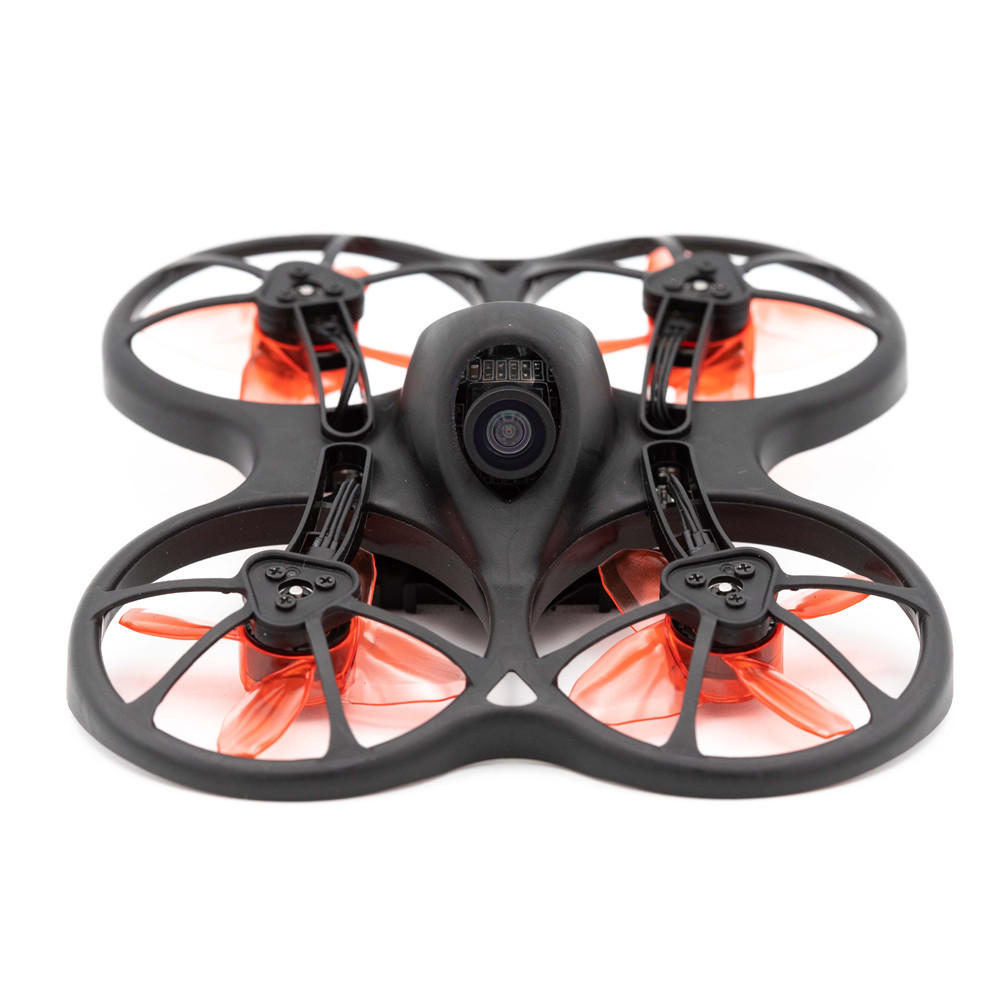

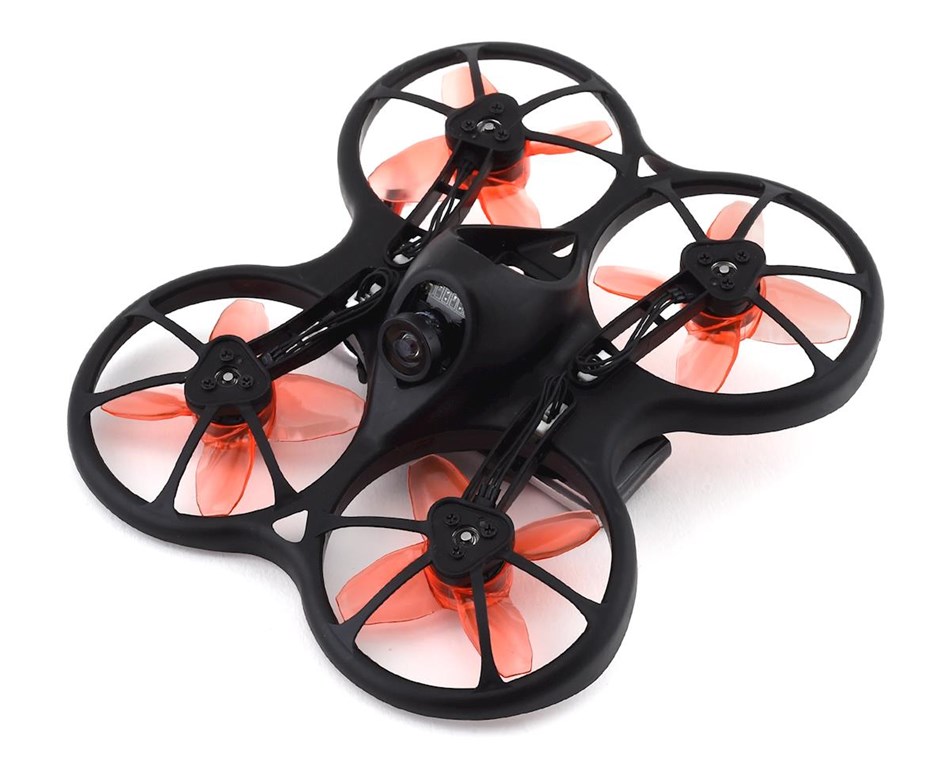

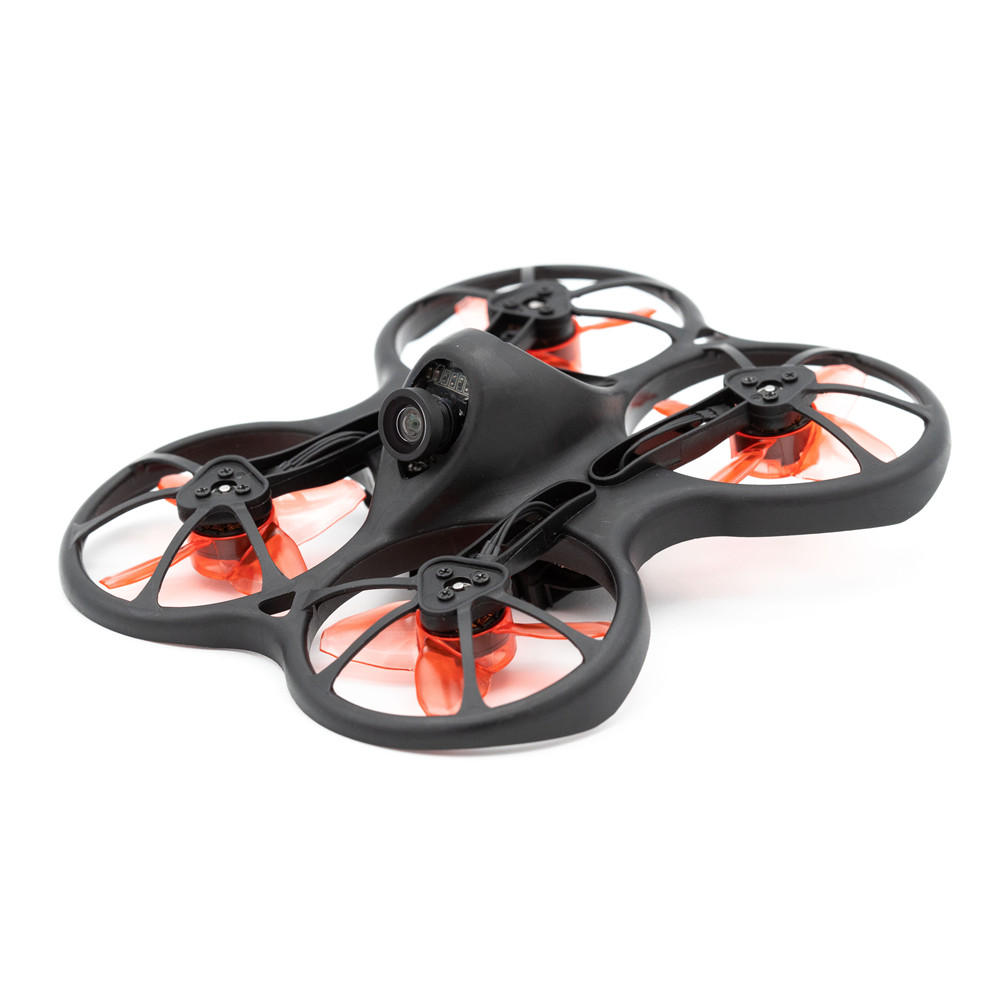

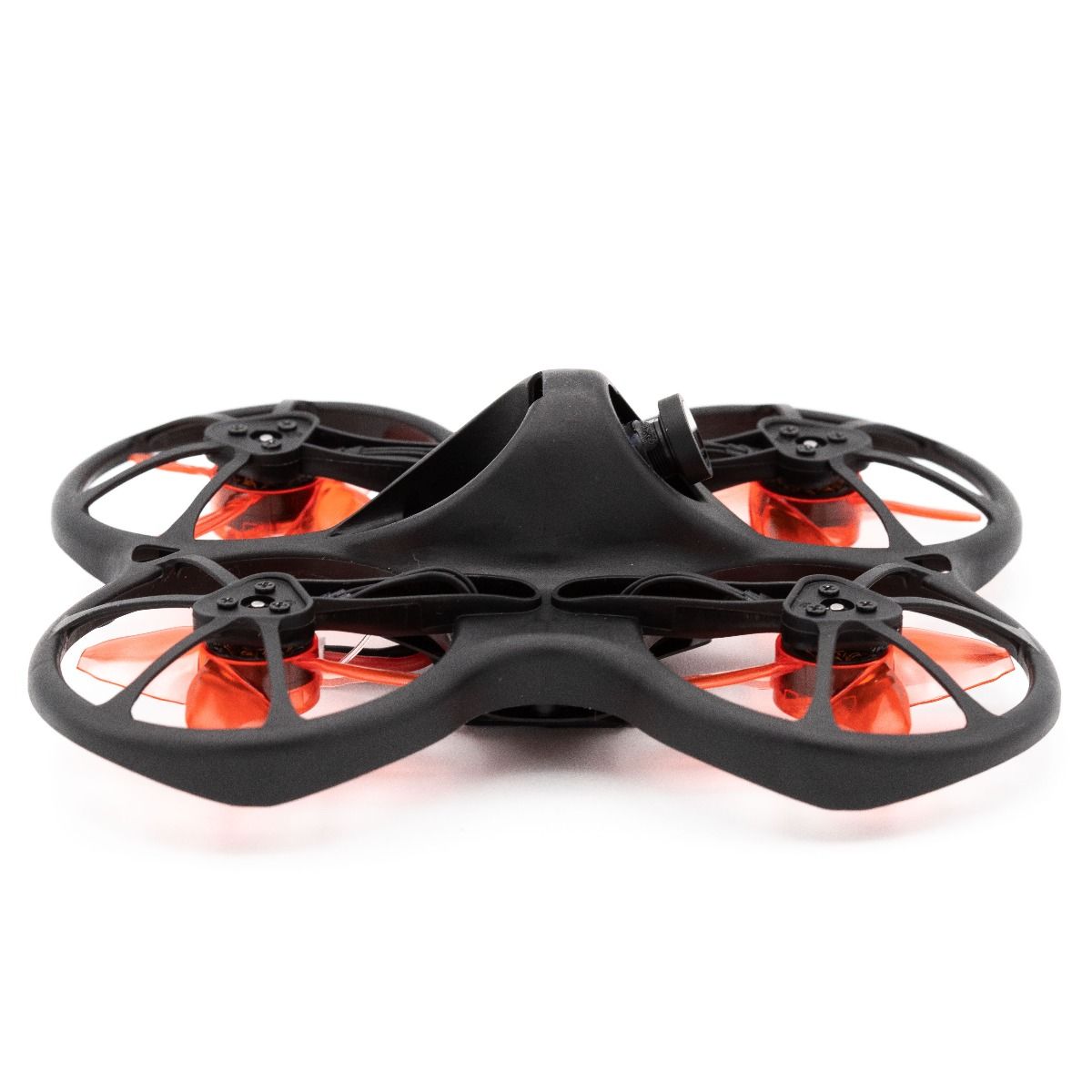

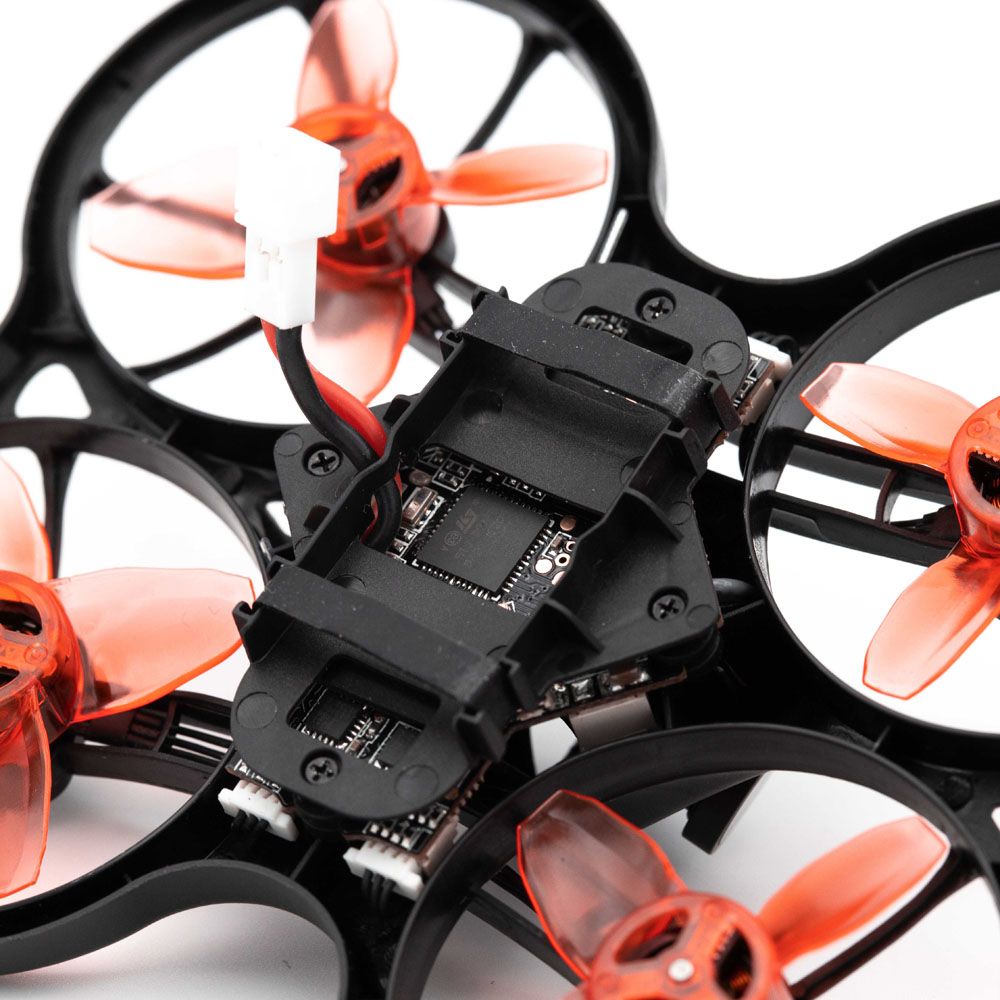

The Tinyhawk encapsulated the technological advancements made within the midro drone field, designed to fully realize the potential performance of a drone the size of the palm of your hand. But the engineers at EMAX didn't stop there. With further advancements pushing the boundaries within the miniature scale, the Tinyhawk S was born

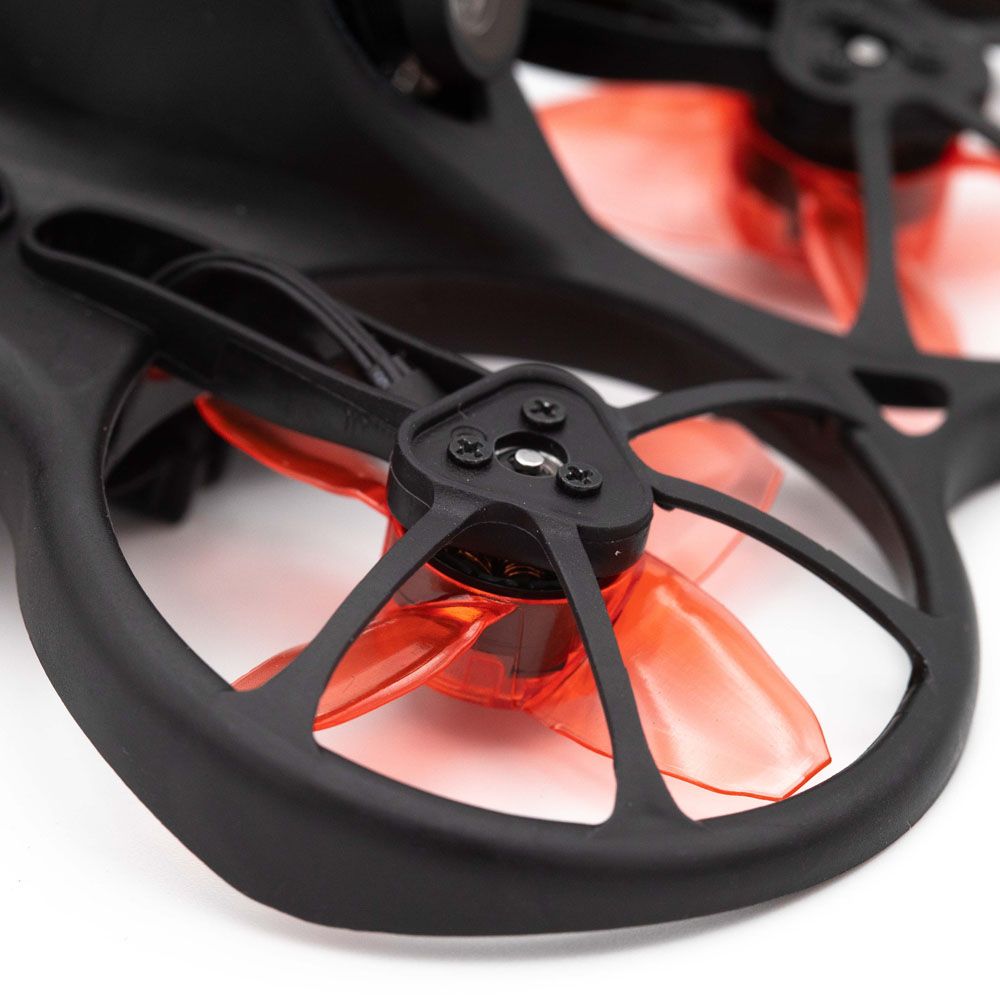

Utilizing this new power system, up to 20% more flight time than the previous generation can be achieved, as well as the ability to accept higher voltage (2S) in order for the pilot to customze the performance of the Tinyhawk S. Featuring a dual slot mount, the camera will be able to adjust its angle to the pilot's preference to help navigate the craft at higher speeds. With newly reinforced struts, the frame's durability is unmatched in its class.

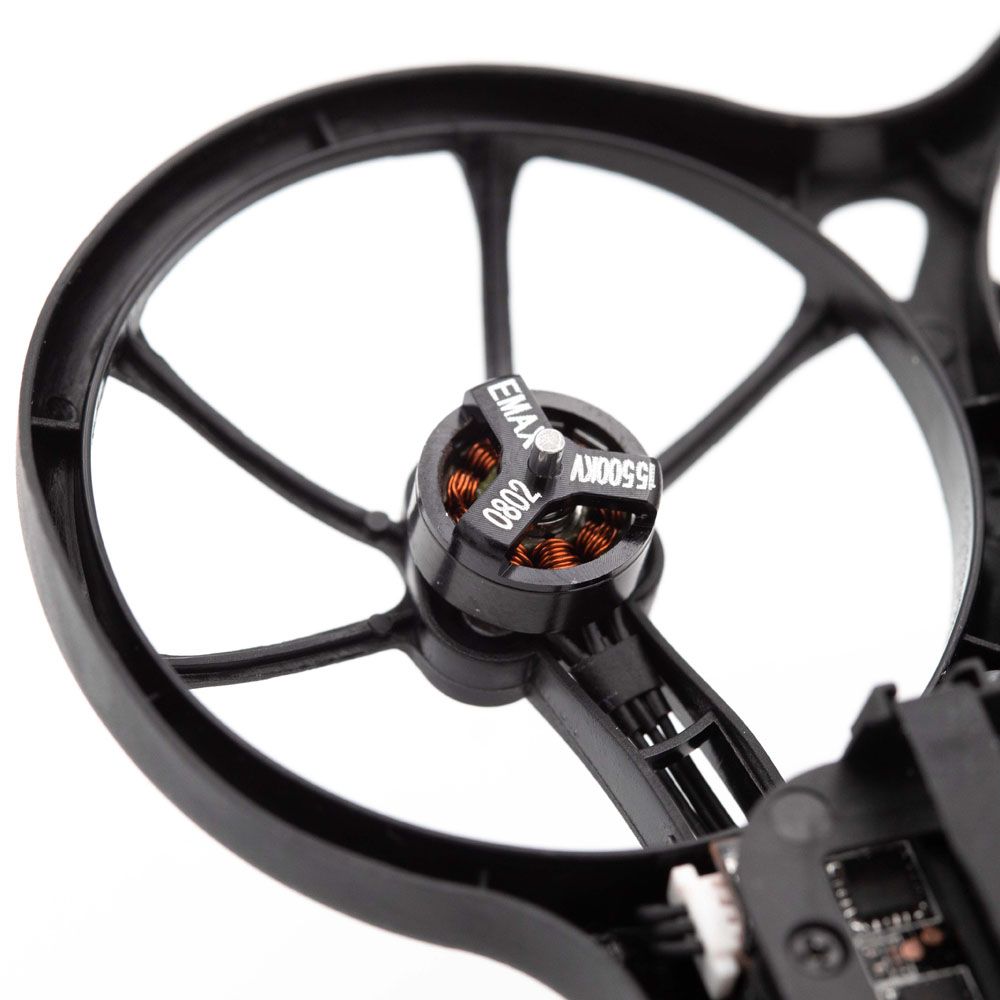

Determined to increase the efficiency of the entire power system, the Tinyhawk S features a newly engineered brushless motor that is both smaller in scale in order to reduce weight, but also be able to spin at higher RPMs, increasing the power output of the entire aircraft.
Features:
FrSky X20
FrSky XE
PNG (300x280)
BMP Recommended (300x280)
FrSky X18
FrSky Twin
PNG (180x166)
BMP Recommended (180x166)
FrSky X10
FrSky X12s
PNG (180x160)
BMP Recommended (180x160)
PNG (192x114)
FrSky X9D
FrSky X9E
BMP (64x32)
JPG (155x100)
Some content in menu 2.
Flight Controller: MATEKF411 F4 Flight Controller ESC: 5A 4in1 ESC Motor: H0802 15500KV Motor Propeller: Avan TH Tinyhawk Receiver: EMAX Tiny RX ( Compatible with Frsky D8 / D16) VTX: 37CH 25mW VTX Camera: 600TVL CMOS Camera Weight: 30g ( Without Battery) Maxinum Size of Drone: 125mm ( without antenna, cable tie)
