FW450L V3 from FLY WING

Details

With Newest H1 flight control system, support GPS and altitude hover flight. Support one-key return function, the flying trace looks like number "8". With 4S 2200mAh large capacity battery, flying time is up to 15mins(approx), and the flight distance up to 1000m. Using 700 class helicopter all-metal rotor brushless 5mm shaft tail motor, high speed and sensitive response .All-metal main gear, 18mm 3k carbon fiber tail boom, with 2816 poweful brushless main motor

Features:

  • Upgraded 60A helicopter ESC, 32-bit processor, better performance
  • The tall tube can be quickly disassembled , making it easier to maintain / carry
  • Upgraded 22mm metal rectangular tail tube , strong and beautiful
  • Widened landing skid , easier to take off and land
  • All-metal X three-dimensional tail motor base , stronger , betterheat dissipation
  • One-piece linkage rod , no need to adjust the length , avoid blade separat
  • thick lines upgraded version of the brushless motor , bringing more power

Pictures

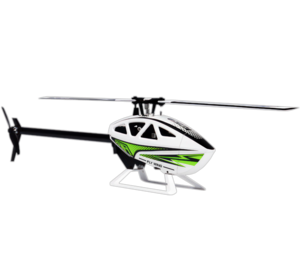

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the FW450L V3 in particular but at least we know they do distribute FLY WING.

Wingspan: 800mm (31.5 in)
Length: 880mm (34.6 in)

Weight: 800 g (1.8 lbs)
  • Channel: 6CH
  • Battery: 4S 72WH 5000mAh Battery
  • Body Length: 880mm
  • Body Width: 110mm
  • Body Height: 220mm
  • Main Rotor Diameter: 800mm
  • Main Blade Length: 360mm
  • Tail Rotor Diameter: 127mm
  • Motor Gear: 11T
  • Drive Gear: 66T
  • Tail Drive: Brushless Motor
  • Weight(no battery): 800g
  • Flight Time: approx.15mins
  • Flight Distance: approx.1000m

Other Variant(s)
