Super Scorpion from fms

Details

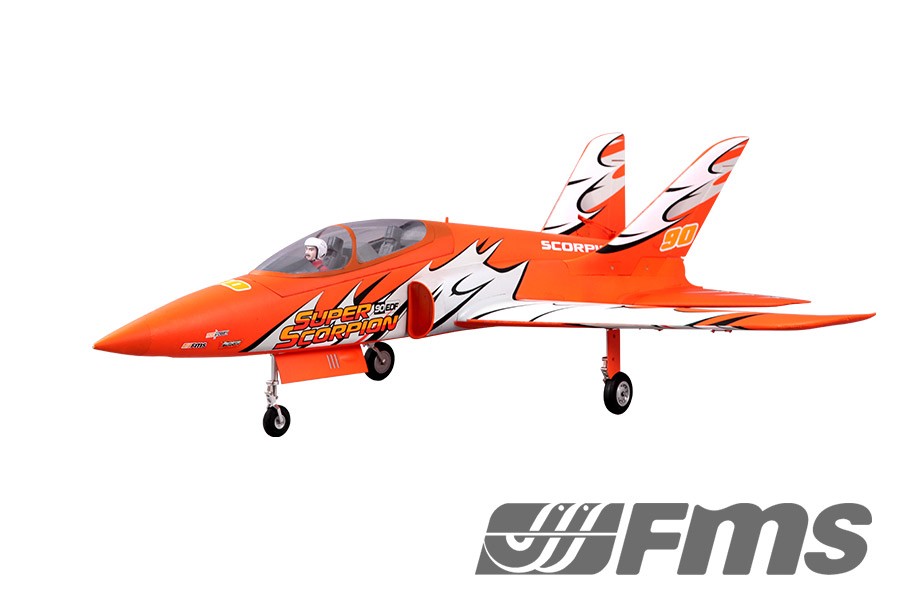

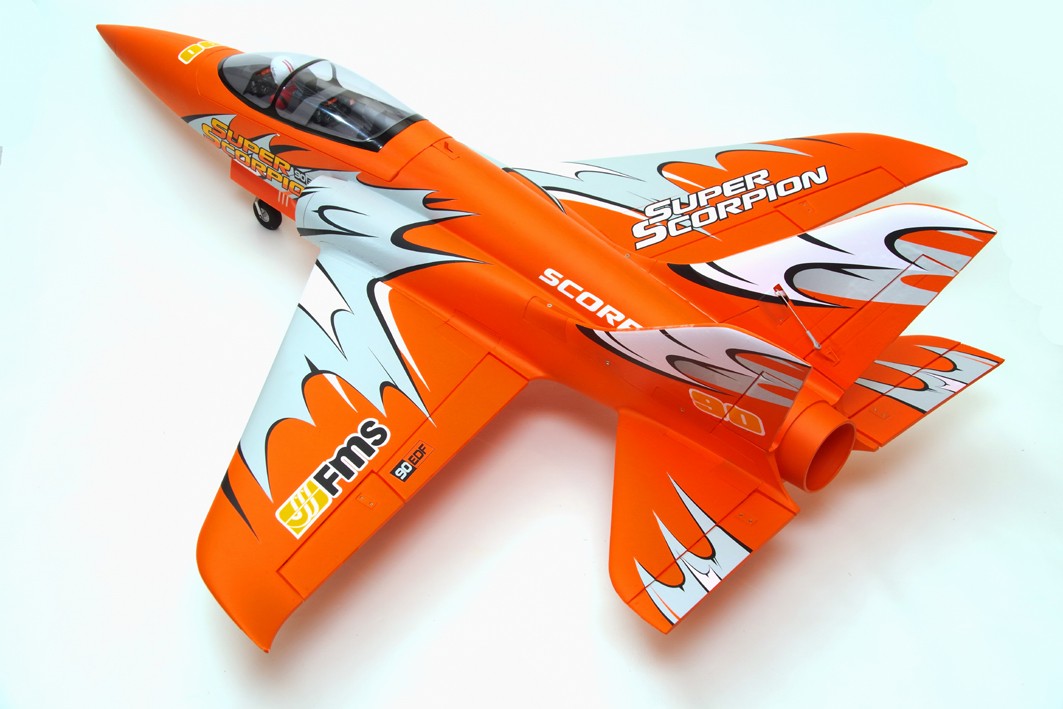

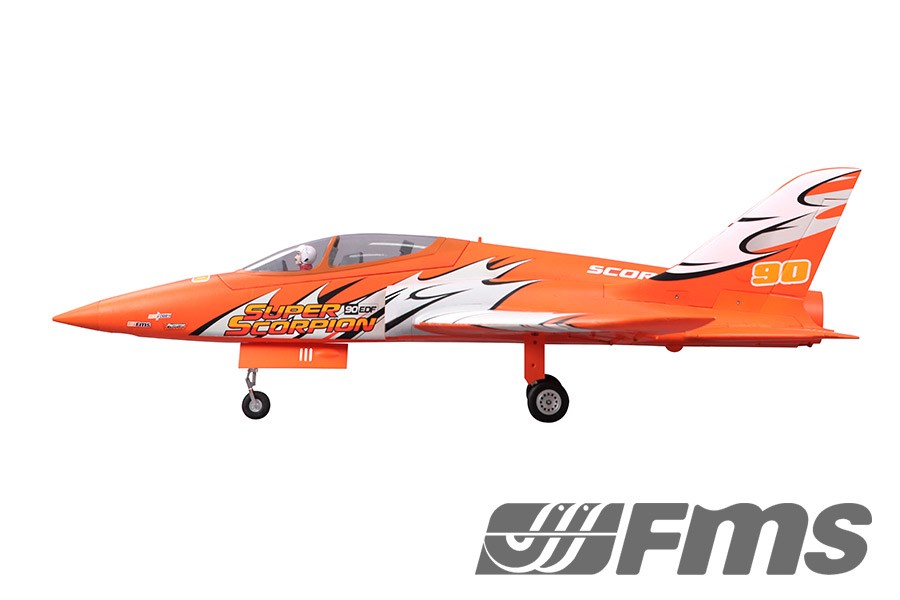

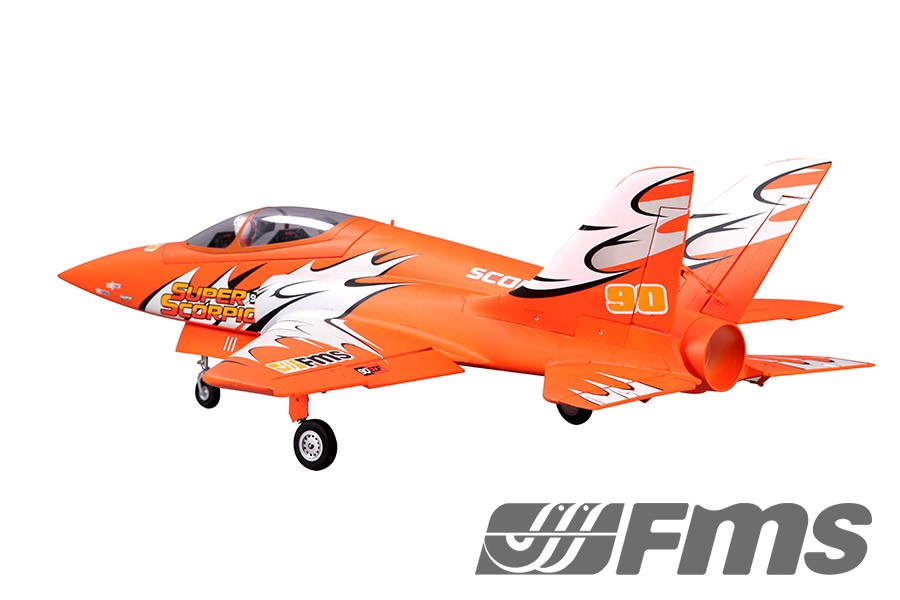

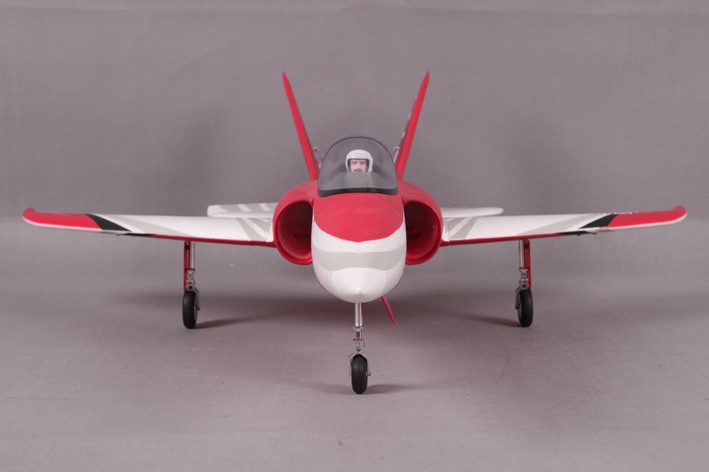

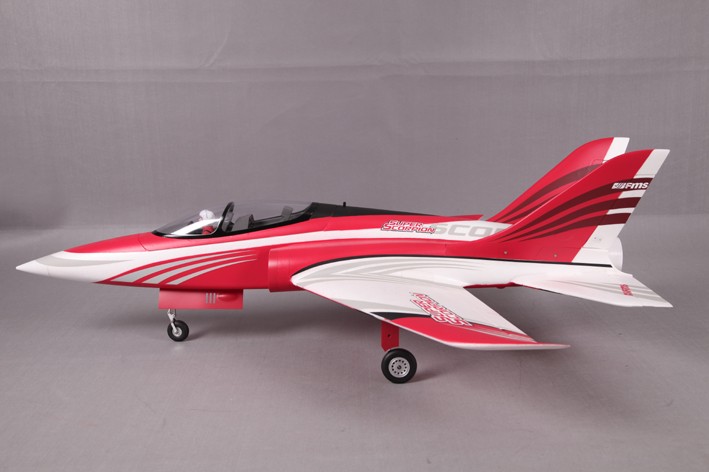

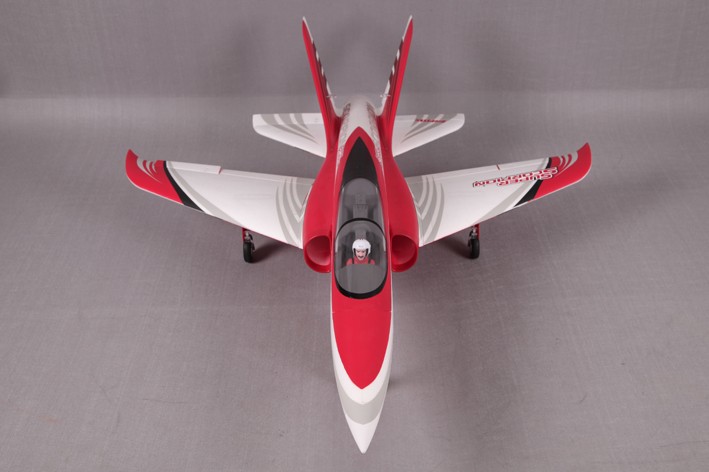

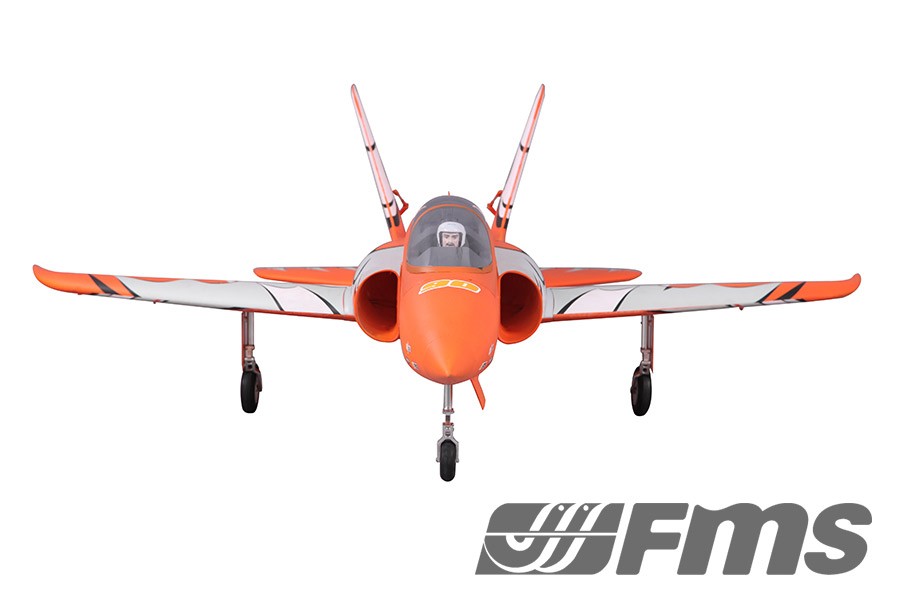

Inspired by the features of 70mm Super Scorpion, the higher level 90mm Super Scorpion is coming!

Super Scorpion is a collaborative venture bringing together original design and authorization from the Aviation Design Team from France with cutting-edge production methods from FMS in China.

The 90mm Super Scorpion keeps all superior features of the prior 70mm Super Scorpion, while improving the model structure, and adding a flap function. When working with the new power system, it performs excellently whether high-speed flying or standard-speed flying. In addition, it features the CNC-processed shock-absorbed metal landing gear set, a 50mm diameter front wheel and 68mm diameter rear wheels, these are excellent for taking off and landing on both paved and grass surface airfields.

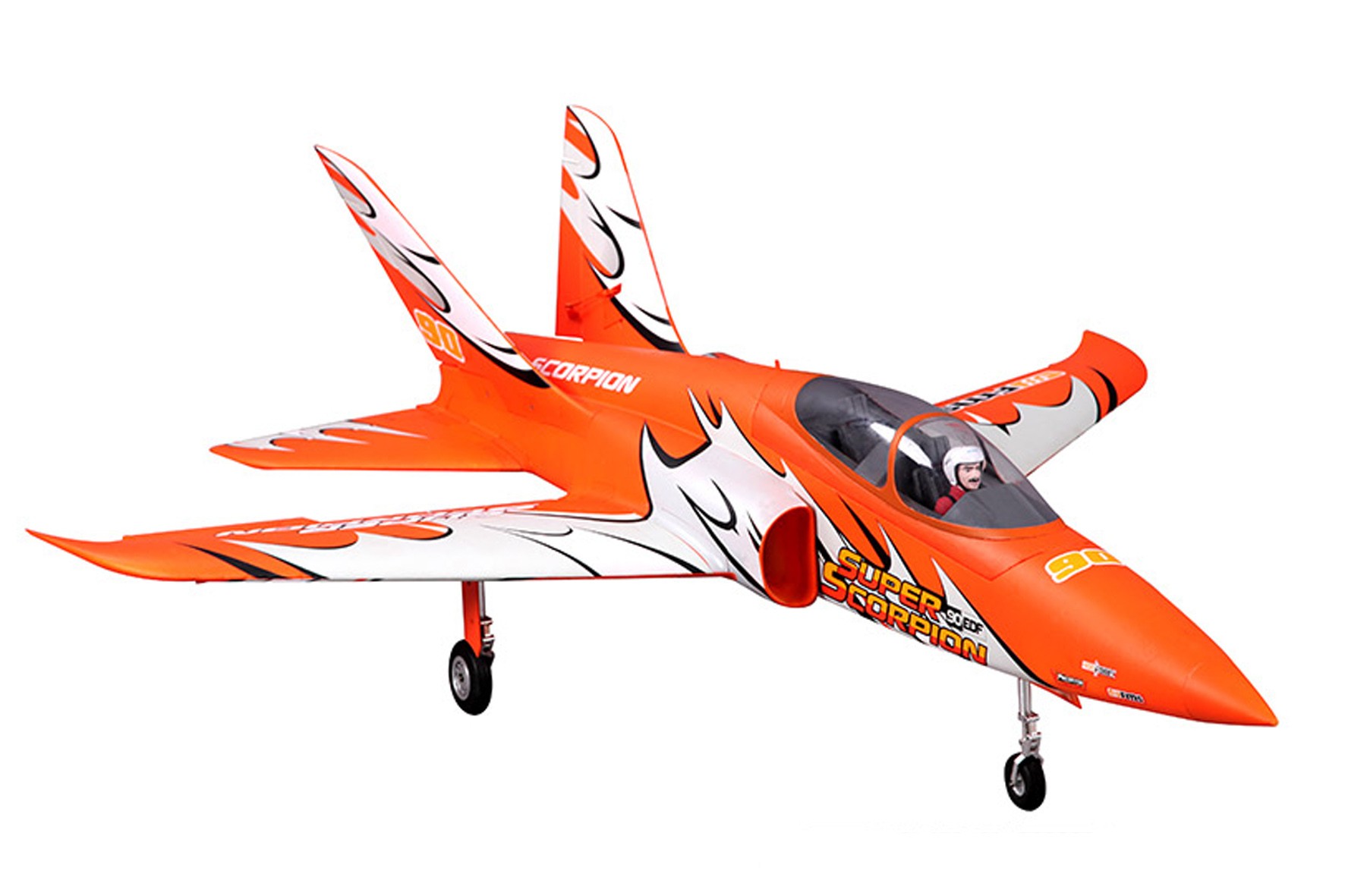

The coming 90mm Super Scorpion is another example of FMS’ quality. Incorporating many new and advanced construction and assembly features such as the optimized screw-based assembly, ball links and the new multi-connect technology, the Super Scorpion will assemble quickly. In addition, the power system utilizes our 90mm 12-blade EDF and the 3546-KV1900 motor system provides tremendous power and speed when coupled with a 6S battery. The vibrant orange color scheme makes this airplane look fantastic on the ground and in the air...
No matter whether you’ve had a Super Scorpion before or not, the coming FMS 90mm Super Scorpion is full of surprises.

Features:

  • 90mm 12-blade EDF, 3546-KV1900 motor system
  • High-quality Predator 130A ESC with 10A UBEC (external)
  • CNC-processed shock-absorbed metal landing gear set helps to withstand those less-than-perfect landings.
  • Dia. 50mm front wheel and Dia. 68mm rear wheels
  • Excellent Sound Effect.
  • Function Flaps
  • Metal Servos for excellent controlling capacity

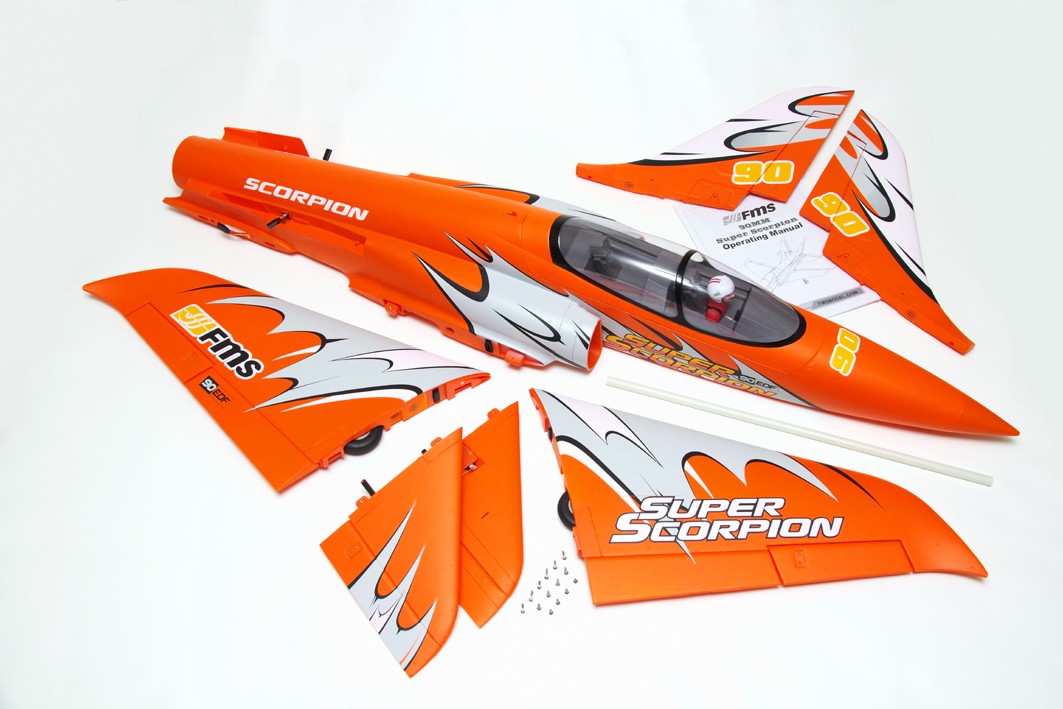

  • Multi-connector for easy assembly and disassembly
  • Pre-installed, newly designed ball link style control horns for more throw
  • No glue required. Screw-together construction
  • Environmentally friendly water-based paint for better color and gloss

Pictures

Manual

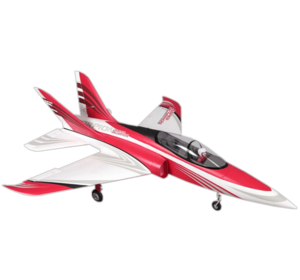

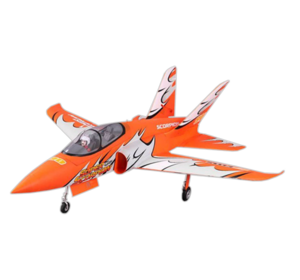

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the Super Scorpion in particular but at least we know they do distribute fms.

Where to buy

France
Flash RC
check web site
Ship to: Europe
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Germany
Voltmaster
check web site
Ship to: Europe
USA
TOWER HOBBIES
check web site
Ship to: International
USA
Flite Test Store
check web site
Ship to: Worldwire
Ireland
Model Heli Service
check web site
Ship to: Ireland
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
France
Breizh Modelisme
check web site
Ship to: Europe
USA
Hobby Zone
check web site
Ship to: USA
Belgium
Aerobertics
check web site
Ship to: Europe
Australia
Austars Model
check web site
Ship to: Worldwide
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
miniplanes
check web site
Ship to: France
Usa
Horizon Hobby USA
check web site
Ship to: USA
France
Turbines RC
check web site
Ship to: Worldwide
Austria
DMT
check web site
Ship to: Europe
USA
Graves RC
check web site
Ship to: USA
USA
Atlanta Hobby
check web site
Ship to: USA
Belgium
Beez2B
check web site
Ship to: Europe
France
Absolu Modélisme
check web site
Ship to: France
Australia
Daves Toys for Big Boys
check web site
Ship to: Australia
Germany
Modellbau Berlinski
check web site
Ship to: International
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
France
interModel
check web site
Ship to: France
United Kingdom
Arrow Models
check web site
Ship to: Europe
Netherlands
RC webshop
check web site
Ship to: Europe
USA
AMain Hobbies
check web site
Ship to: USA
France
Breizh Modelisme
check web site
Ship to: Europe
China
Fair RC
check web site
Ship to: USA and Canada
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom

Wingspan: 1140mm (44.9 in)
Length: 1319mm (51.9 in)

Weight: 3200 g (7.1 lbs)

Wingspan: 1140mm
Overall Length: 1319mm
Flying Weight: 3200g
Motor Size: Brushless 3546-KV1900 Motor
ESC: 130A
Servo: 13g Metal analog servo*5 17g Digital metal servo*4
Radio: 7 Channel (Aileron, Elevator, Rudder, Flaps, Retracts)
CG: 168-173mm (From leading Edge)
Recommended Battery: Li-Po 22.2V 5000mAh 45C
Flying Duration: 4 min
Material: EPO

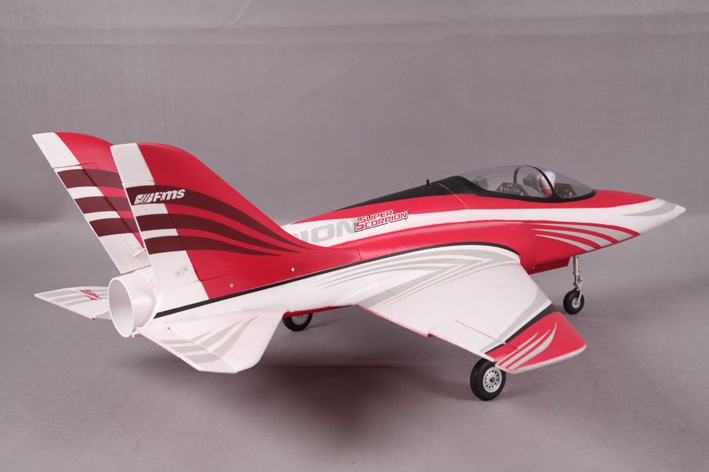

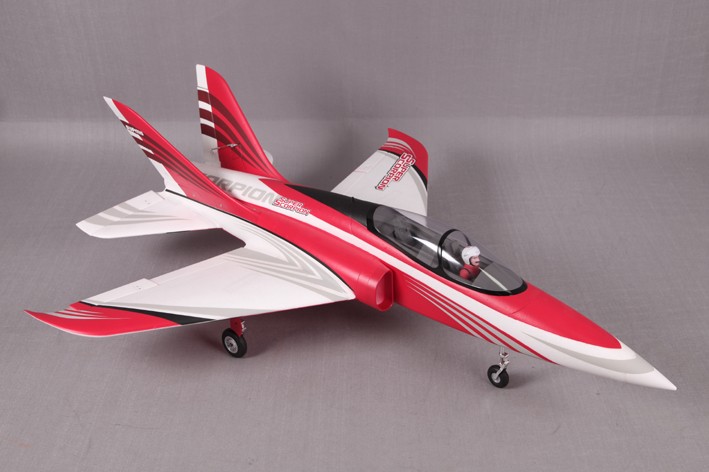

Other Variant(s)
