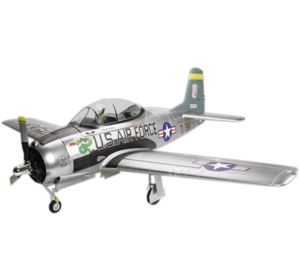

T-28D V4 Trojan from fms

Details

The FMS 1400mm T28 is going to get its fourth remarkable upgrade after it was launched three years ago. The 1400mm T28 V4 is coming!

No matter whether you had an FMS T28 or not before, the coming V4 is full of surprises. First of all, the foam ratio has been upgraded from EPO 40 to the lighter and larger EPO 52, which alleviates the airplane's weight, without weakening the airplane. Moreover, the original oil paint which has an unavoidable negative side effect of corrosion has been replaced by the latest environmental water-based paint.

Let’s take a look at more upgrades below.  The latest FMS multi-connector is also used for V4, which makes the assembly easy and simple while leaving the wires orderly and user-friendly. The 1400mm T28 V4 adopts the new design of ball linkage to remove the clearance and hit an accurate flight. The updated 4258 motor drives the power and speed around 30% higher. Both front and rear landing gears are metal, with a shock absorption function for hard landings. In terms of construction and performance, the 1400mm T28 V4 is totally different to the old versions. It is certain that the latest version greatly enhances flight appeal. Don't miss out on this thrilling experience.


Features:

  • New upgraded 4258-KV650 motor and 70A ESC
  • New technology lighter EPO foam
  • New water painting for environmental protection
  • Shock absorbing metal oleo front and main landing gear struts
  • Screw-in servo pockets. No more glued in servos! A bad servo can be replaced with 2 screws
  • Digital metal gear servos throughout
  • Ball links on all control surfaces
  • Easy, single wire quick connectors to remove the wings
  • Slide out battery tray for easy battery changes

Pictures

Manual

Radio icons

(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos
(Click on the icon you want to download)
Horus OpenTx
Horus FrOs
Standard
Silhouette
X9D/X9D+/X9E
FrSky X20/X20s/XE Ethos
FrSky X18/X18s Ethos

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the T-28D V4 Trojan in particular but at least we know they do distribute fms.

Where to buy

Ireland
Model Heli Service
check web site
Ship to: Ireland
France
Flash RC
check web site
Ship to: Europe
France
interModel
check web site
Ship to: France
USA
TOWER HOBBIES
check web site
Ship to: International
Usa
Horizon Hobby USA
check web site
Ship to: USA
Germany
Modellbau Berlinski
check web site
Ship to: International
Switzerland
Grischa Modellbau
check web site
Ship to: Switzerland
Switzerland
Wieser Modellbau
check web site
Ship to: Switzerland
France
Absolu Modélisme
check web site
Ship to: France
United Kingdom
Als Hobbies
check web site
Ship to: United Kingdom
Belgium
Aerobertics
check web site
Ship to: Europe
USA
Atlanta Hobby
check web site
Ship to: USA
USA
AMain Hobbies
check web site
Ship to: USA
USA
Hobby Zone
check web site
Ship to: USA
USA
Graves RC
check web site
Ship to: USA
Netherlands
RC webshop
check web site
Ship to: Europe
United Kingdom
Model Shop Leeds
check web site
Ship to: United Kingdom
Austria
DMT
check web site
Ship to: Europe
United Kingdom
Arrow Models
check web site
Ship to: Europe
USA
Flite Test Store
check web site
Ship to: Worldwire
France
Turbines RC
check web site
Ship to: Worldwide
United Kingdom
tjd Models
check web site
Ship to: United Kingdom
Germany
Voltmaster
check web site
Ship to: Europe
France
miniplanes
check web site
Ship to: France

Wingspan: 1400mm (55.1 in)
Length: 1185mm (46.7 in)

Weight: 2450 g (5.4 lbs)

Wingspan: 1400mm
Overall Length: 1185mm
Flying Weight:  2450g
Motor Size: 4258-KV650 Powerful Out runner Brushless Motor
ESC: 70A Brushless ESC with 5A SBEC
Servo: 9g Servo x 2, 17g Servo x 5
Radio: 6 Channel (Aileron, Elevator, Rudder, Flaps, Retracts)
CG: 80-85mm (From Leading Edge)
Prop Size: 13*9 3 Blade Propeller
Recommended Battery: Li-Po 14.8V 2600mAh
Flying Duration: 6 min
Assembly Time: 1 hour
Material: EPO


Variants

FMS083PSIL
T-28D V4 Trojan ()
635
T-28D V4 Trojan (Grey)
