B-25J Mitchell from FlightLine RC

Details

The B-25 Mitchell, produced by North American Aviation, was named in honor of Brigadier General William "Billy" Mitchell and first introduced in 1941. The medium bomber was used in every theater of WWII by various Allied air forces and continued to serve after WWII ended, with over 10,000 developed in numerous variants.

Motion RC is proud to bring the historic B-25 to the already impressive array of models from FlightLine. This model will satisfy any discerning B-25 aficionados with its fully operational servo-driven bomb doors complete with 4 dummy "bombs" for deployment. The scale CNC-aluminum alloy landing gear with gear doors really compliment the model's scale appeal. The B-25 comes with all digital servos ranging in plastic, hybrid, and metal gear at all the appropriate control surface points.

Features:

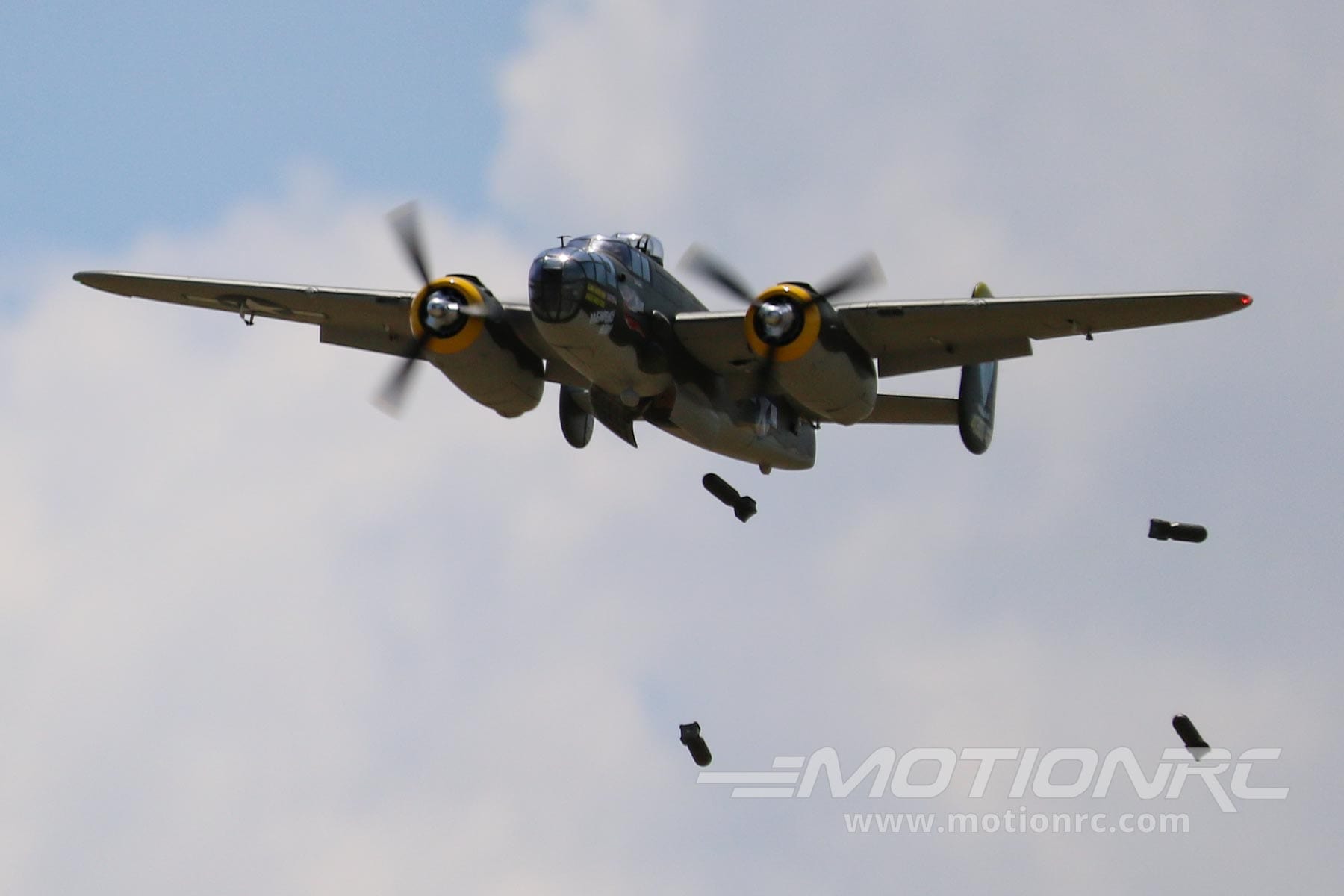

  • Servo-driven, fully operational bomb doors with 4 dummy "bombs" for deployment
  • 3 Different water slide decal sets (Heavenly Body, Executive Sweet and Mitch The Witch) to choose from with the stars and bars pre-applied out of the box
  • Scale CNC-machined aluminum alloy landing gear with sequenced gear doors
  • Quick-release wings that do not require any screws for effortless transport
  • 15 Digital servos throughout including plastic, hybrid and metal gear
  • New 2023 structural and spatial design conception exclusively from FlightLine

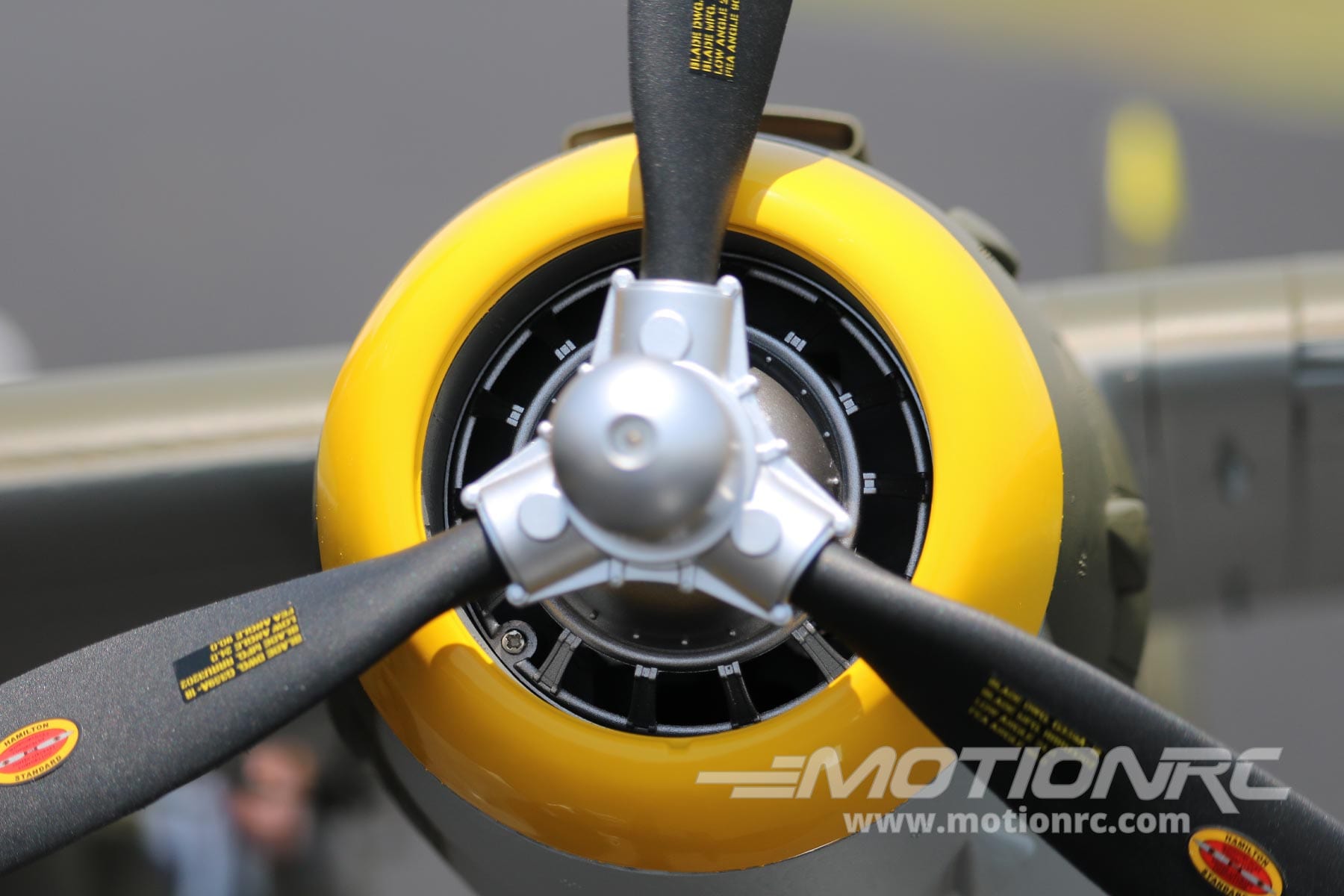

  • Flaps, two pilots, 3-blade propellers, LED lights, antennas and armament complete the scale appeal

Pictures

Manual

Radio icons

FrSky X20

FrSky XE

PNG (300x280)

BMP Recommended (300x280)

FrSky X18

FrSky Twin

PNG (180x166)

BMP Recommended (180x166)

FrSky X10

FrSky X12s

PNG (180x160)

BMP Recommended (180x160)

FrSky X10

FrSky X12s

PNG (192x114)

FrSky X9D

FrSky X9E

BMP (64x32)

BMP (64x32)

FrSky X10

FrSky X12s

JPG (155x100)

Similar Models

Some content in menu 2.

We cannot guarantee that the shops listed below do sell the B-25J Mitchell in particular but at least we know they do distribute FlightLine RC.

Wingspan: 1600mm (63 in)
Length: 1280mm (50.4 in)

Weight: 3050 g (6.7 lbs)
Wingspan 1600mm / 63in
Length 1280mm / 50.39in
Empty Weight 3050g / 107.58oz (w/o battery)
CG (Center of Gravity) 82mm (3.22") from the leading edge of the wing at the root
Power System 2x 6S 3748-450Kv Brushless Outrunner Motors
Electronic Speed Control 2x 50A, 7A BEC with EC5 Connectors
Propeller / EDF 2x 12x7 3-Blade Propellers (Normal and reverse)
Servos
  • 9g digital plastic gear standard with 100mm lead : right inside flap - MD31091-100
  • 9g digital plastic gear reverse with 100mm lead : left inside flap - MD31091R-100
  • 9g digital hybrid gear standard with 200mm lead : left outside flap, right outside flap - MD31093-200
  • 9g digital plastic gear standard with 300mm lead : left gear door, right gear door, bomb door - MD31091-300
  • 17g digital metal gear standard with 300mm lead : left aileron, right aileron, left elevator - MD31172-300
  • 17g digital metal gear reverse with 300mm lead : right elevator - MD31172R-300
  • 9g digital plastic gear standard with 500mm lead : nose cabin door - MD31091-500
  • 9g digital hybrid gear standard with 500mm lead : nose gear - MD31093-500
  • 9g digital hybrid gear standard with 600mm lead : left rudder, right rudder - MD31093-600
Landing Gear Electronic retractable CNC aluminum alloy tri gear
Required Battery 6S 22.2V 5000-5500mAh LiPo with EC5 connector (required)
Required Radio 6 Channel (required)
